I.T. 165W 230+/-6% 320/260/50 220-180mA
6.3VCT 6A/5-6.3 3A
I.T. 165W 230+/-6% 320/260/50 220-180mA
| Codice | PS-EI96006CV-N |
| Prezzo lordo |
89,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
89,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 4 PZ |

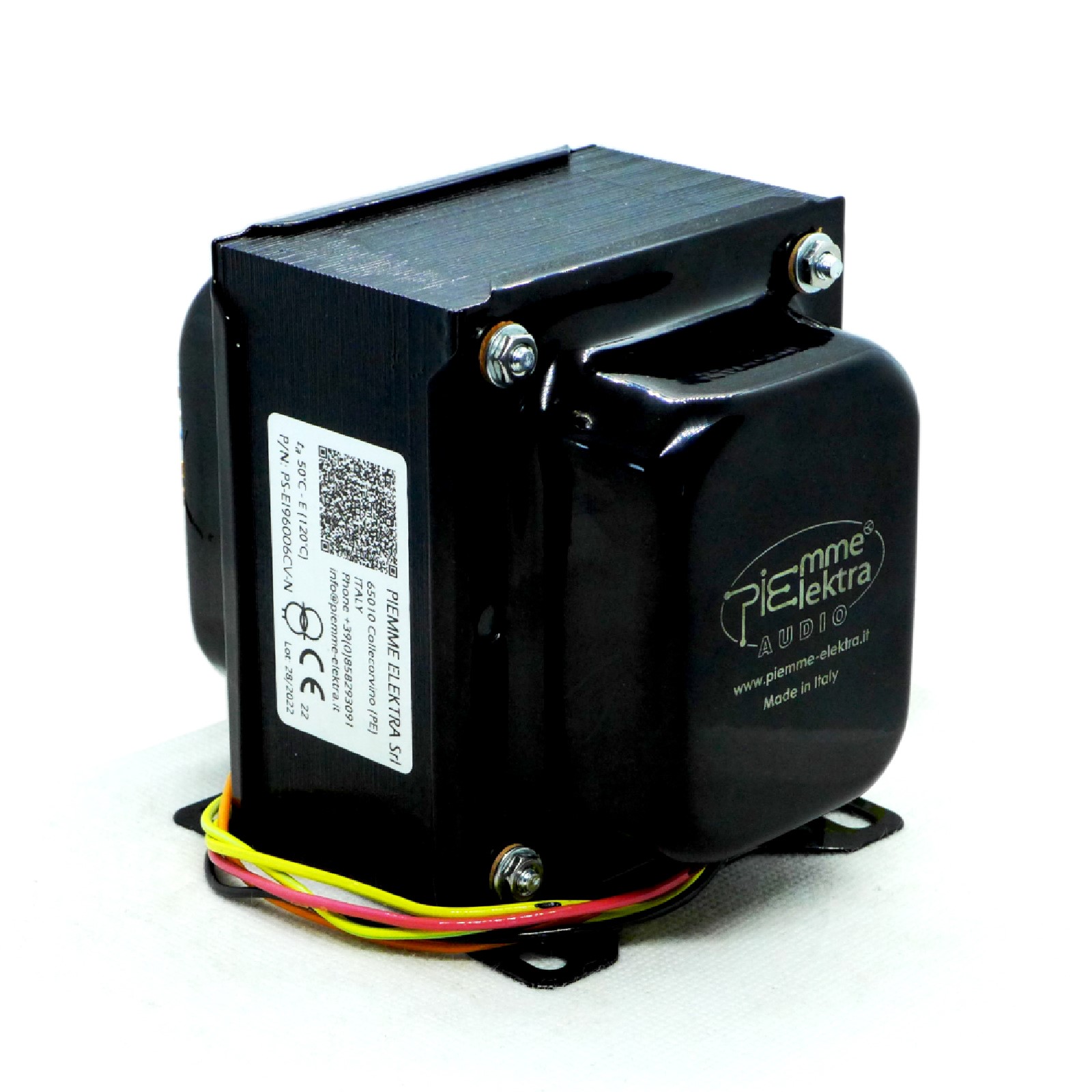

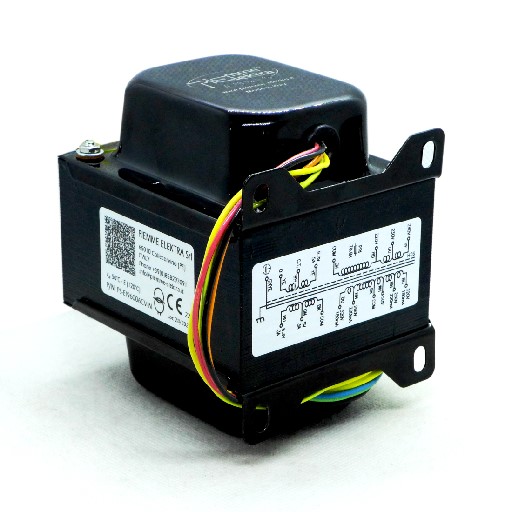

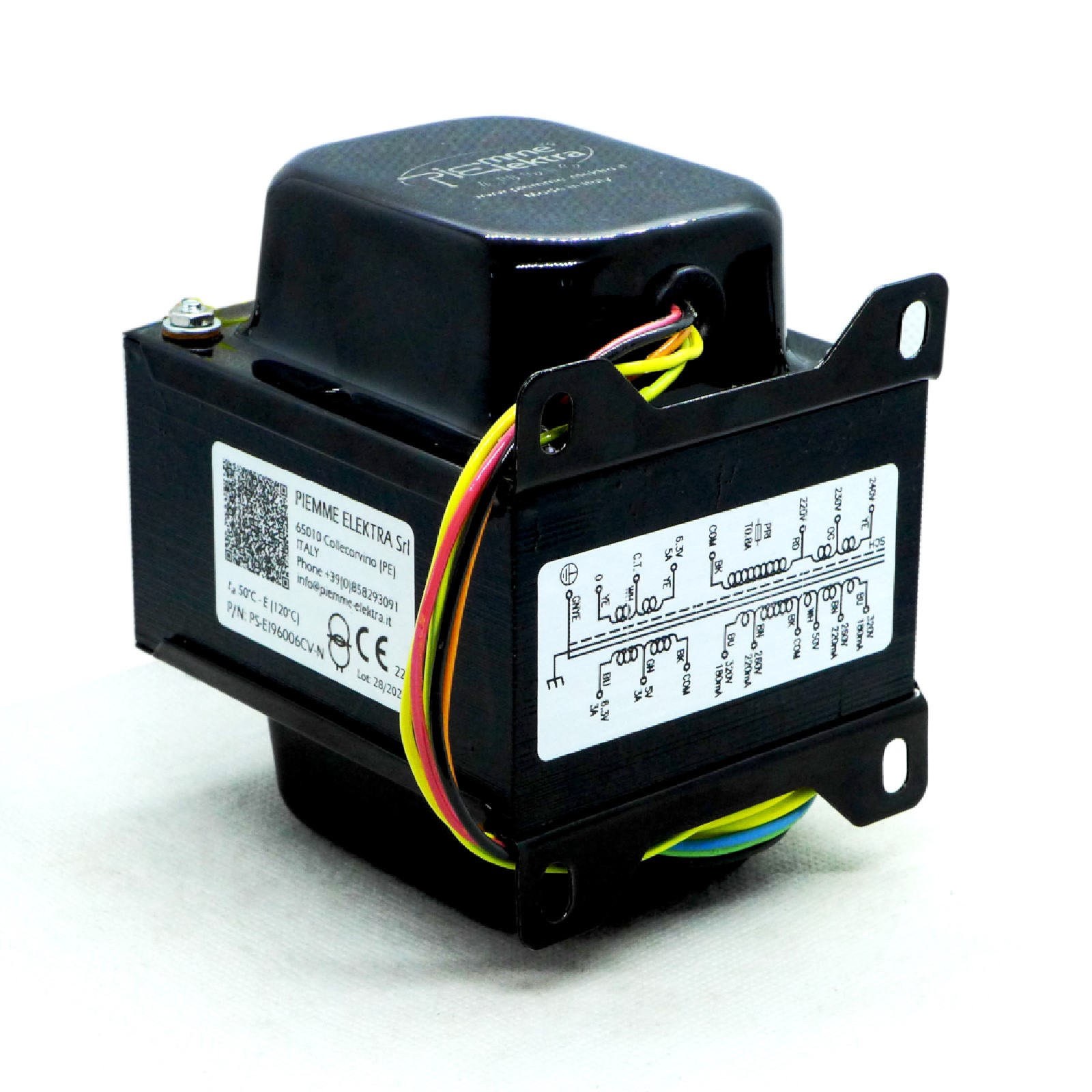

Power Transformer
Power: 165VA
Input: 220-230-240V (6.8-7.1-7.4 Ohm)
Output:
- 320-260-0-50-260-320V 0.18A
No load voltage: 332.7-270.2-51.9V
Rdc 260-260:75 Ohm, 320-320:94 Ohm)
- 5-6.3V 3A
No load voltage: 5.5-6.8V
Rdc 80-95mOhm
- 6.3V (C.T.) - 5A
no load voltage 6.8V
RDC 45mOhm
Primary/Secondary Shield

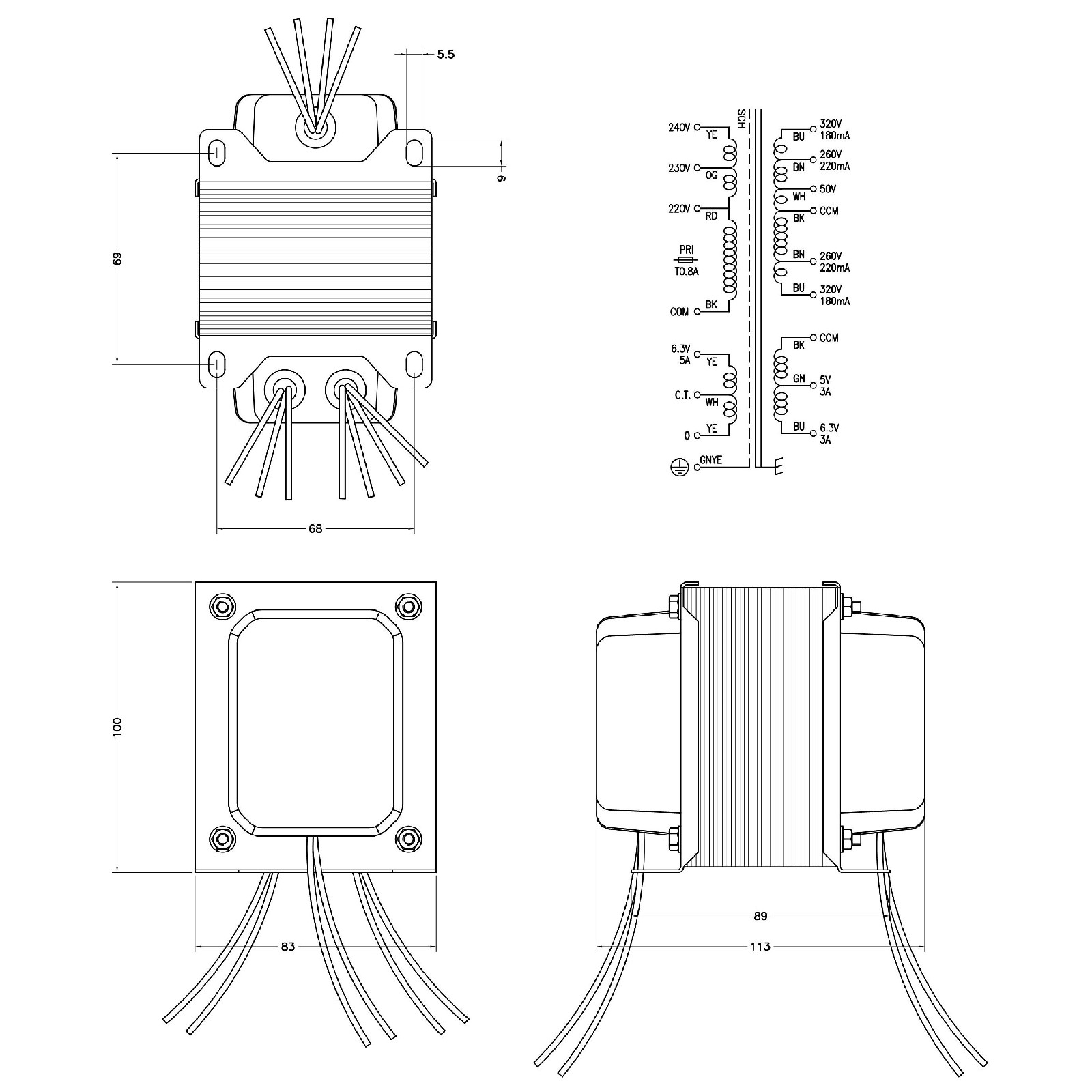

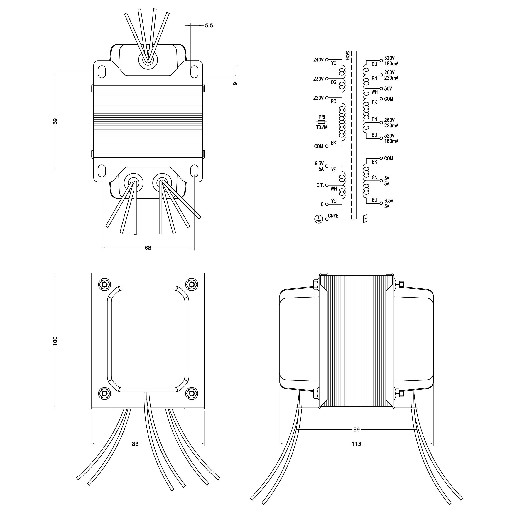

Dimensions and schematic: see drawing
Weight: 3130g
