DC Filter Choke 10H 130mA 190 Ohm

PZ
Code DC-EI68030F
Price 18.700 EUR/PZ
(including VAT 22%)
Discount
Net price 18.700 EUR/PZ
(including VAT 22%)
Availability 6 PZ
DC Filter Choke

Inductance: 10 H
Resistance: 190 Ohm
DC current: 130 mA

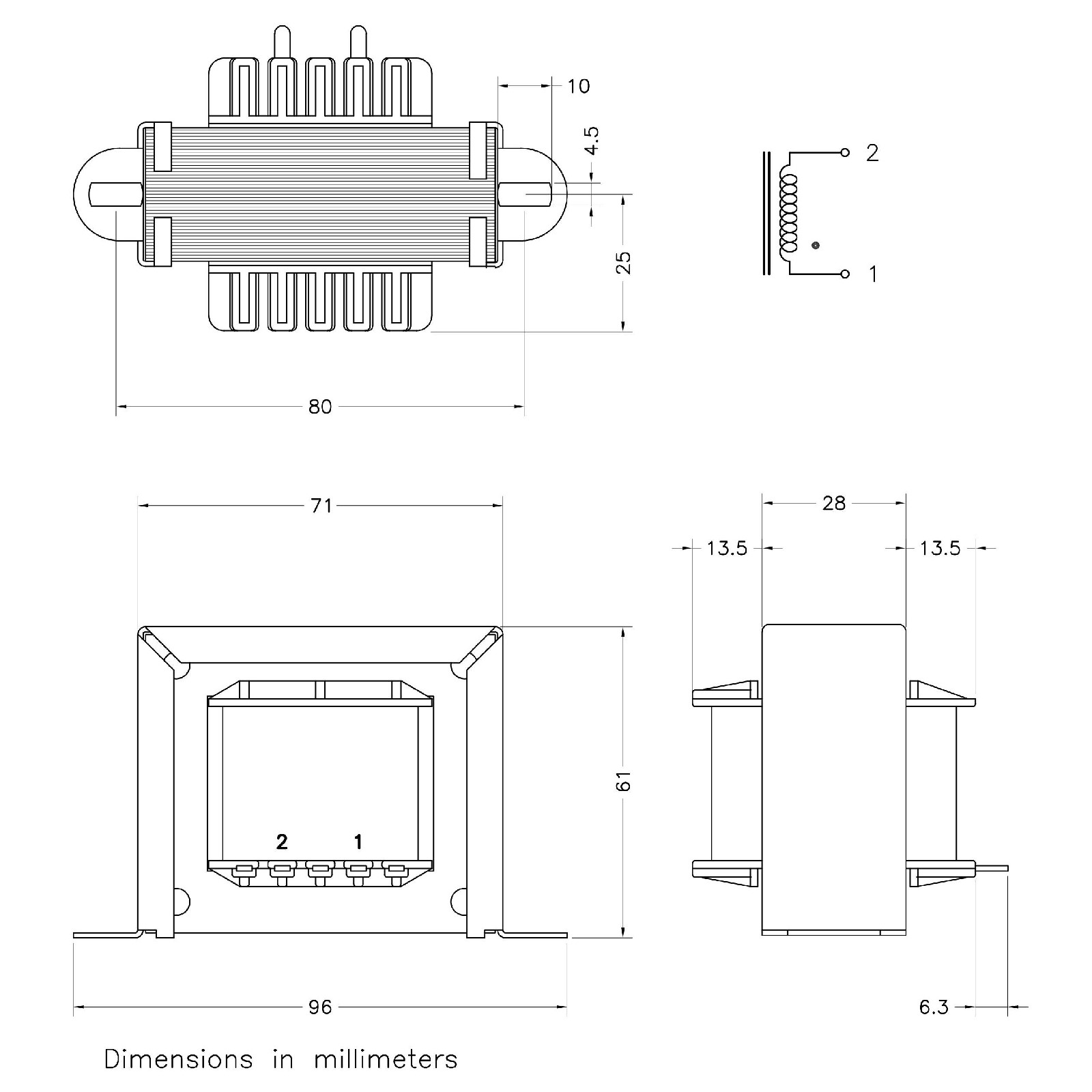

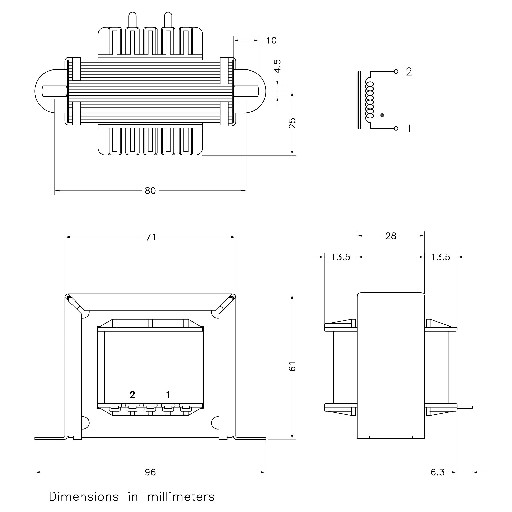

Dimensions and schematic: see picture
Weight: 820 g.
