63VA 230/sch/325-0-325V 0.11A
6.3V CT 2.5A, 5V 3A
63VA 230/sch/325-0-325V 0.11A
| Codice | PS-EI75009CH-N |
| Prezzo lordo |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |
Fits directly into projects like Champ and Princeton Reverb
Primary: 230VAC
Secondary 1: 325 - 0 - 325V 0,11A
0-6,3V CT 2A
0-5V 3A (5U4 rectifier work with this transformer)

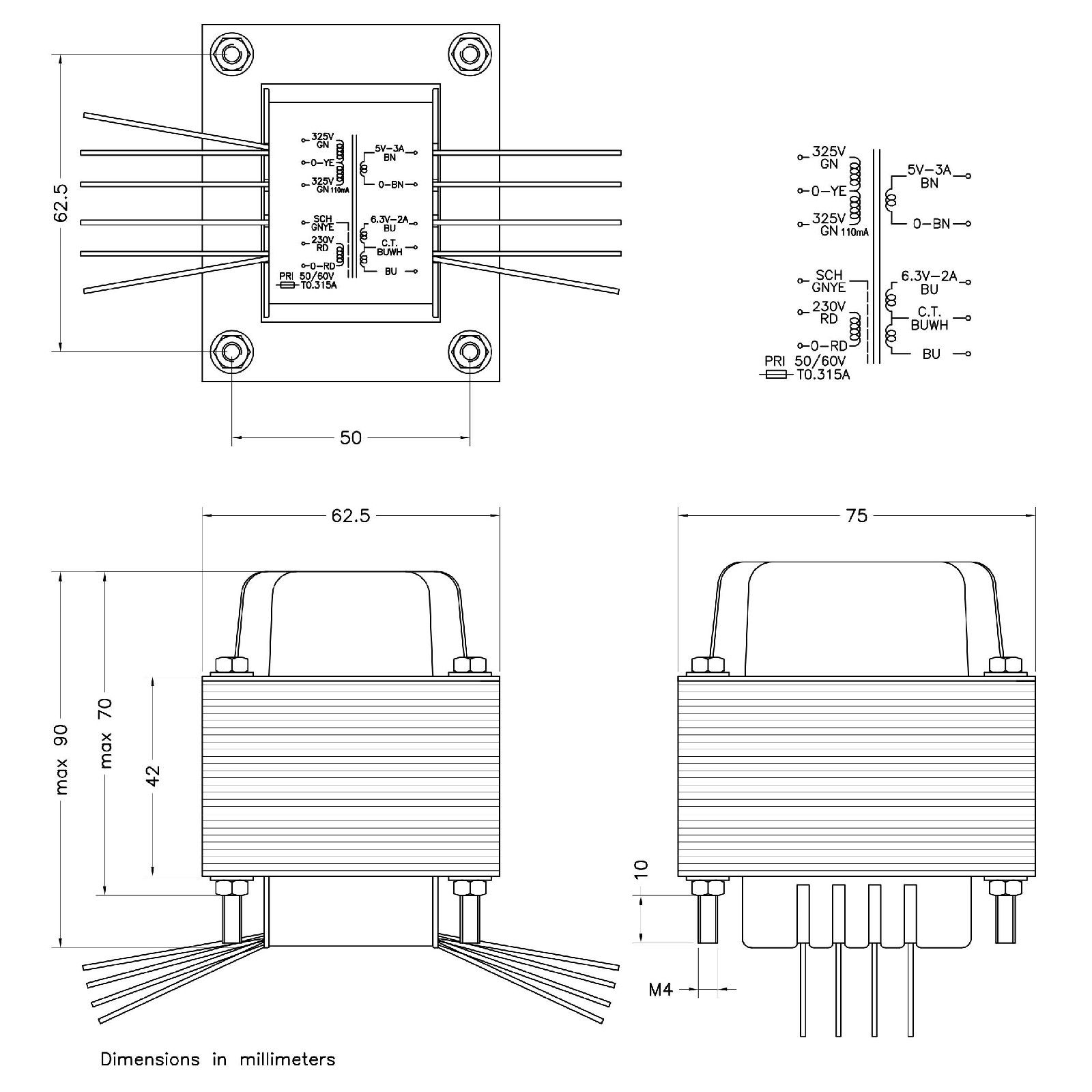

EI75 package, thus fits directly into Champ and Princeton Reverb enclosures
Comparable to Hammond 291AEX, but more convenient to use as secondary only has a 230VAC coil
tests:
With a diode rectifier and a 100mA load, DC 397V
Primary: 230VAC
Secondary 1: 325 - 0 - 325V 0,11A
0-6,3V CT 2A
0-5V 3A (5U4 rectifier work with this transformer)
EI75 package, thus fits directly into Champ and Princeton Reverb enclosures
Comparable to Hammond 291AEX, but more convenient to use as secondary only has a 230VAC coil
tests:
With a diode rectifier and a 100mA load, DC 397V
