I.T. 48VA 220-230-240 with shield
250-260-280-300V 120mA, 12.6 1A
I.T. 48VA 220-230-240 with shield
| Code | PS-EI68069F |
| Price |
49.0000 EUR/PZ
(including VAT 22%) |
| Discount | |
| Net price |
49.0000 EUR/PZ
(including VAT 22%) |
| Availability | 6 PZ |
| Price for quantity (up to): | |
|---|---|
| 2 PZ | 49.0000 EUR/PZ (including VAT 22%) |
| 4 PZ | 46.0000 EUR/PZ (including VAT 22%) |
| 6 PZ | 44.0000 EUR/PZ (including VAT 22%) |
| 10 PZ | 39.0000 EUR/PZ (including VAT 22%) |

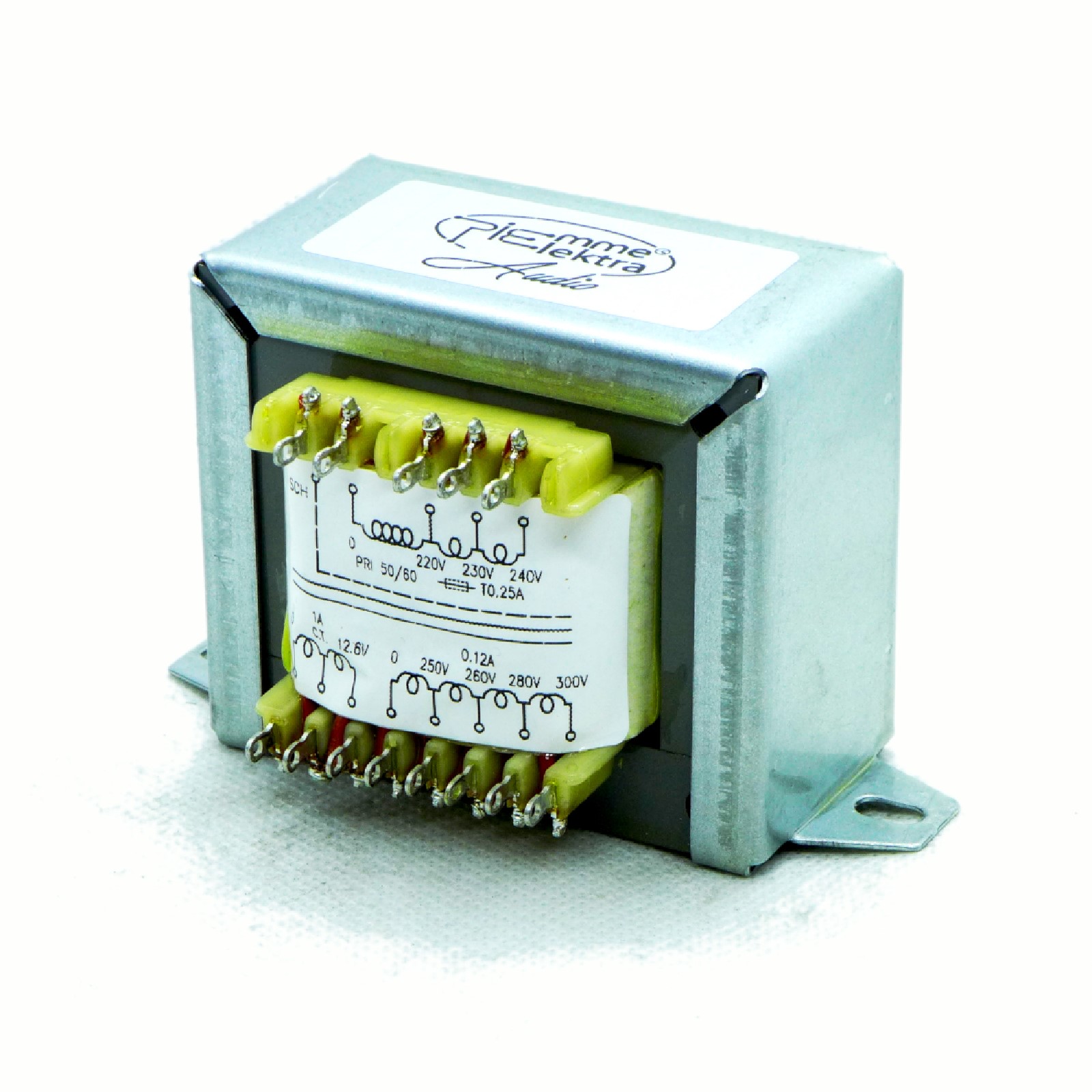

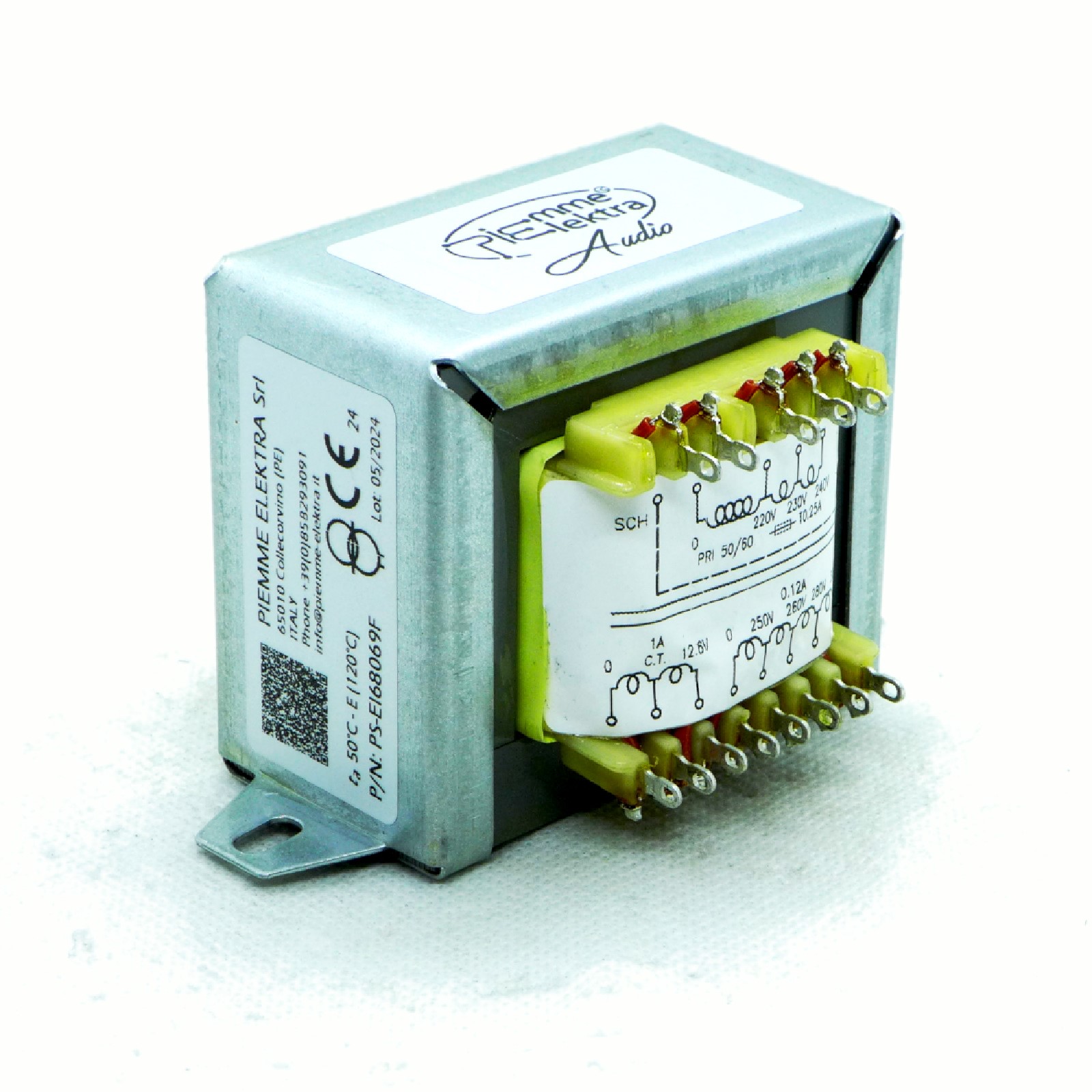

Power Transformer
Power: 48VA
Input: 220-230-240V
Output:
- 0-250-260-280-300V - 0.120A - Vo 265-275.5-296.8V
- 12.6V C.T. - 1.0A - Vo 6.84-13.68V
Primary/Secondary Shield and

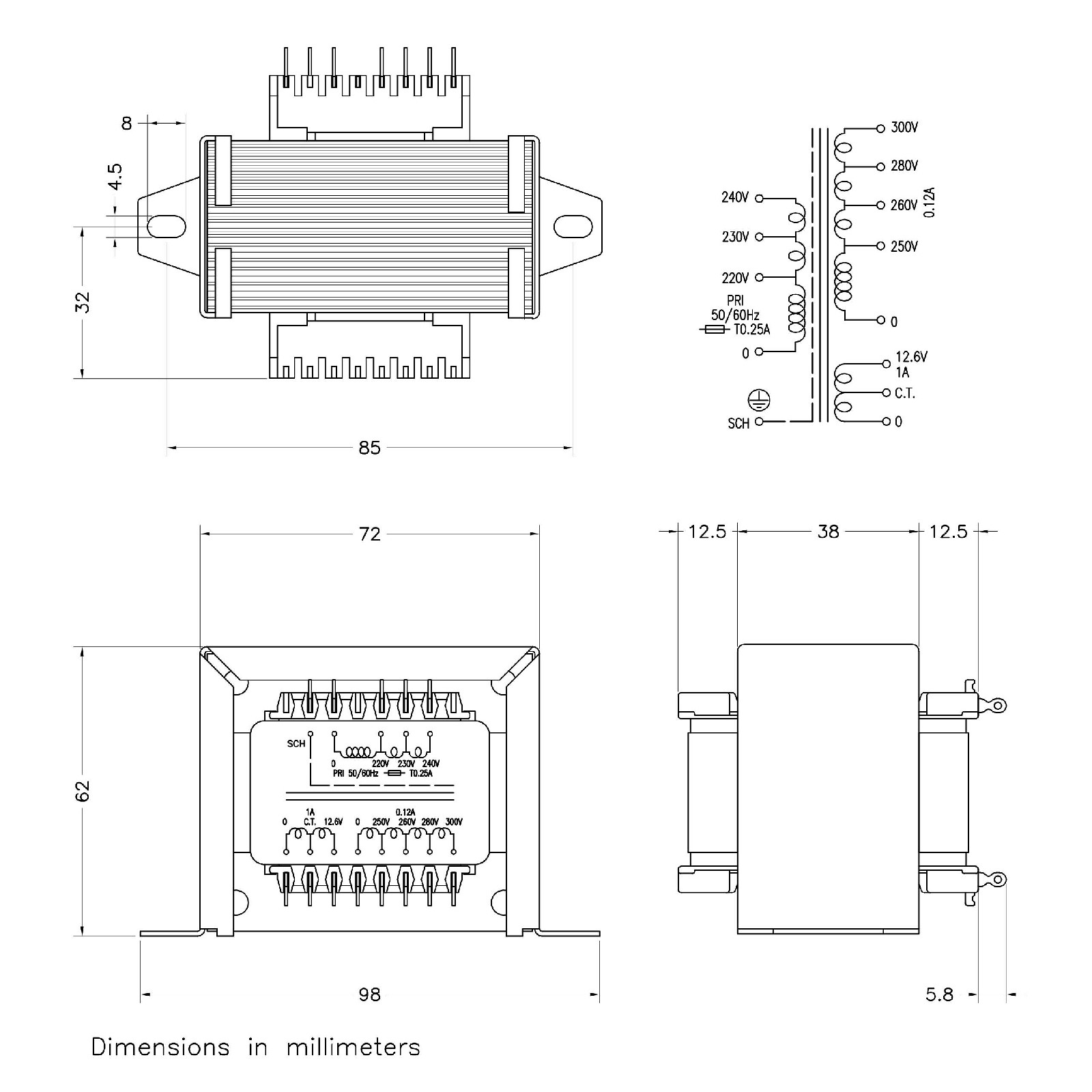

Dimensions and schematic: see drawing
Weight: 1100g
Power: 48VA
Input: 220-230-240V
Output:
- 0-250-260-280-300V - 0.120A - Vo 265-275.5-296.8V
- 12.6V C.T. - 1.0A - Vo 6.84-13.68V
Primary/Secondary Shield and
Dimensions and schematic: see drawing
Weight: 1100g
