Transformer 95W 230V-SCH/230-0-230 0.15A
50V-0.15A/6.3VCT-3A
Transformer 95W 230V-SCH/230-0-230 0.15A
| Codice | PS-EI84022CV-N R03 |
| Prezzo lordo |
84,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
84,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 6 PZ |

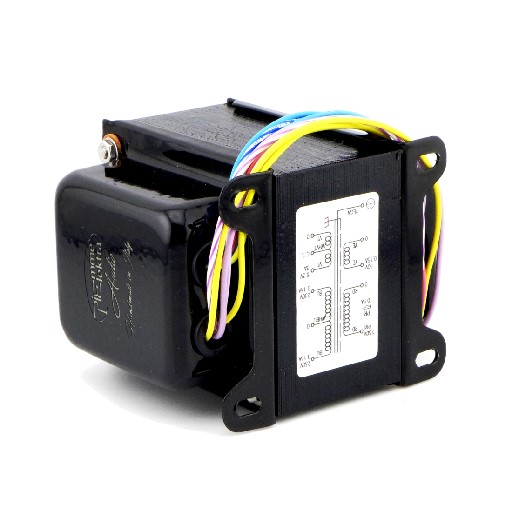

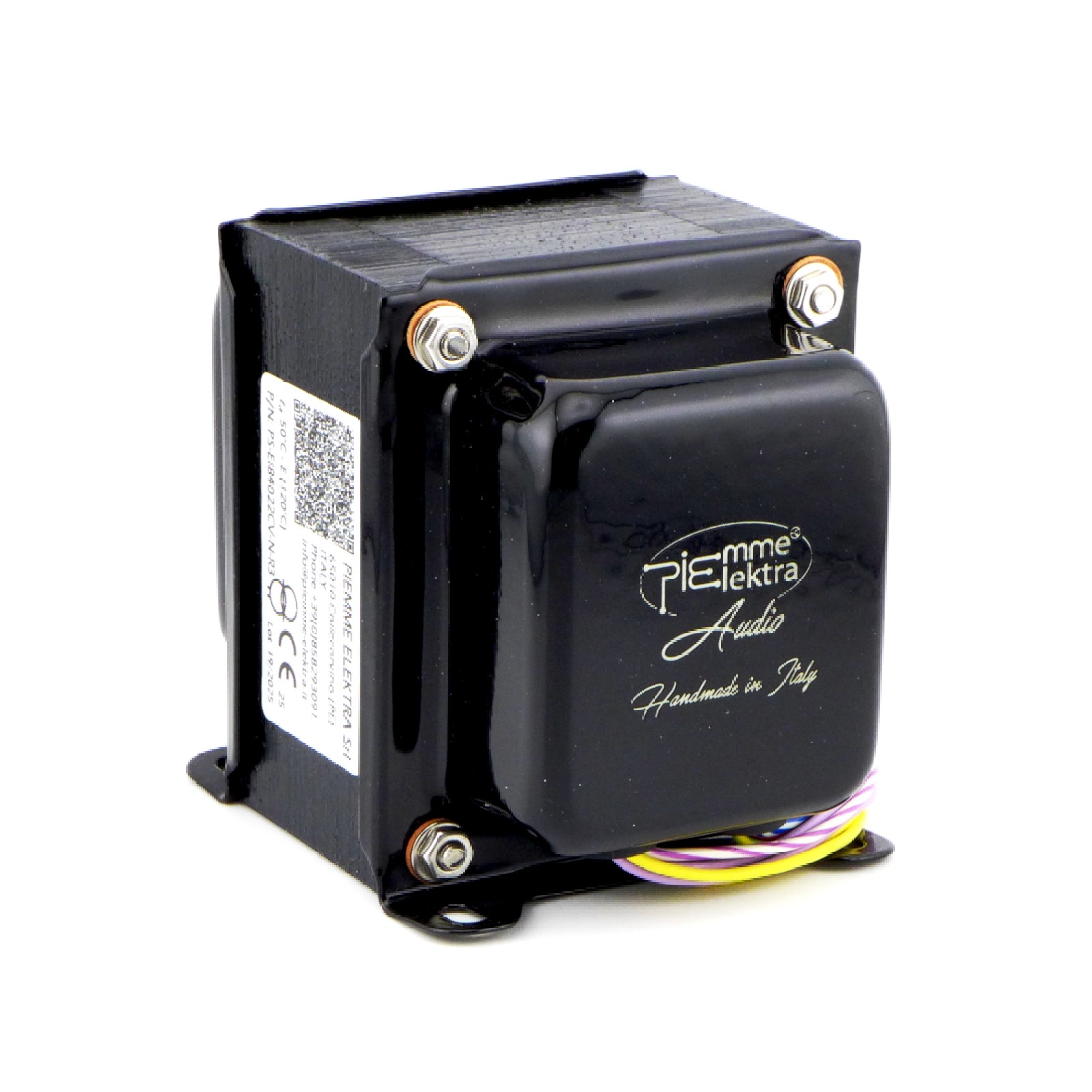

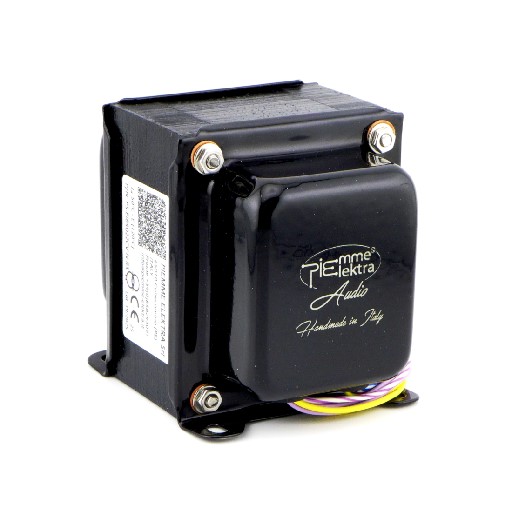

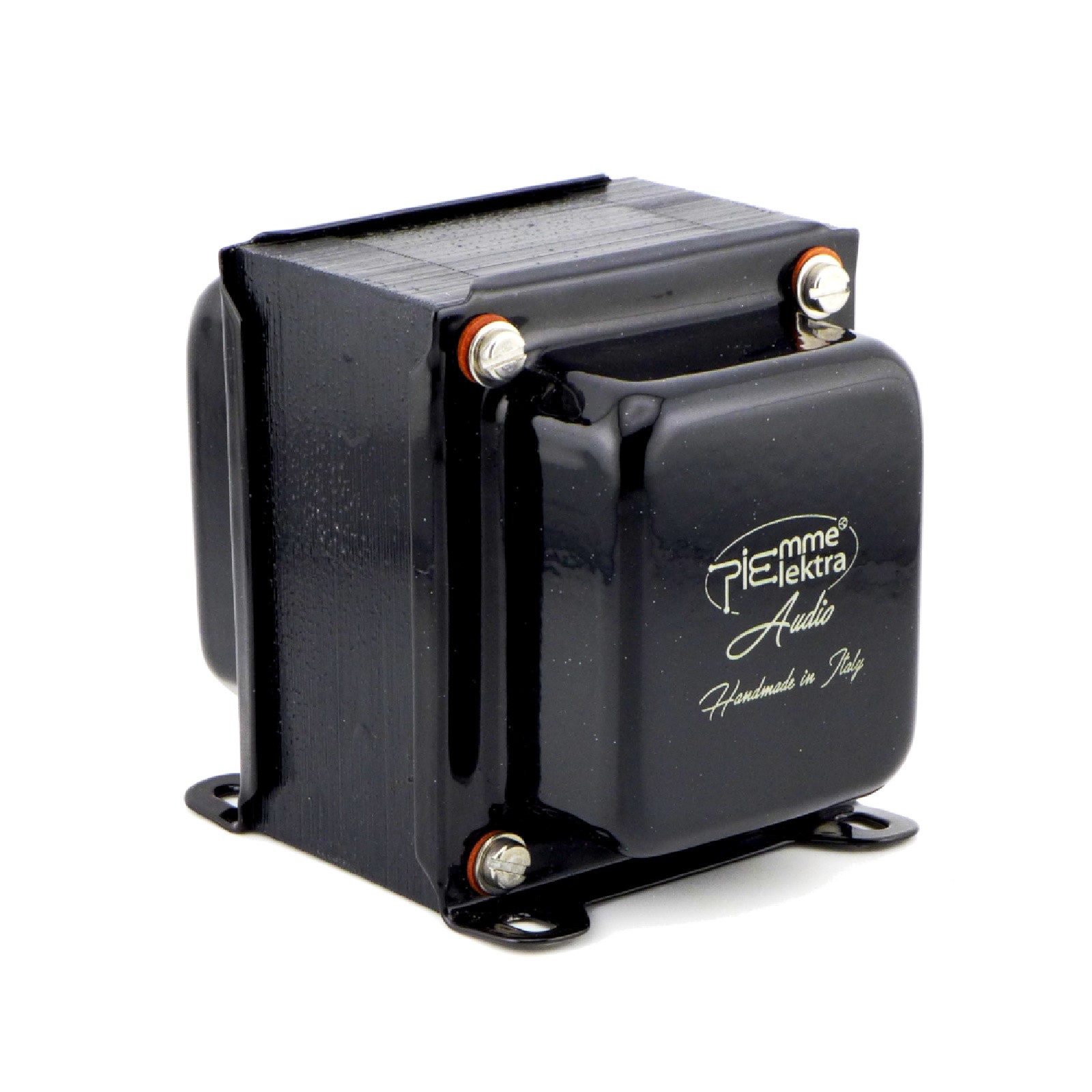

Power Transformer
Power: 95VA
Input: 230V
Output:
- 230-0-230V - 0.15A
- 50V - 0.2A
- 6.3V C.T. - 3A
Primary/Secondary Shield

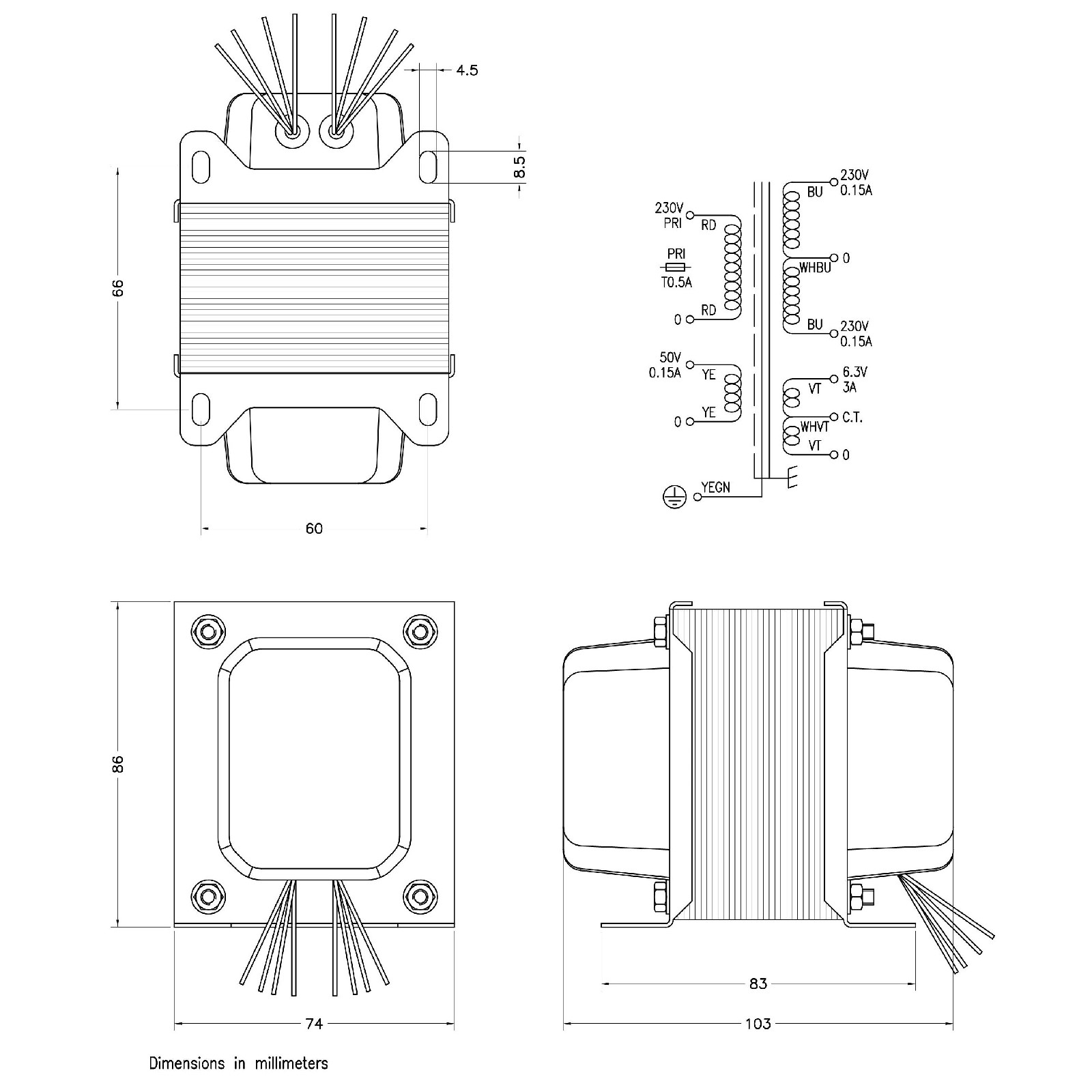

Dimensions and schematic: see drawing
Weight: 1760g
Power: 95VA
Input: 230V
Output:
- 230-0-230V - 0.15A
- 50V - 0.2A
- 6.3V C.T. - 3A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 1760g
