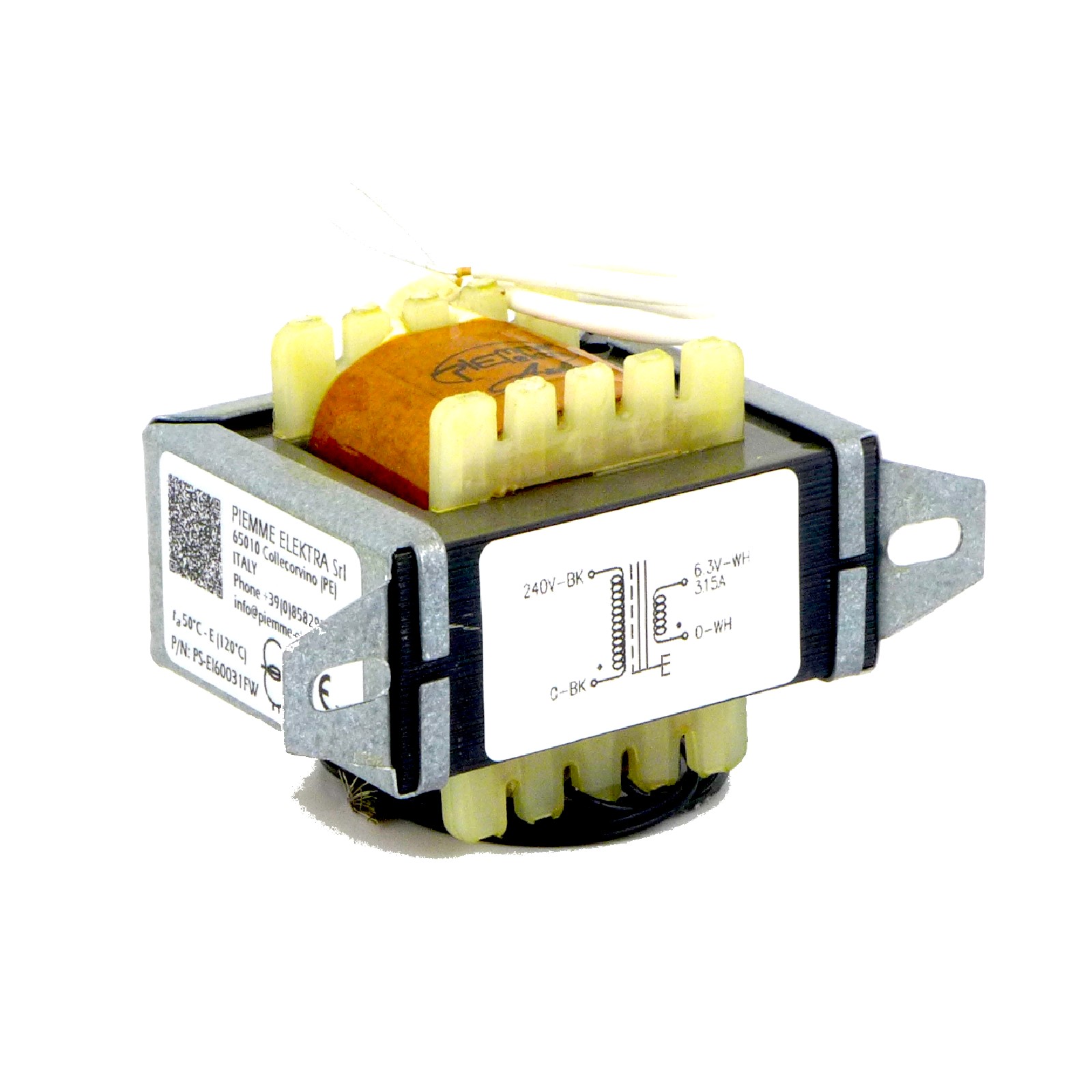

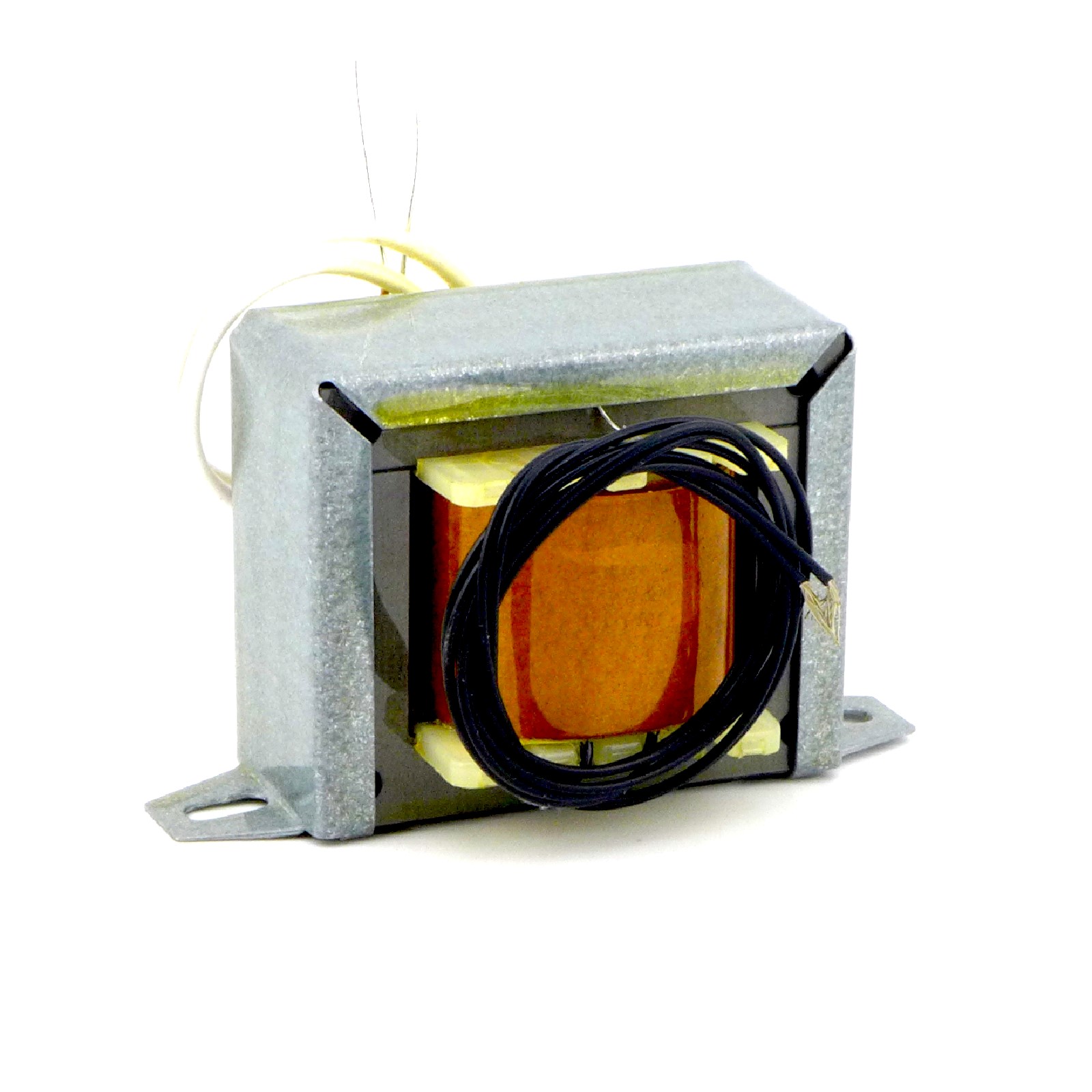

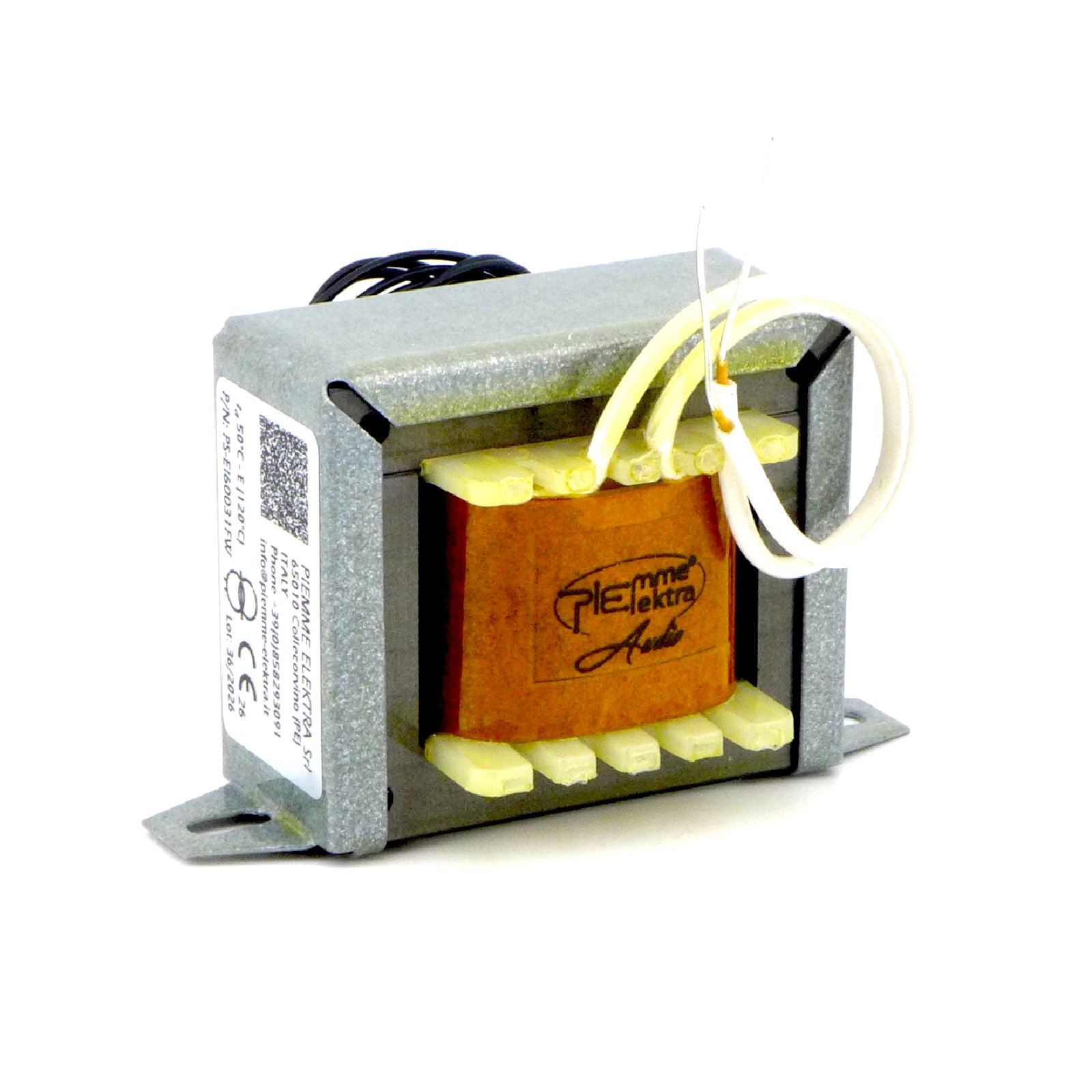

20VA Transformer 240 / sch / 6.3V 3.15A
Acoustat original P/N 2008289
20VA Transformer 240 / sch / 6.3V 3.15A
| Codice | PS-EI60031FW |
| Prezzo lordo |
49,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
49,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |
Acoustat heater Transformer - Improved replacement part
Pri 240V RDC 132 Ohm
No load out 6.83V @ 240V
Loaded voltage 6.6V @0.6A input 240V
Loaded voltage 6.4V @1.0A input 240V
Loaded voltage 6.3V @1.5A input 240V
Loaded voltage 6.1V @2.0A input 240V
Loaded voltage 6.0V @2.5A nput 240V
Loaded voltage 5.9V @3.0A input 240V
Output current 3.15A - 205 mOhm
Pri/SEC dielectric strength: >6000Vac
Acoustat Original P/N 2008289

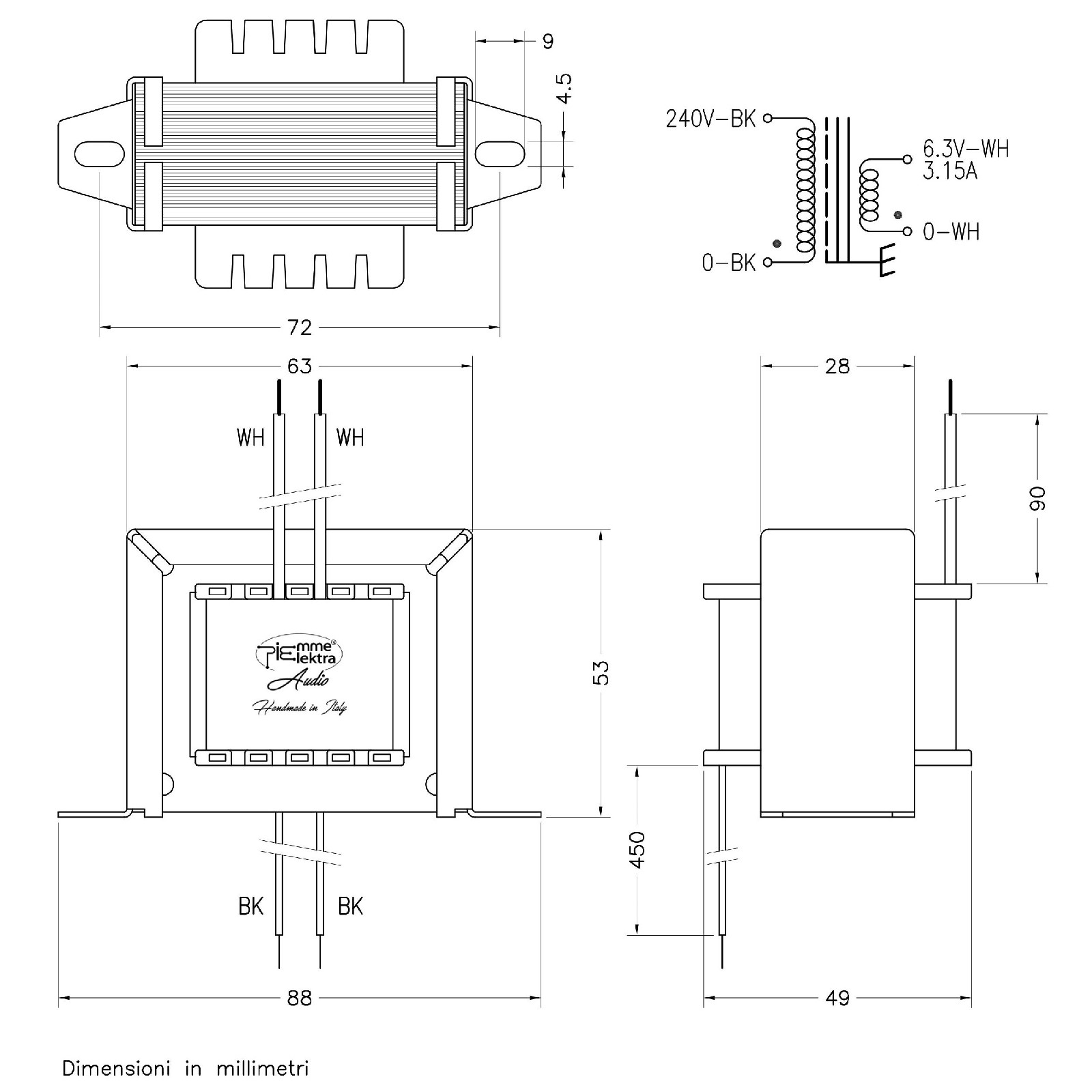

Dimensions and schematic: see drawing
Weight: 580gr
Pri 240V RDC 132 Ohm
No load out 6.83V @ 240V
Loaded voltage 6.6V @0.6A input 240V
Loaded voltage 6.4V @1.0A input 240V
Loaded voltage 6.3V @1.5A input 240V
Loaded voltage 6.1V @2.0A input 240V
Loaded voltage 6.0V @2.5A nput 240V
Loaded voltage 5.9V @3.0A input 240V
Output current 3.15A - 205 mOhm
Pri/SEC dielectric strength: >6000Vac
Acoustat Original P/N 2008289
Dimensions and schematic: see drawing
Weight: 580gr
