Kit 3 trasformatori per S.E. 6080
(tipo Lilliput)
Kit 3 trasformatori per S.E. 6080
| Codice | KIT 6080 |
| Prezzo lordo |
260,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
260,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |

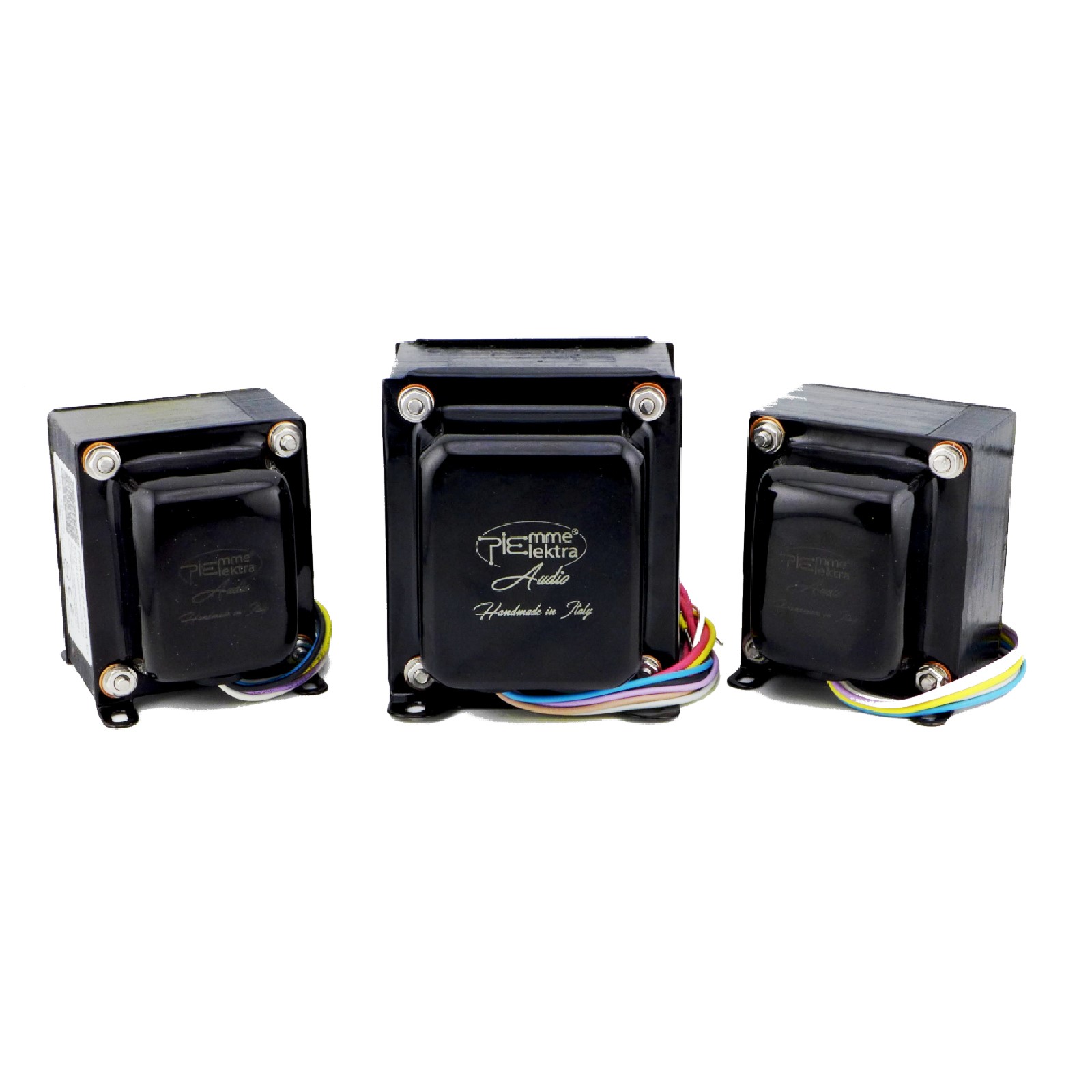

Kit trasformatori per Ampli S.E. like ''Lilliput''

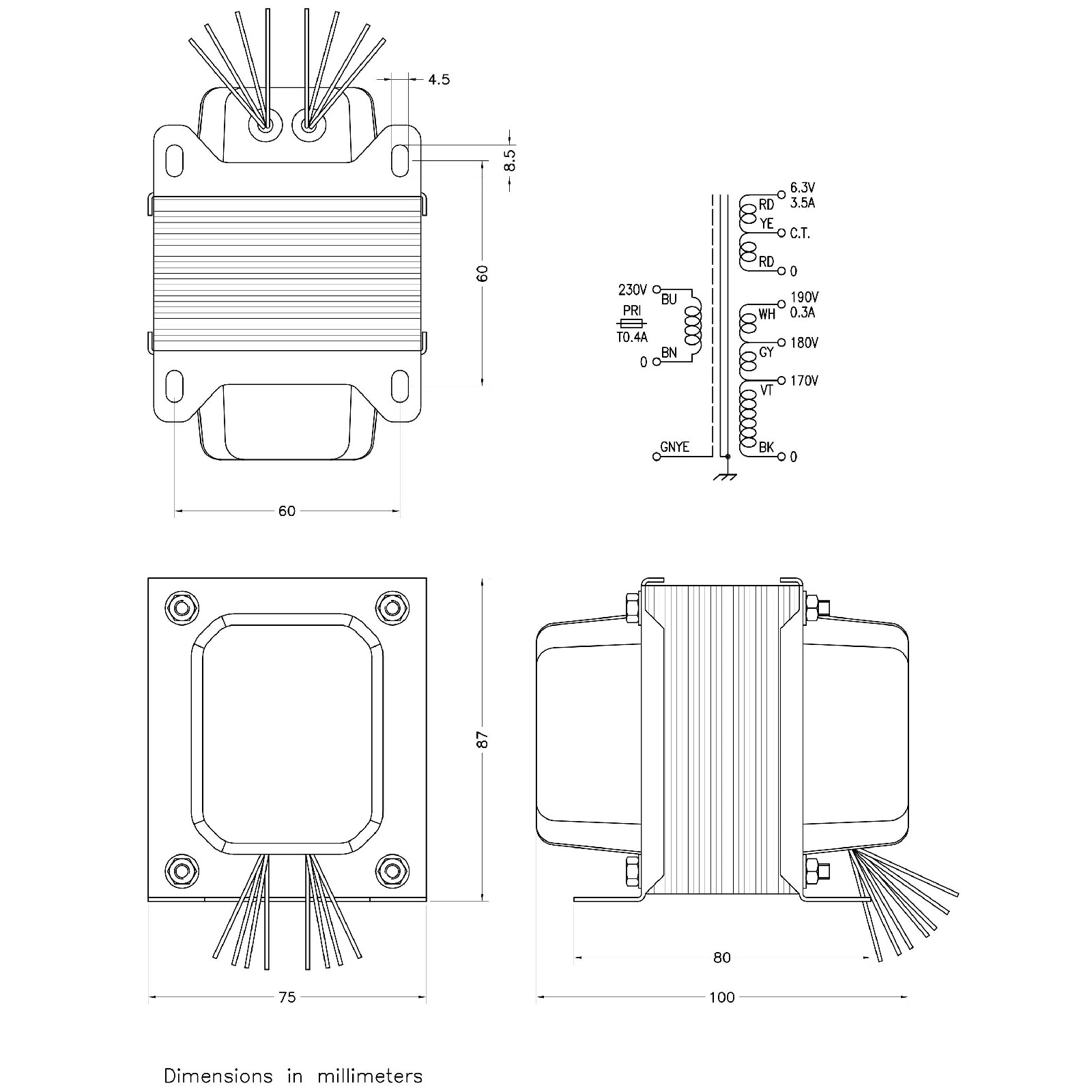

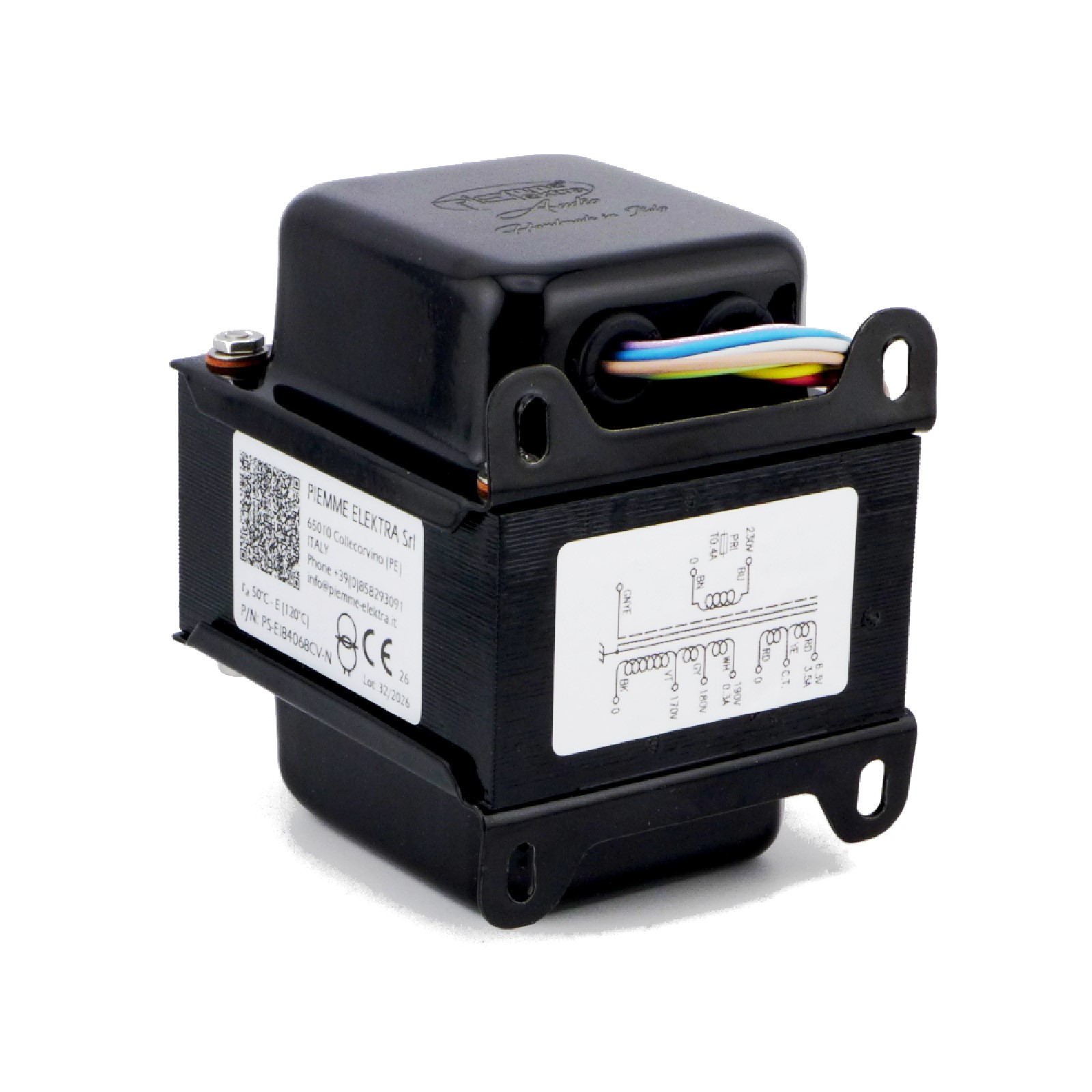

1x Power Transformer P/N PS-EI84068CV-N
IngressoNPUTscite:
0-170-180-190V - 0.3A
3.15-0-3.15V - 3.5A
with shield

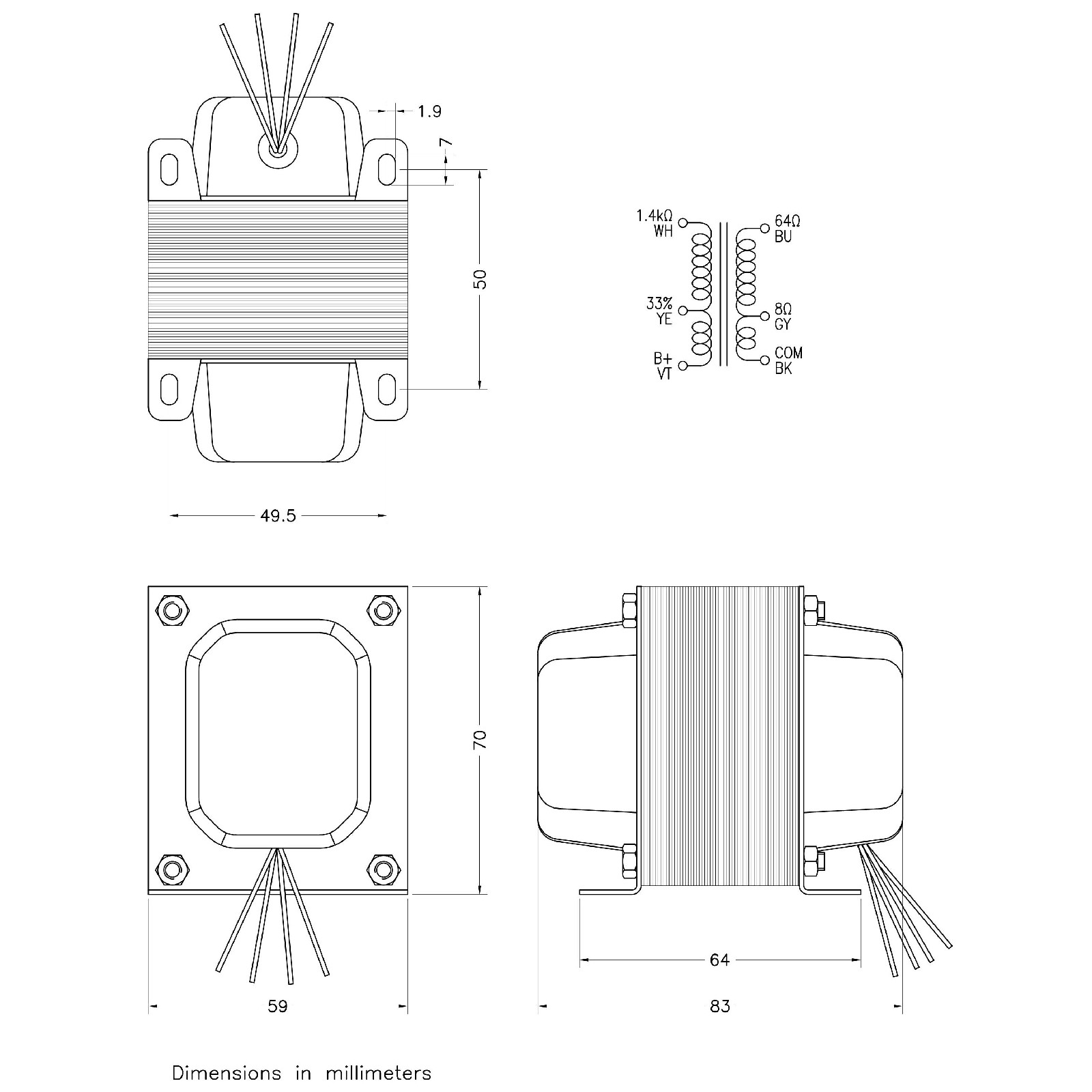

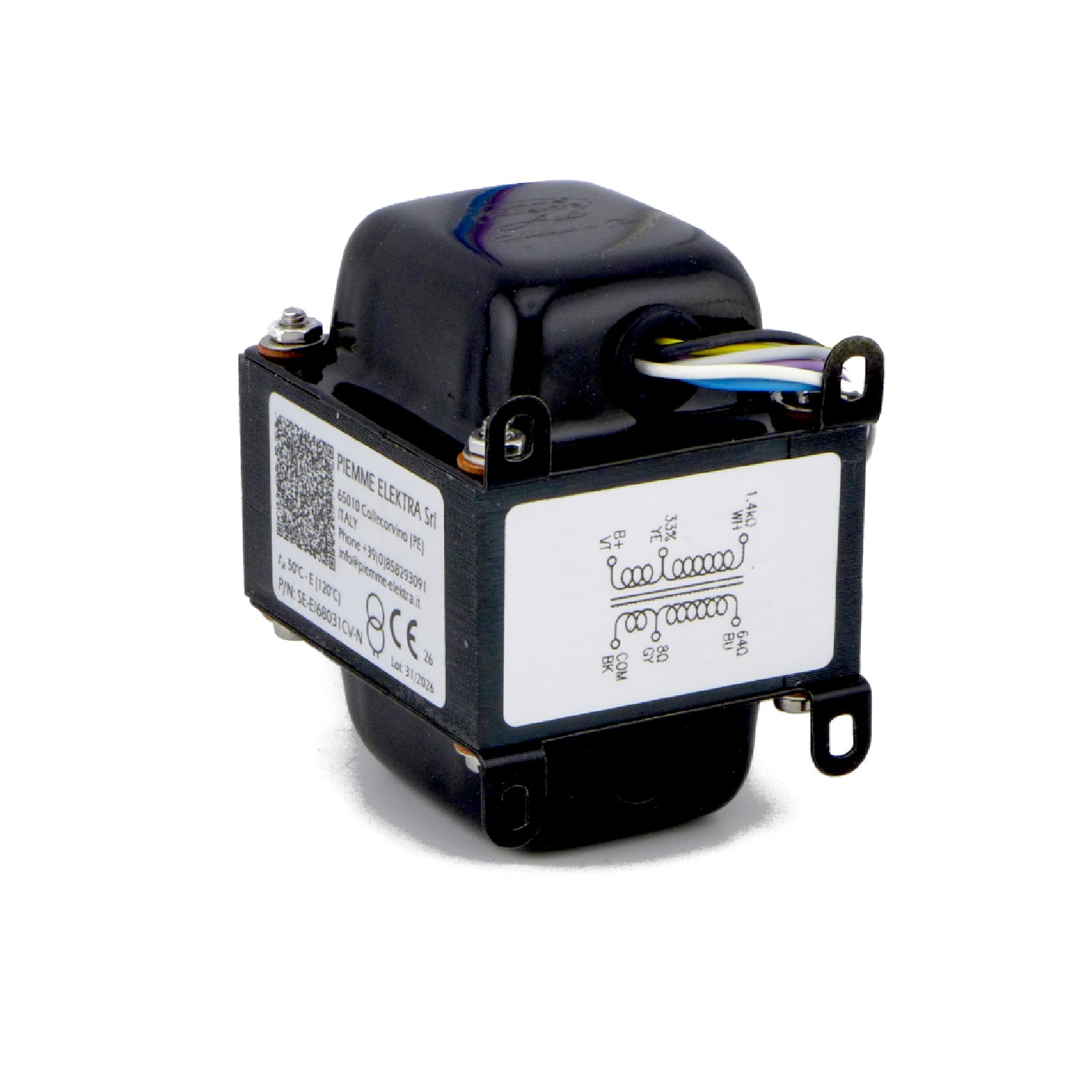

2x Output transformer P/N SE-EI68031-CV-N
Power: 4W
Input: 1400 Ohm
Output: 8-64 Ohm
winding in 7 sections
Annealed Grain-oriented magnetic core
Primario inductance: >7H
Primary resistance : 125 Ohm
Leakage Inductance @1kHz:2.7/2.2mH
Secondary resistance 0.46/9.4 Ohm
Idc 80mA, max 90mA
BW +/-3dB @4W 8 Ohm: 17-65.000Hz
BW +/-3dB @2W 64 Ohm: 16-170.000Hz
THD @4W 90mA: 7% @20Hz, 2.5% @30Hz e 1.3% @ 40Hz
