I.T. 200W 230/SCH/10-280V 440mA
50V-50mA, 25V 2.5A, 8V 1.5A
I.T. 200W 230/SCH/10-280V 440mA
| Codice | PS-EI96118CV-N |
| Prezzo lordo |
145,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
145,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

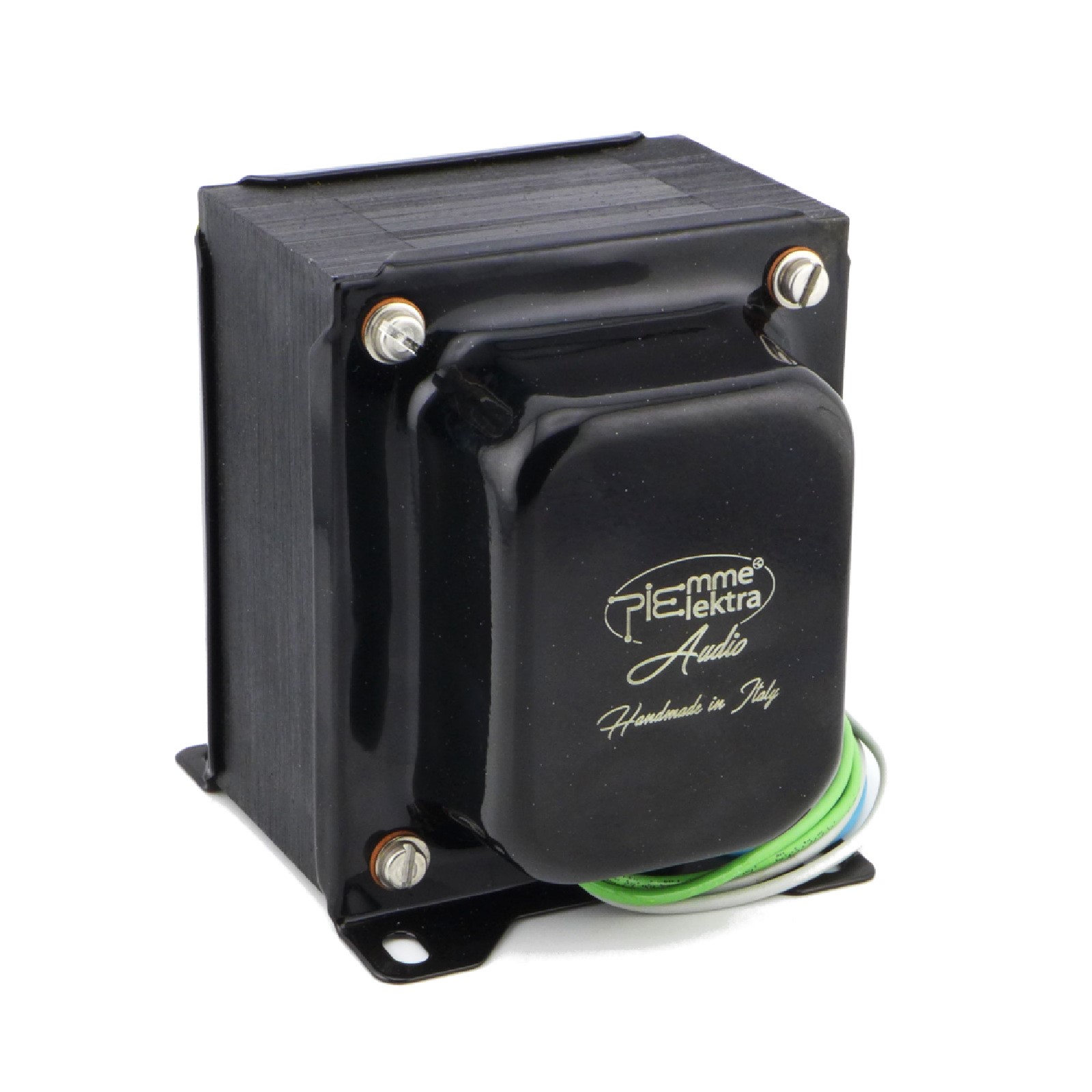

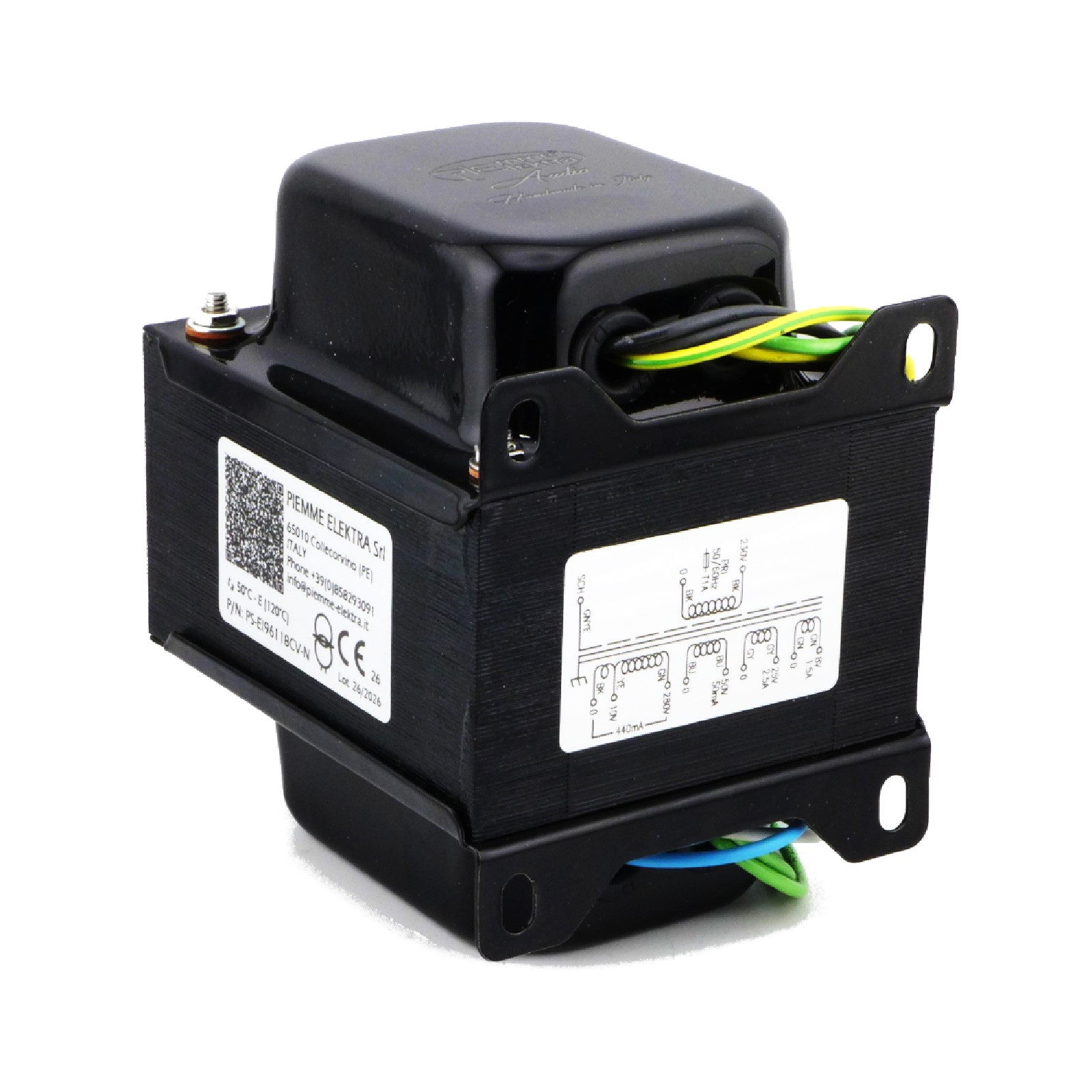

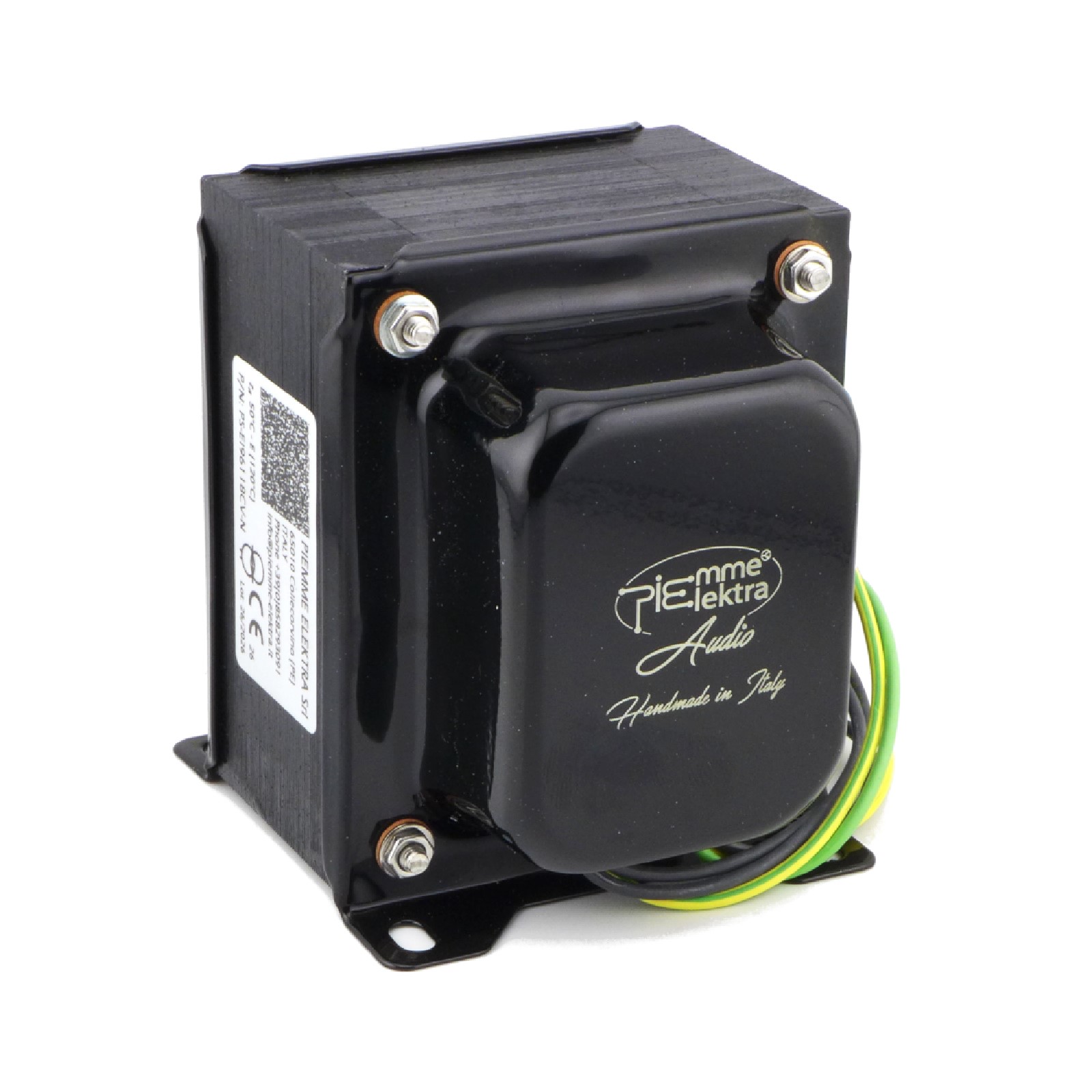

Power Transformer
Power: 200VA
Input: 230V
Output:
- 0-10-280V 0.44A
- 50V - 50mA
- 25V - 2.5A
- 8V - 1.5A
Primary/Secondary Shield

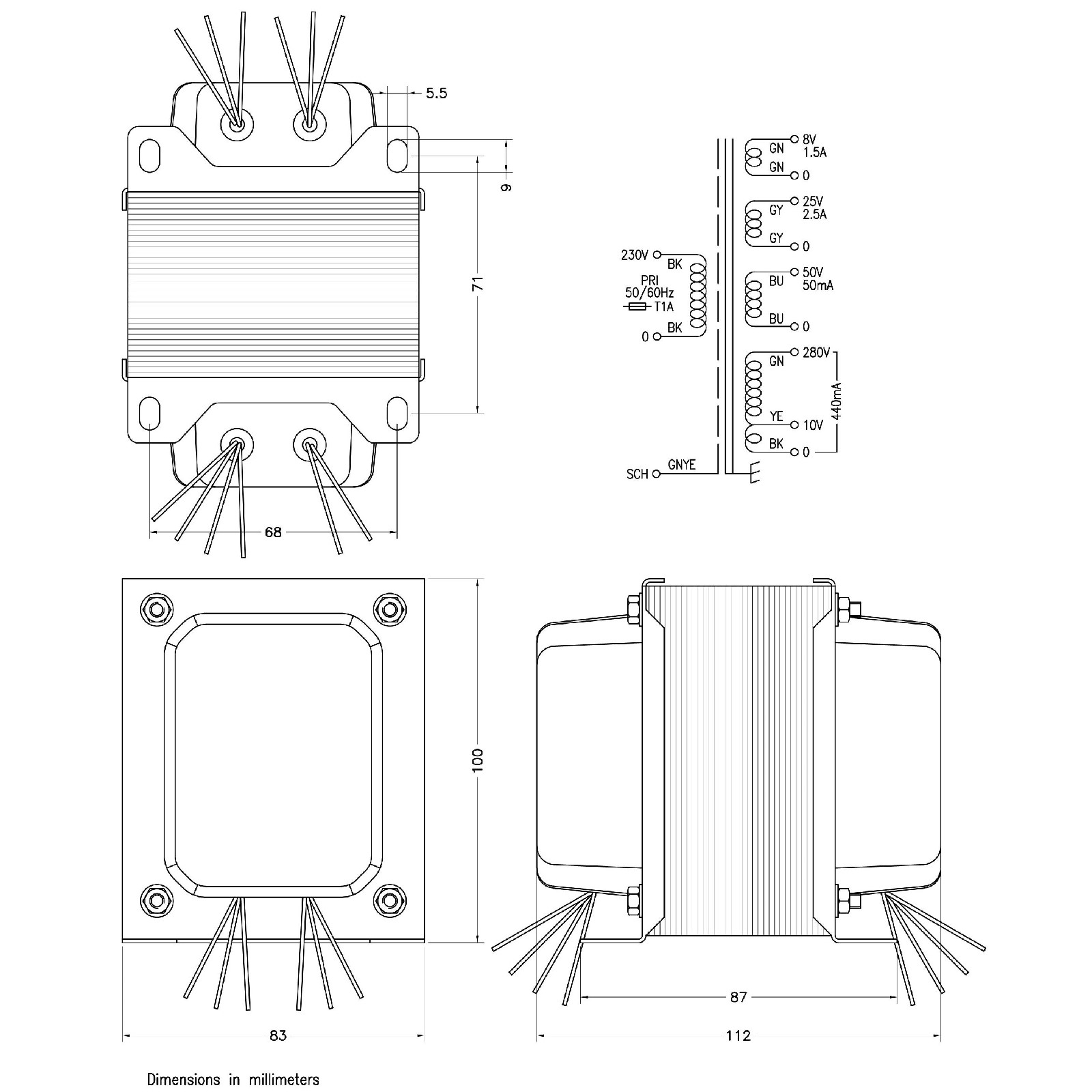

Dimensions and schematic: see drawing
Weight: 3100g
Power: 200VA
Input: 230V
Output:
- 0-10-280V 0.44A
- 50V - 50mA
- 25V - 2.5A
- 8V - 1.5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3100g
