I.T. 200W 230/SCH/10-280-300-330V 490mA
45V 50mA, 2x6.3V 2.5A
I.T. 200W 230/SCH/10-280-300-330V 490mA
| Codice | PS-EI96117CV-N |
| Prezzo lordo |
150,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
150,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 2 PZ |

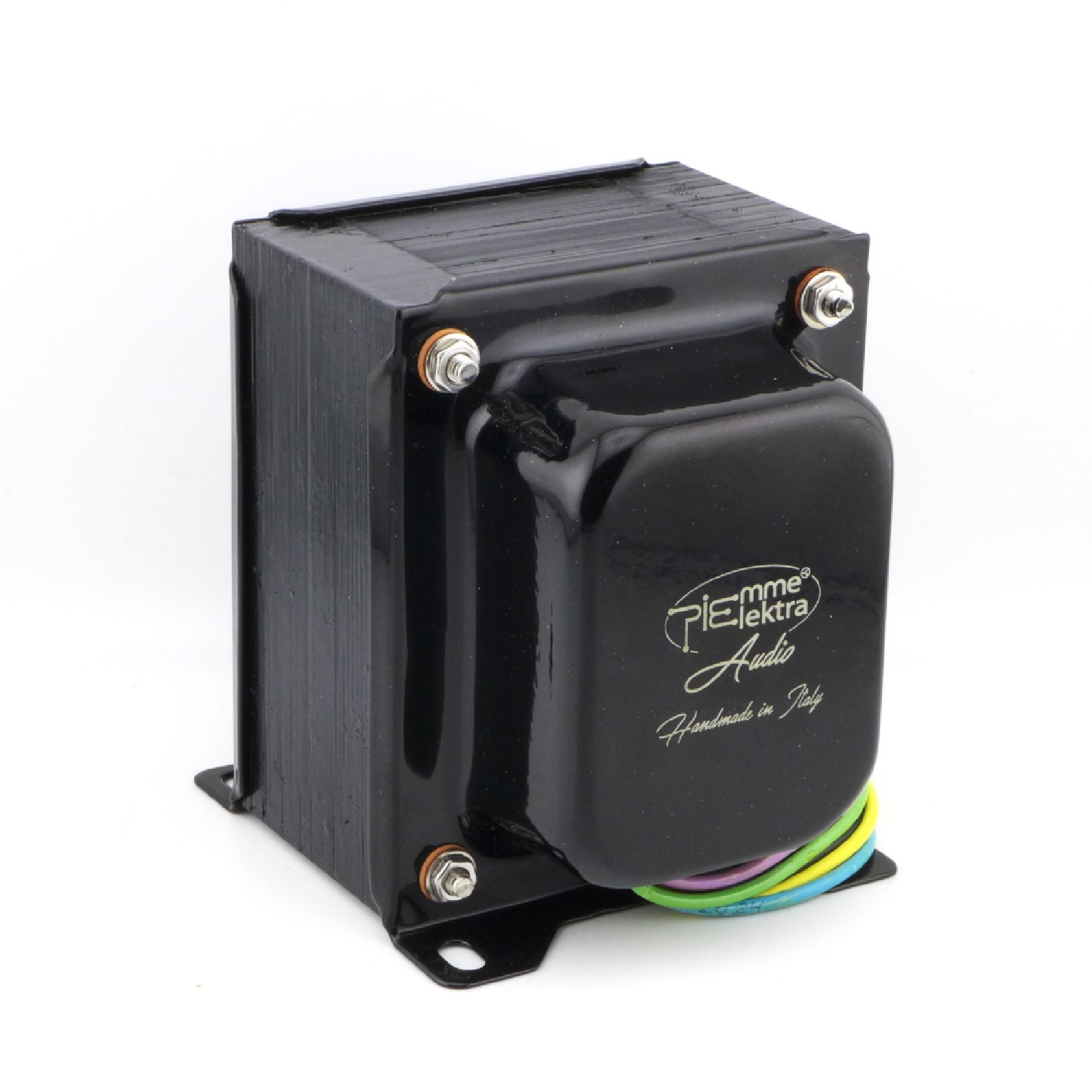

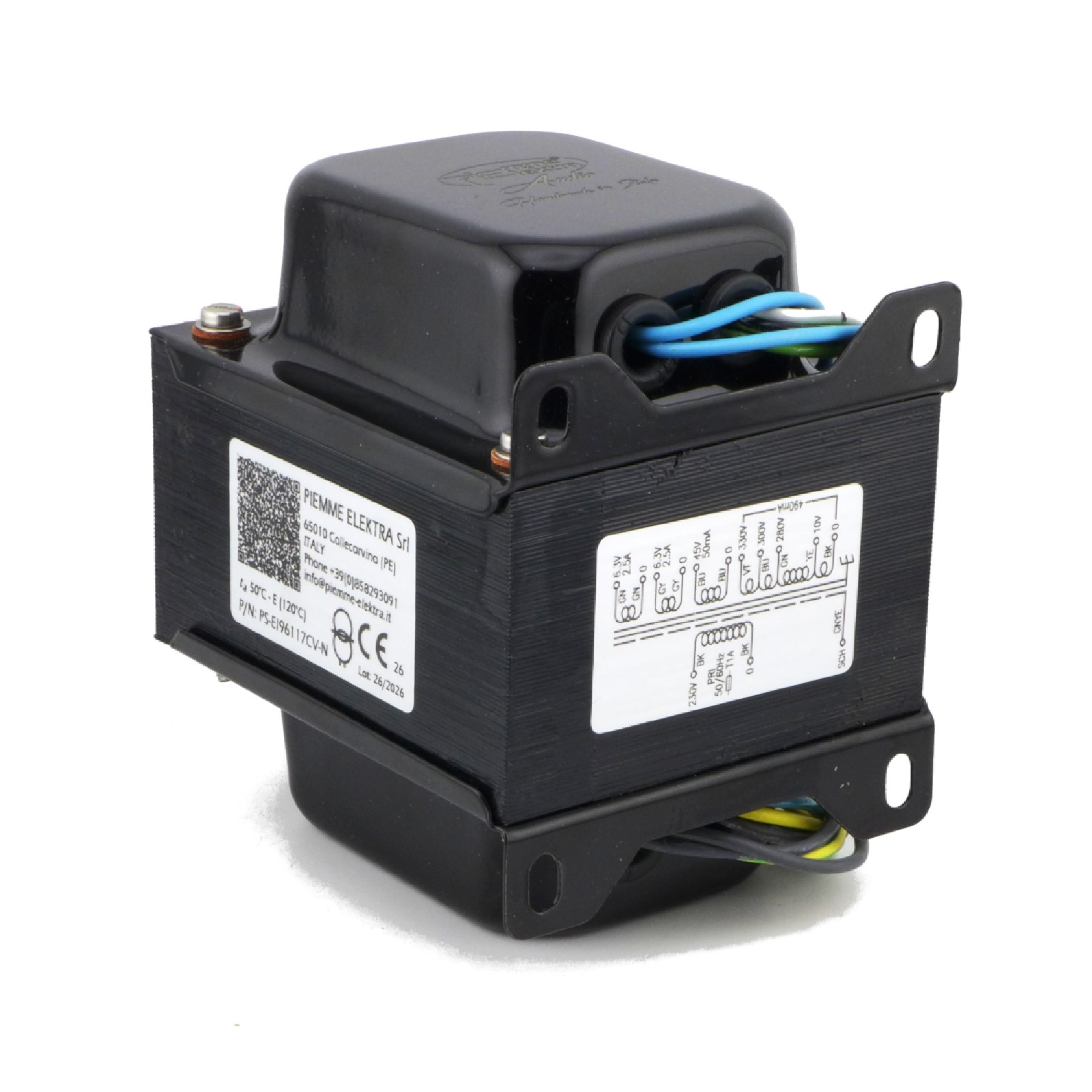

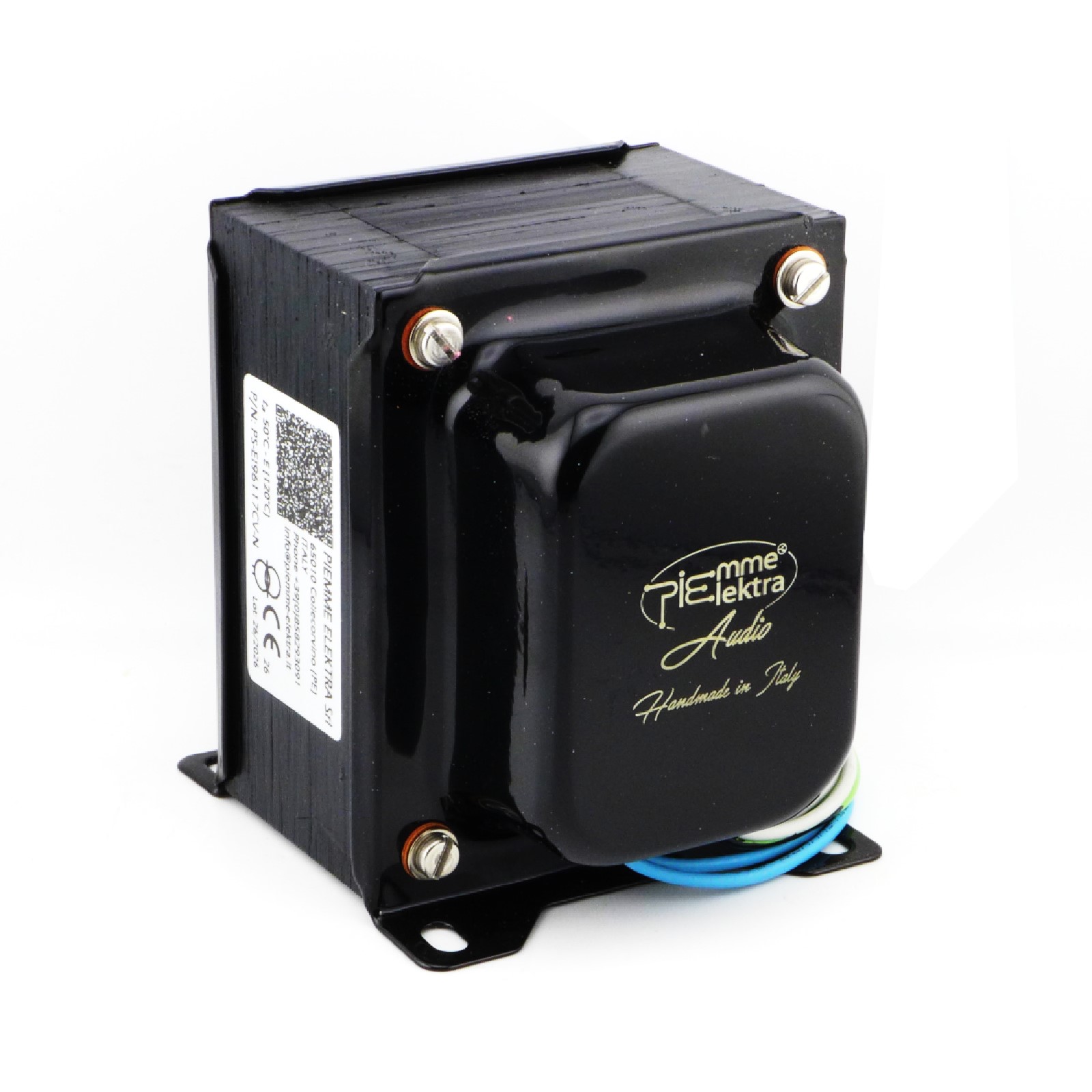

Power Transformer
Power: 200VA
Input: 230V
Output:
- 0-10-280-300-330V - 0.49A
- 45V - 50mA
- 2x 0-6.3V 2.5A
Primary/Secondary Shield

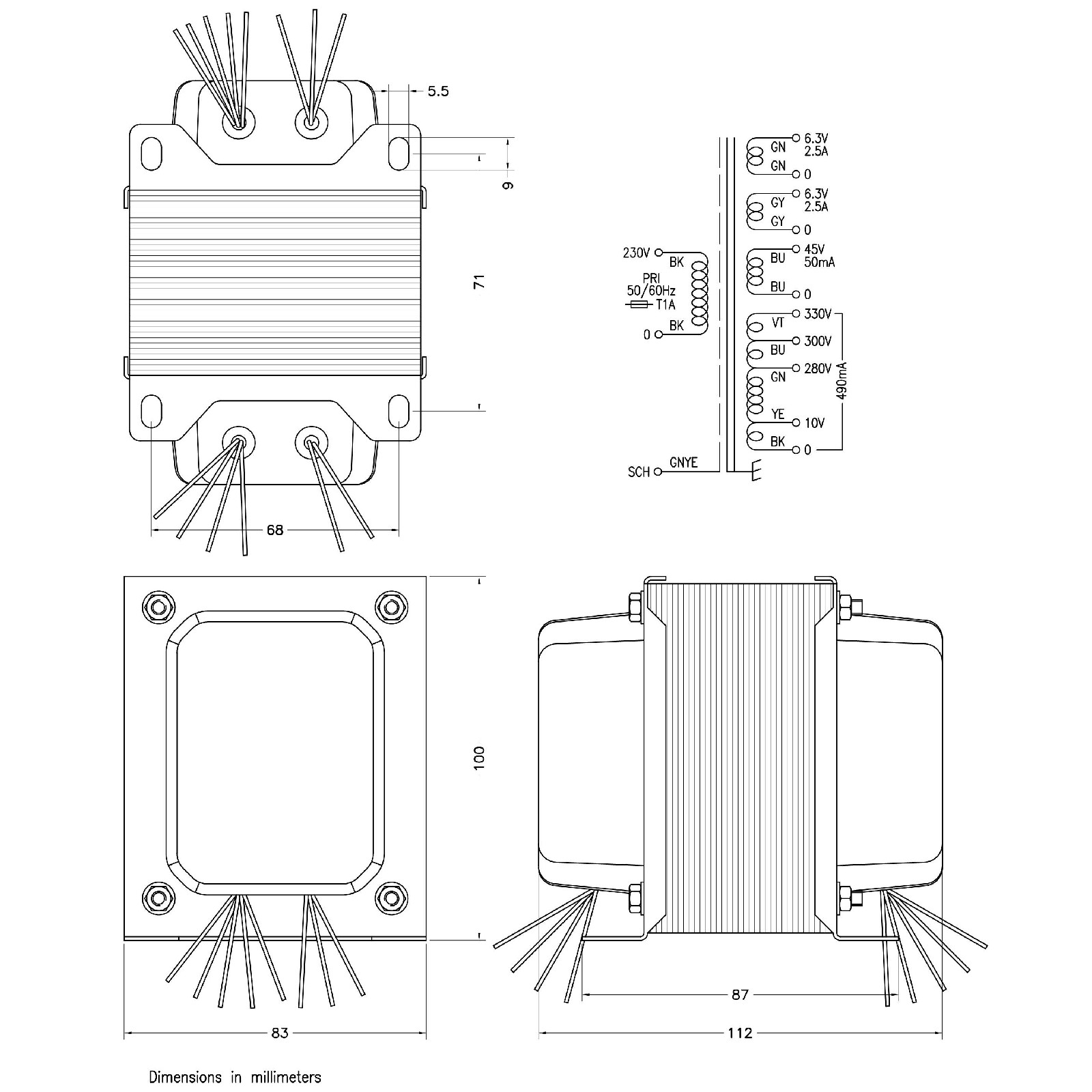

Dimensions and schematic: see drawing
Weight: 3100g
Power: 200VA
Input: 230V
Output:
- 0-10-280-300-330V - 0.49A
- 45V - 50mA
- 2x 0-6.3V 2.5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3100g
