Transformer 200W 230V schermo
325-0-50-325V 0.265A - 6.3V CT5A
Transformer 200W 230V schermo
| Codice | PS-EI11425CH-N |
| Prezzo lordo |
108,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | 10% |
| Prezzo netto |
97,2000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |
Power Transformer
Power: 200VA
Input: 230V
Output:
- 325-0-50-325V - 0.265A
- 6.3V C.T. - 5A
Primary/Secondary Shield

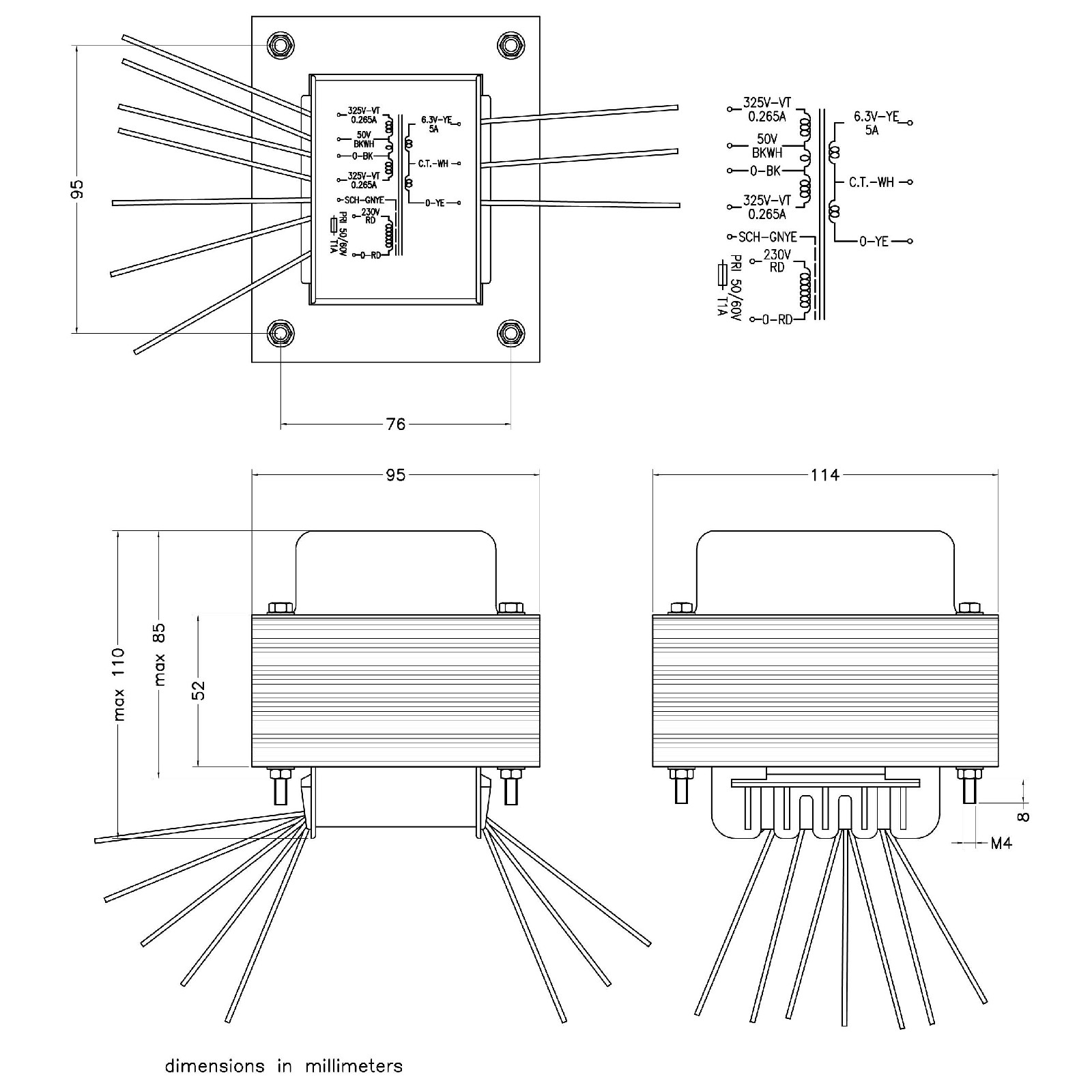

Dimensions and schematic: see drawing
Weight: 3820g
Power: 200VA
Input: 230V
Output:
- 325-0-50-325V - 0.265A
- 6.3V C.T. - 5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3820g
