115VA 230/sch/325-0-55-325V 0.12A
6.3V CT 2.5A, 0-5V 3A - 5E3
115VA 230/sch/325-0-55-325V 0.12A
| Codice | PS-EI84054CH-Z |
| Prezzo lordo |
84,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
84,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

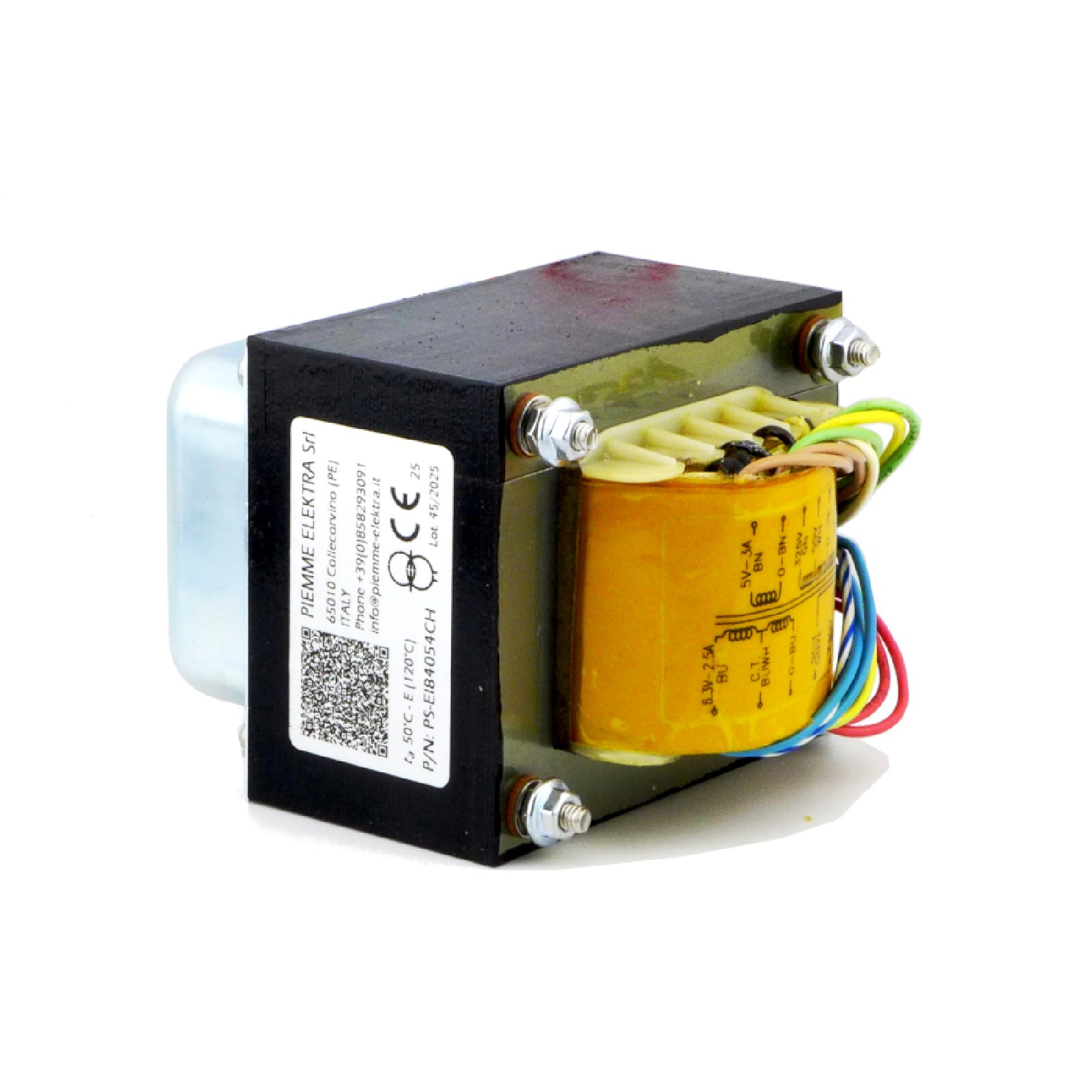

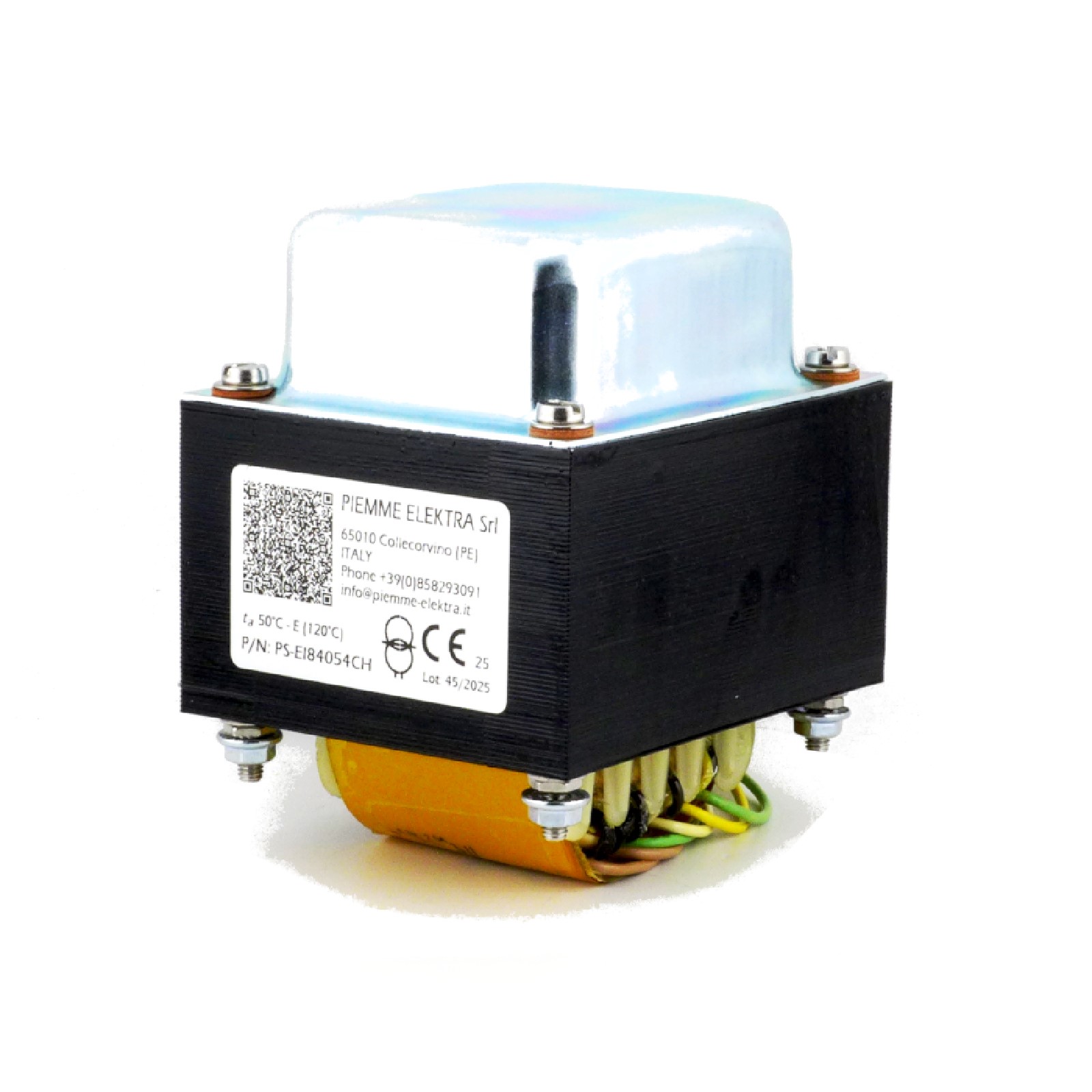

Fender-style power transformer, e.g. for Tweed Deluxe amplifiers. Fits directly into 5E3 and Deluxe Reverb chassis (through-chassis mounting).
Specifications:
Direct fit for 5E3 projects and similar builds
Primary: 230VAC Io 50mA Typ - 2.5Wmax no load
Secondary 1: 325 - 0 - 55 - 325V 0.12A (346.4-0-56.17-346.4V no load voltage)
0 - 6.3V 2.5A (6.85V Noload voltage, 6.4V loaded)
0 - 5V 3A (5.3V no load voltage, 4.9V loaded)

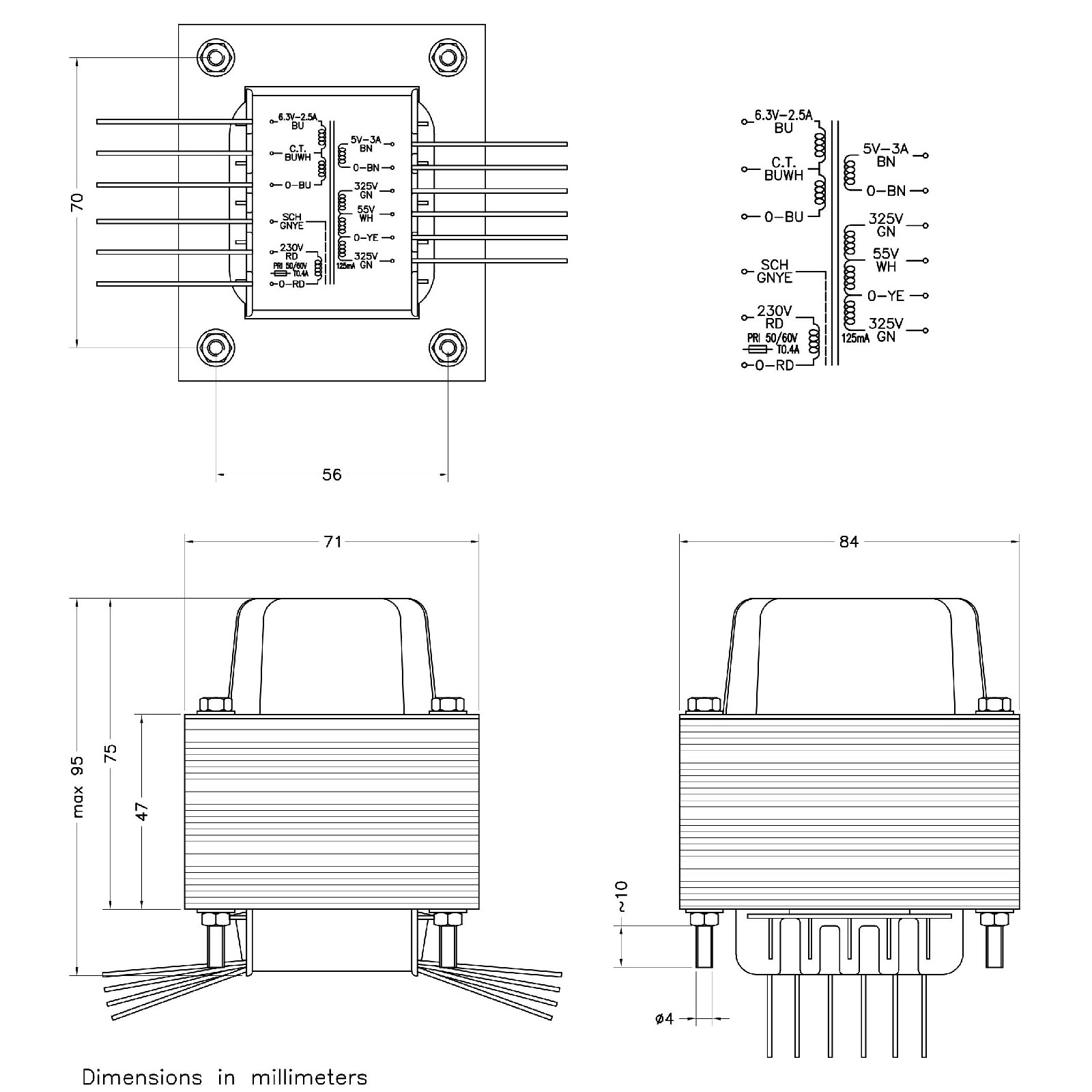

EI84 core, fits directly into our Tweed Deluxe 5E3 chassis
EI core size: approx. 86 × 72 × 45 mm
Height above chassis when mounted: approx. 76 mm
measurements in amplifier (with 235VAC mains)
B+ winding with 120mA load: 325-0-325VAC
With diode rectifier: 40mA 455VDC, or 120mA 410VDC
Color codes (double-check on the transformer label):
Primary:
0-230 red-red
Ground –green-Yellow
Secondary:
325-0-55-325 green-yellow-white-green
0-6.3CT blue-Blue/Wite-blue
0-5 brown-brown
