175W 230-SCH/0-250-280V 0.45A
2x 6.3V 3.5A, 6.3V CT 1A
175W 230-SCH/0-250-280V 0.45A
| Codice | PS-EI96009CV-N R02 |
| Prezzo lordo |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |
Power Transformer
Power: 175VA
Input: 230V
Output:
1 - 0-250-280V - 0.45A
2 - 6.3V - 3.5A
3 - 6.3V - 3.5A
4 - 6.3V CT - 1A
Primary/Secondary Shield

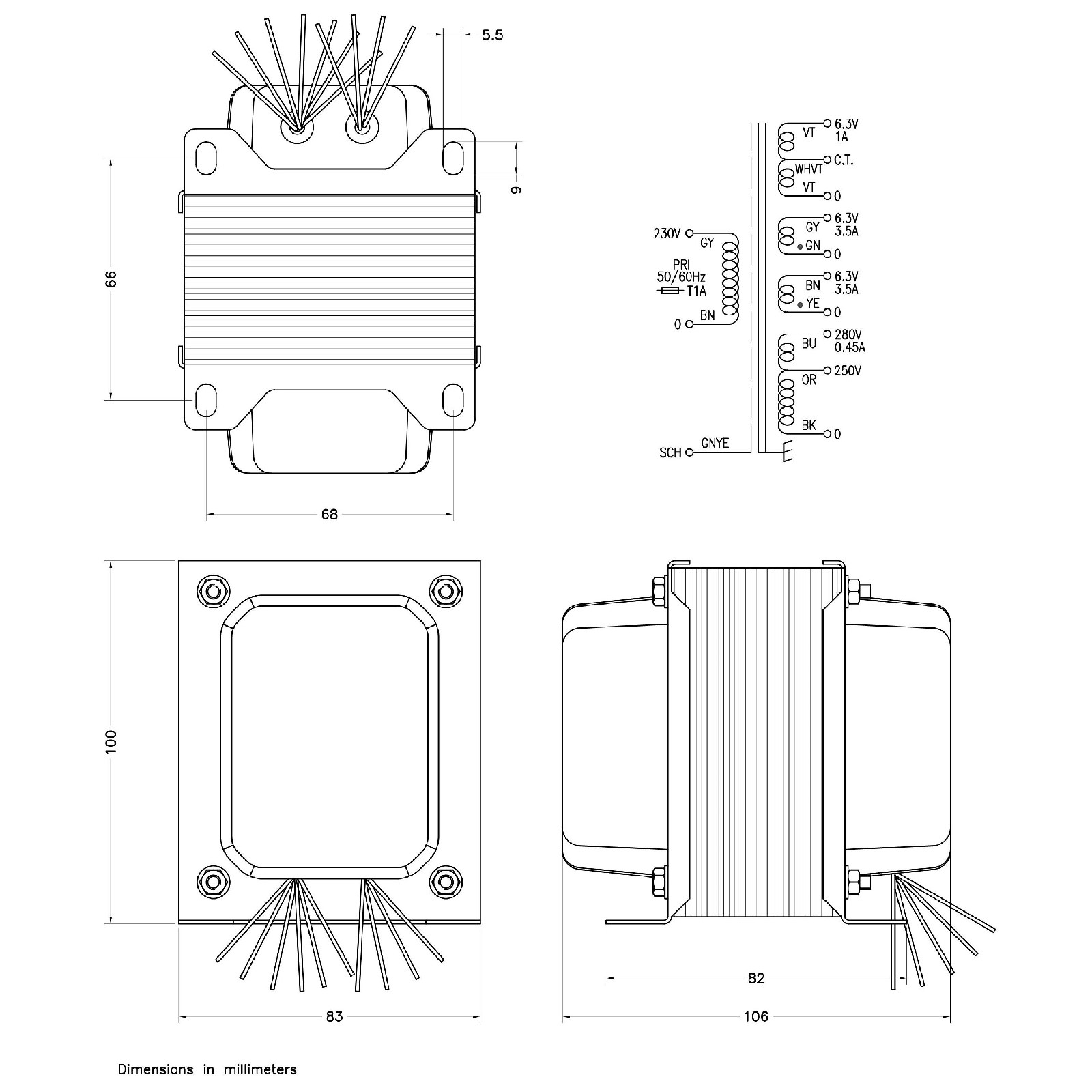

Dimensions and schematic: see drawing
Weight: 2780g
Power: 175VA
Input: 230V
Output:
1 - 0-250-280V - 0.45A
2 - 6.3V - 3.5A
3 - 6.3V - 3.5A
4 - 6.3V CT - 1A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 2780g
