Transformer 12VA 230 / 2x6.3V
6.3V 1.9A / 12.6V CT 0.95A
Codice | PS-EI48012F |
Prezzo lordo |
18,1500 EUR/PZ
(IVA compresa 22%) |
Sconto | 20% |
Prezzo netto |
14,5200 EUR/PZ
(IVA compresa 22%) |
Disponibilità | 4 PZ |
In promozione
dal
01/11/2024
al 30/11/2024

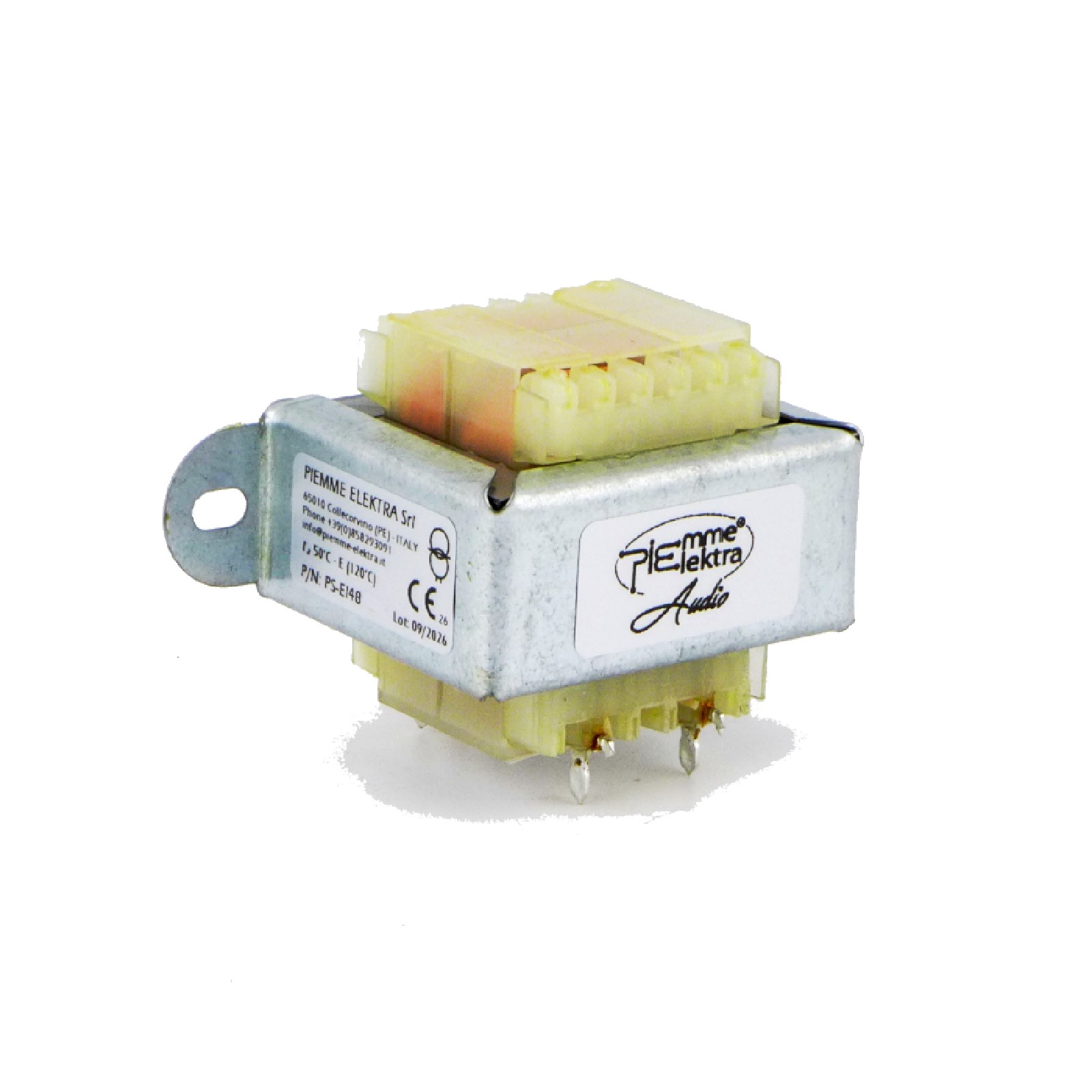

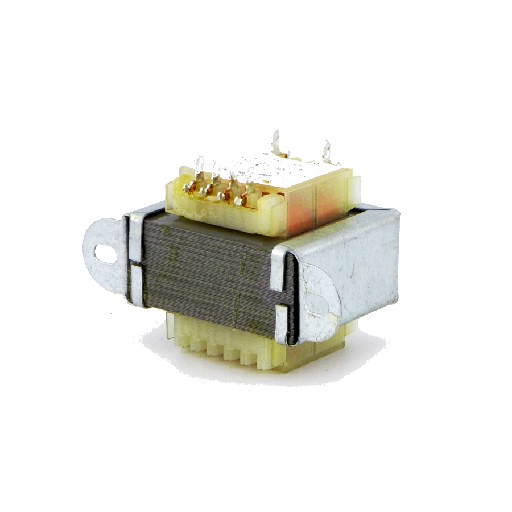

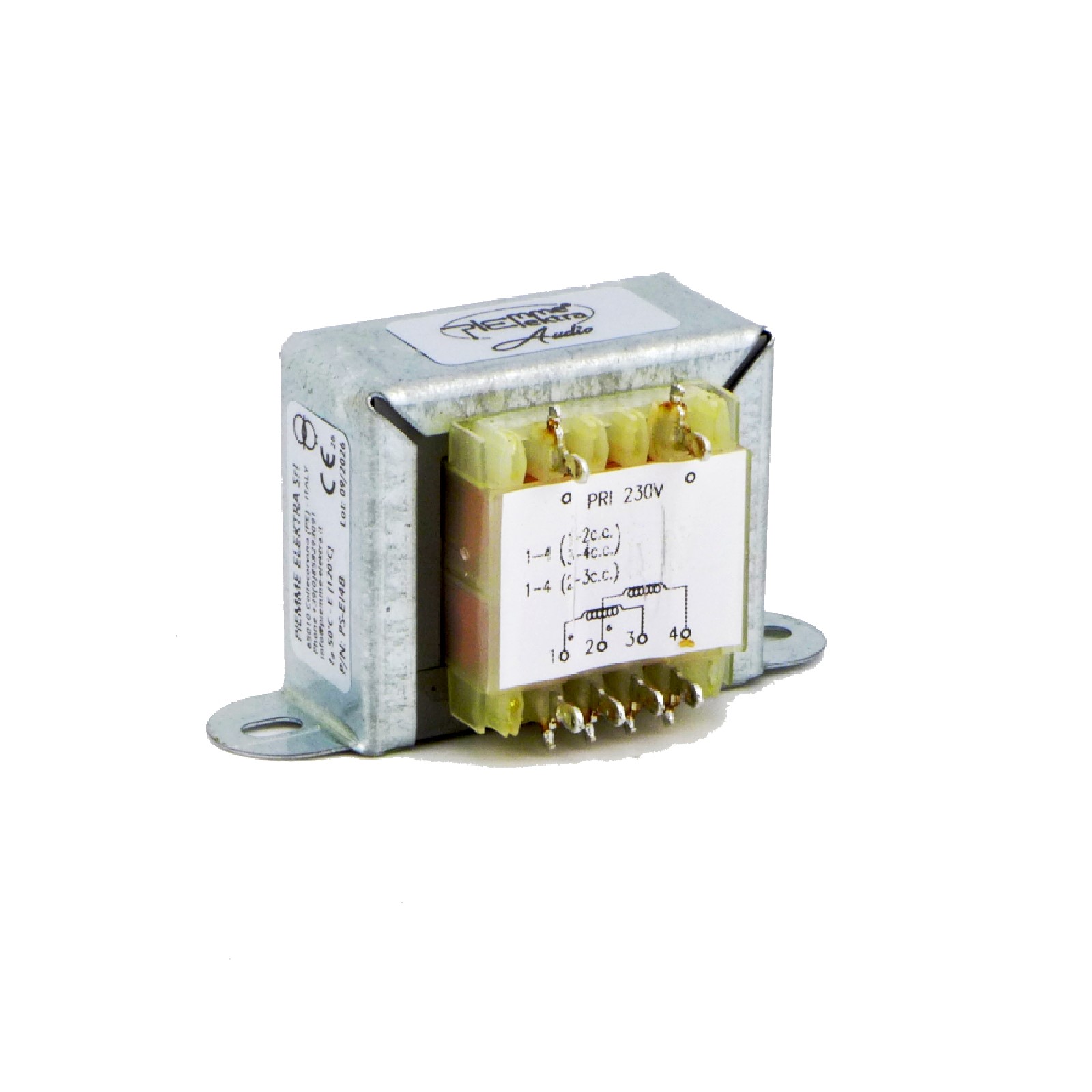

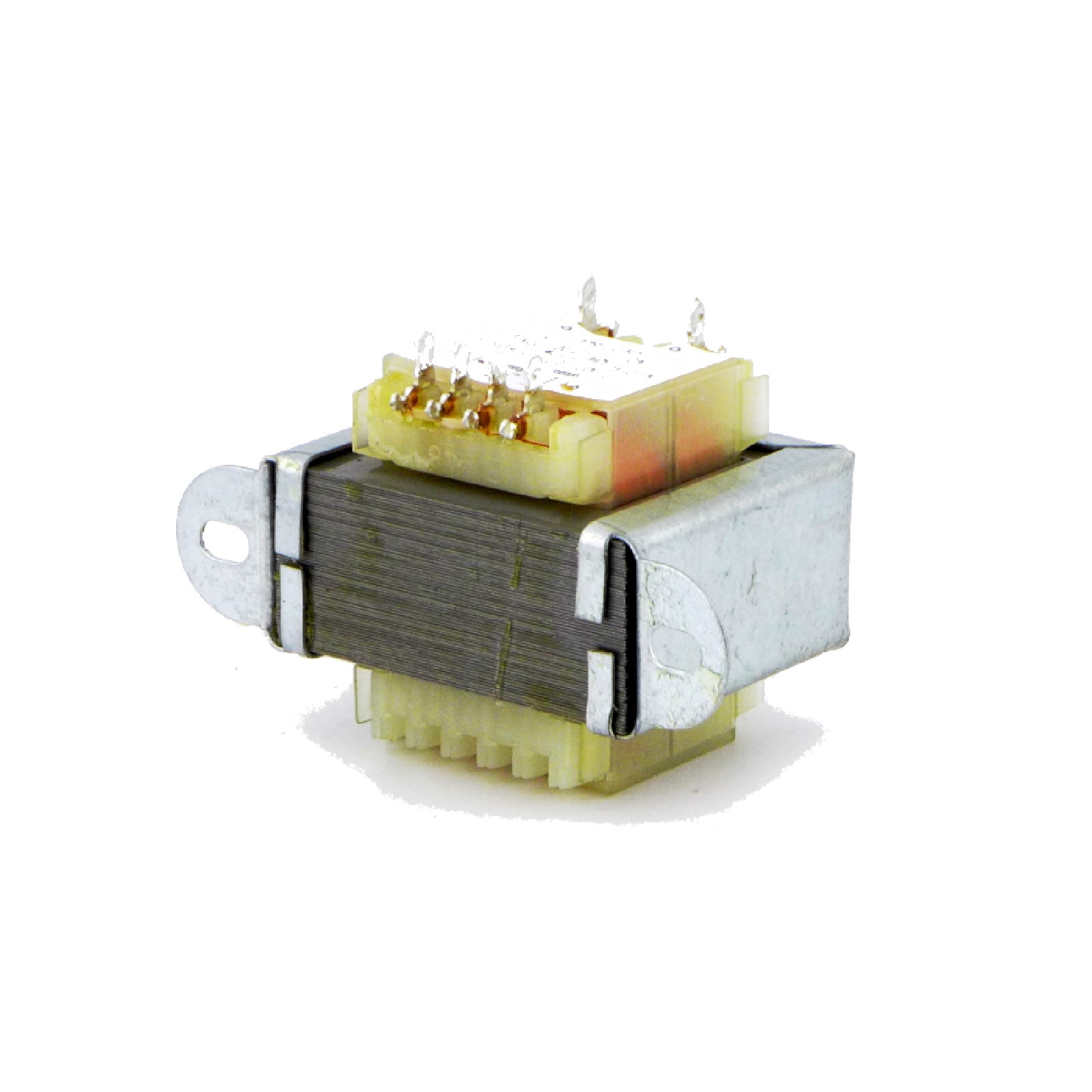

Power Transformer
Power: 12VA
Input: 230V
nominal Output:
- 2 x 6.3V - 0.95A
- 6.3V - 1.9A (parallel)
- 12.6V C.T. - 0.95A (series)
no-load Output: 2x7.7V / 15.4V

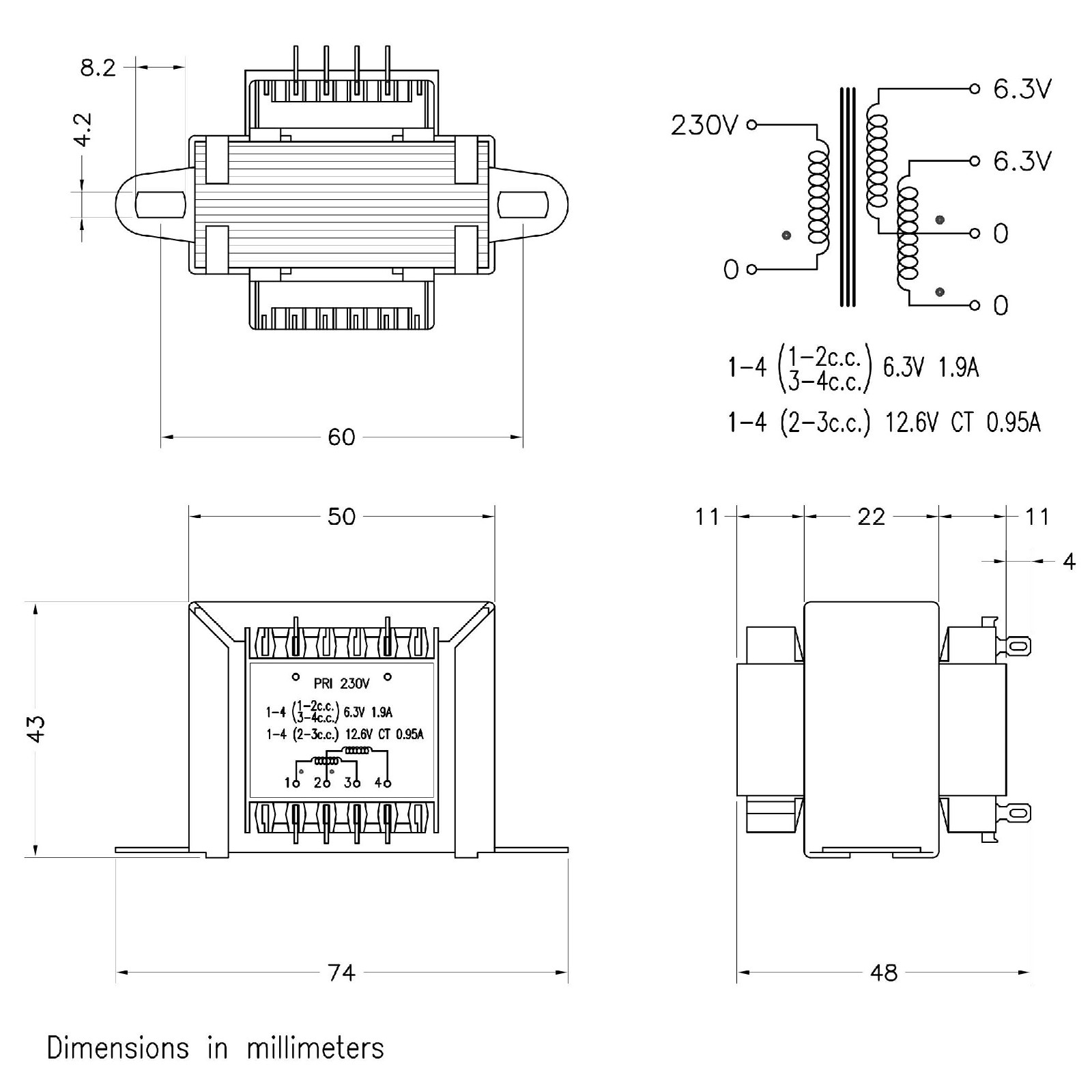

Dimensions and schematic: see drawing
Weight: 325g
Power: 12VA
Input: 230V
nominal Output:
- 2 x 6.3V - 0.95A
- 6.3V - 1.9A (parallel)
- 12.6V C.T. - 0.95A (series)
no-load Output: 2x7.7V / 15.4V
Dimensions and schematic: see drawing
Weight: 325g
