Output Transf. SE 4W 1.4k 90mA / 8-64
Single ended 6080
Output Transf. SE 4W 1.4k 90mA / 8-64
| Codice | SE-EI68031CV-N |
| Prezzo lordo |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 4 PZ |

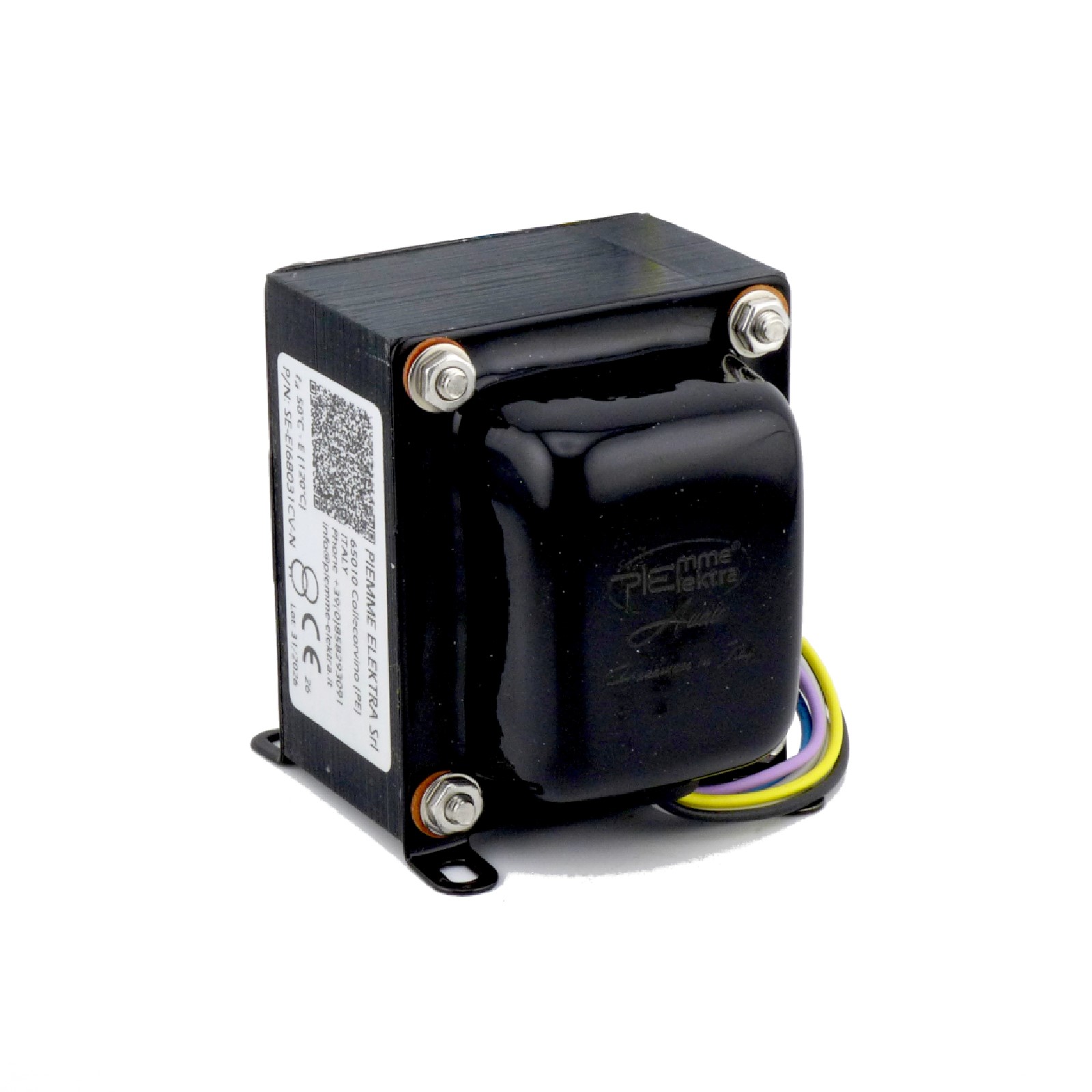

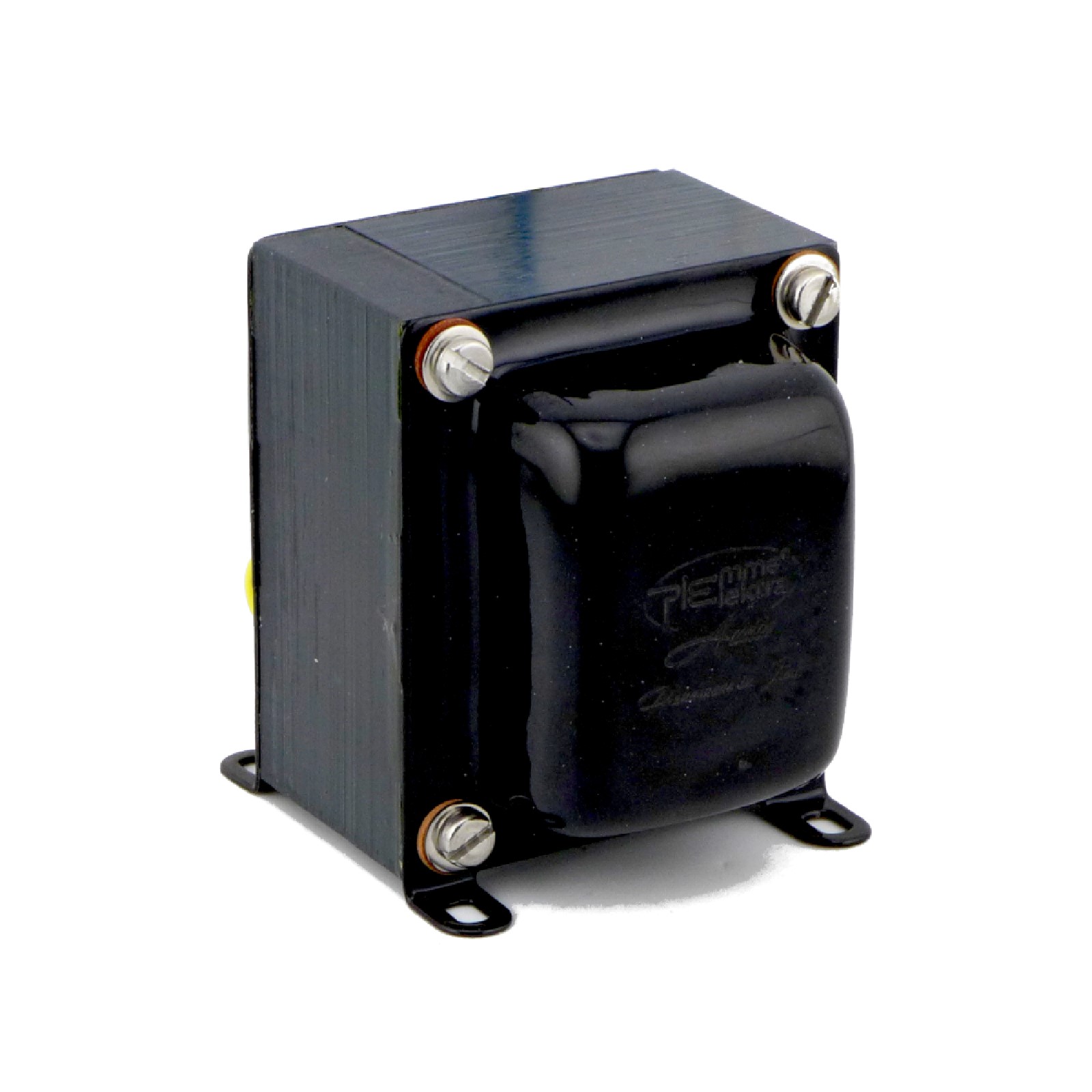

Single Ended Output Transformer fori 6080 (like Lilliput)
Power: 4W
Input: 1400 Ohm
Output: 8-64 Ohm
winding in 7 sections
Annealed Grain-oriented magnetic core
Primario inductance: >7H
Primary resistance : 125 Ohm
Leakage Inductance @1kHz:2.7/2.2mH
Secondary resistance 0.46/9.4 Ohm
Idc 80mA, max 90mA
BW +/-3dB @4W 8 Ohm: 17-65.000Hz
BW +/-3dB @2W 64 Ohm: 16-170.000Hz
THD @4W 90mA: 7% @20Hz, 2.5% @30Hz e 1.3% @ 40Hz
Dimensions and schematic: see picture
Weight: 740 g.
Power: 4W
Input: 1400 Ohm
Output: 8-64 Ohm
winding in 7 sections
Annealed Grain-oriented magnetic core
Primario inductance: >7H
Primary resistance : 125 Ohm
Leakage Inductance @1kHz:2.7/2.2mH
Secondary resistance 0.46/9.4 Ohm
Idc 80mA, max 90mA
BW +/-3dB @4W 8 Ohm: 17-65.000Hz
BW +/-3dB @2W 64 Ohm: 16-170.000Hz
THD @4W 90mA: 7% @20Hz, 2.5% @30Hz e 1.3% @ 40Hz
Dimensions and schematic: see picture
Weight: 740 g.
