OT SE 5W 4.5-5-5.6k UL41% 50mA
Out 8 Ohm PCL82-ECL82-PCL86-ECL86-EL84
OT SE 5W 4.5-5-5.6k UL41% 50mA
| Codice | SE-EI68037CV-N R02 |
| Prezzo lordo |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 60 PZ |

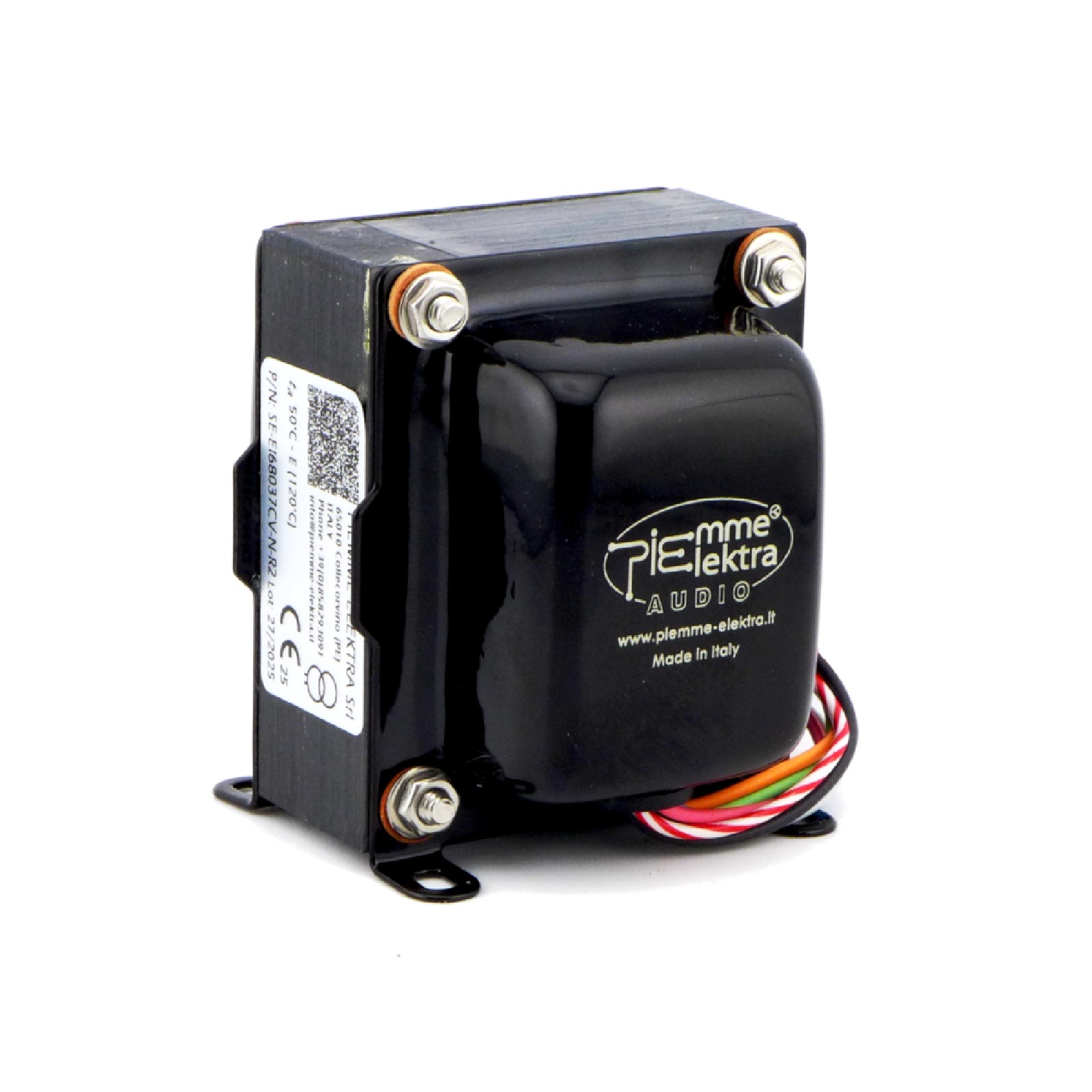

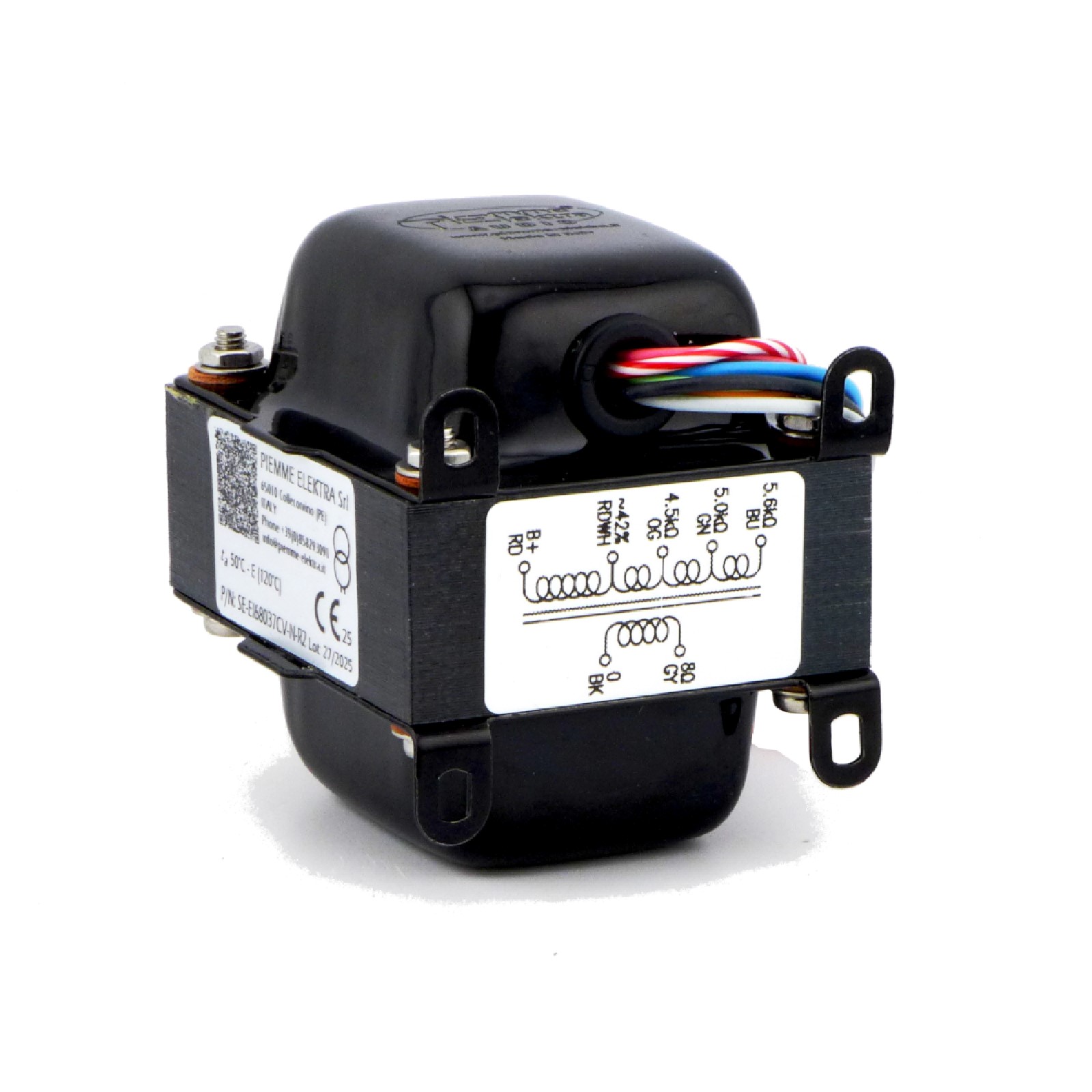

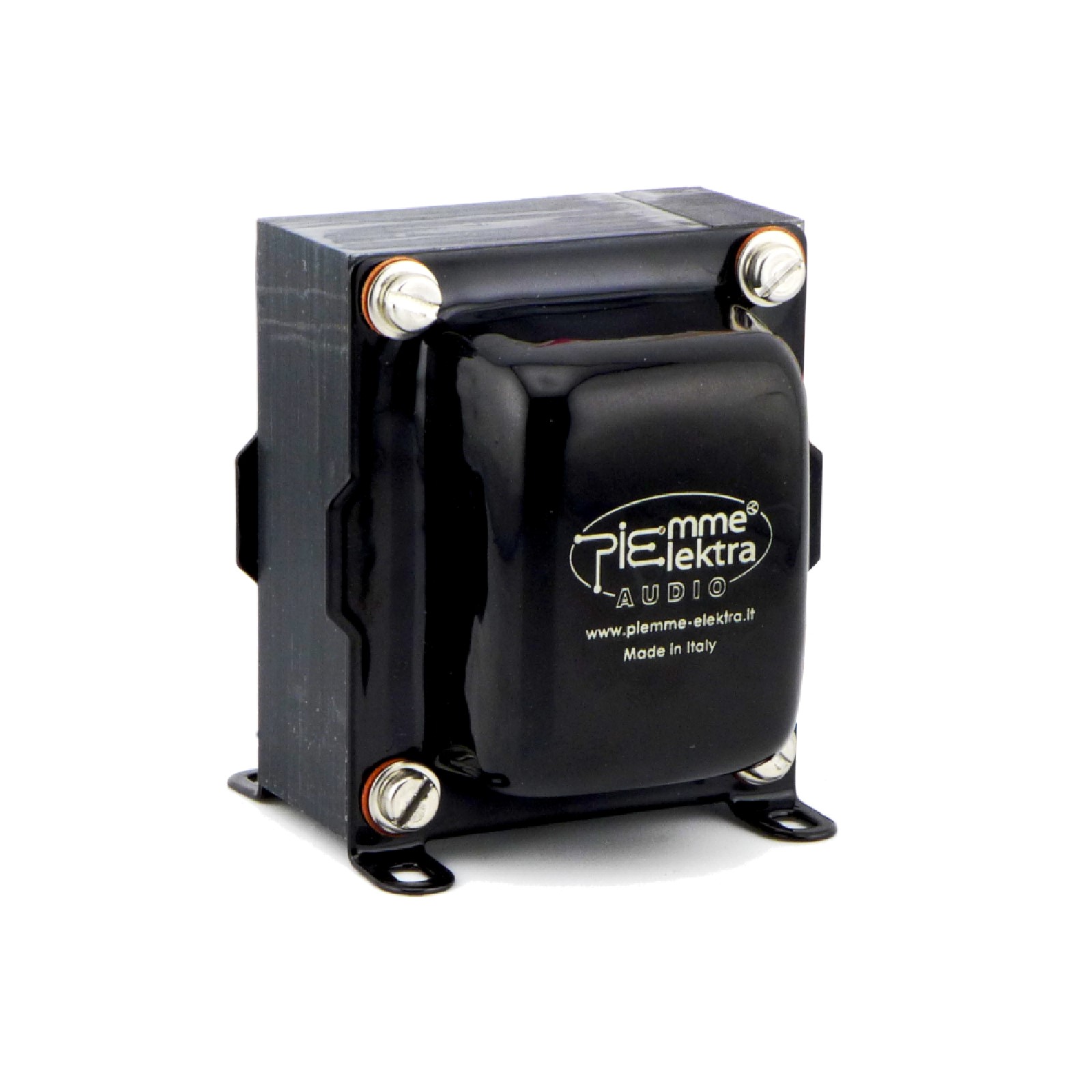

Single Ended Output Transformer PCL82/ECL82/PCL86/ECL86/EL84
Lo Scherzo / Il Giochino
Power: 5W
Input: 4.5-5-5.6kOhm (UL43-41-39%)
Output: 8 Ohm
winding in 7 sections
PRI/SEC Coupling capacitance 1600pF max
Grain-oriented magnetic sheet RICOTTO
Primariy inductance: 22-25-28H
Primary resistance : 400-425-455 Ohm max
Leakage Inductance @10kHz: 7.4-7.7-8.4mH
Secondari resistance 0.95 Ohm
Idc 50mA
BW +/-3dB @3W: 17-92.000Hz
THD@20Hz -3W-40mA: 5%

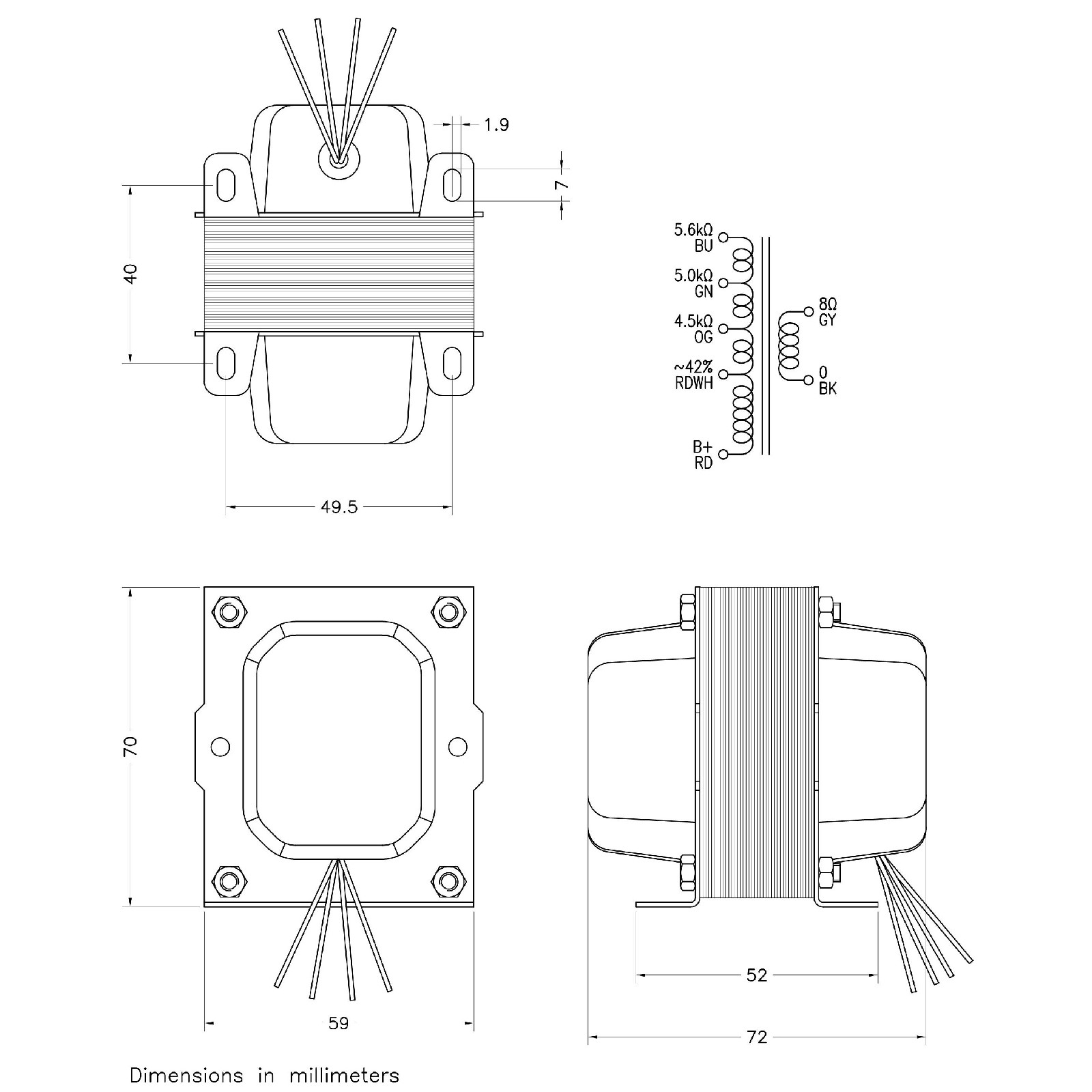

Dimensions and schematic: see picture
Weight: 740 g.
