Push Pull 200W 2.3k-40% /8 Ohm HiFI
Push Pull 200W 2.3k-40% /8 Ohm HiFI
| Codice | PP-EI12011B |
| Prezzo lordo |
250,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
250,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |
Output Transformer
Power: 250W
Input: 2450 Ohm 500mA
Output: 2-4-8 Ohm
Lpri: 15H @50Hz 5V
Rdc Pri: 16+16 Ohm +/- 0.5%
Rdc sec: 0.1 Ohm su 8 Ohm
Ldisp.(2-4-8 ohm) : 3.4/4/2.3mH @1kHz
Bw +/-3dB : 15-90.000hz

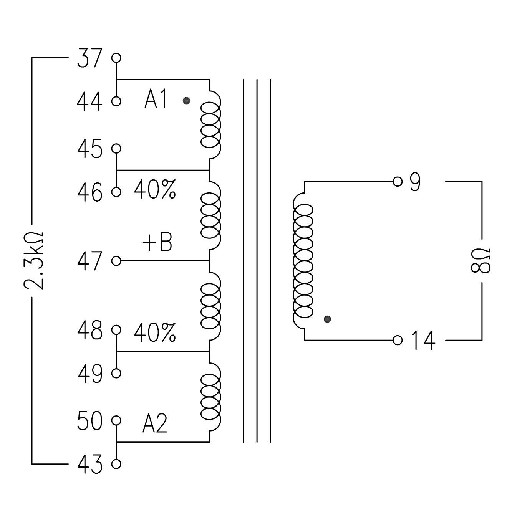

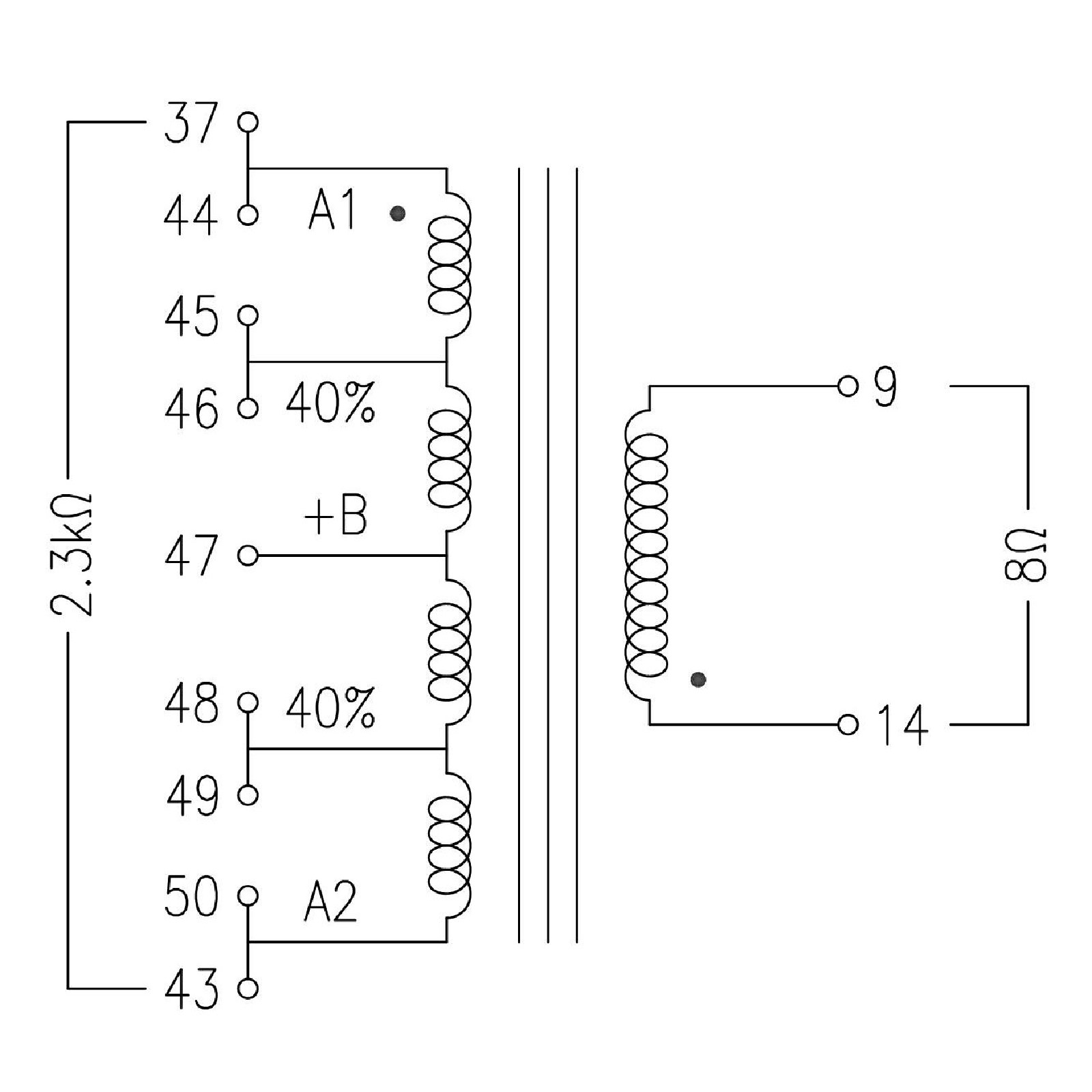

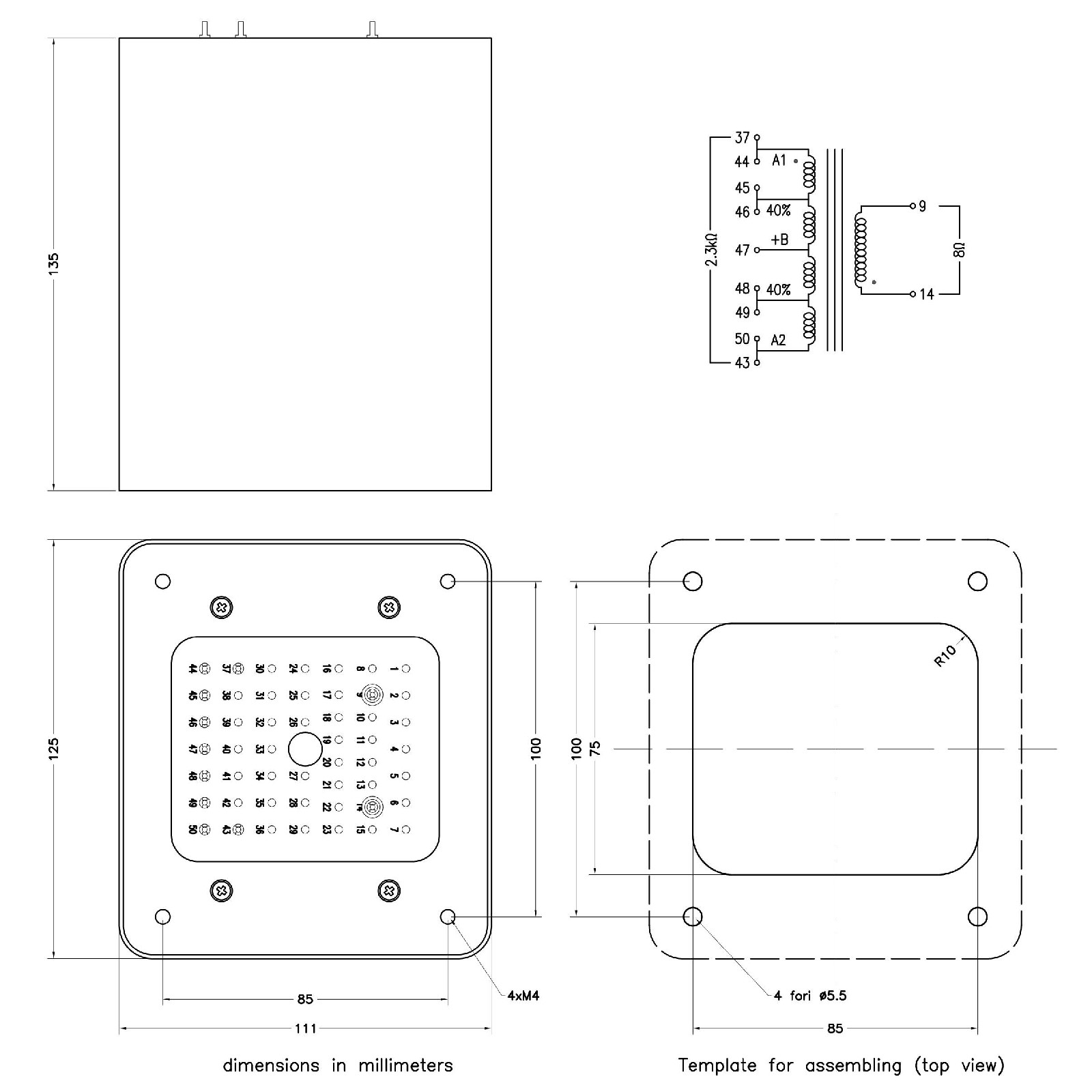

Dimensions and schematic: see picture
Weight: 5060 g.
Power: 250W
Input: 2450 Ohm 500mA
Output: 2-4-8 Ohm
Lpri: 15H @50Hz 5V
Rdc Pri: 16+16 Ohm +/- 0.5%
Rdc sec: 0.1 Ohm su 8 Ohm
Ldisp.(2-4-8 ohm) : 3.4/4/2.3mH @1kHz
Bw +/-3dB : 15-90.000hz
Dimensions and schematic: see picture
Weight: 5060 g.
