P.P.15-16k/4-6-8-16-64 ohm 10W UL35%
EL42
P.P.15-16k/4-6-8-16-64 ohm 10W UL35%
| Codice | PP-EI60022F |
| Prezzo lordo |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 10 PZ |

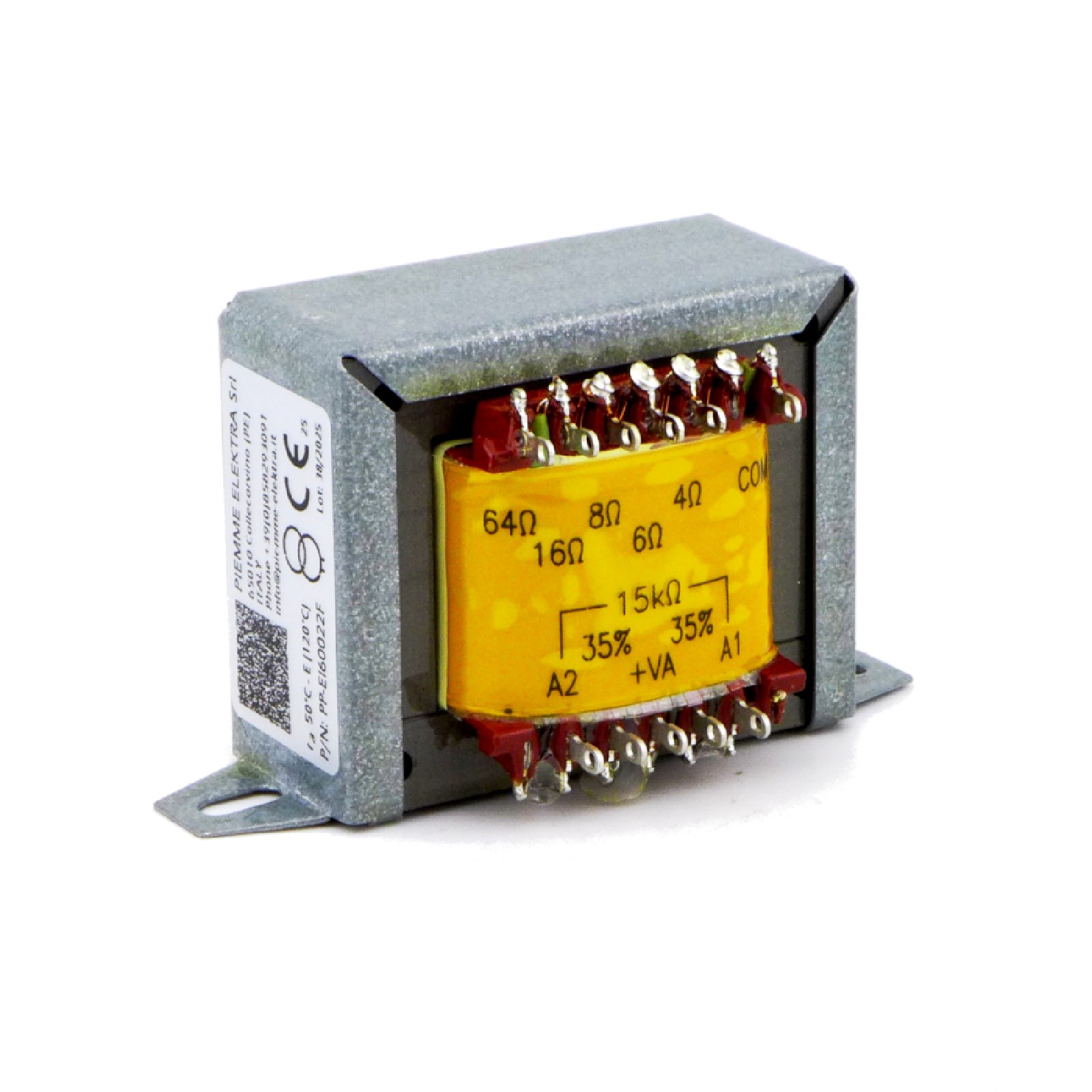

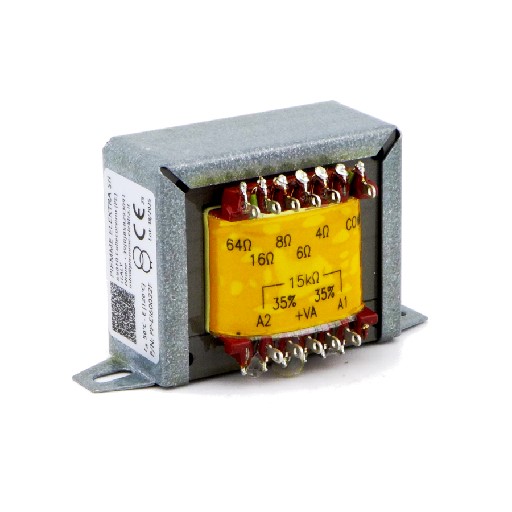

EL42 Push Pull Output Transformer
Power: 10W Max
Input: 15000 Ohm nom. UL Tap 35% ( rael Z 16kOhm)
Output: 4-6-8-16-64 Ohm
Lpri >750H @5V 20Hz
Rdc PRI 525+525 Ohm unbalace 3%
Rdc sec: 0.55/0.71/0.82/1.55/7.8 Ohm
LL pri: 46/42/30/67/132mH @1kHz
BW -3dB 5W
4 Ohm: 14-32.000Hz
6 Ohm: 14-32.000Hz
8 Ohm: 14-48.000Hz
16 Ohm: 14-29.000Hz
6 Ohm: 14-64.000Hz

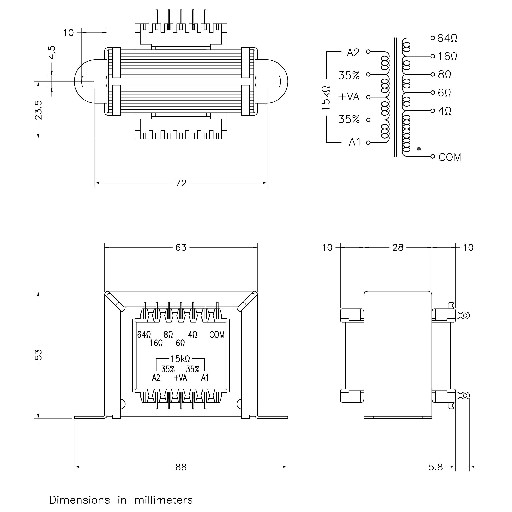

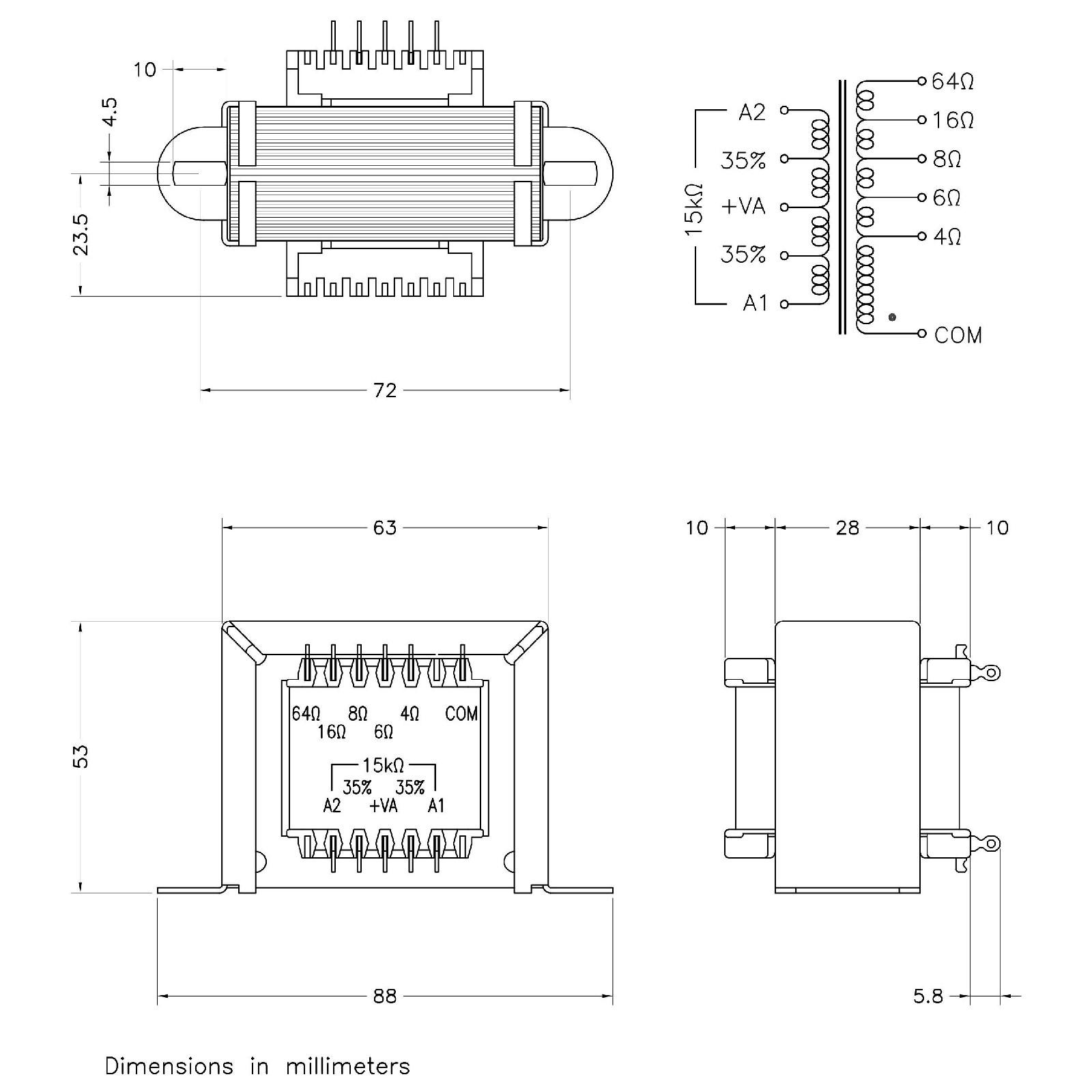

Dimensions and schematic: see picture
Weight: 600 g.
Power: 10W Max
Input: 15000 Ohm nom. UL Tap 35% ( rael Z 16kOhm)
Output: 4-6-8-16-64 Ohm
Lpri >750H @5V 20Hz
Rdc PRI 525+525 Ohm unbalace 3%
Rdc sec: 0.55/0.71/0.82/1.55/7.8 Ohm
LL pri: 46/42/30/67/132mH @1kHz
BW -3dB 5W
4 Ohm: 14-32.000Hz
6 Ohm: 14-32.000Hz
8 Ohm: 14-48.000Hz
16 Ohm: 14-29.000Hz
6 Ohm: 14-64.000Hz
Dimensions and schematic: see picture
Weight: 600 g.
