P.P.10-11k/4-6-8-16-64 ohm 10W UL35%
ECLL800
P.P.10-11k/4-6-8-16-64 ohm 10W UL35%
| Codice | PP-EI60025F_R02 |
| Prezzo lordo |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 10 PZ |

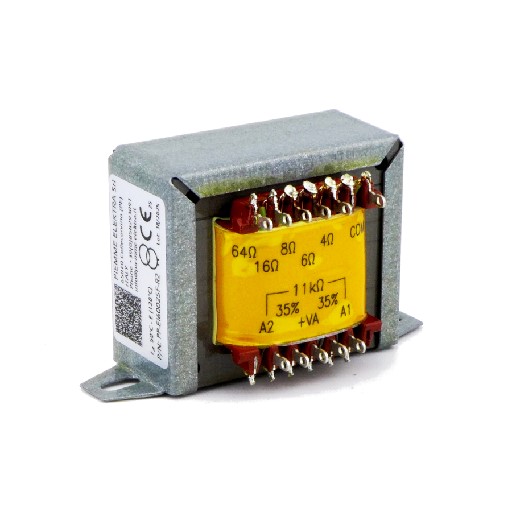

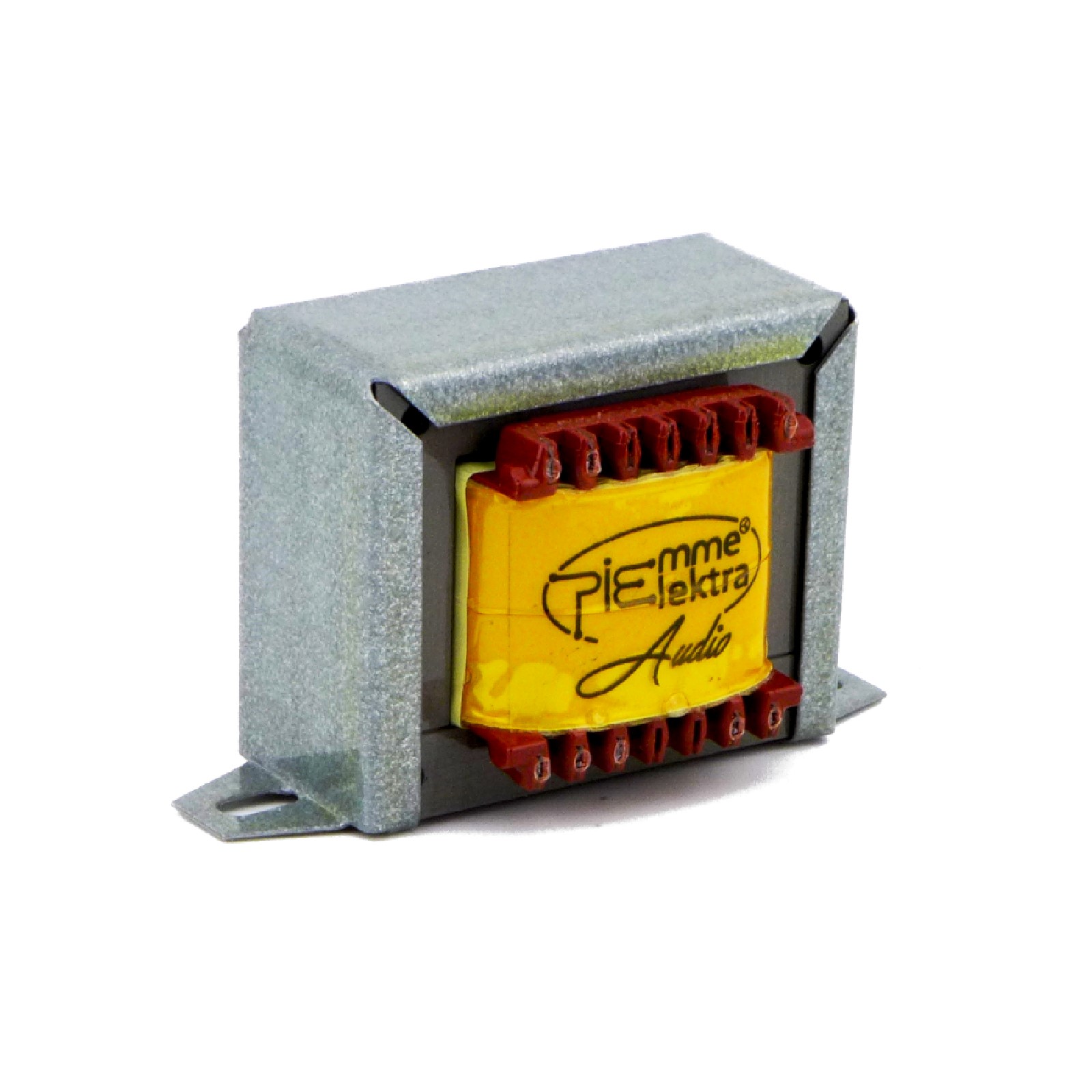

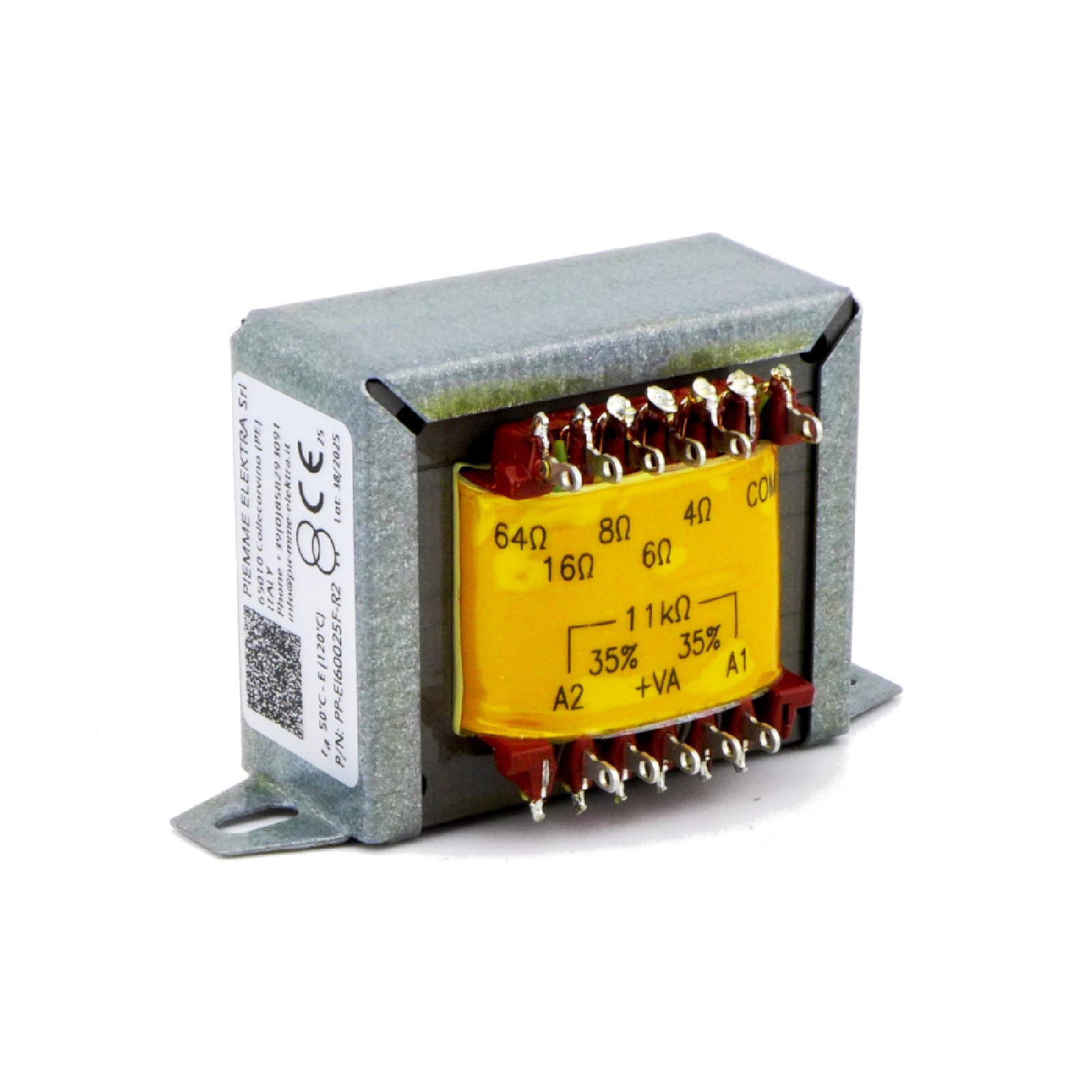

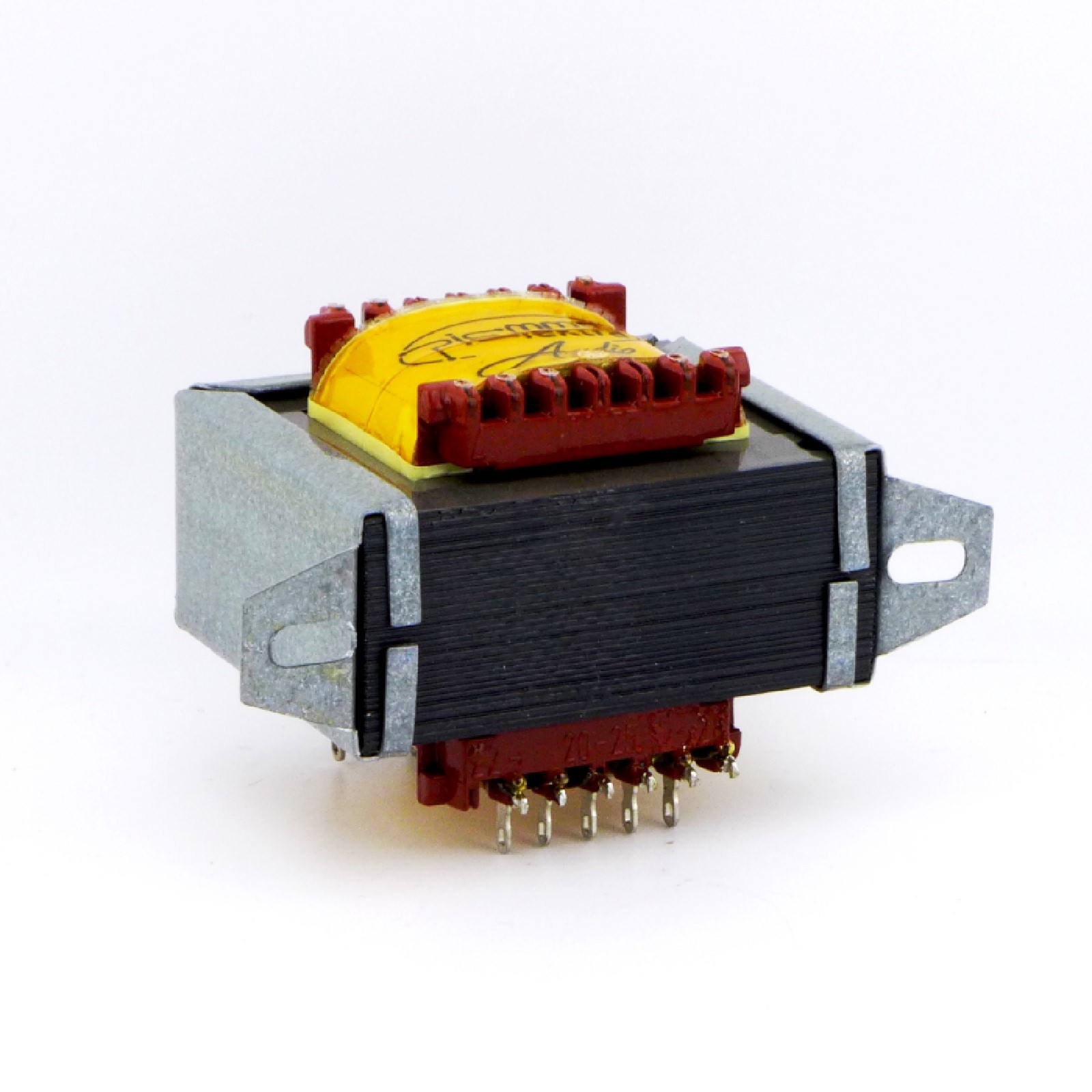

ECLL80 Push Pull Output Transformer
Power: 10W
Input: 10kOhm nom. UL Tap 35% ( rael Z 11kOhm)
Output: 4-6-8-16-64 Ohm
Lpri >600H @5V 20Hz
Rdc PRI 360+360 Ohm unbalace 3%
Rdc sec: 0.55/0.71/0.82/1.55/7.8 Ohm
LL pri: 27/25/18/50/90mH @1kHz
BW -3dB 5W
4 Ohm: 14-38.000Hz
6 Ohm: 14-37.000Hz
8 Ohm: 14-56.000Hz
16 Ohm: 14-32.000Hz
6 Ohm: 14-64.000Hz

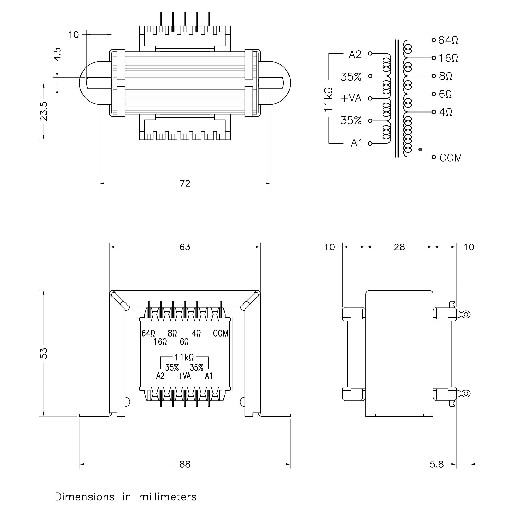

Dimensions and schematic: see picture
Weight: 600 g.
Power: 10W
Input: 10kOhm nom. UL Tap 35% ( rael Z 11kOhm)
Output: 4-6-8-16-64 Ohm
Lpri >600H @5V 20Hz
Rdc PRI 360+360 Ohm unbalace 3%
Rdc sec: 0.55/0.71/0.82/1.55/7.8 Ohm
LL pri: 27/25/18/50/90mH @1kHz
BW -3dB 5W
4 Ohm: 14-38.000Hz
6 Ohm: 14-37.000Hz
8 Ohm: 14-56.000Hz
16 Ohm: 14-32.000Hz
6 Ohm: 14-64.000Hz
Dimensions and schematic: see picture
Weight: 600 g.
