136VA 230-240/sch/330-50-0-330V 0.15A
6.3V CT 3.5A, 5V 3A
136VA 230-240/sch/330-50-0-330V 0.15A
| Codice | PS-EI84034CH-Z |
| Prezzo lordo |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 9 PZ |

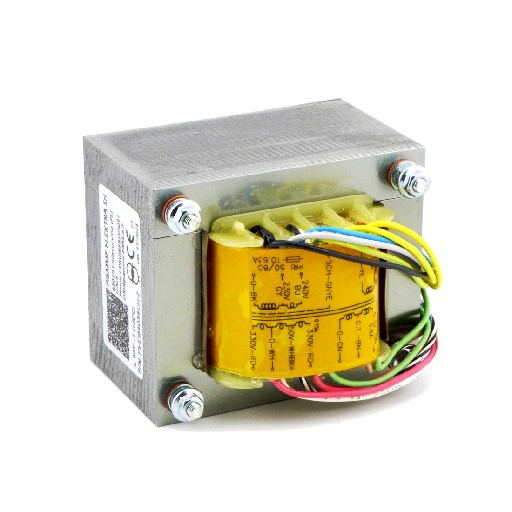

Power Transformer like 125P33A-022749-290BEX
Power: 136VA
Input: 230-240V
Output:
330-50-0-330V 0.15A
6.3V C.T. 3.5A
5.0V 3A
Primary/Secondary Shield

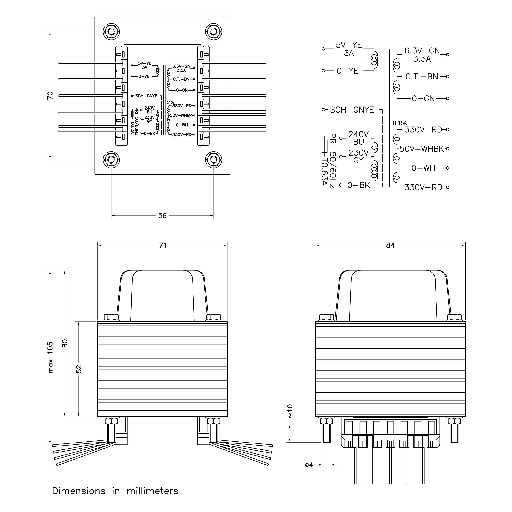

Dimensions and schematic: see drawing
Weight: 2.4kg
Power: 136VA
Input: 230-240V
Output:
330-50-0-330V 0.15A
6.3V C.T. 3.5A
5.0V 3A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 2.4kg
