Transformer 88W 220-230-240V 6.3V2A
300-0-300 80mA, 2x 9V 1.5A
Codice | PS-EI84050CV |
Prezzo lordo |
170,0000 EUR/PZ
(IVA compresa 22%) |
Sconto | |
Prezzo netto |
170,0000 EUR/PZ
(IVA compresa 22%) |
Disponibilità | 1 PZ |

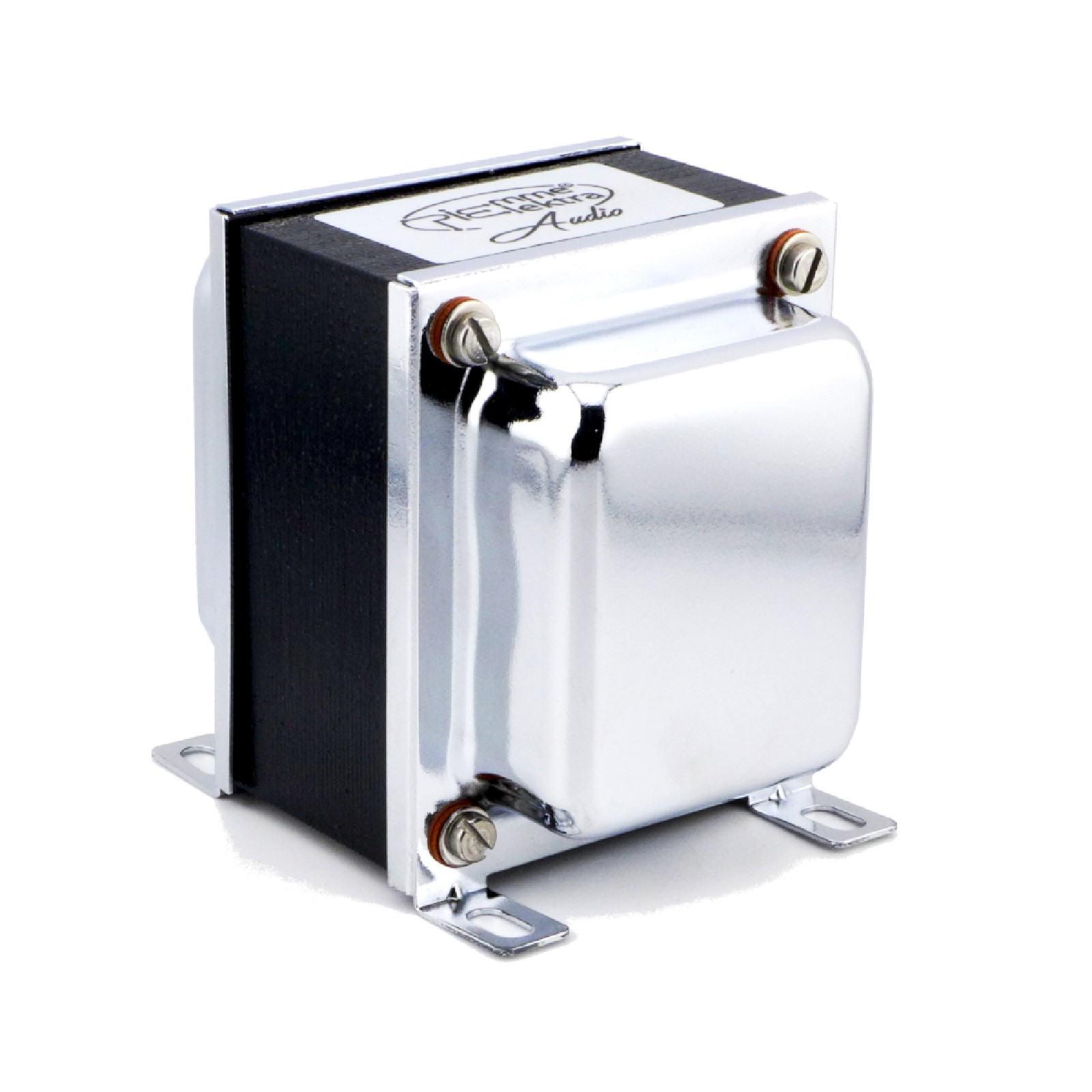

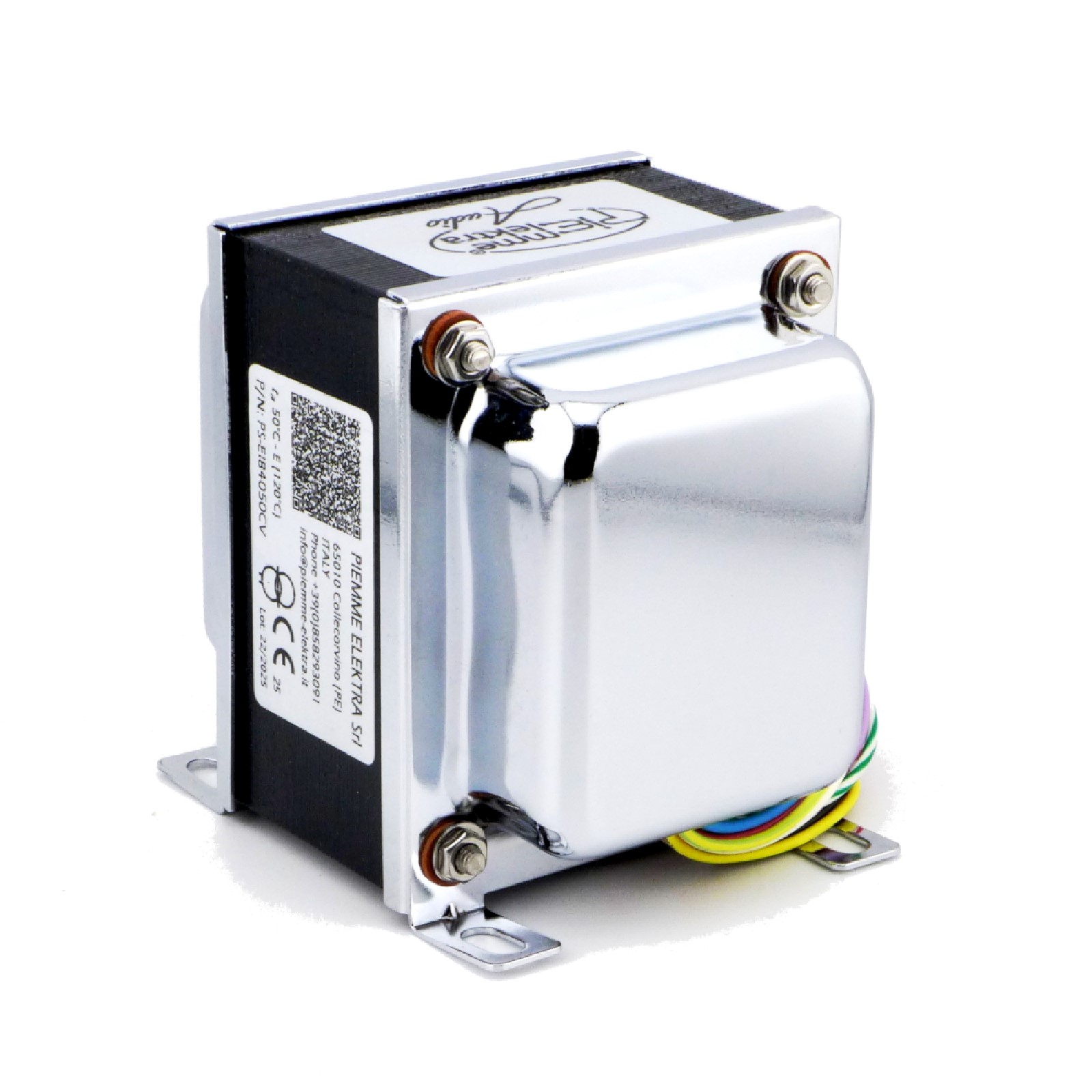

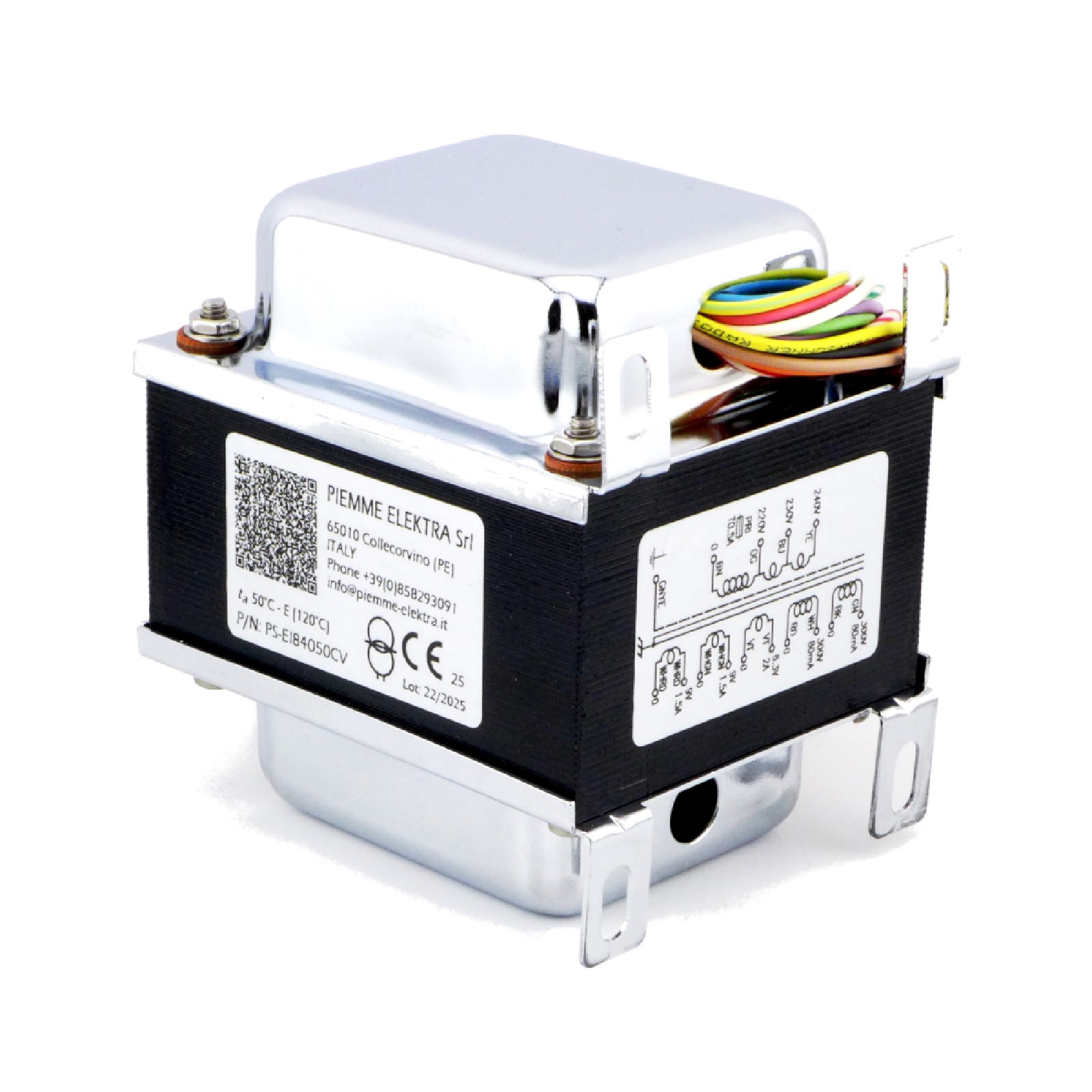

Power Transformer
Power: 88VA
Input: 220-230-240V
Output:
- 300-0-300V - 90mA
- 6.3V - 2A
- 9V - 1.5A
- 9V - 1.5A
Primary/Secondary Shield
Grain Oriented magnetic core

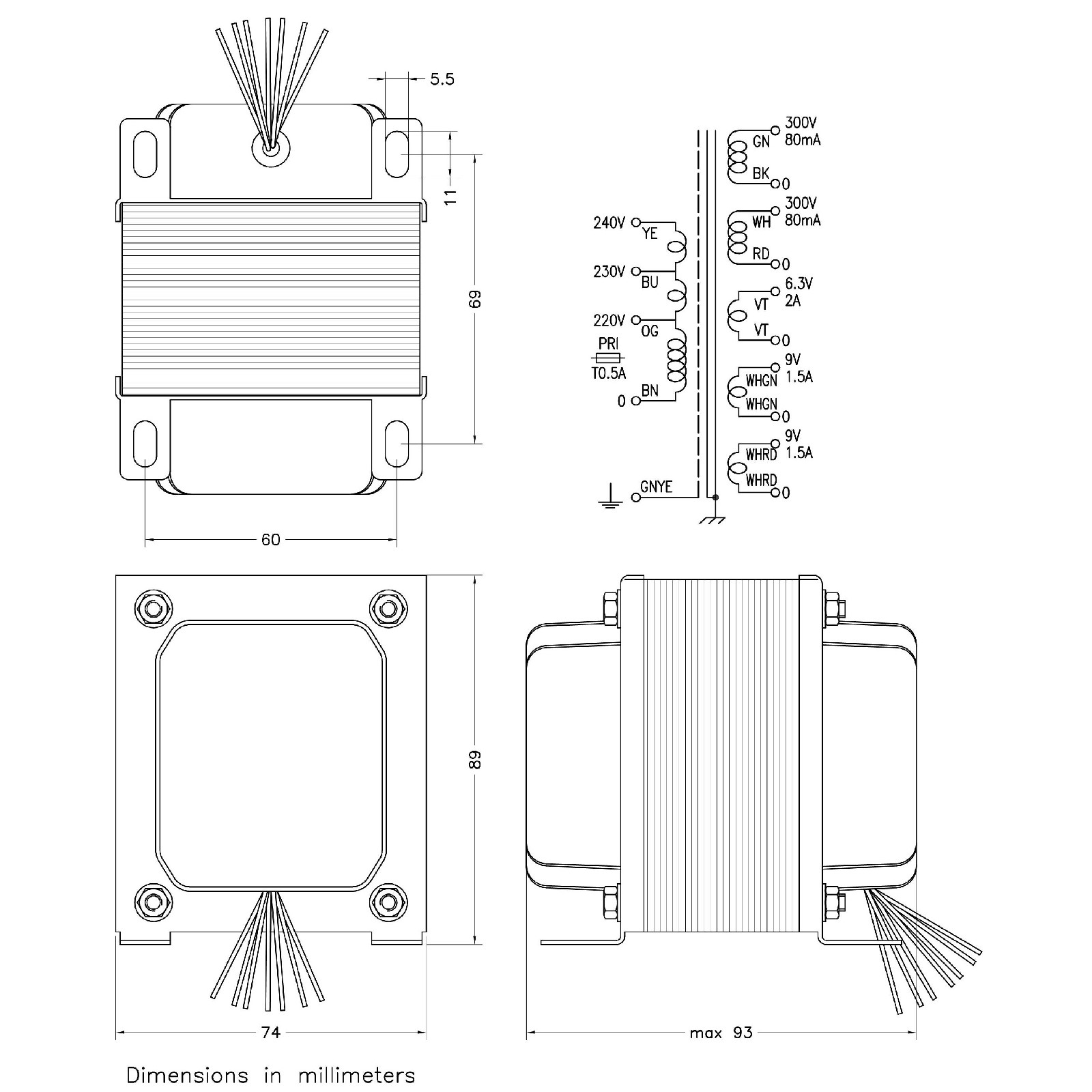

Dimensions and schematic: see drawing
Weight: 2140g
usable in the Kost's Preamplifier Diego Nardi
Power: 88VA
Input: 220-230-240V
Output:
- 300-0-300V - 90mA
- 6.3V - 2A
- 9V - 1.5A
- 9V - 1.5A
Primary/Secondary Shield
Grain Oriented magnetic core
Dimensions and schematic: see drawing
Weight: 2140g
usable in the Kost's Preamplifier Diego Nardi
