Push Pull 200W 2.2k 43%/4-8-16 Ohm
Push Pull 200W 2.2k 43%/4-8-16 Ohm
| Codice | PP-EI13501CV-Z |
| Prezzo lordo |
280,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
280,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |
Output Transformer Marshal Major 200W
Power: 200W
Input: 2200 Ohm UL tap 43%
Output: 4-8-16 Ohm
Lpri: 30H @50Hz 5V
Rdc Pri: 8.2 Ohm (16.5 ohm totale) sbilanciamento +/- 4%
Rdc sec (4-8-16 Ohm): 0.06/0.08/0.13 Ohm
Ldisp.(4-8-16 Ohm) : 7.5/7.0/5.0mH @1kHz serie
Bw +/-3dB : 20-90.000hz

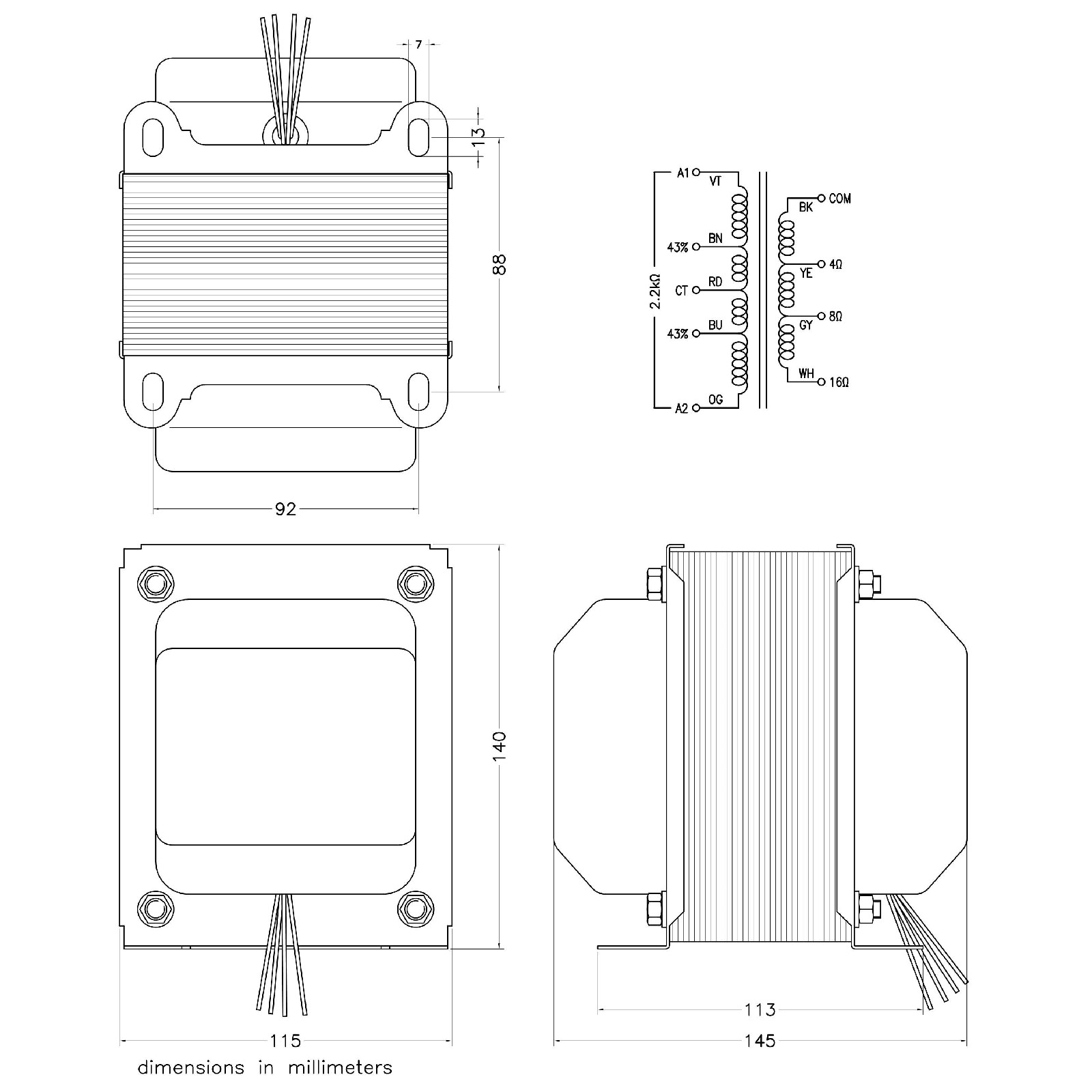

Dimensions and schematic: see picture
Weight: 7.2kg.
Power: 200W
Input: 2200 Ohm UL tap 43%
Output: 4-8-16 Ohm
Lpri: 30H @50Hz 5V
Rdc Pri: 8.2 Ohm (16.5 ohm totale) sbilanciamento +/- 4%
Rdc sec (4-8-16 Ohm): 0.06/0.08/0.13 Ohm
Ldisp.(4-8-16 Ohm) : 7.5/7.0/5.0mH @1kHz serie
Bw +/-3dB : 20-90.000hz
Dimensions and schematic: see picture
Weight: 7.2kg.
