45VA 220-230-240V
170-180-190V 0.12A 2x6.3V 2A
45VA 220-230-240V
| Codice | PS-EI68068F-R2 |
| Prezzo lordo |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
45,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 6 PZ |
Power Transformer
Power: 45VA
Input: 220-230-240V
Output:
- 170-180-190V 0.12A - Vo 180.15-190.6-200.17V
- 2 x 6.3V - 2A - vo 6.84V
Primary/Secondary Shield and
External Shield connect to Ground

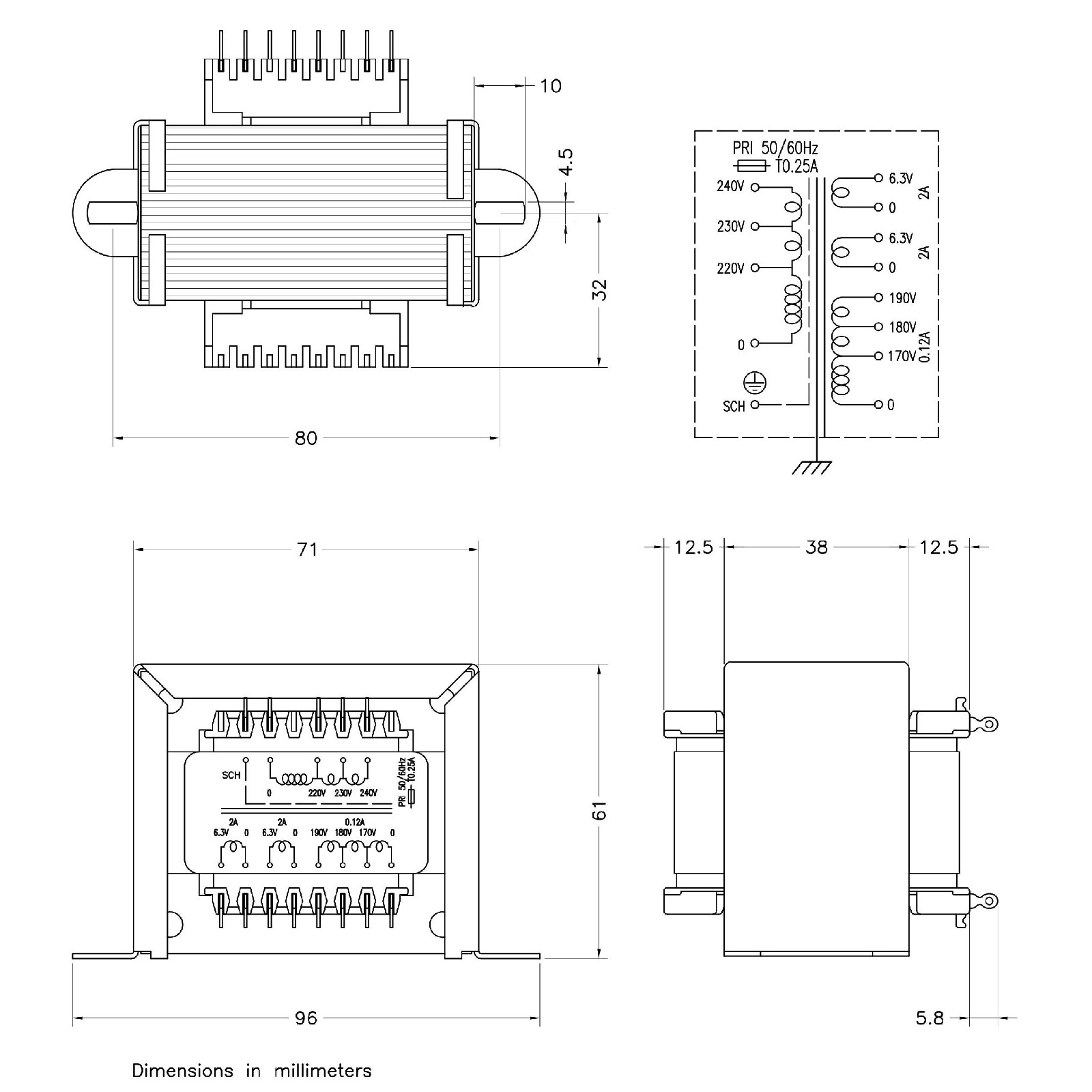

Dimensions and schematic: see drawing
Weight: 1060g
Power: 45VA
Input: 220-230-240V
Output:
- 170-180-190V 0.12A - Vo 180.15-190.6-200.17V
- 2 x 6.3V - 2A - vo 6.84V
Primary/Secondary Shield and
External Shield connect to Ground
Dimensions and schematic: see drawing
Weight: 1060g
