136VA 2x115V/sch/330-50-0-330V 0.145A
6.3V CT 3.5A, 5V 3A, 12V 0.2A
136VA 2x115V/sch/330-50-0-330V 0.145A
| Codice | PS-EI84057CH-Z |
| Prezzo lordo |
115,5000 EUR/PZ
(IVA compresa 22%) |
| Sconto | 7% |
| Prezzo netto |
107,4150 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |

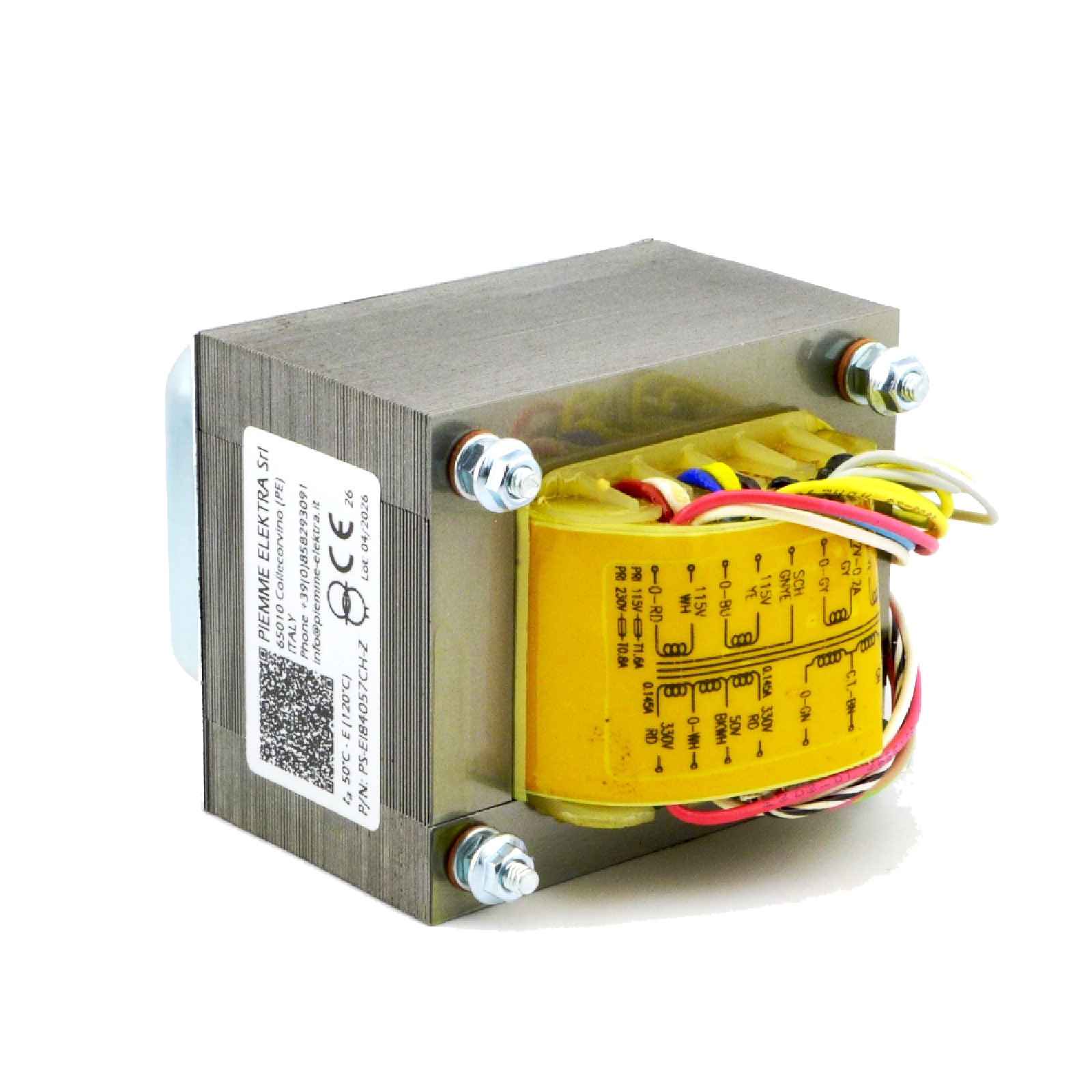

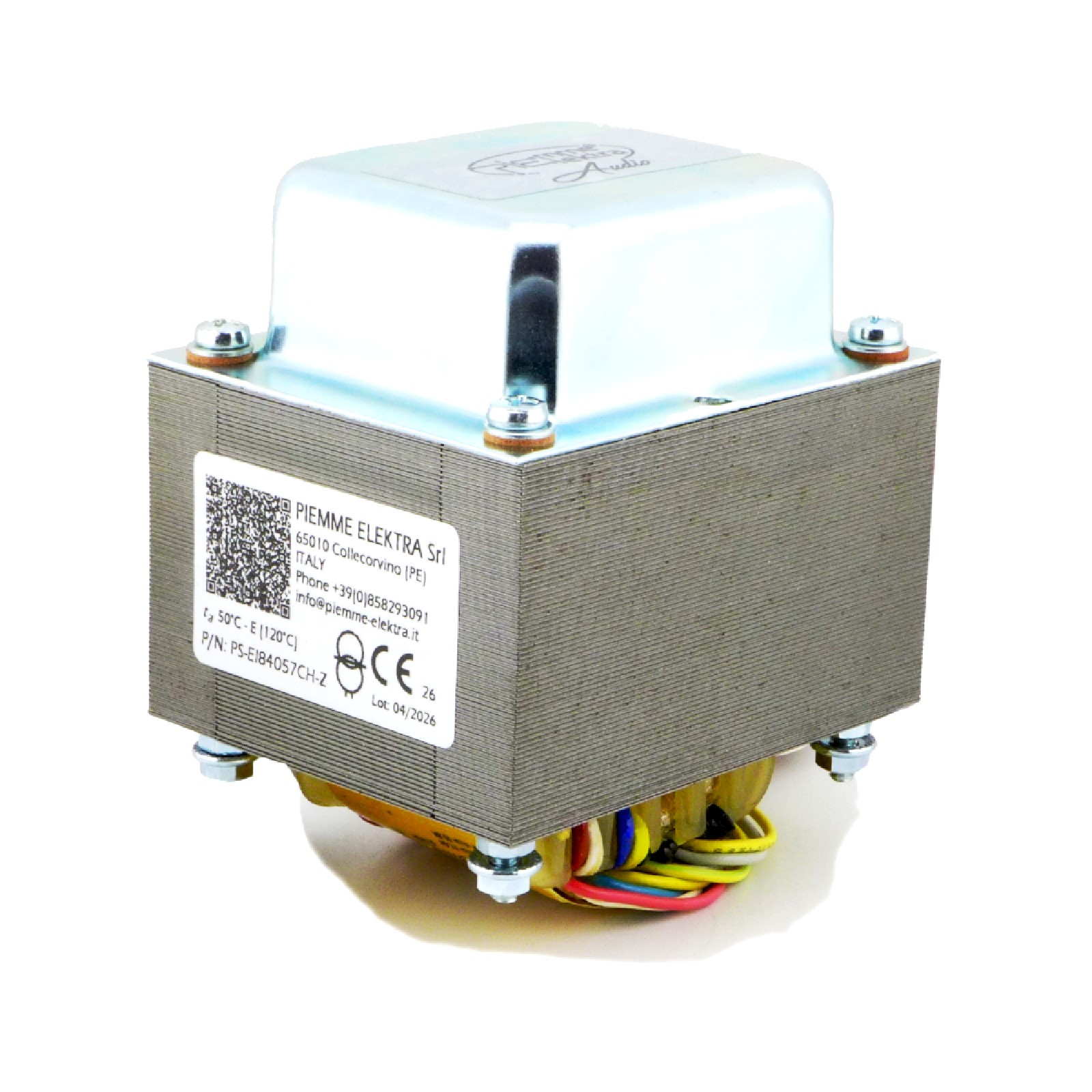

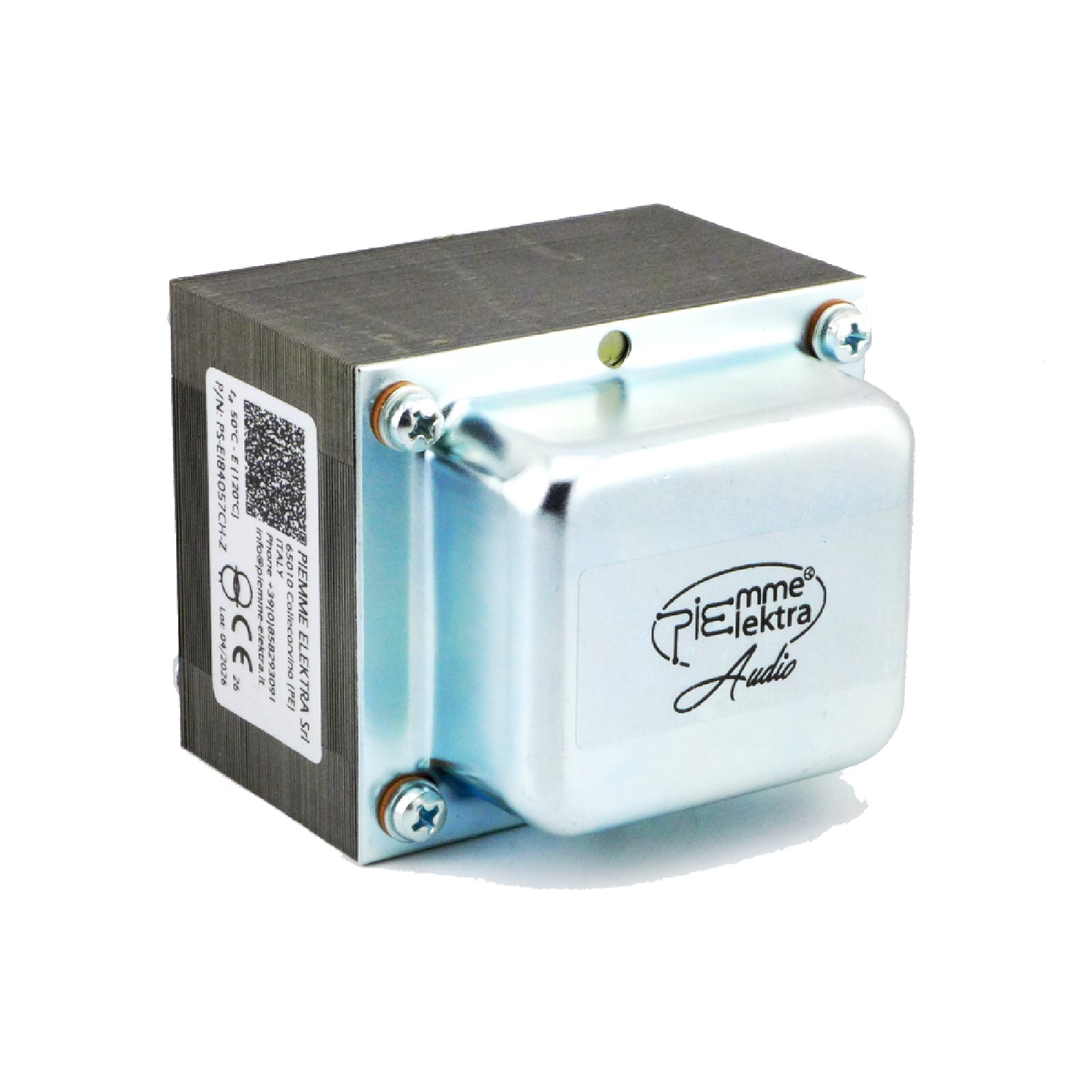

Power Transformer like 125P33A-022749-290BEX
Power: 136VA
Input: 2x115V
Output:
330-0-50-330V 0.145A
6.3V C.T. 3.5A
5.0V 3A
12V 0.2A
Primary/Secondary Shield

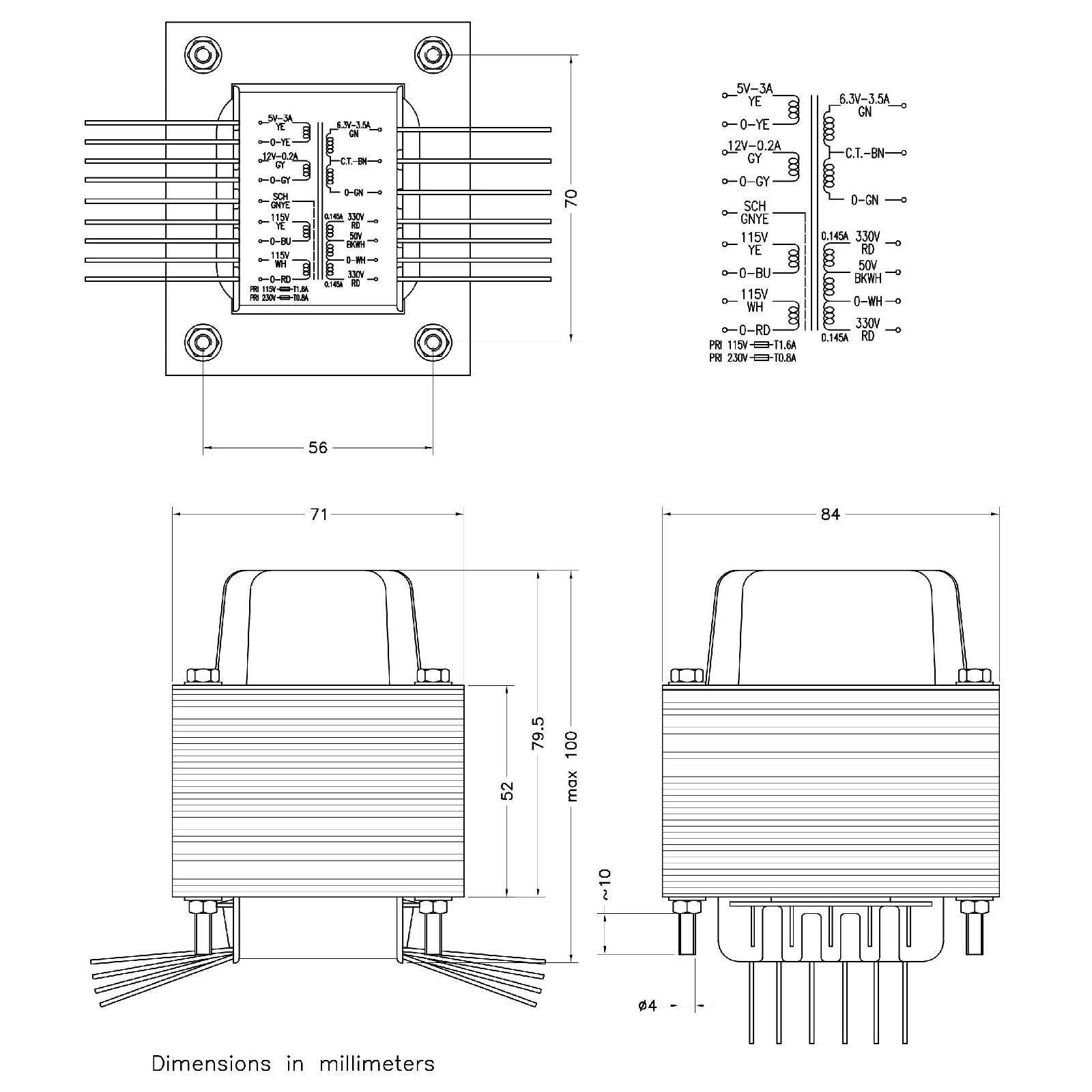

Dimensions and schematic: see drawing
Weight: 2.4kg
Power: 136VA
Input: 2x115V
Output:
330-0-50-330V 0.145A
6.3V C.T. 3.5A
5.0V 3A
12V 0.2A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 2.4kg
