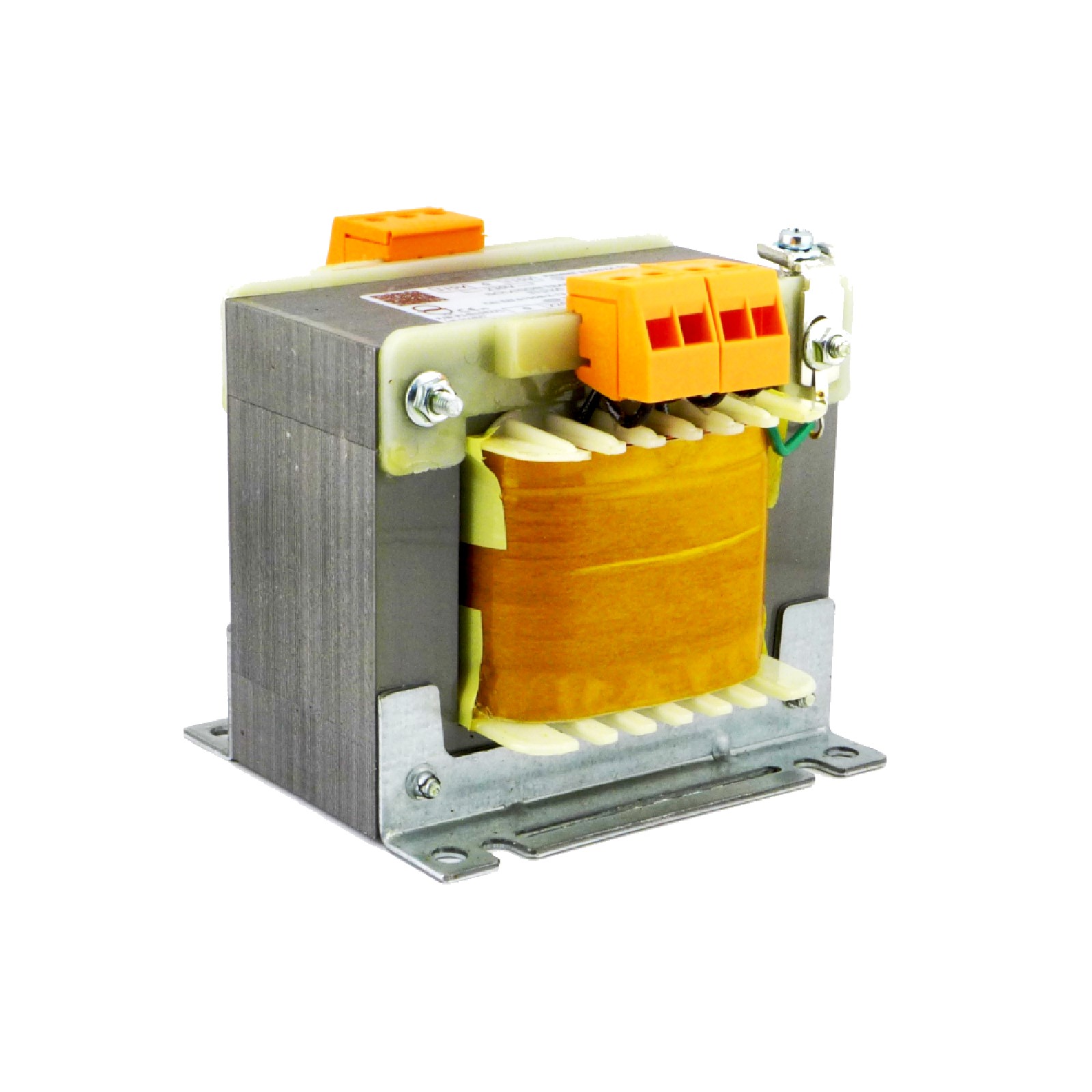

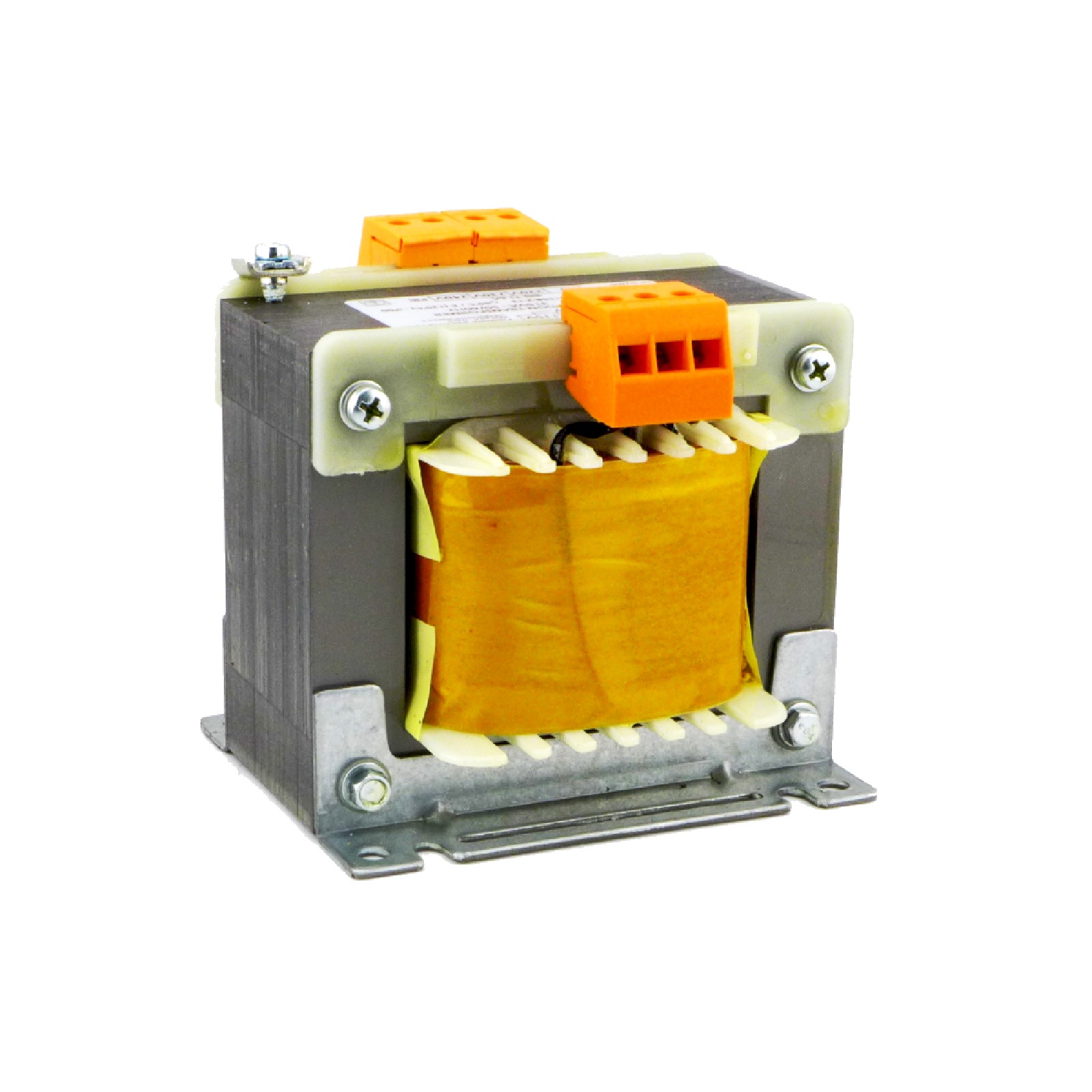

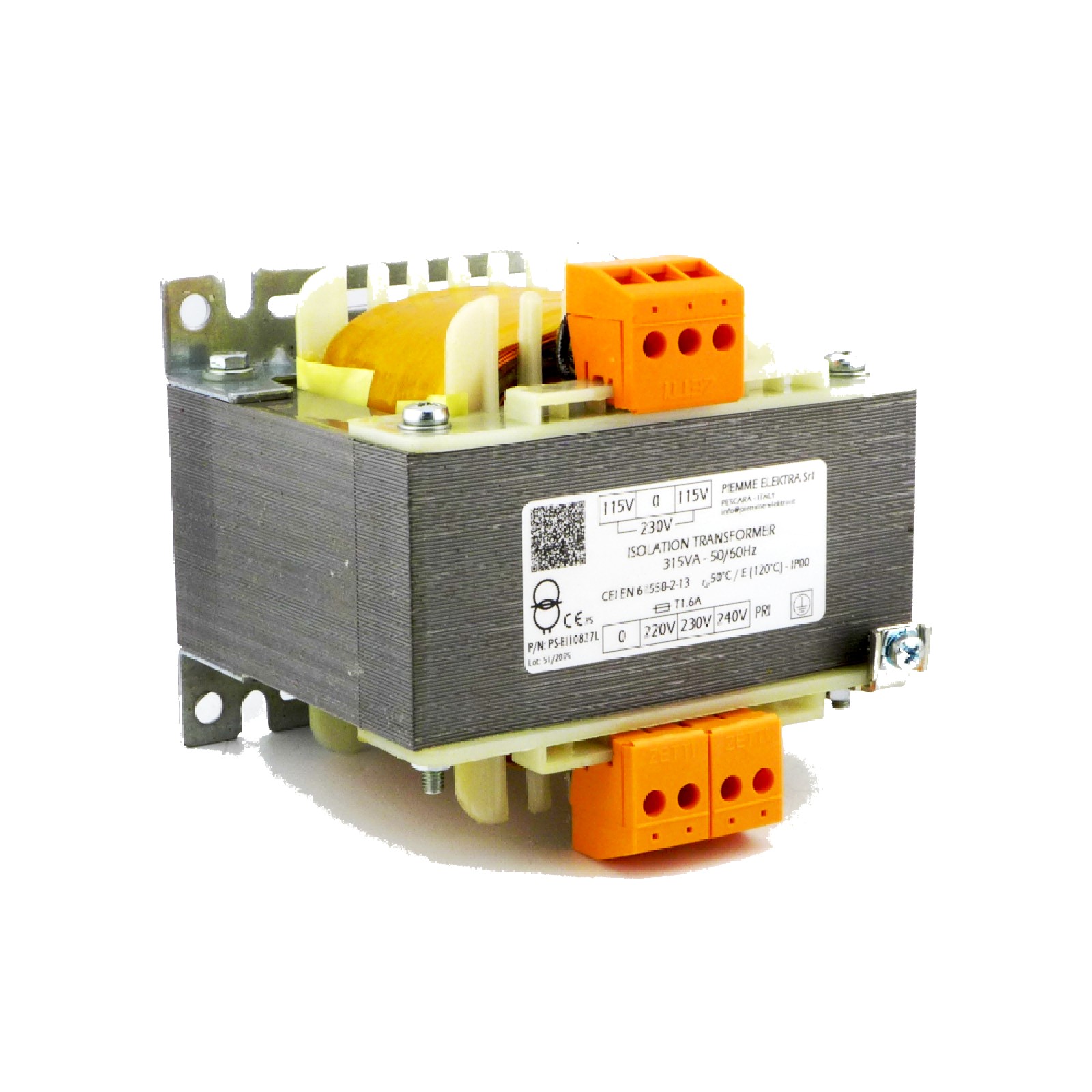

315VA Trasformatore di isolamento
230/SCH/115-0-115V
315VA Trasformatore di isolamento
| Codice | PS-EI10827L |
| Prezzo lordo |
125,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
125,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |
Isolation Transformer
Power: 315VA
frequency 50-60Hz
Input: 0-220-230-240V
PRI/SEC shied connetted to ground
Nominal utput: 115-0-115V / 230V
Output no load voltage: 239V
Output with 300VA load (1.35A) : >225V
Termal class 120°C (B) Ta 50°C
Grain oriented laminate core

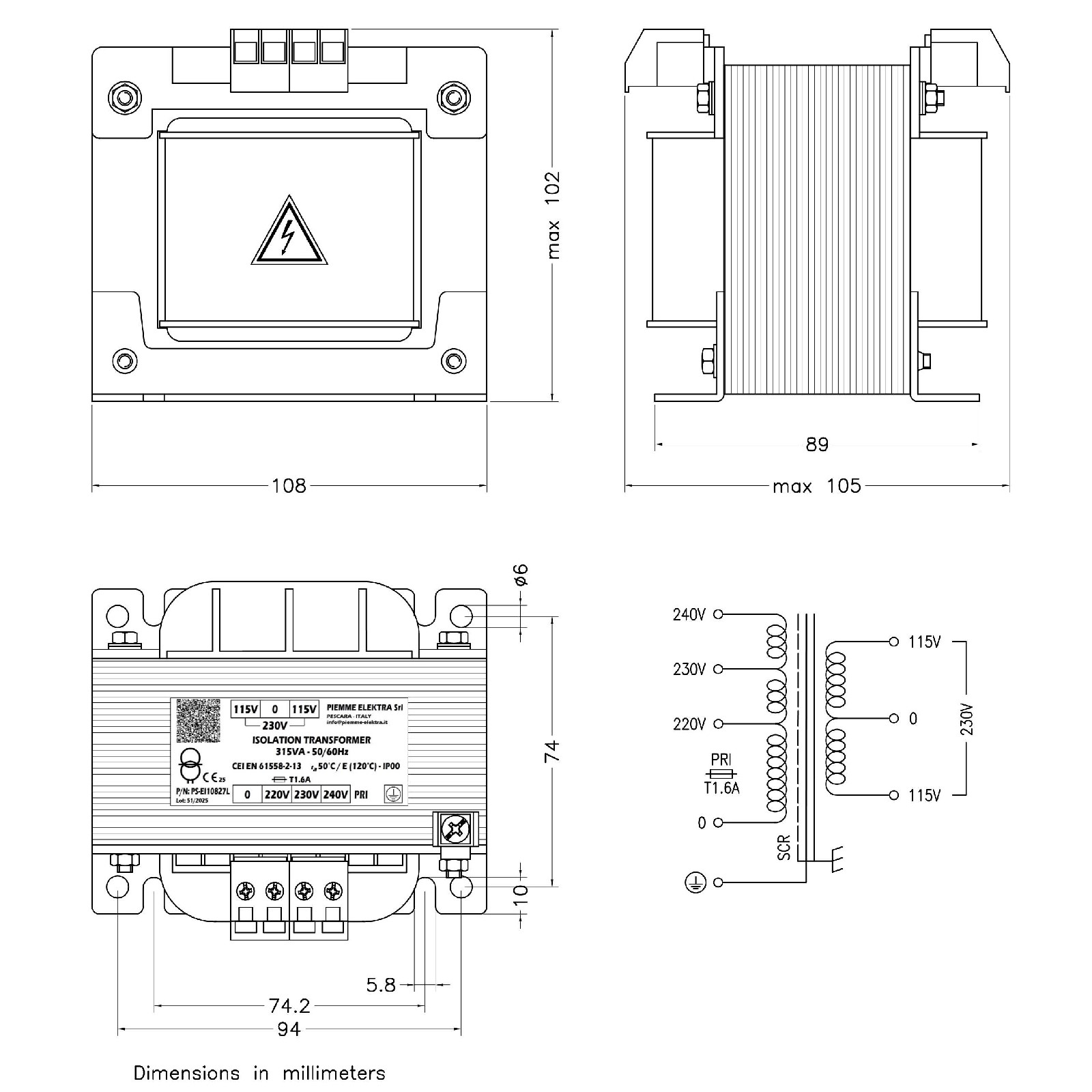

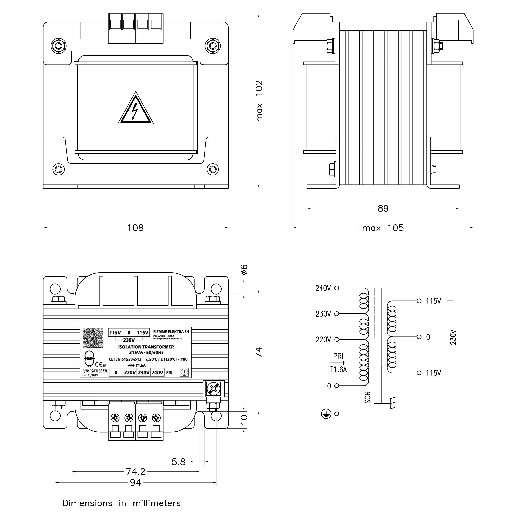

Dimensions and schematic: see drawing
Power: 315VA
frequency 50-60Hz
Input: 0-220-230-240V
PRI/SEC shied connetted to ground
Nominal utput: 115-0-115V / 230V
Output no load voltage: 239V
Output with 300VA load (1.35A) : >225V
Termal class 120°C (B) Ta 50°C
Grain oriented laminate core
Dimensions and schematic: see drawing
