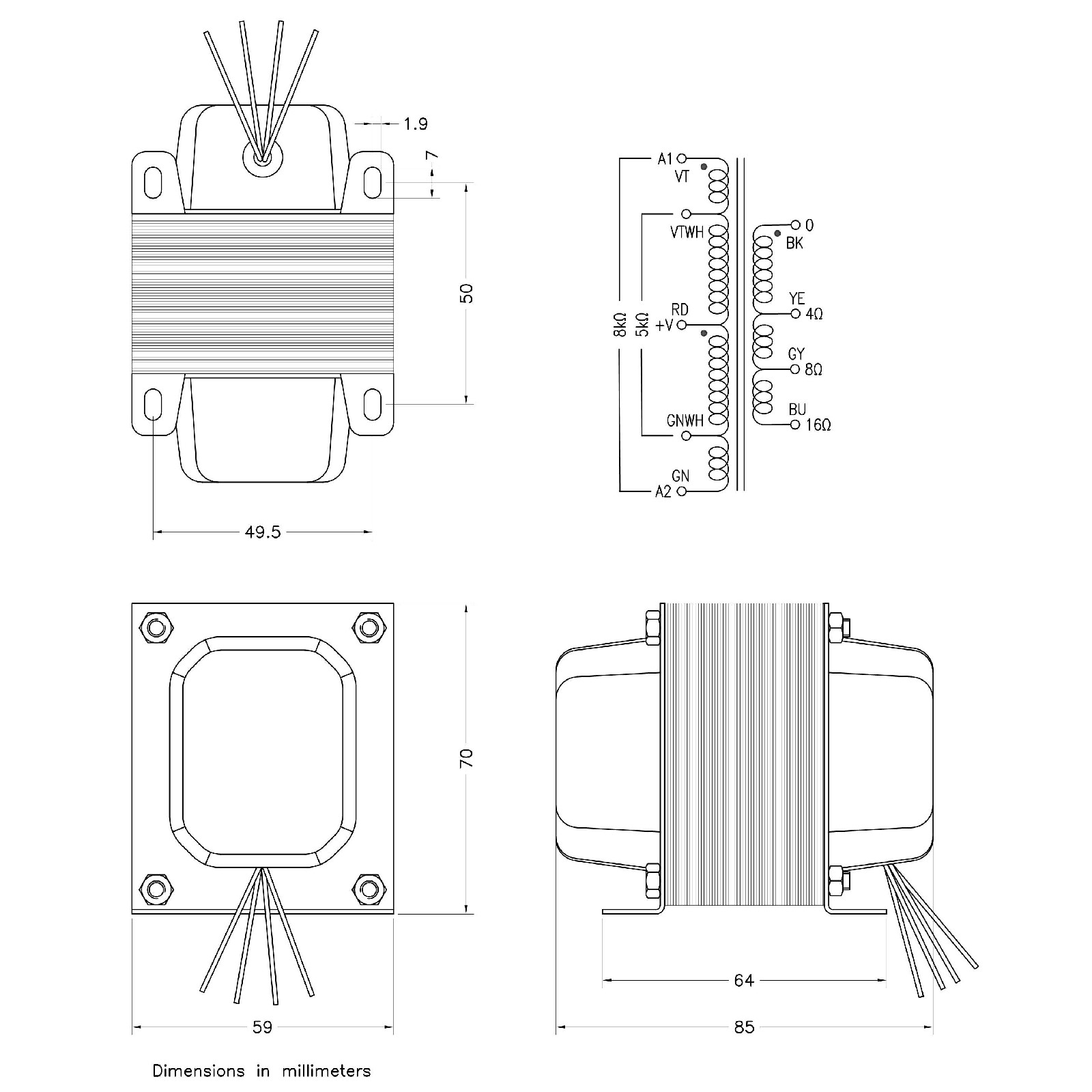

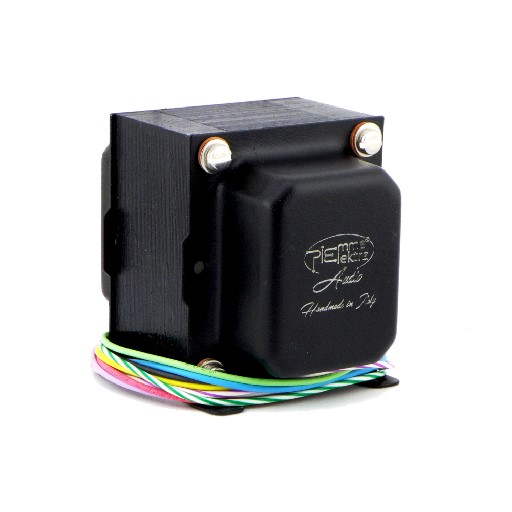

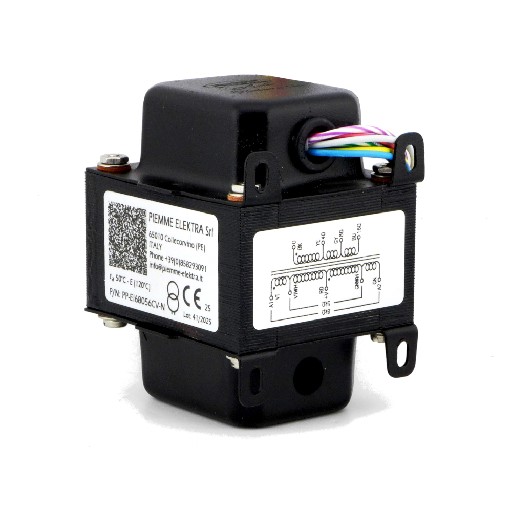

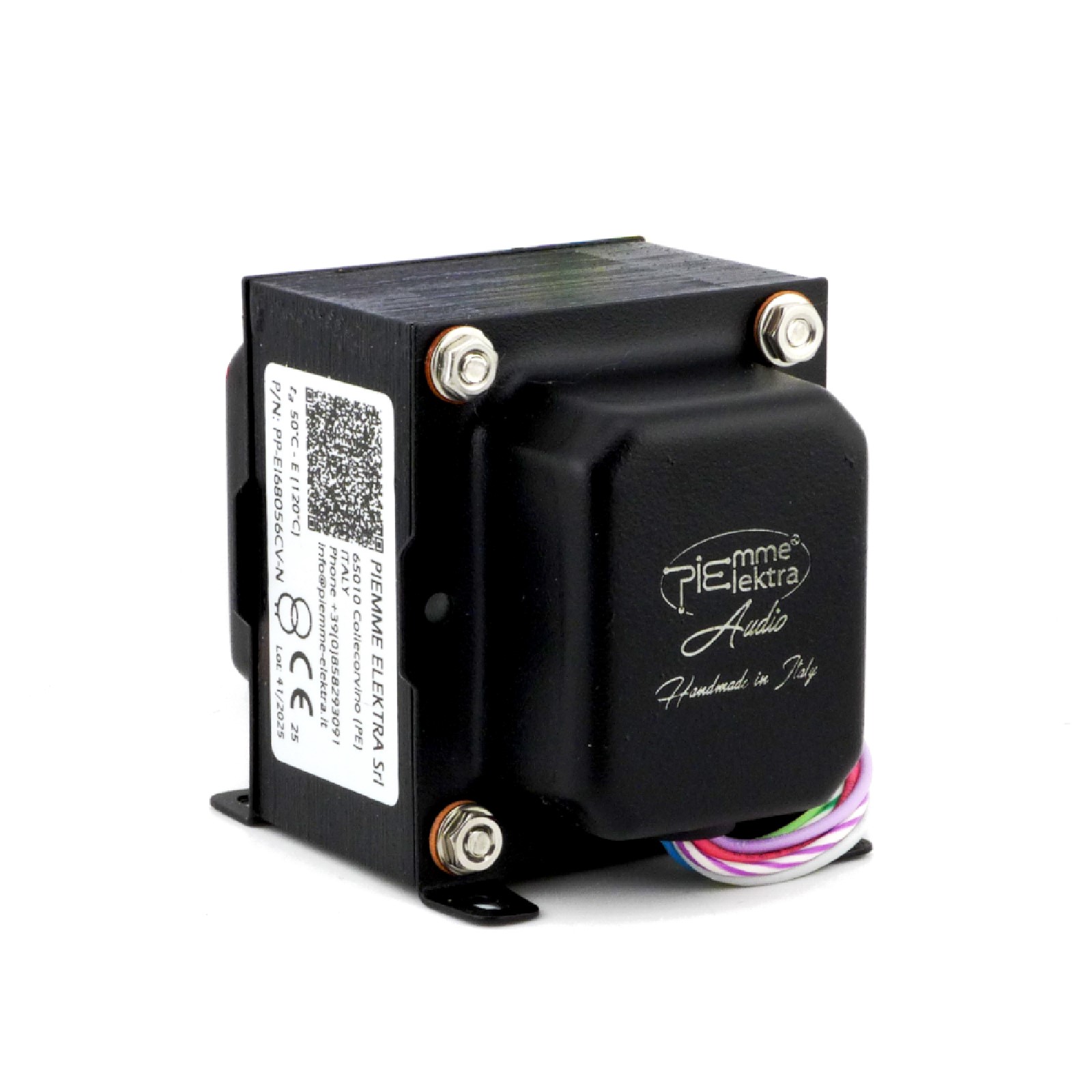

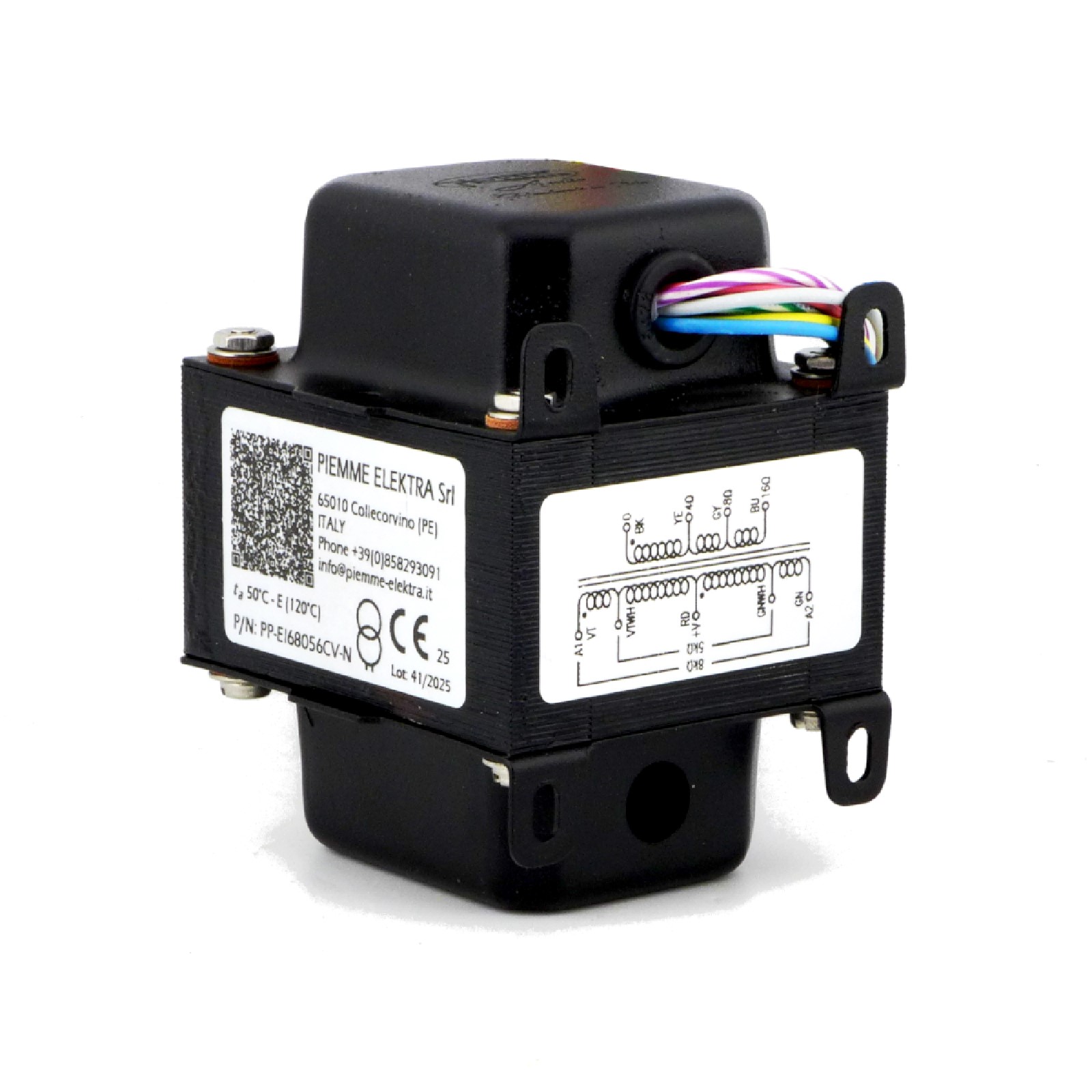

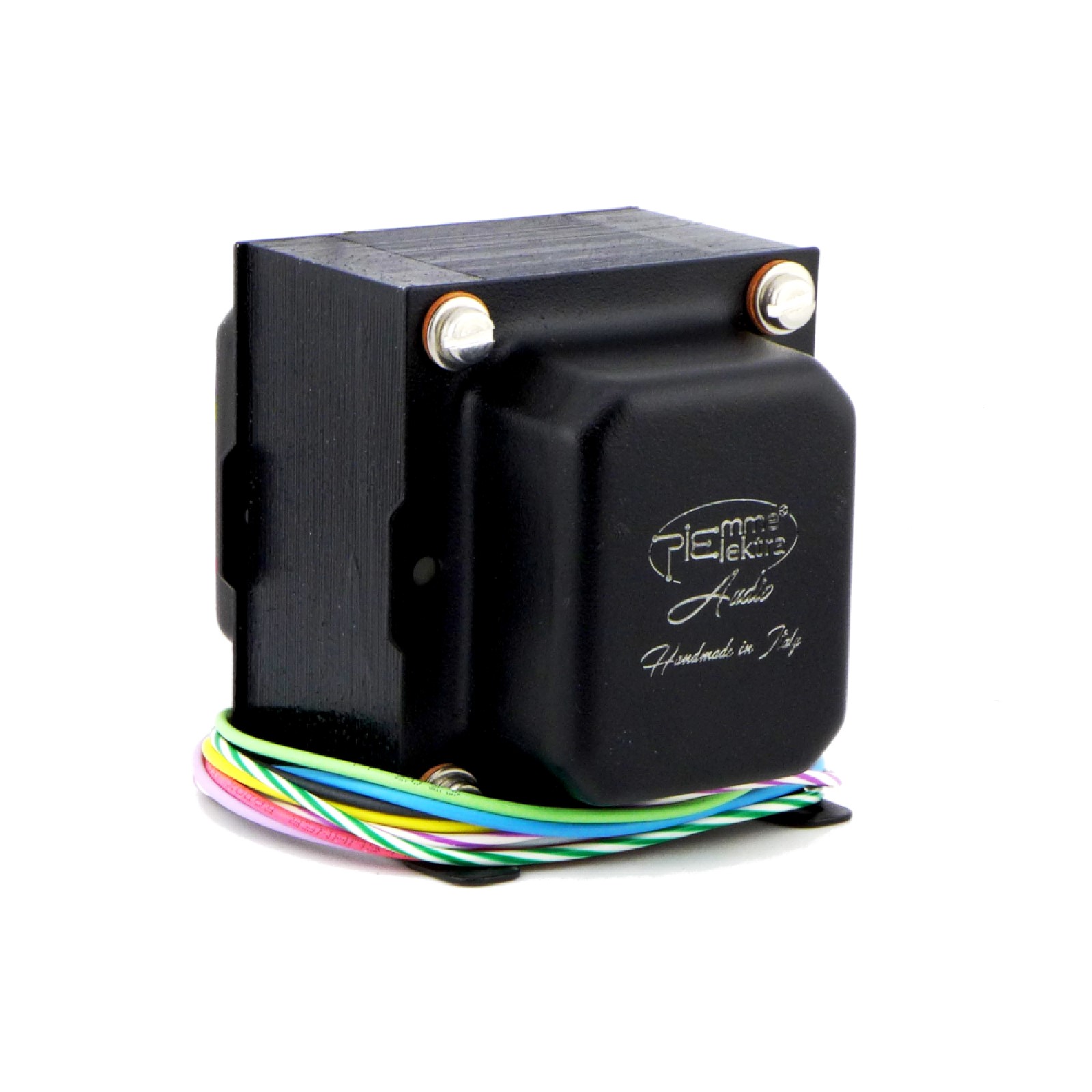

Push Pull 25W 5-8k /4-8-16 Ohm
EL84 UralTone Vox AC15
Push Pull 25W 5-8k /4-8-16 Ohm
| Codice | PP-EI68056CV-N |
| Prezzo lordo |
68,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
68,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 14 PZ |
HI-FI/GUITAR Push Pull Output Tranformer
Power: 25W @ 30Hz
Input: 5.000/8.000 Ohm
Output: 4-8-16 Ohm
Total Primary inductance 5k: 70H Typ. @20Hz 5V
Total Primary inductance 8k: 220H Typ. @20Hz 5V
Total Primary resistance 5k: Max 180 Ohm
Total Primary resistance 8k: Max 225 Ohm
Primary resistance imbalance: +/-1%
4 OHM Secondary resistance: 0.28 Ohm
8 OHM Secondary resistance: 0.40 Ohm
16 OHM Secondary resistance: 0.76 Ohm
Leakage inductance 4-8-16 Ohm 5k: 18-10-10mH @1kHz 5V series
Leakage inductance 4-8-16 Ohm 8k: 24-14-17mH @1kHz 5V series
Bandwidt 25W: 18-45.000Hz +/- 3dB
THD @20Hz 1W: 1.5%
Capacitance PRI/SEC: 1100pF max
Windings intercalated in 5 sections
Magnetic core EI68/35 grain-oriented magnetic sheets
Weight: 1060gr
