Kit 2 trasformatori per Fender 5E3

PZ
Code KIT FENDER 5E3
Price 104.5000 EUR/PZ
(including VAT 22%)
Discount 20%
Net price 83.6000 EUR/PZ
(including VAT 22%)
Availability 0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times
In promo from 12/1/2024 to 12/31/2024
Power Transformer

Power: 115VA
Input: 230V
Output:
320-290-0-290-320V 0.12A (313.4-345.8V a vuoto)
6.3V CT 3A (6.89V a vuoto)
0-5-6.3V 3A (5.51/6.89V a vuoto)
Lamierino Grani orientati


5E3 Output Transformer
Fender 50246

Input: 8000 Ohm
Output: 8 Ohm

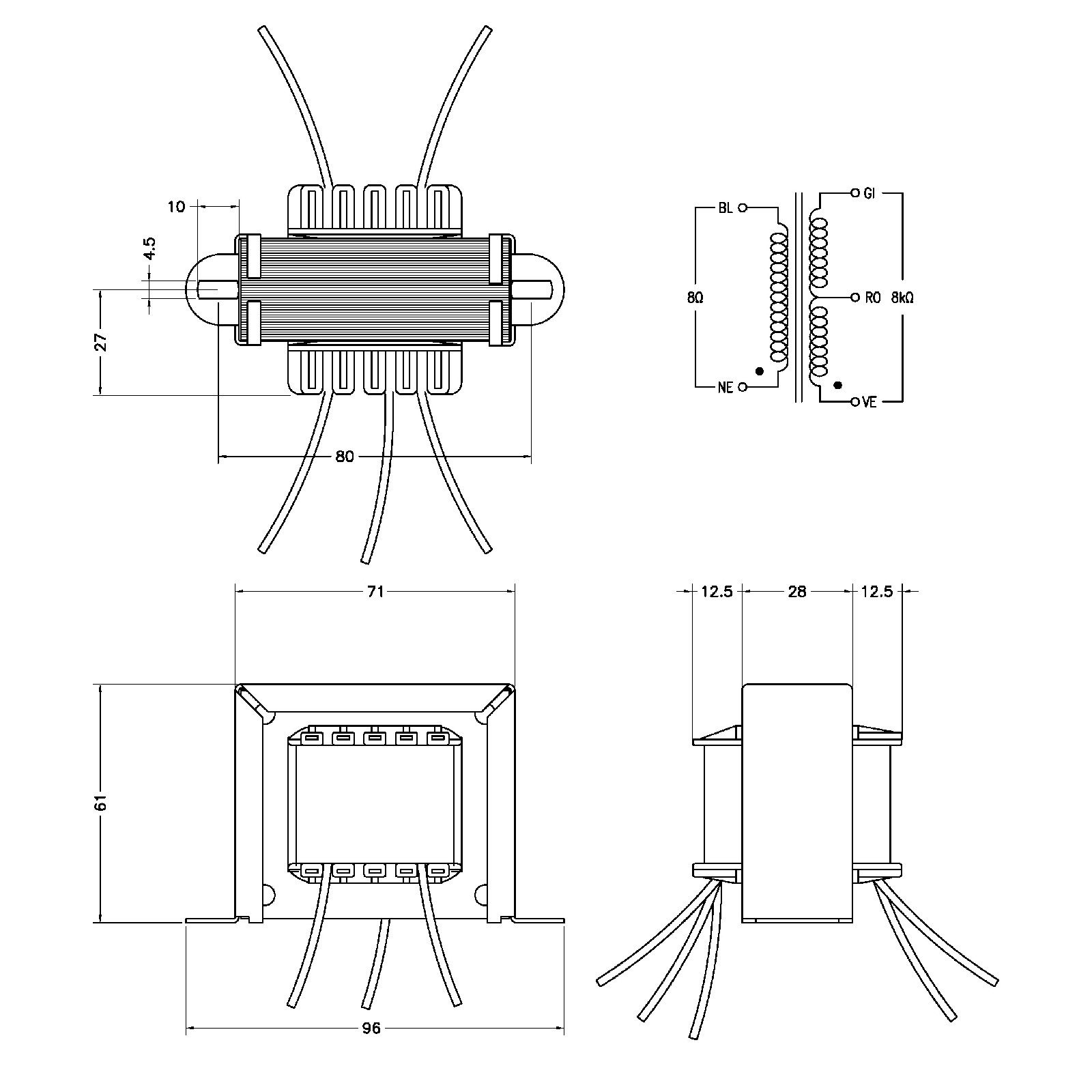

Dimensions and schematic: see picture
