500W 230 SCH 700V CT 0.58A
5V 4A 6.3VCT 8A, 12V 1A, 50V 0.2A
500W 230 SCH 700V CT 0.58A
| Codice | PS-EI12017B |
| Prezzo lordo |
185,9000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
185,9000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 4 PZ |

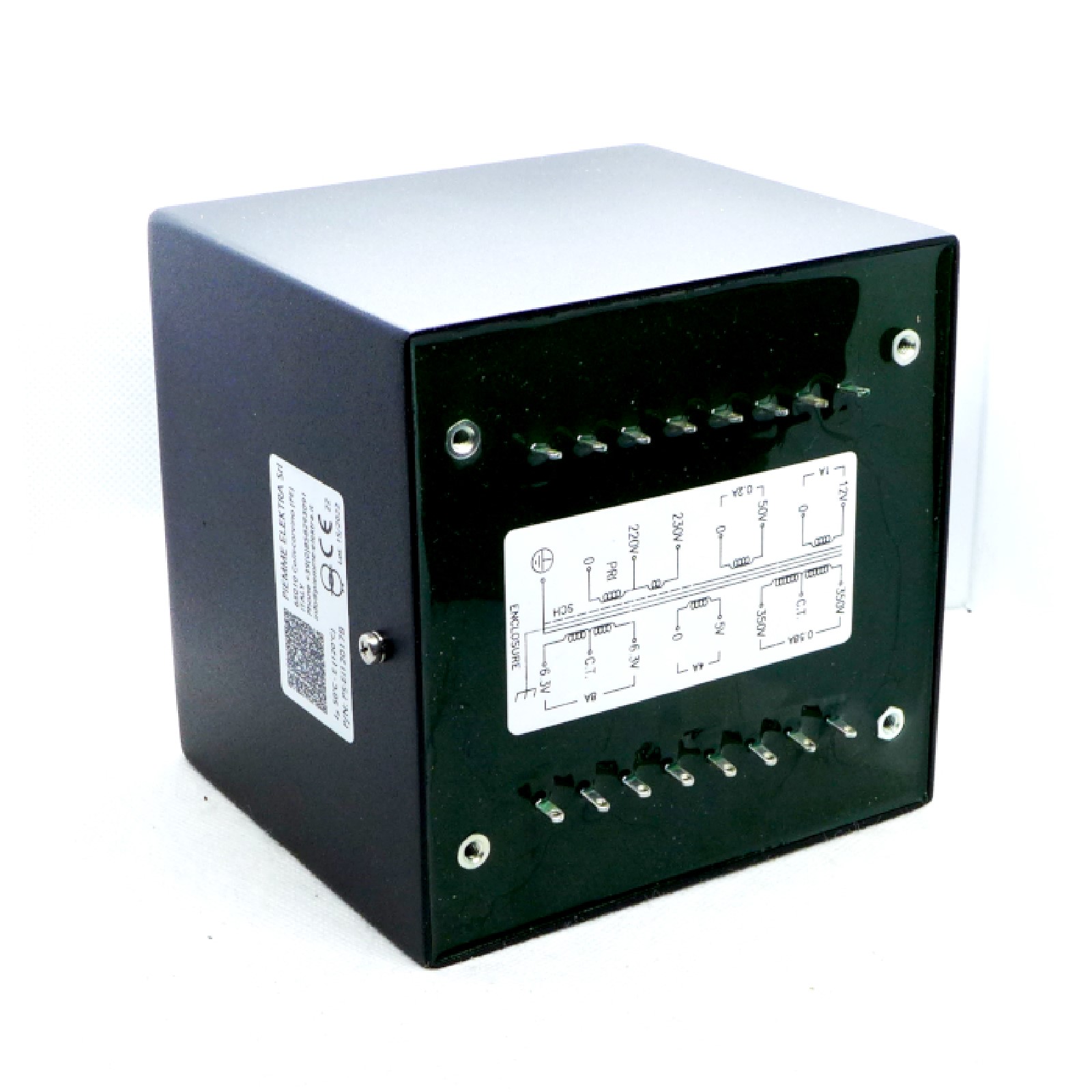

Power Transformer
Power: 500VA
Input: 230-240V
Output:
- 700V CT - 0.58A
- 50V - 0.2A
- 12V - 1A
- 6.3V CT - 8A
- 5V - 4A
Primary/Secondary Shield

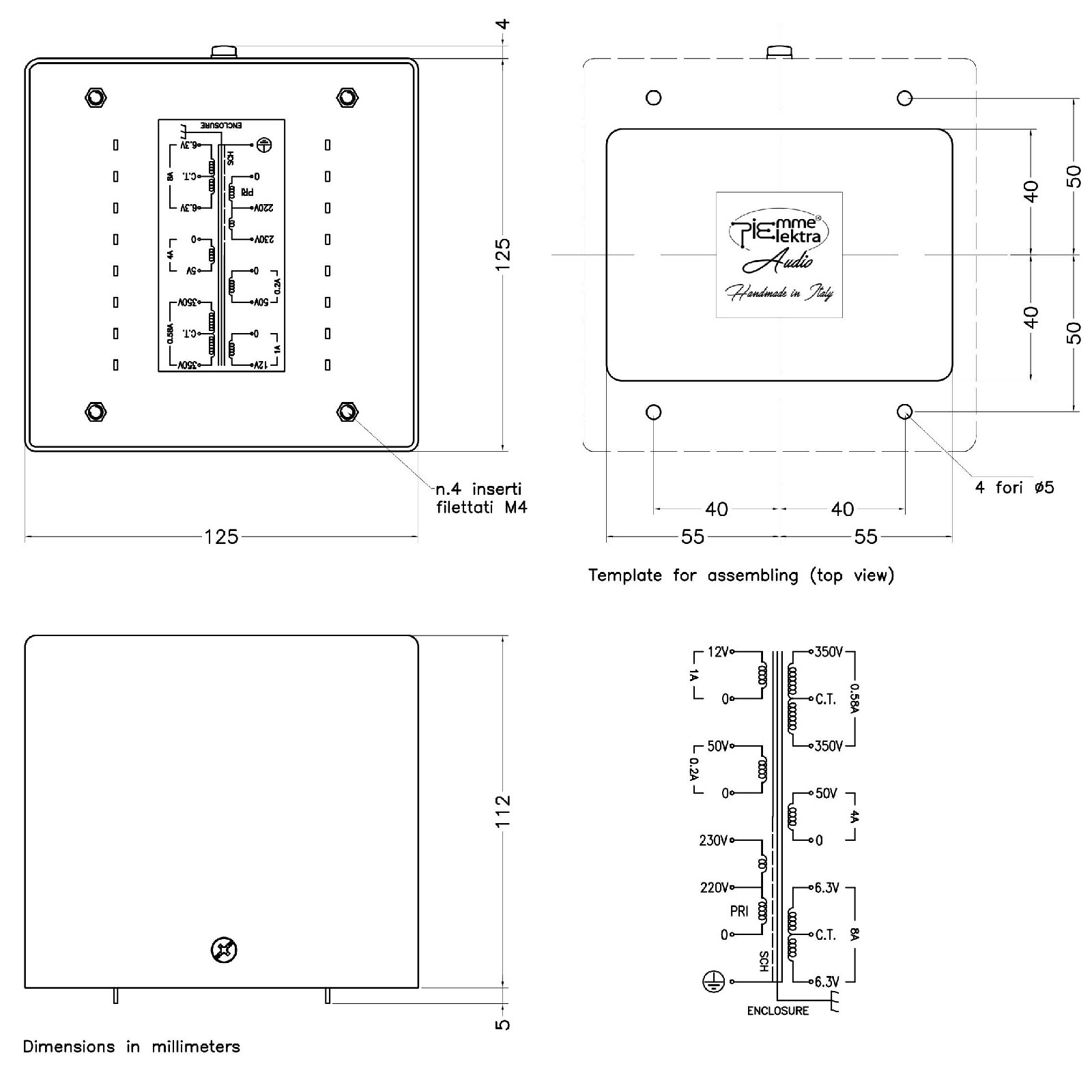

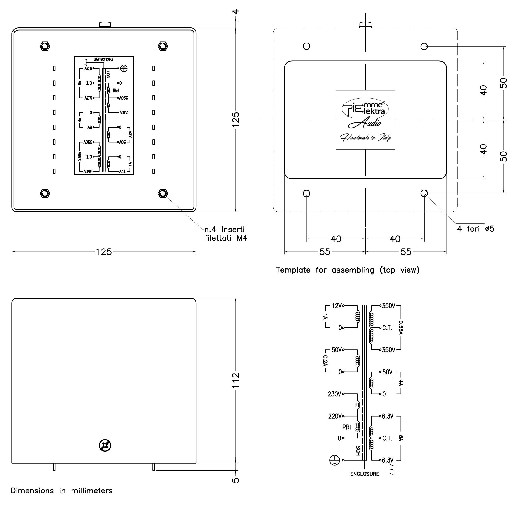

Dimensions and schematic: see drawing
Weight: 6740g
Power: 500VA
Input: 230-240V
Output:
- 700V CT - 0.58A
- 50V - 0.2A
- 12V - 1A
- 6.3V CT - 8A
- 5V - 4A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 6740g
