I.T. 185W 220-230-240 SC/355-0-355 0.20A
6.3V C.T. 4A, 95V 50mA, 5V 2A
I.T. 185W 220-230-240 SC/355-0-355 0.20A
| Codice | PS-EI96061CV-N |
| Prezzo lordo |
104,5000 EUR/PZ
(IVA compresa 22%) |
| Sconto | 20% |
| Prezzo netto |
83,6000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |
In promozione
dal
01/11/2024
al 30/11/2024

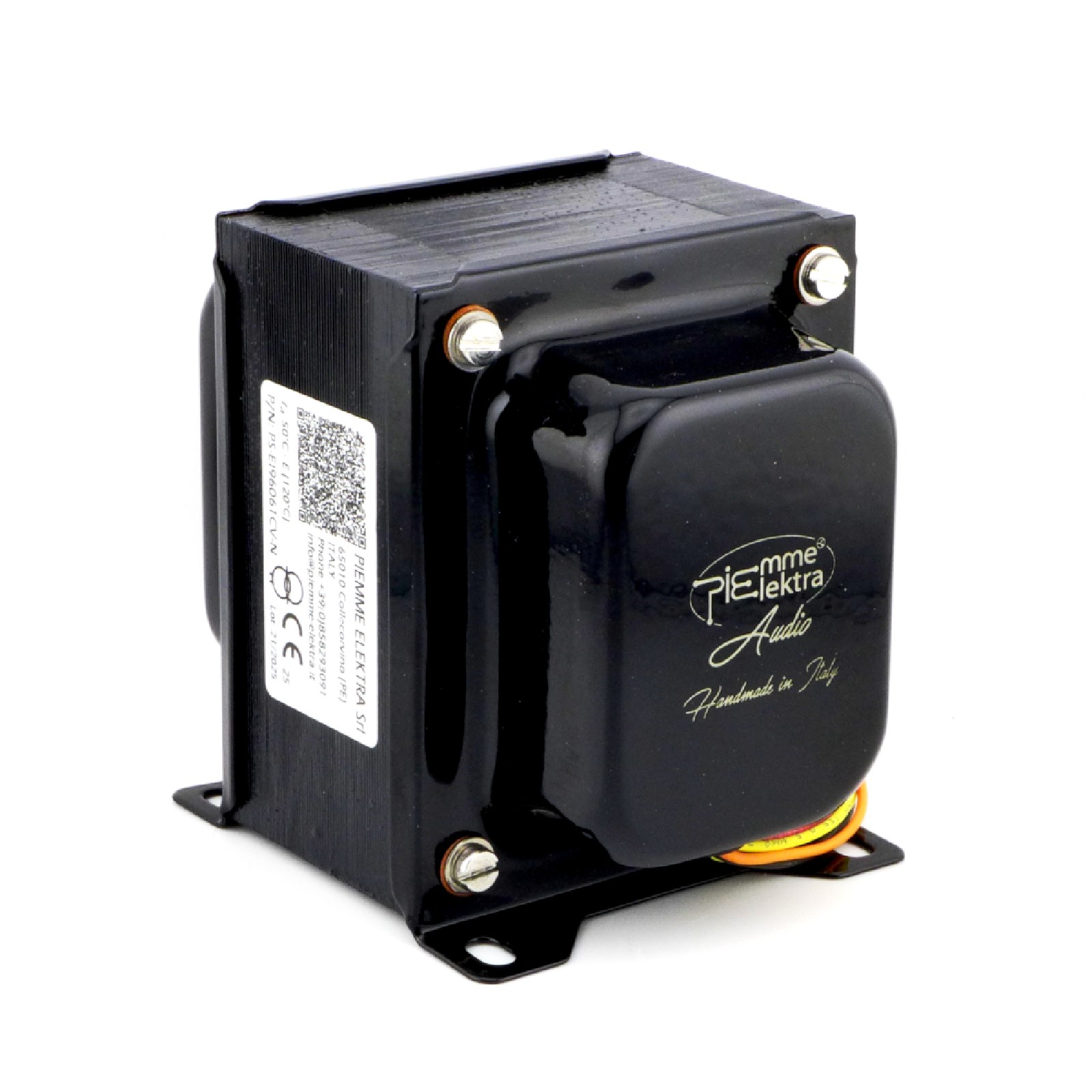

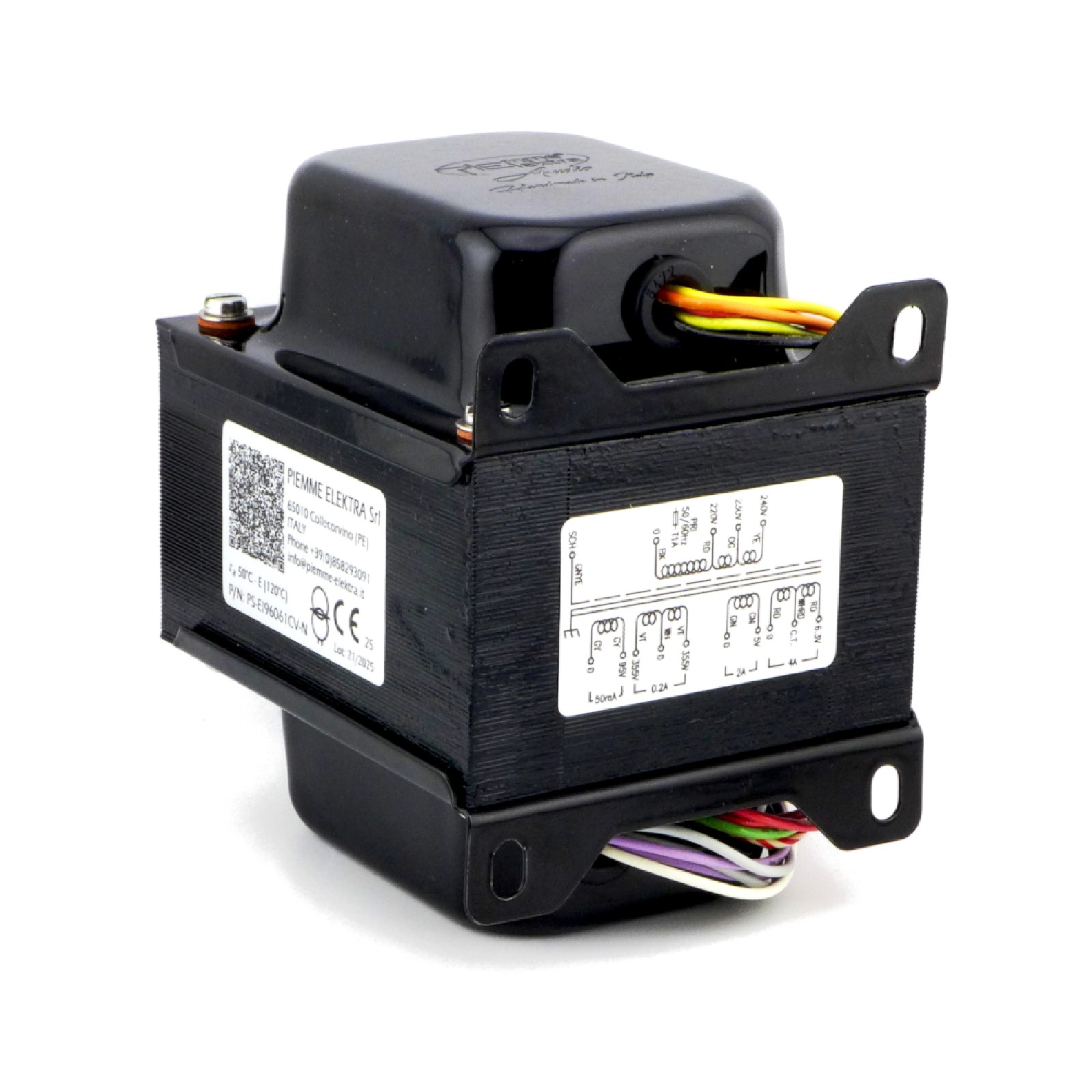

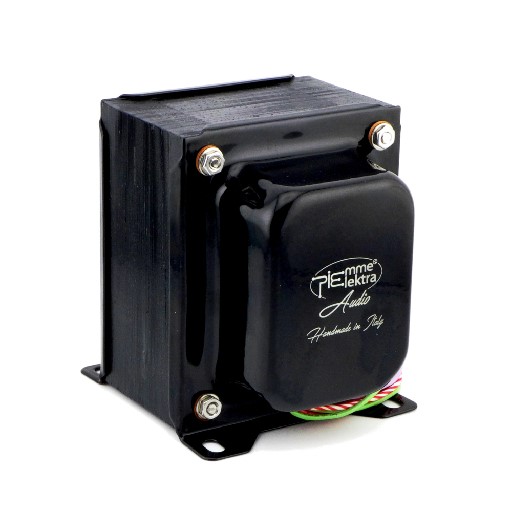

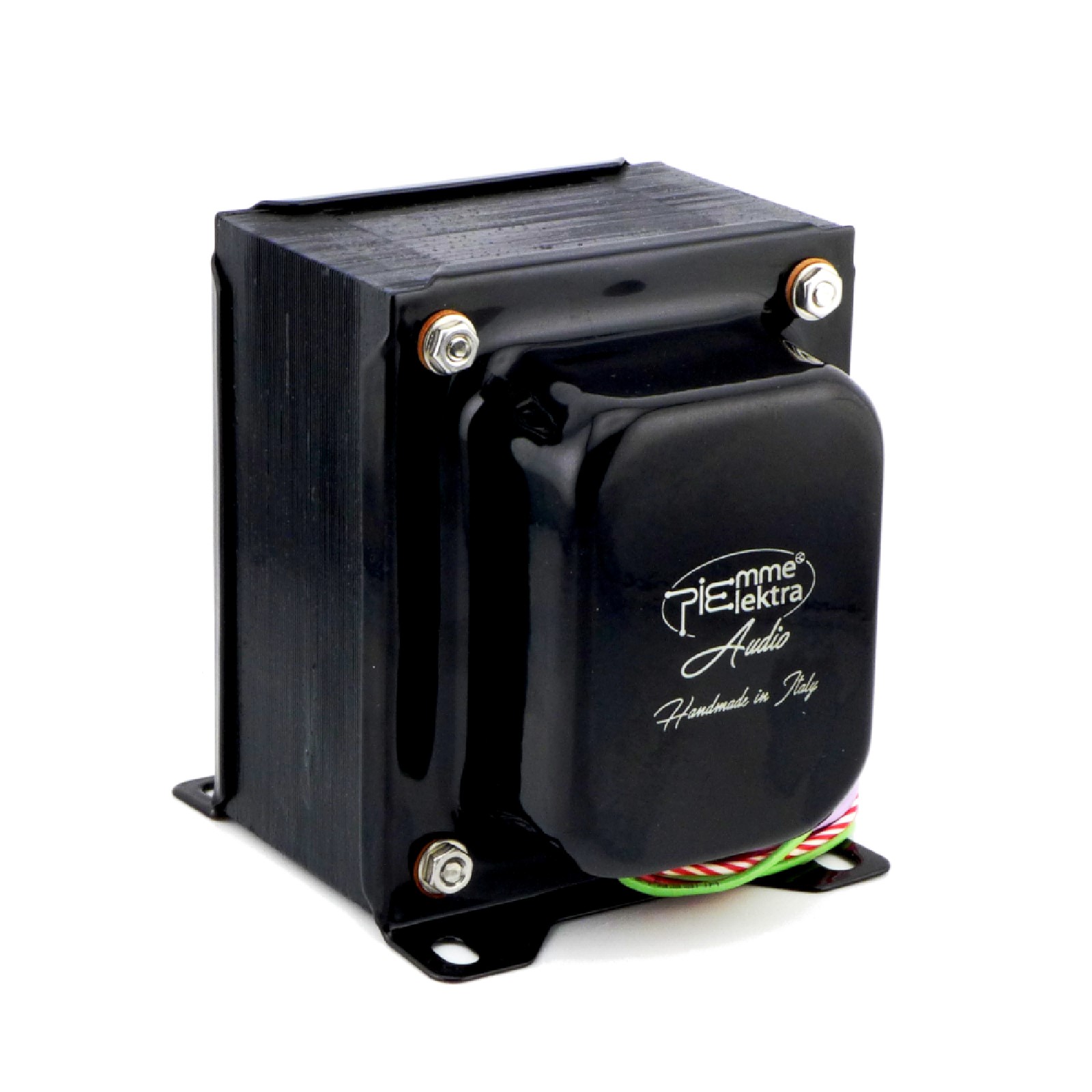

Power Transformer
Power: 185VA
Input: 220-230-240V
Output:
- 355-0-355V - 0.2A
- 6.3V C.T. - 4A
- 95V - 50mA
- 5V - 2A
Primary/Secondary Shield

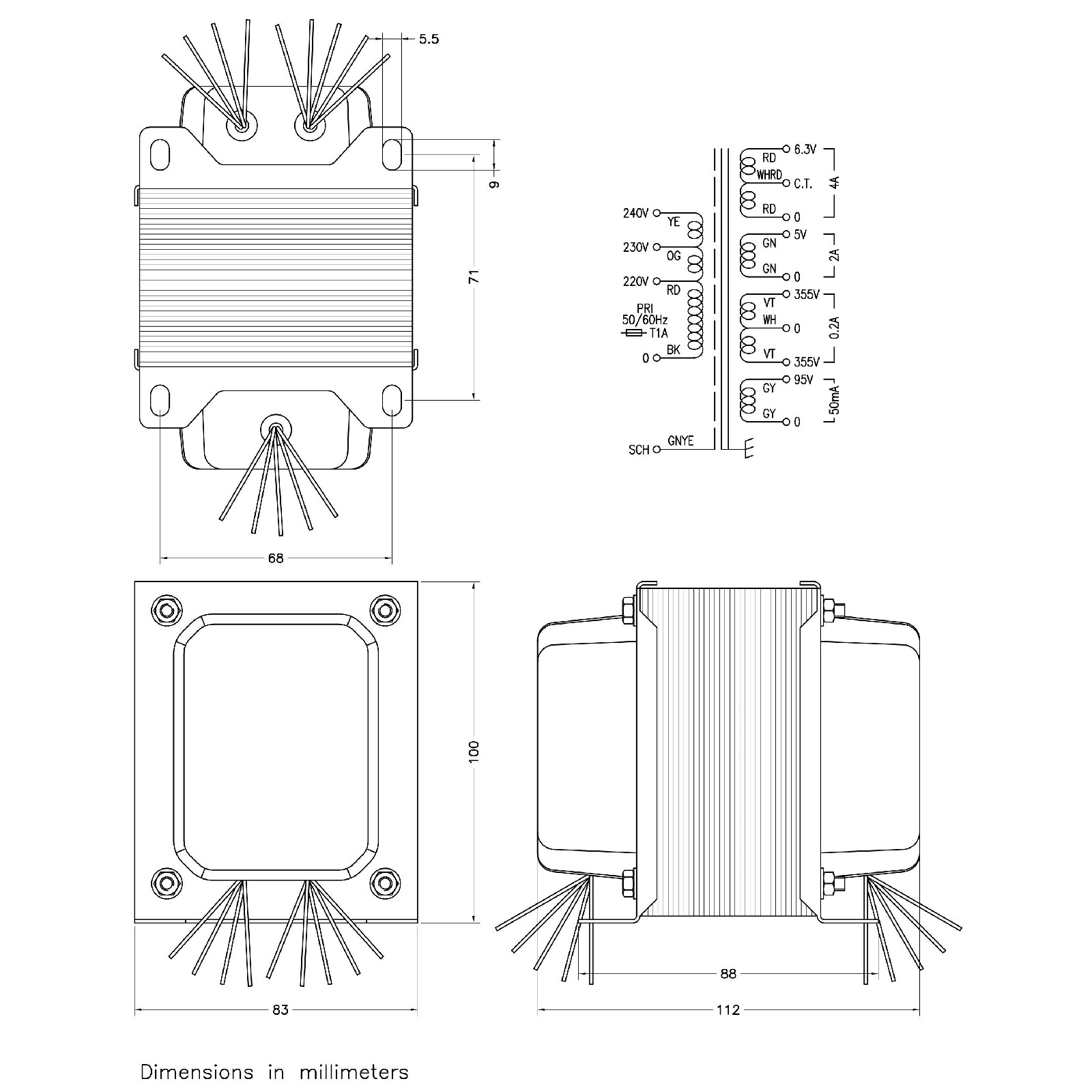

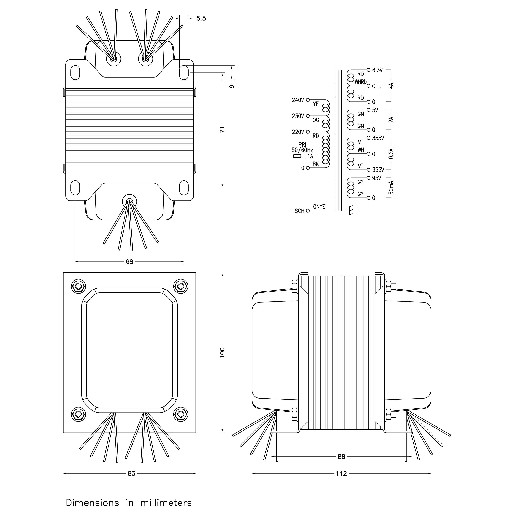

Dimensions and schematic: see drawing
Weight: 3120
Power: 185VA
Input: 220-230-240V
Output:
- 355-0-355V - 0.2A
- 6.3V C.T. - 4A
- 95V - 50mA
- 5V - 2A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3120
