IT 120W 230Vwith shield 320-0-320V 0.15A
6.3V-4A
IT 120W 230Vwith shield 320-0-320V 0.15A
| Code | PS-EI96018CV-N R02 |
| Price |
74.800 EUR/PZ
(including VAT 22%) |
| Discount | |
| Net price |
74.800 EUR/PZ
(including VAT 22%) |
| Availability | 5 PZ |

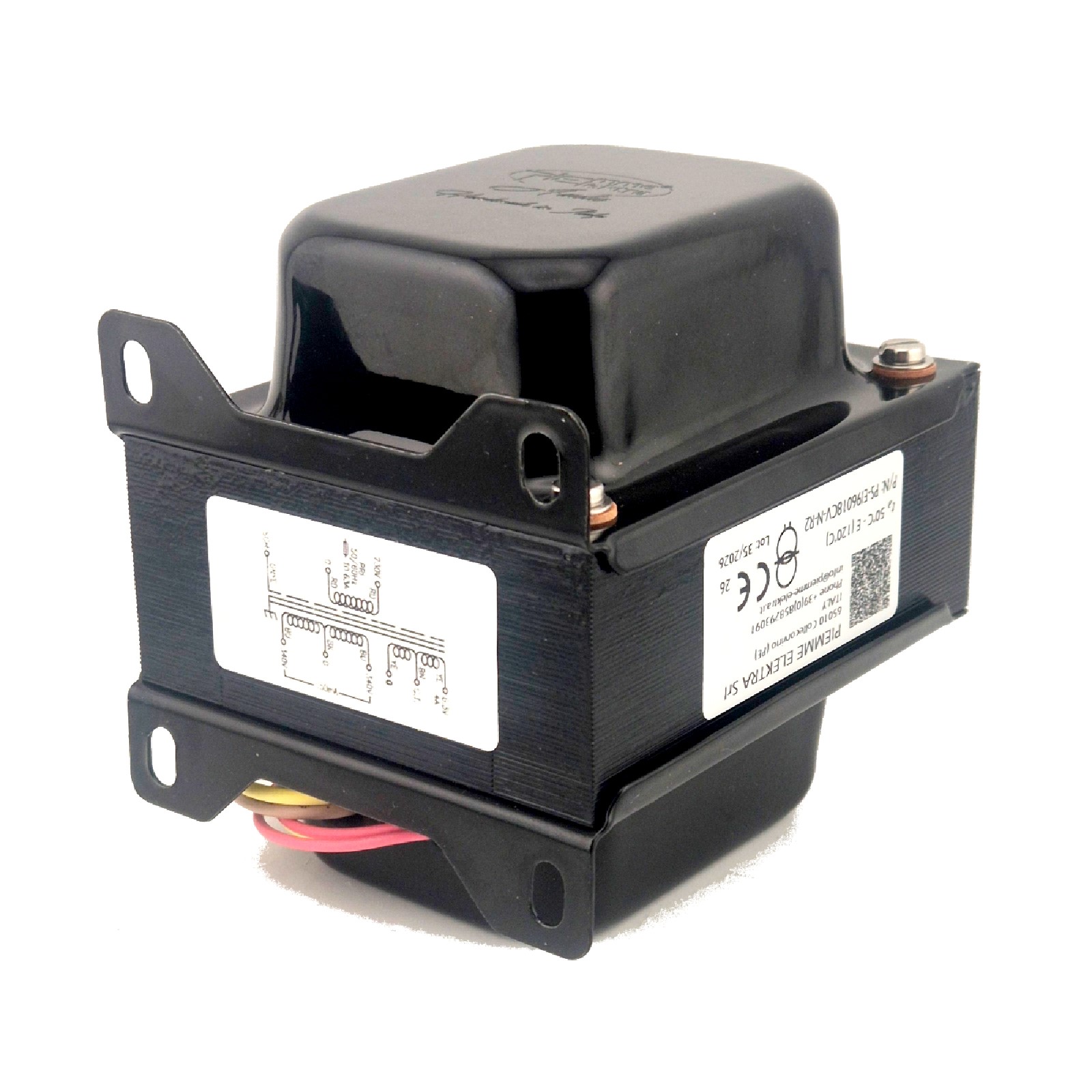

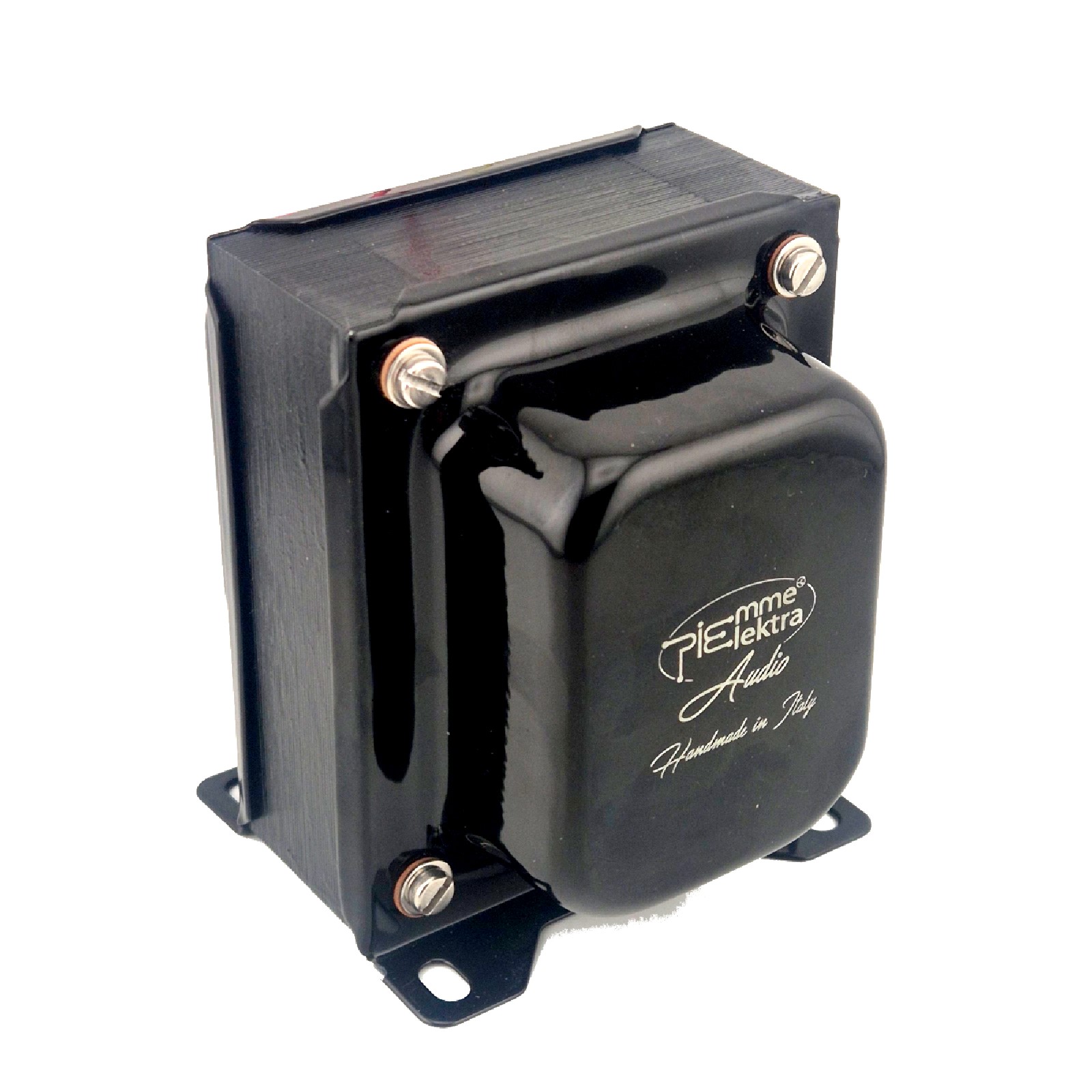

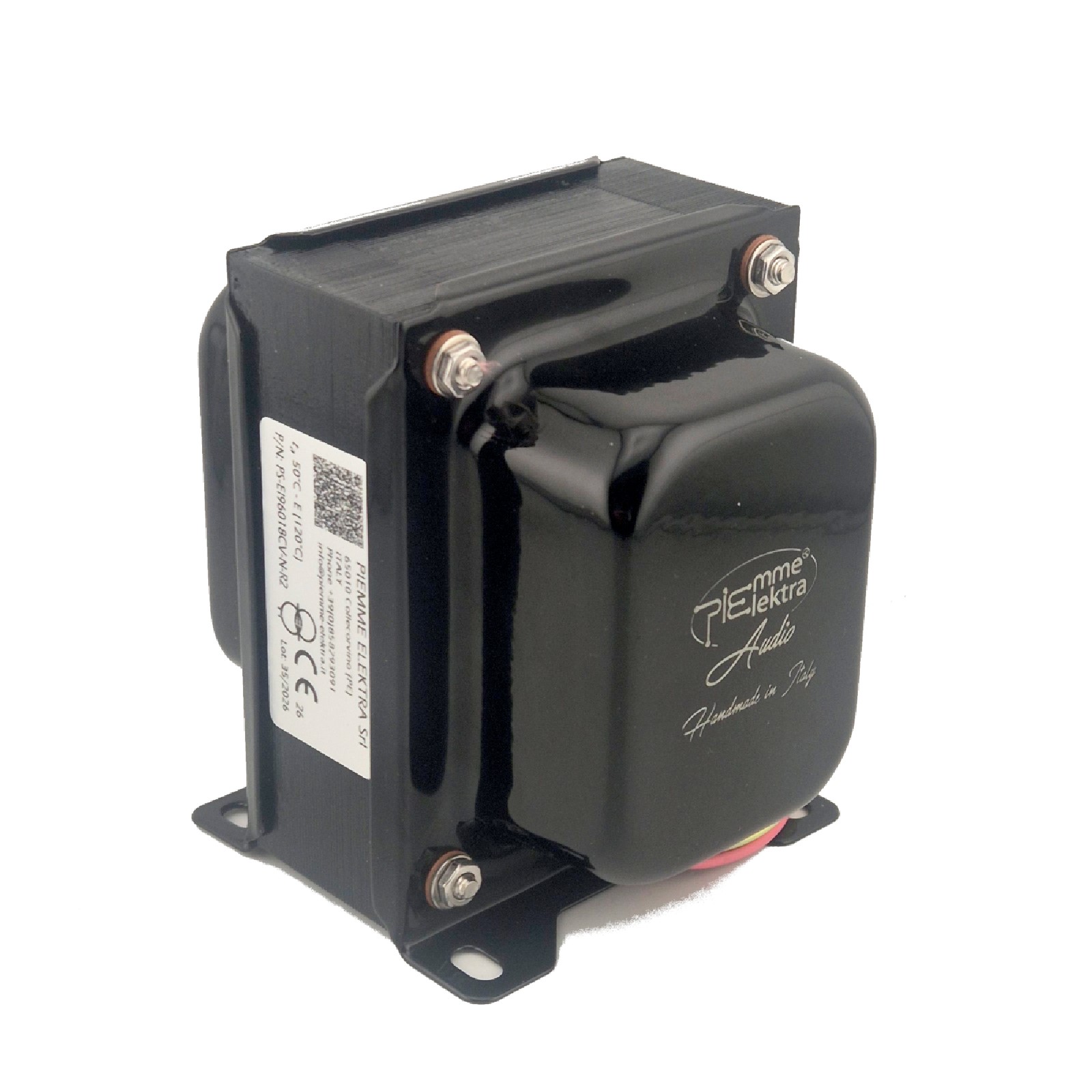

Power Transformer
Power: 120VA
Input: 230V (12.5 Ohm)
Output:
- 320-0-320 - 0.15A (150 ohm tot.)
- 6.3V C.T. - 4A (70mOhm)
Primary/Secondary Shield

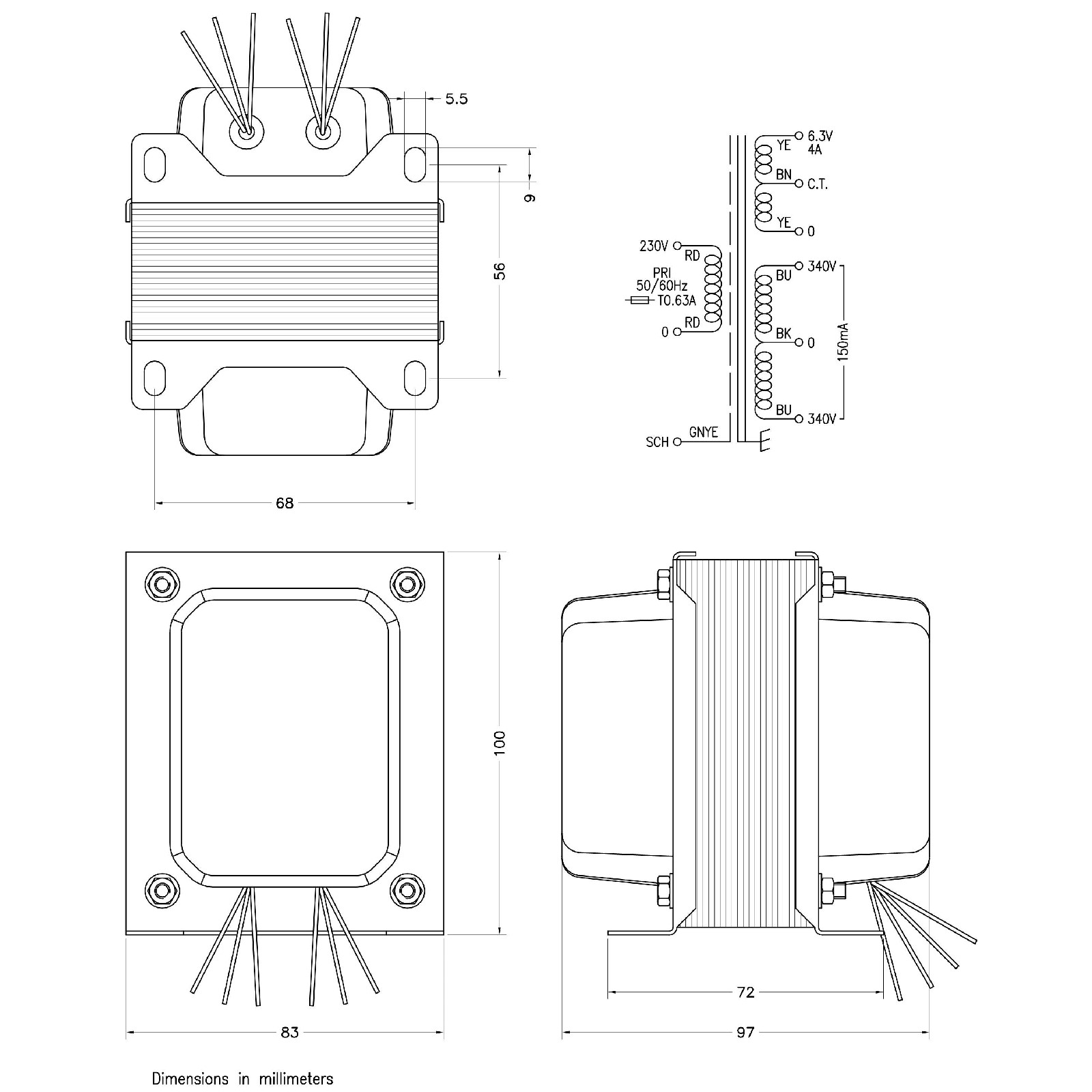

Dimensions and schematic: see drawing
Weight: 2390g
Power: 120VA
Input: 230V (12.5 Ohm)
Output:
- 320-0-320 - 0.15A (150 ohm tot.)
- 6.3V C.T. - 4A (70mOhm)
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 2390g
