Push Pull 20W 8k/4-8Ohm
6AQ5, 6V6, 6BQ5, EL84, SV83
Push Pull 20W 8k/4-8Ohm
| Code | PP-EI68035CV-N R02 |
| Price |
55.0000 EUR/PZ
(including VAT 22%) |
| Discount | |
| Net price |
55.0000 EUR/PZ
(including VAT 22%) |
| Availability | 13 PZ |
| Price for quantity (up to): | |
|---|---|
| 2 PZ | 55.0000 EUR/PZ (including VAT 22%) |
| 4 PZ | 52.0000 EUR/PZ (including VAT 22%) |
| 6 PZ | 49.0000 EUR/PZ (including VAT 22%) |
| 8 PZ | 45.0000 EUR/PZ (including VAT 22%) |
| 10 PZ | 40.0000 EUR/PZ (including VAT 22%) |

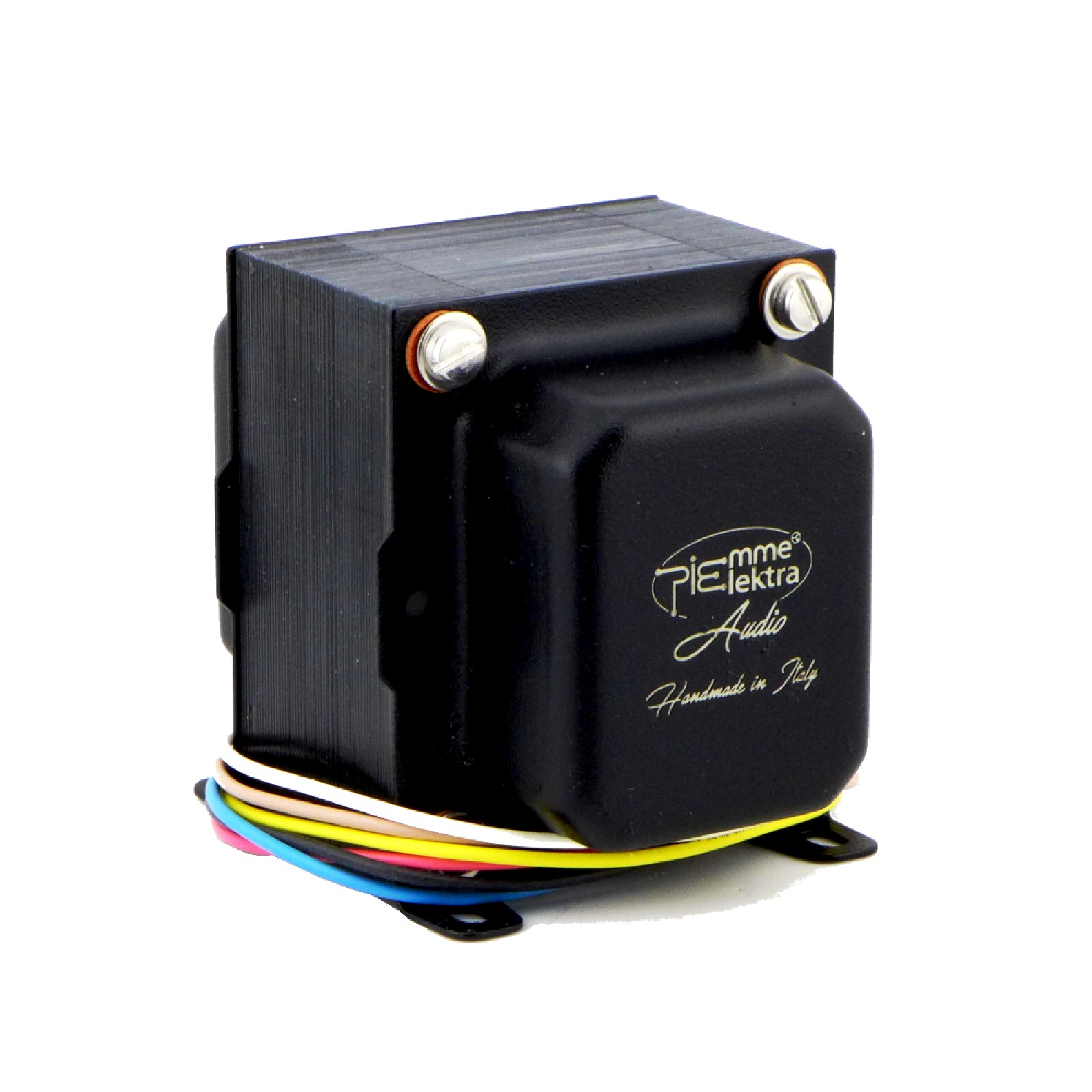

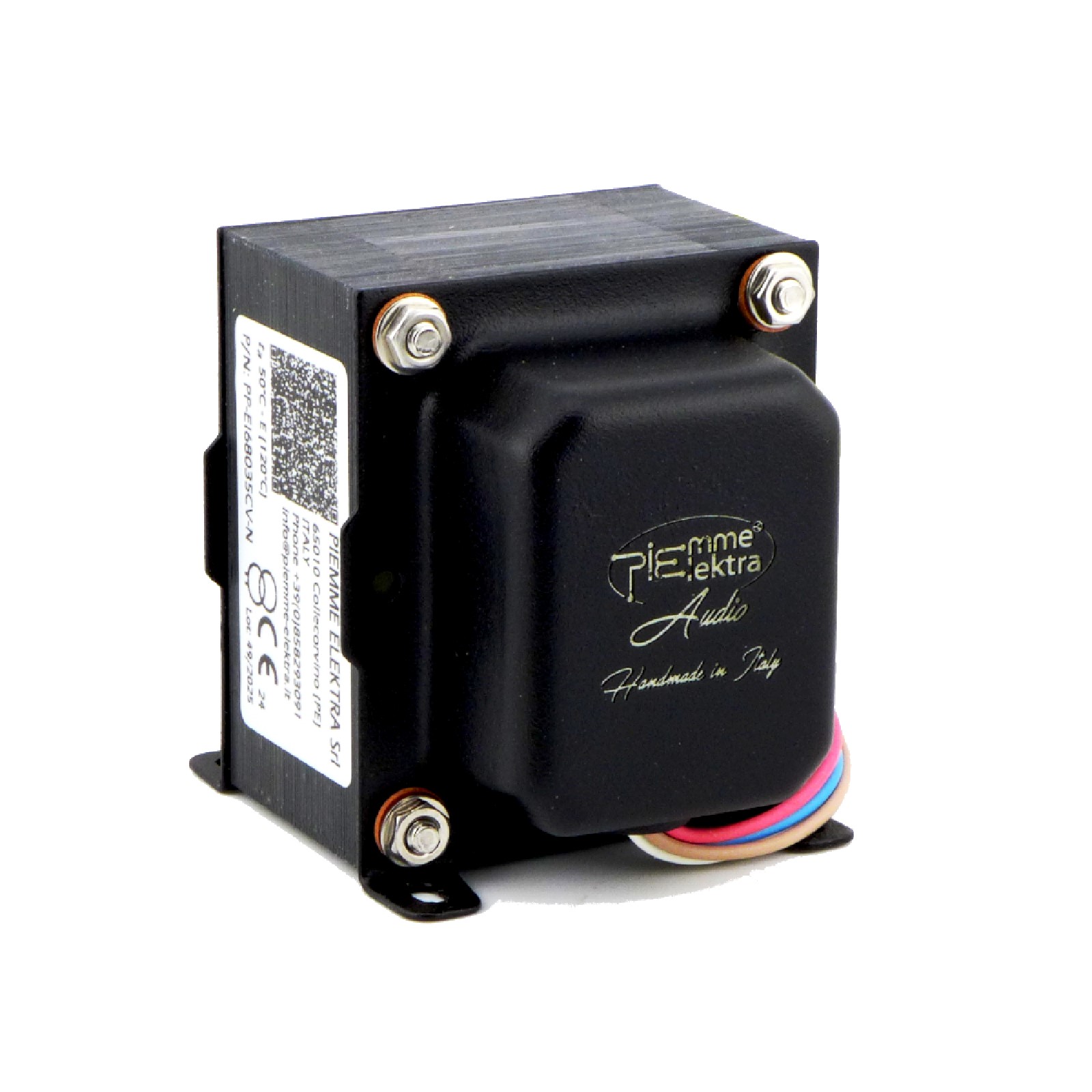

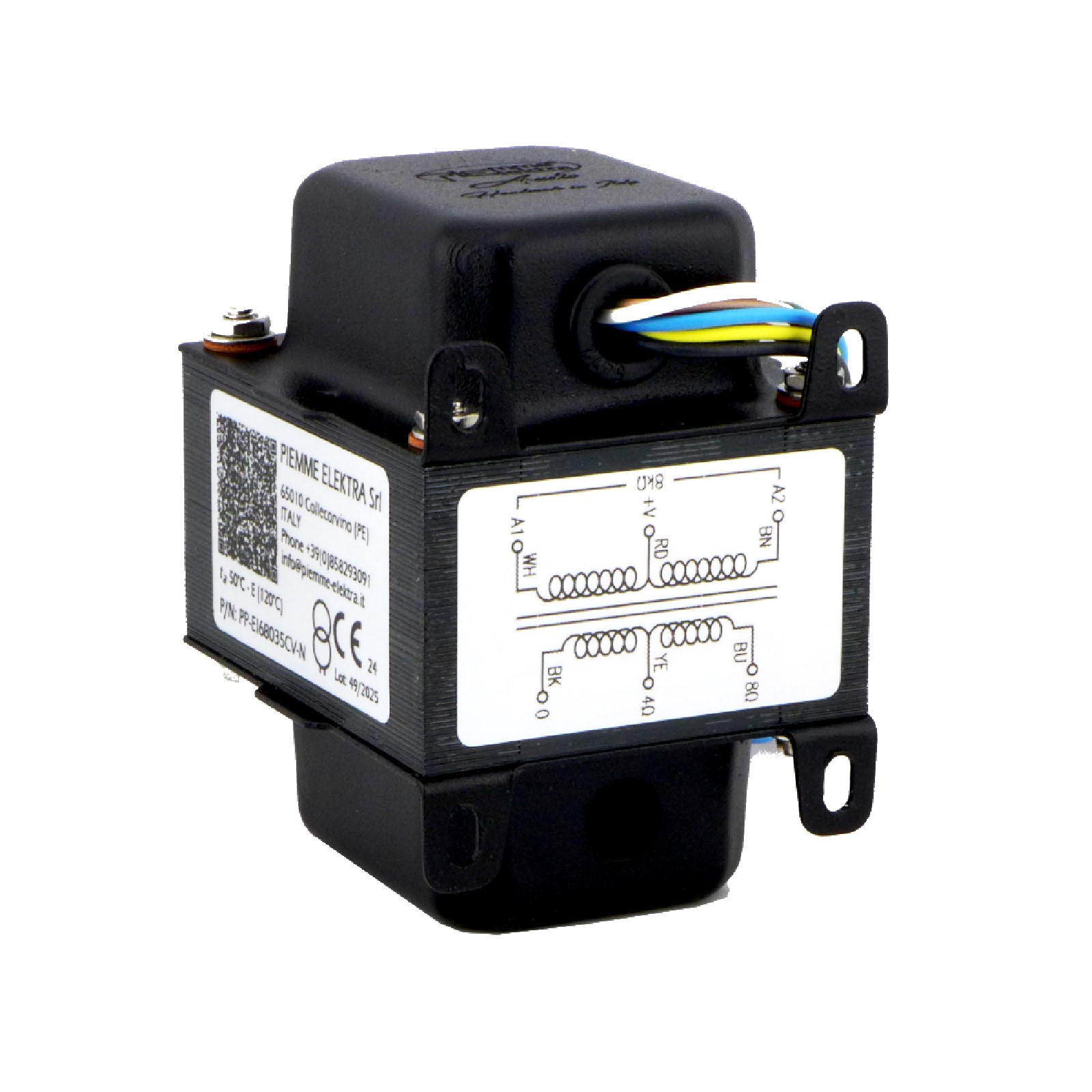

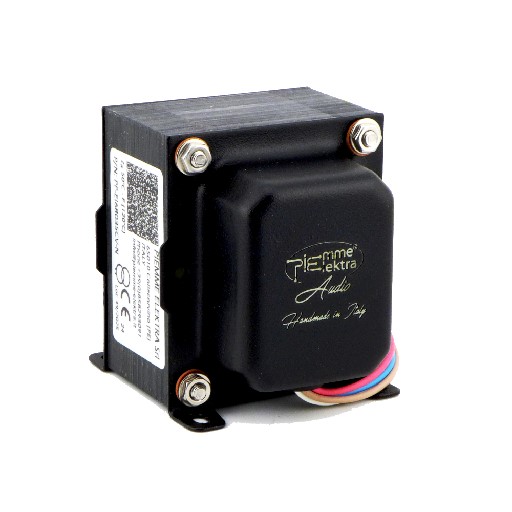

Push Pull Output Transformer
Power: 20W MAX
Input: 8000 Ohm
Output: 4-8 Ohm
Primary Inductance: A-A >600H
Leakage 4-8 Ohm: 15-11mH
Rdc PRI: 376 Ohm tot. Unbalance 1% 188+188 Ohm
Rdc Sec: 0.44-0.63 Ohm
BW @20W on 8 Ohm
+/- 3dB 16Hz-40kHz
BW @10W on 8 Ohm
+/- 3dB 12Hz-40kHz
Lamierini a grani orientati RICOTTI

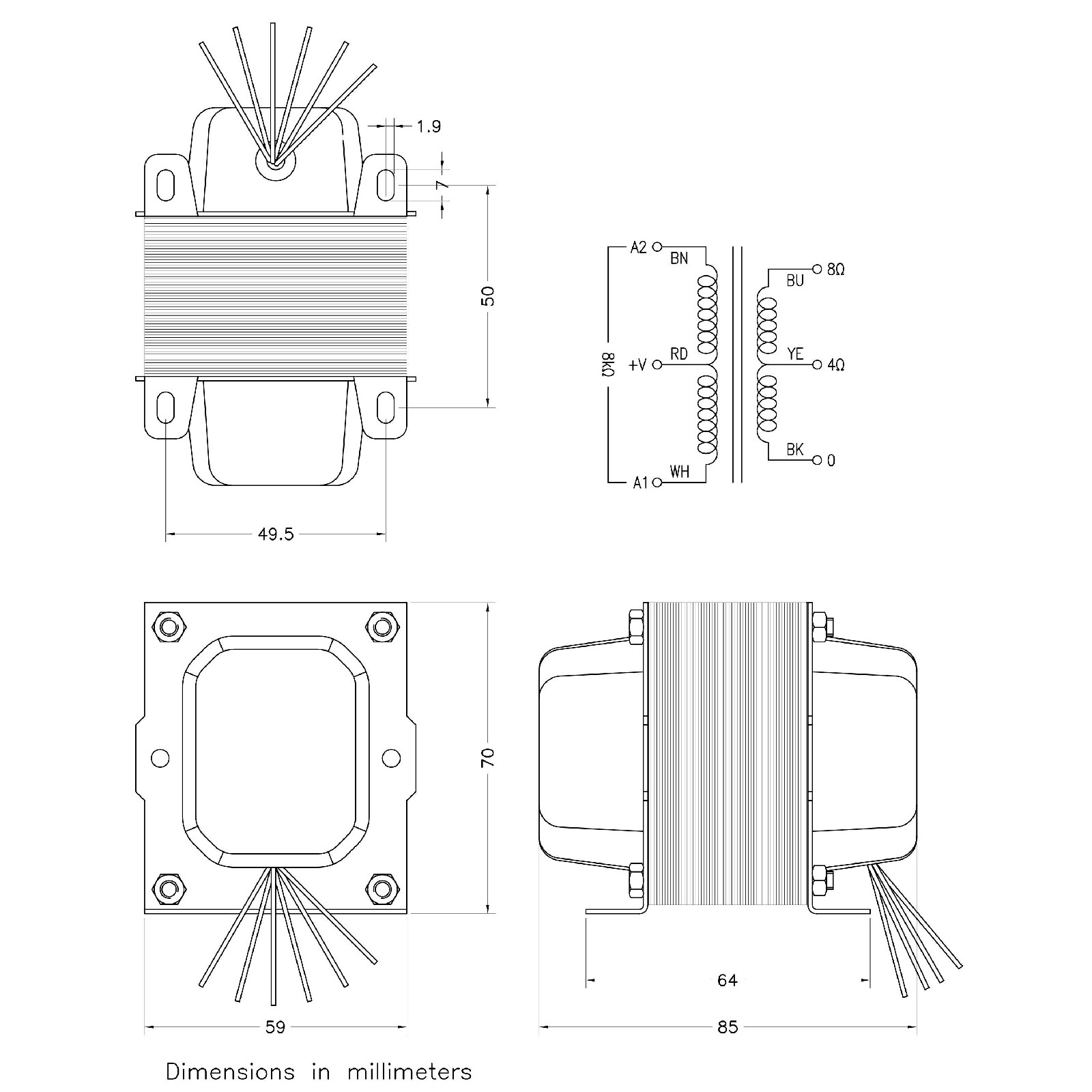

Dimensions and schematic: see picture
Weight: 1000 g.
