I.T. 185W 230-SCH/350-0-60-350 0.17A
6.3V C.T. 6A/5V 3A/ 6.3V 2A
I.T. 185W 230-SCH/350-0-60-350 0.17A
| Codice | PS-EI96011CV-N R02 |
| Prezzo lordo |
103,400 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
103,400 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |

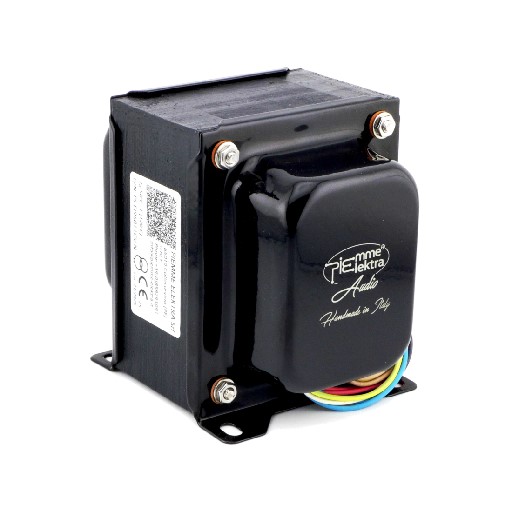

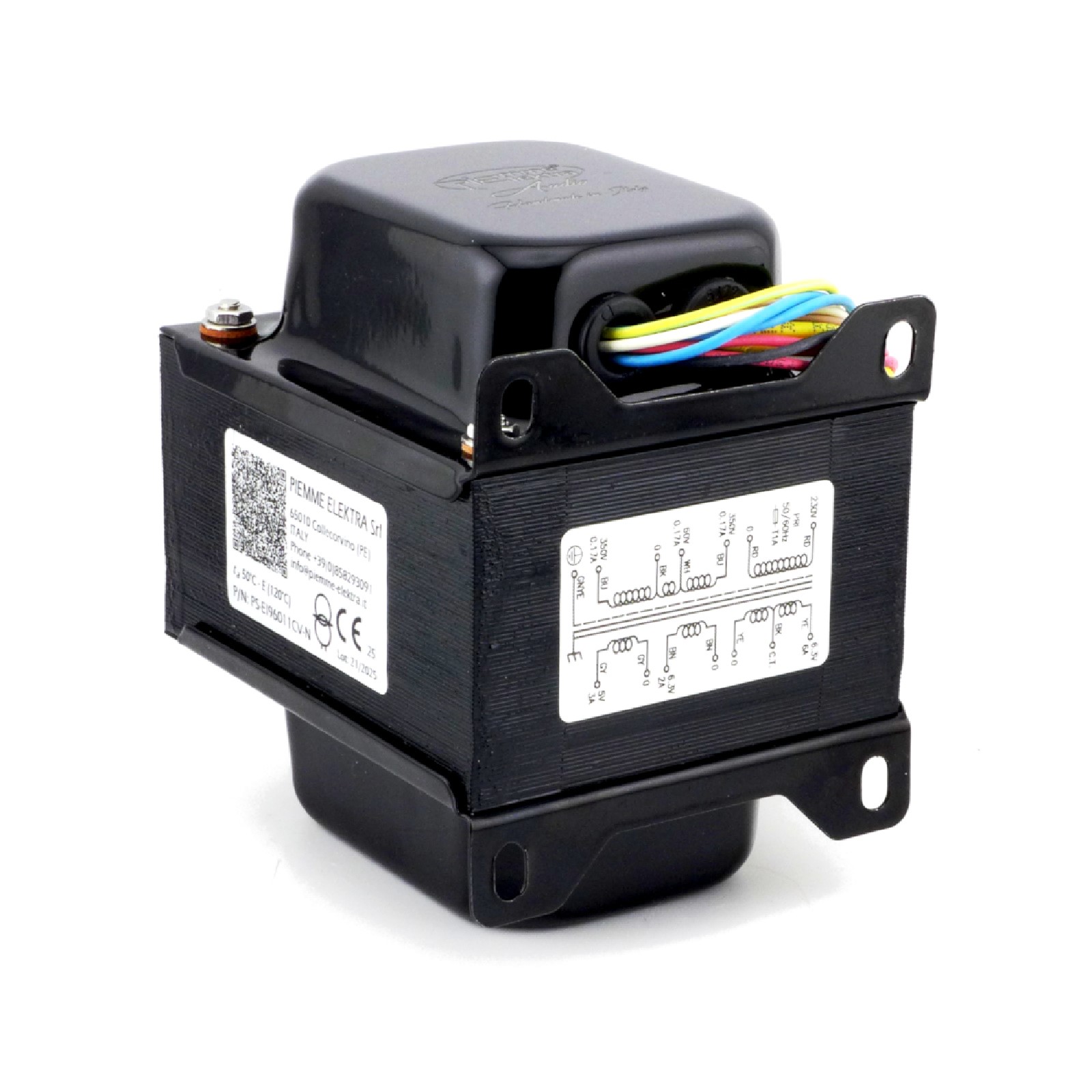

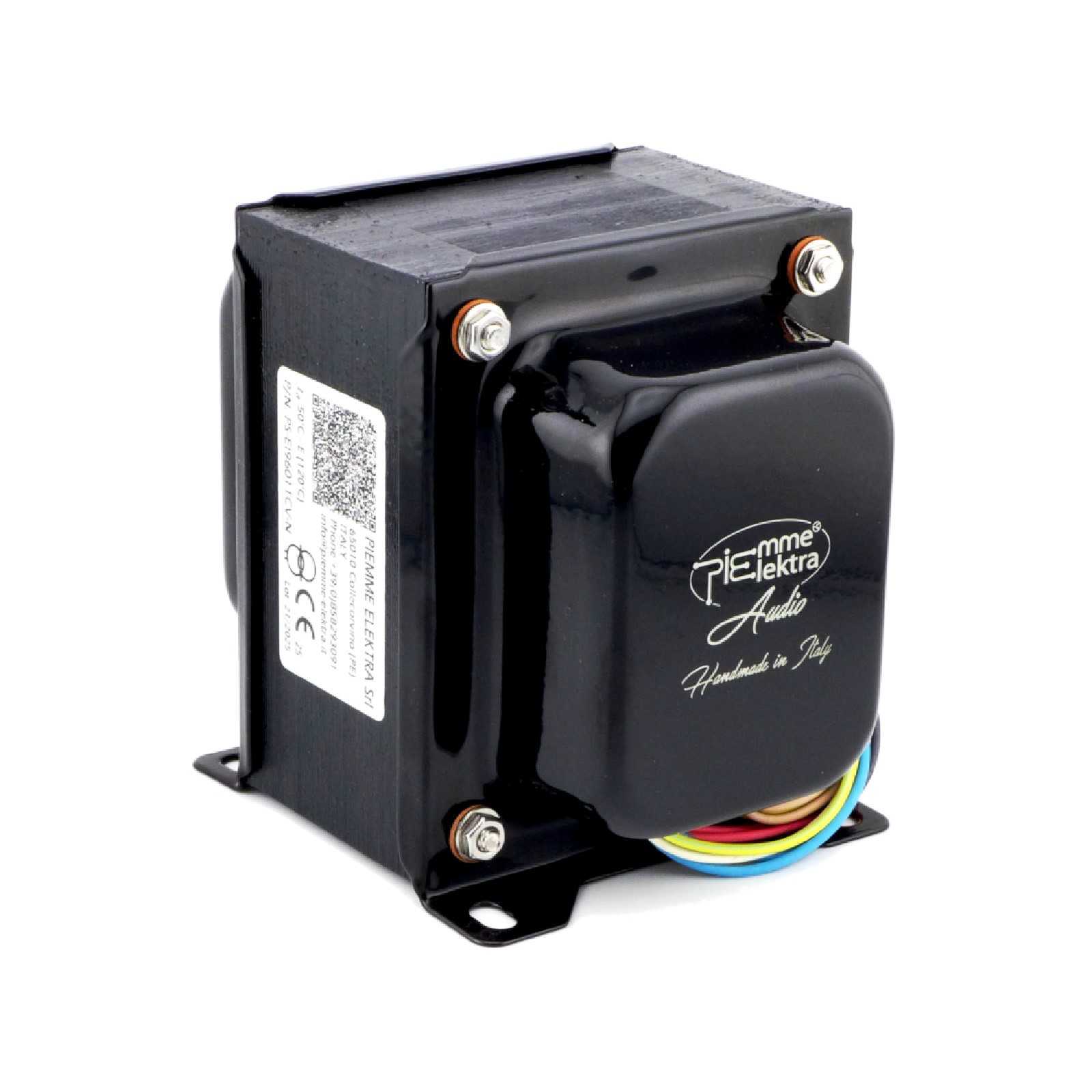

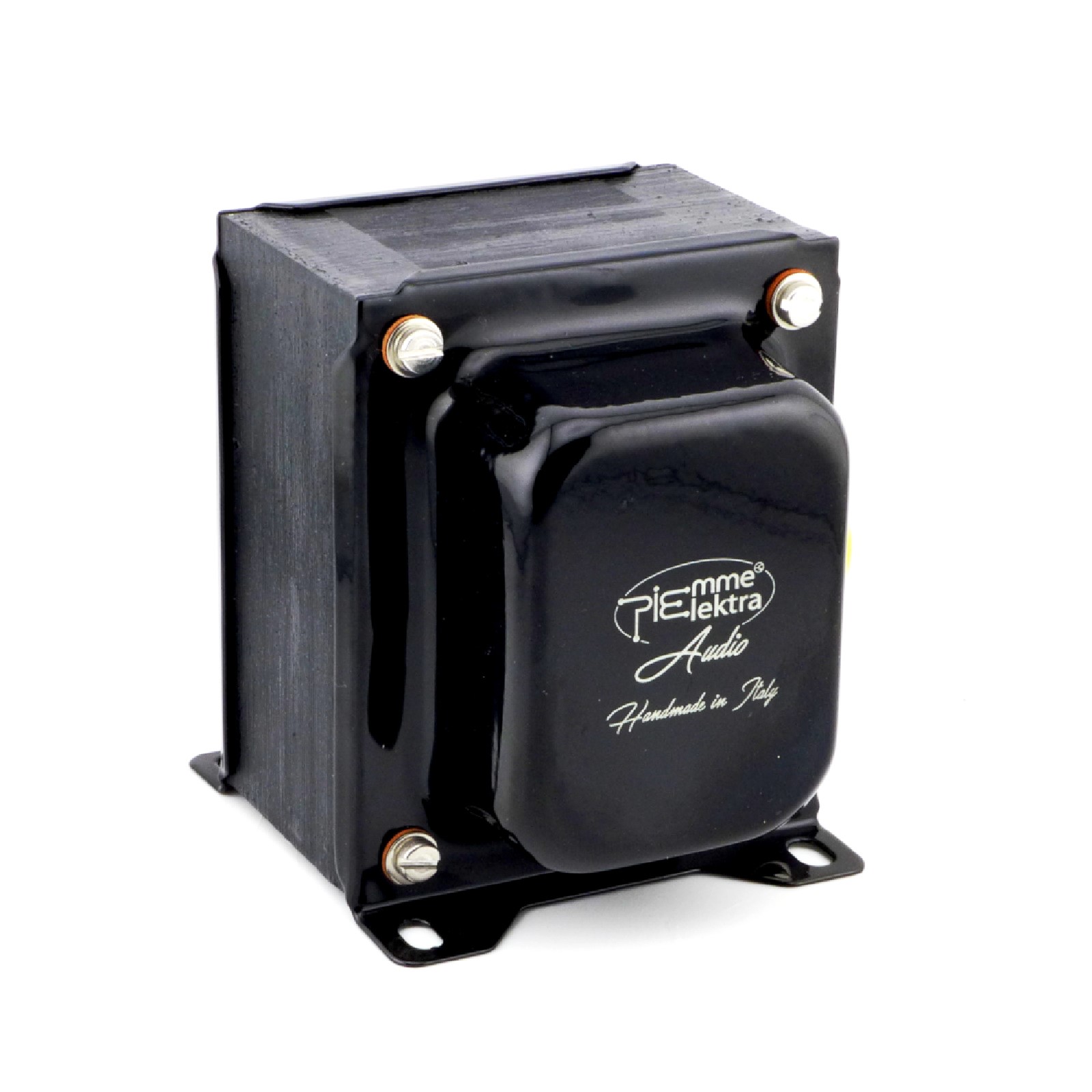

Power Transformer
Power: 185VA
Input: 230V
Output:
- 350-0-60-350V - 0.17A
- 6.3V C.T. - 6A
- 6.3V - 2A
- 5V - 3A
Primary/Secondary Shield

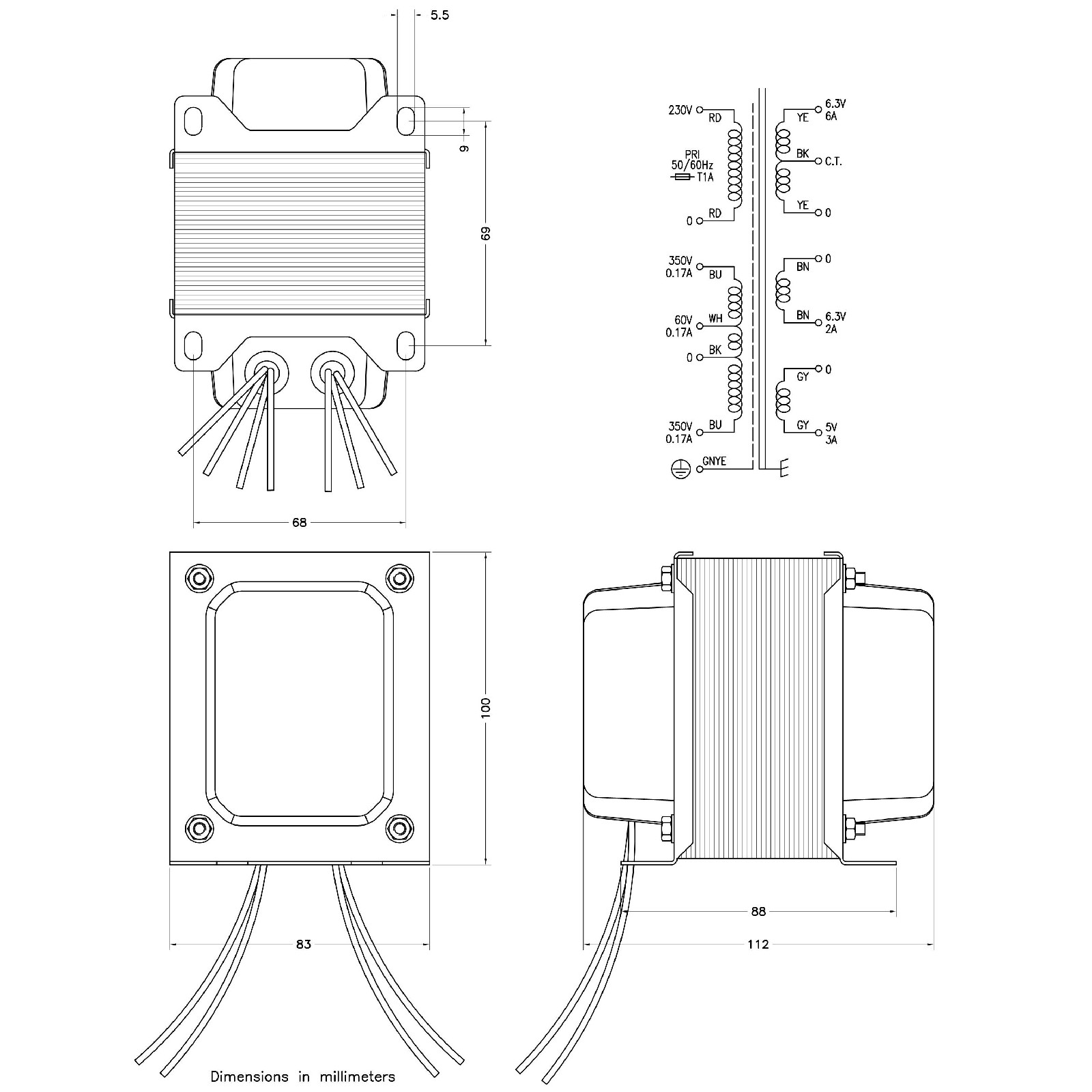

Dimensions and schematic: see drawing
Weight: 3080g
Power: 185VA
Input: 230V
Output:
- 350-0-60-350V - 0.17A
- 6.3V C.T. - 6A
- 6.3V - 2A
- 5V - 3A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3080g
