Output Transf. SE 5W 2.5-3-3.5k 33% 70mA
Out 8-32-60-150-600 Ohm 2x1626-2A3
Output Transf. SE 5W 2.5-3-3.5k 33% 70mA
| Codice | SE-EI68032CV-N |
| Prezzo lordo |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 4 PZ |

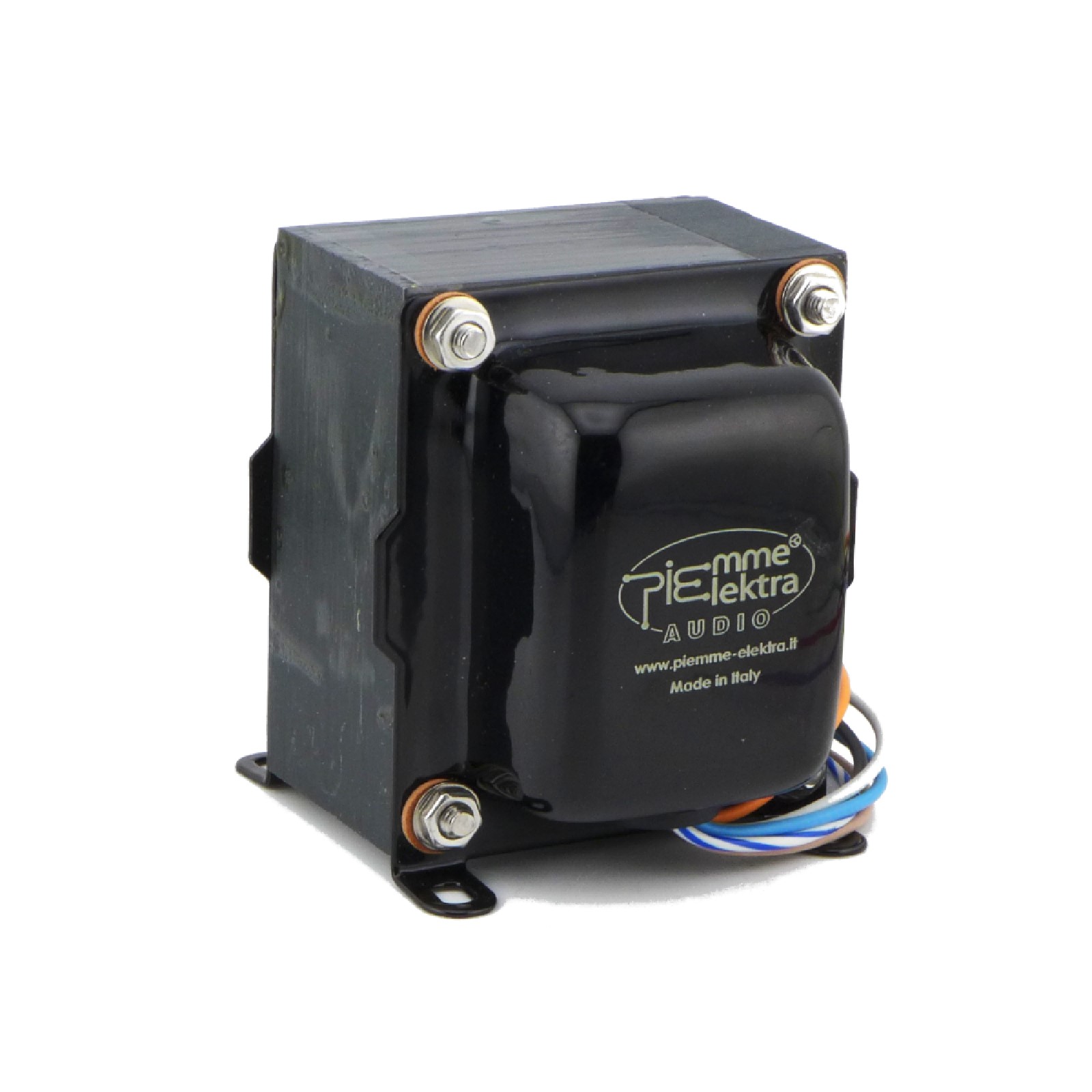

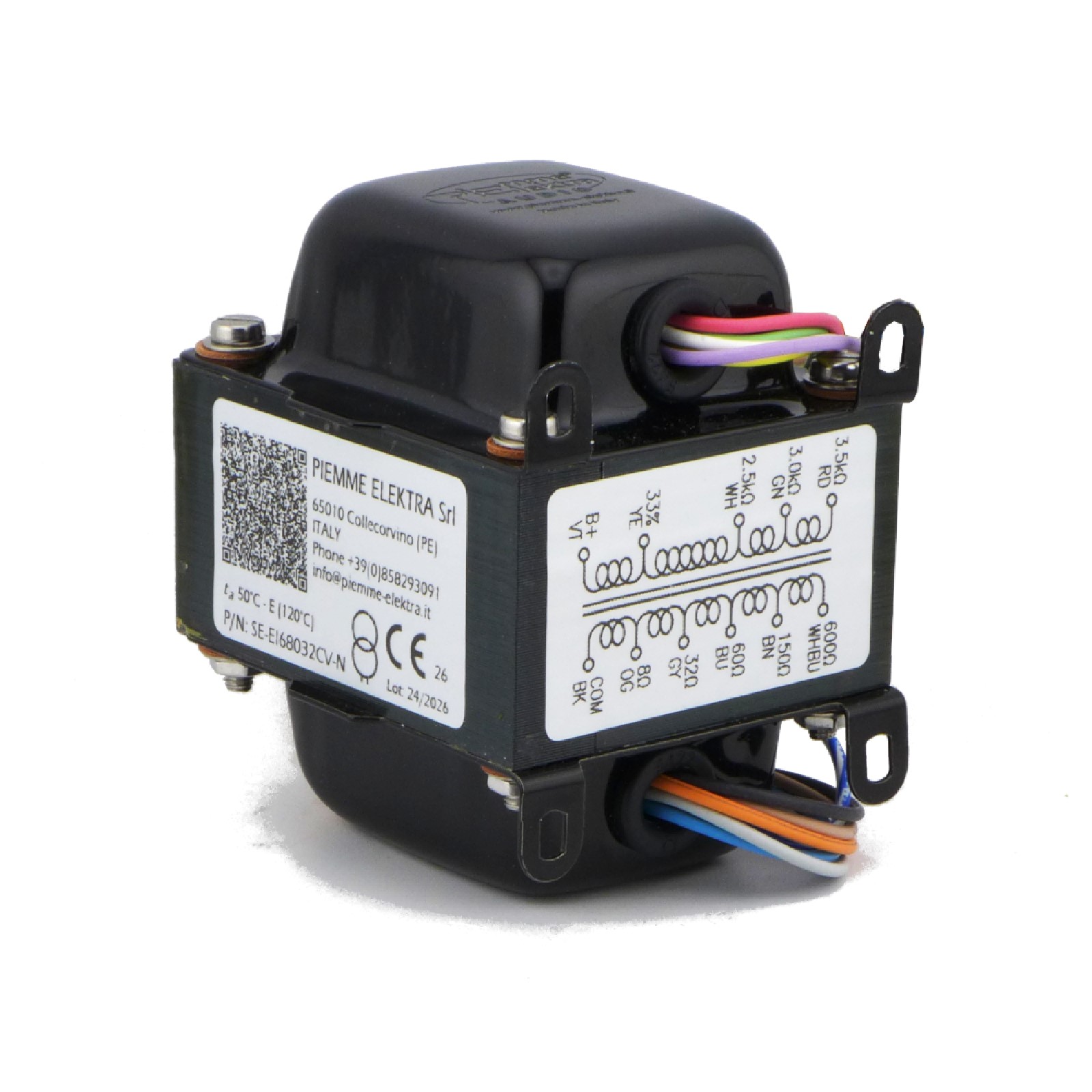

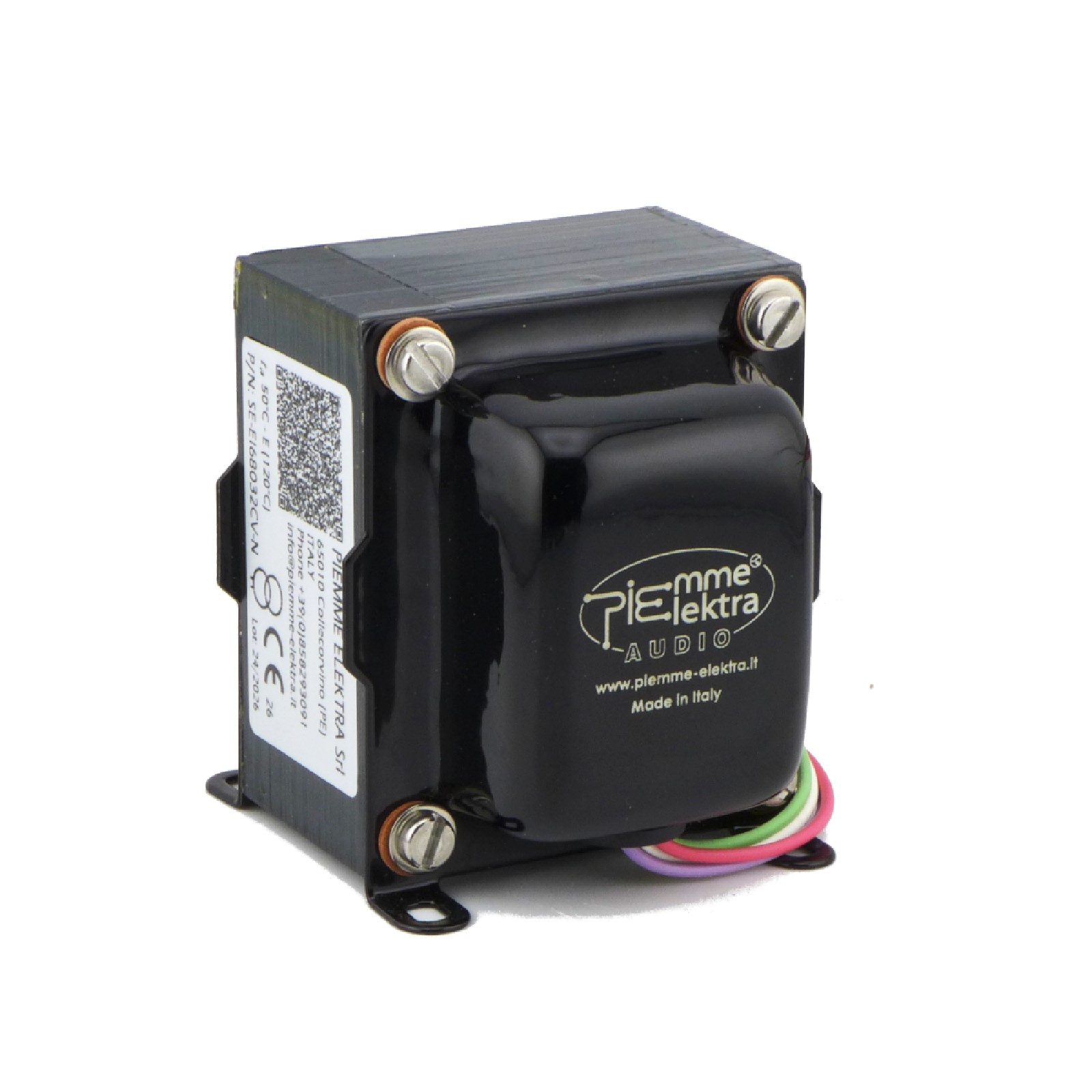

Single Ended Output Transformer
Parallelo di 1626 / 2A3
Power: 5W
Input: 2500-3000-3500 Ohm (UL36-33-31%)
Output: 8-32-60-150-600 Ohm
winding in 7 sections
Annealed Grain-oriented magnetic core
Primario inductance: 8.5-10-11.5H
Primary resistance : 214-237-259 Ohm max
Leakage Inductance @1kHz:16-15-15-13-20mH
Secondary resistance 0.51-2.6-4-7.5-68 Ohm
Idc 60mA, max 90mA
BW +/-3dB @2W: 25-67.000Hz THD 0.6% @20Hz

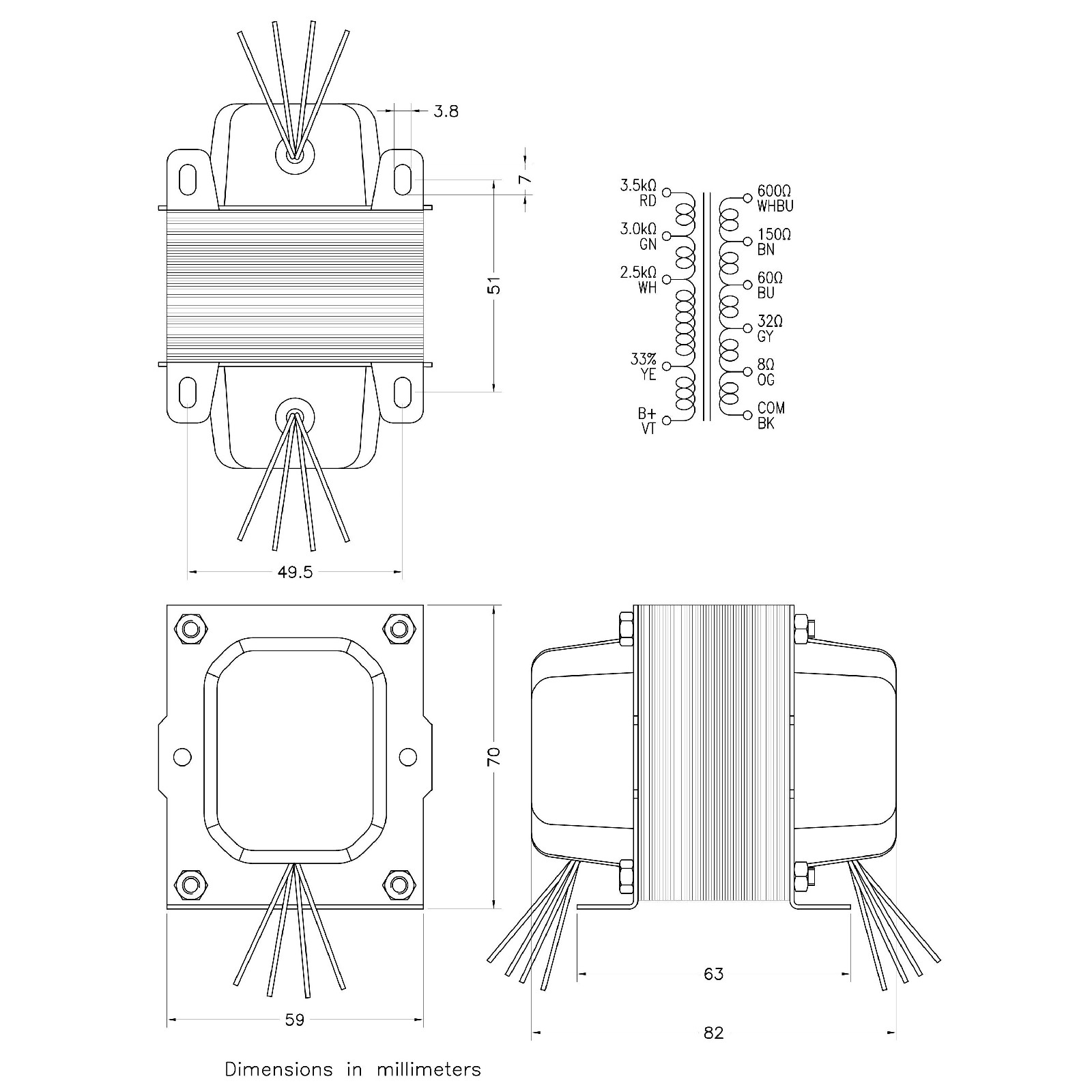

Dimensions and schematic: see picture
Weight: 740 g.
Parallelo di 1626 / 2A3
Power: 5W
Input: 2500-3000-3500 Ohm (UL36-33-31%)
Output: 8-32-60-150-600 Ohm
winding in 7 sections
Annealed Grain-oriented magnetic core
Primario inductance: 8.5-10-11.5H
Primary resistance : 214-237-259 Ohm max
Leakage Inductance @1kHz:16-15-15-13-20mH
Secondary resistance 0.51-2.6-4-7.5-68 Ohm
Idc 60mA, max 90mA
BW +/-3dB @2W: 25-67.000Hz THD 0.6% @20Hz
Dimensions and schematic: see picture
Weight: 740 g.
