OT SE 5W 7-8-9k UL41% 40mA
Out 8 Ohm
OT SE 5W 7-8-9k UL41% 40mA
| Codice | SE-EI68035CV-N |
| Prezzo lordo |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
75,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 20 PZ |

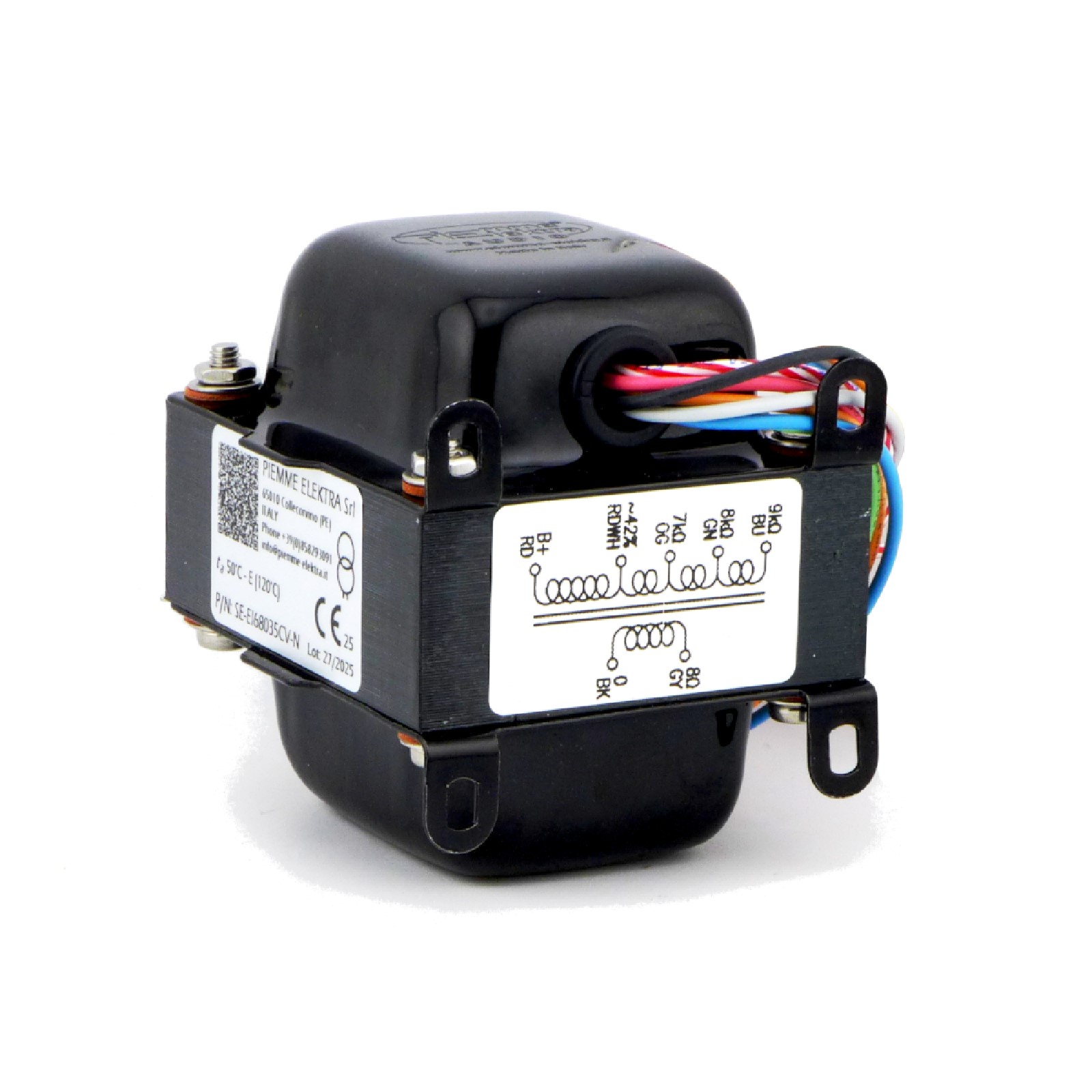

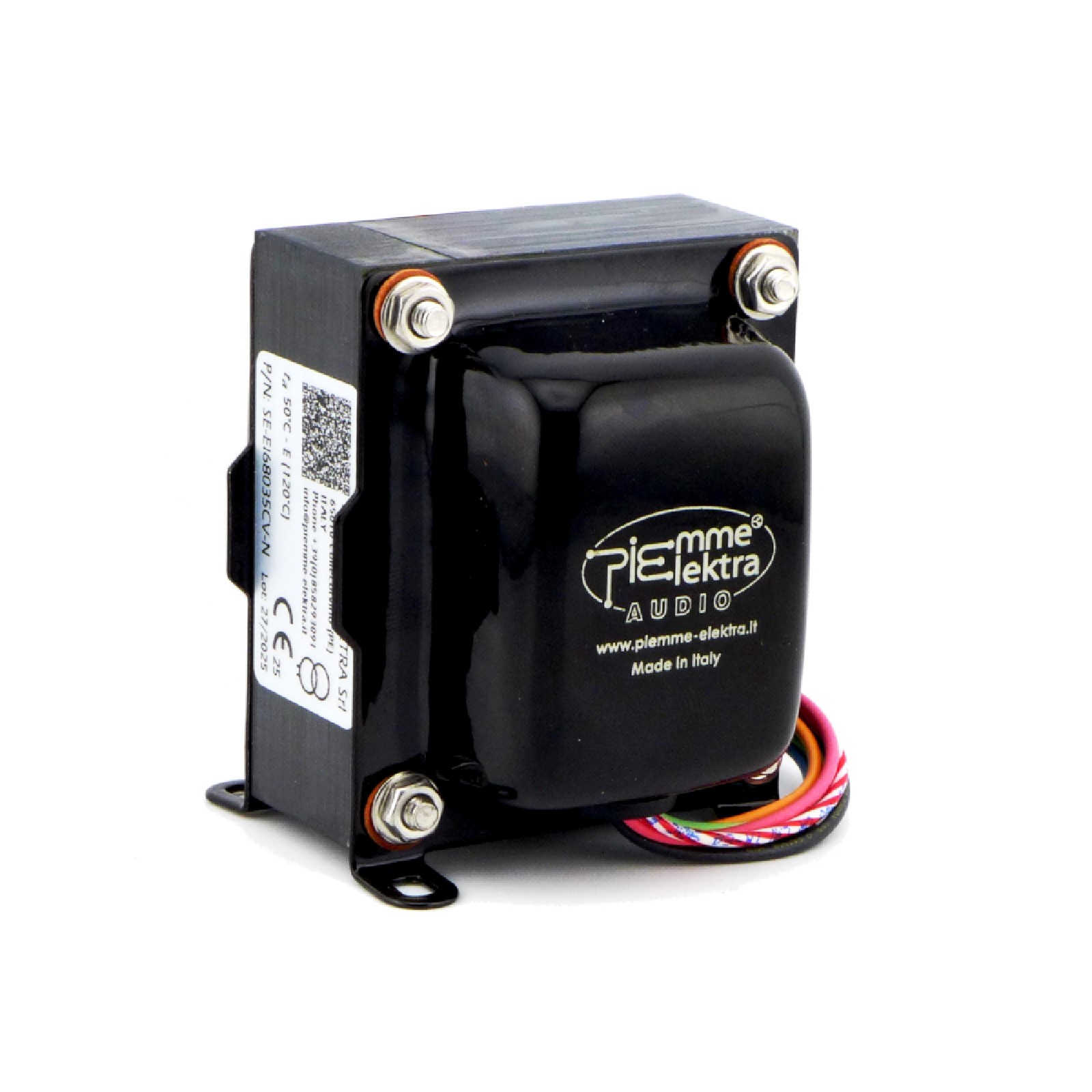

Single Ended Output Transformer
Power: 5W
Input: 7-8-9kOhm (UL43-41-39%)
Output: 8 Ohm
winding in 7 sections
PRI/SEC Coupling capacitance 1600pF max
Grain-oriented magnetic sheet RICOTTO
Primariy inductance: 38-43-48H
Primary resistance : 570-615-660 Ohm max
Leakage Inductance @10kHz: 21-23-27 mH
Secondari resistance 0.95 Ohm
Idc 40mA
BW +/-3dB @3W: 17-43.000Hz verificare
THD @20Hz-40mA-3W: 7%

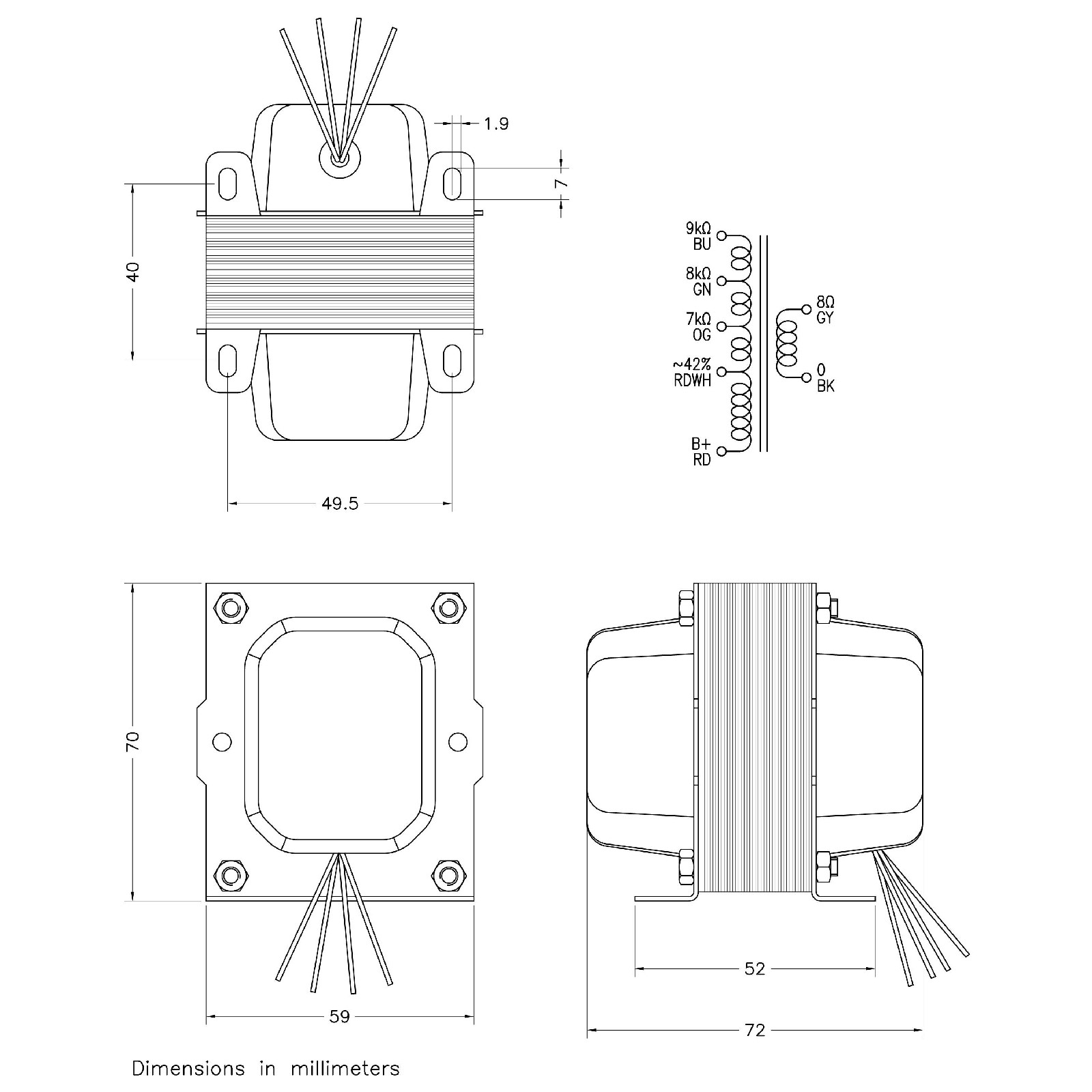

Dimensions and schematic: see picture
Weight: 740 g.
Power: 5W
Input: 7-8-9kOhm (UL43-41-39%)
Output: 8 Ohm
winding in 7 sections
PRI/SEC Coupling capacitance 1600pF max
Grain-oriented magnetic sheet RICOTTO
Primariy inductance: 38-43-48H
Primary resistance : 570-615-660 Ohm max
Leakage Inductance @10kHz: 21-23-27 mH
Secondari resistance 0.95 Ohm
Idc 40mA
BW +/-3dB @3W: 17-43.000Hz verificare
THD @20Hz-40mA-3W: 7%
Dimensions and schematic: see picture
Weight: 740 g.
