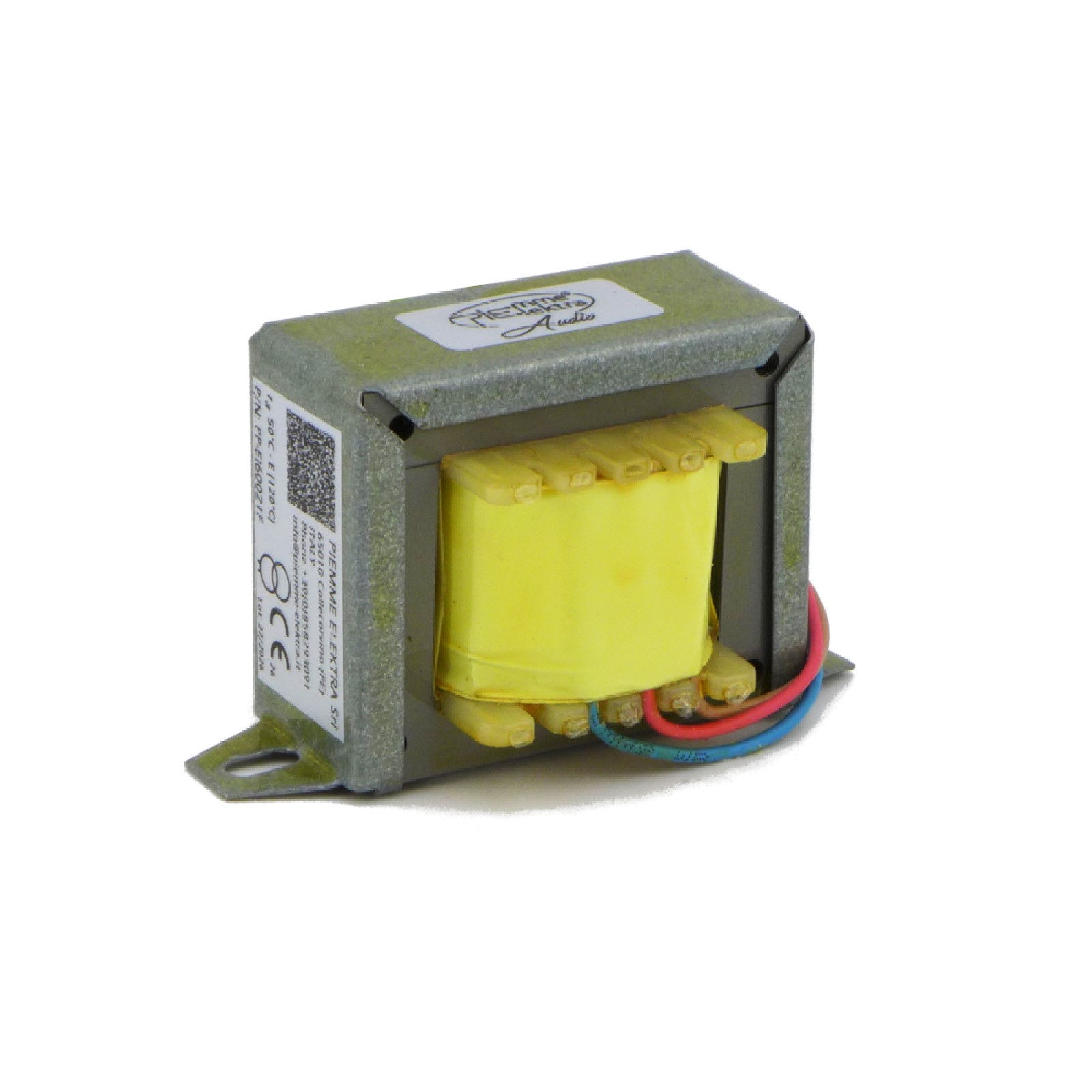

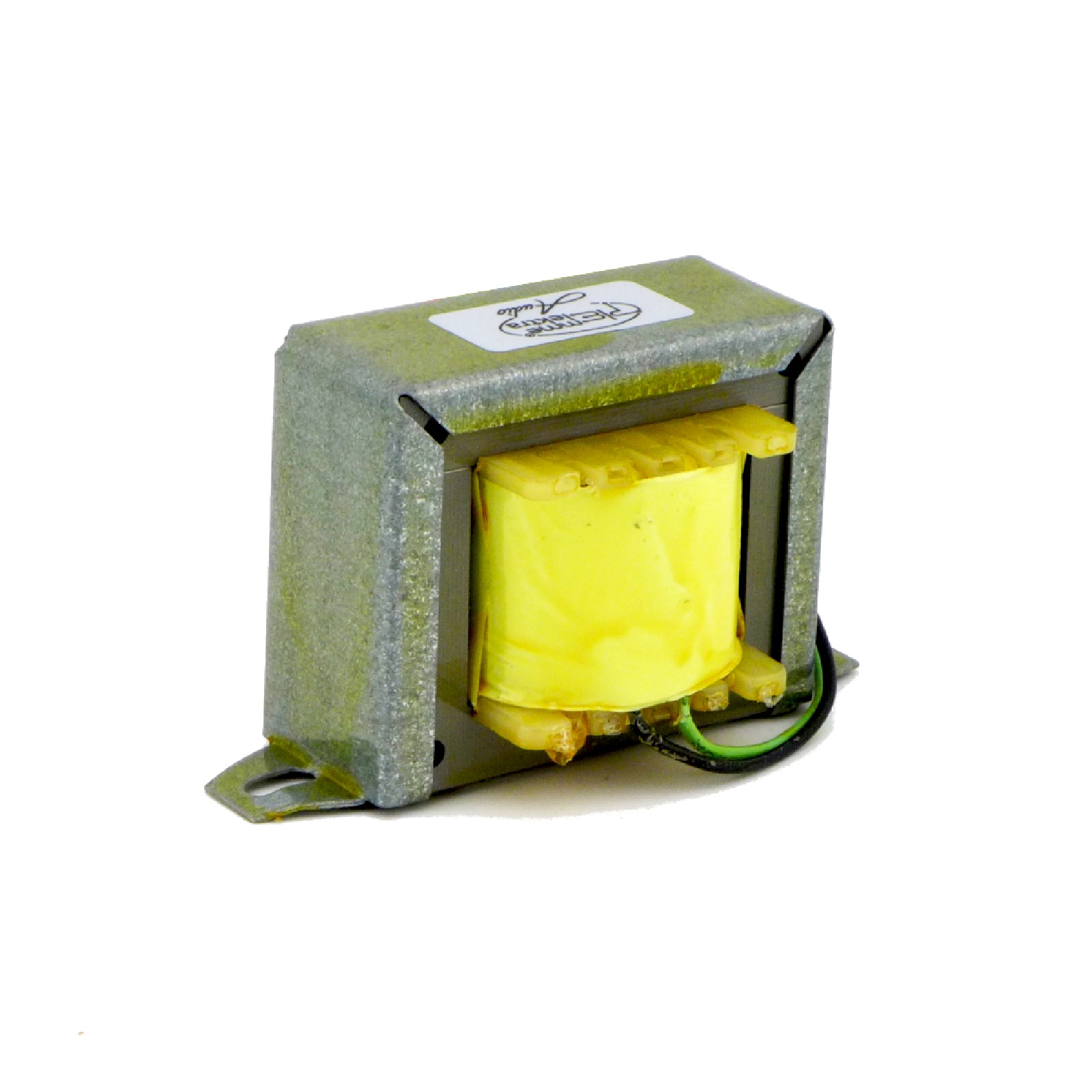

15W PUSH PULL OUTPUT TRANSFORMER
8.5K/8 OHM
15W PUSH PULL OUTPUT TRANSFORMER
| Codice | PP-EI60021 |
| Prezzo lordo |
54,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
54,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 7 PZ |
15W Output Transformer
Deluxe 5E3 Princeton
Fender 50246
Input: 8500 Ohm nominal ( real 9k)
Output: 8 Ohm
RDC PRI 550 Ohm ( 243-306 Ohm)
Lpri @50Hz5V - >130H
Lleakage @ 1kHz - 28mH
RDC SEC 0.42Ohm
BW @5W 10Hz - 52kHz THD @5W 20Hz 26%
BW @10W 15Hz - 52kHz THD @10W 20Hz 36%
BW @55W 23Hz - 52kHz
THD @15W 70Hz < 1.2%

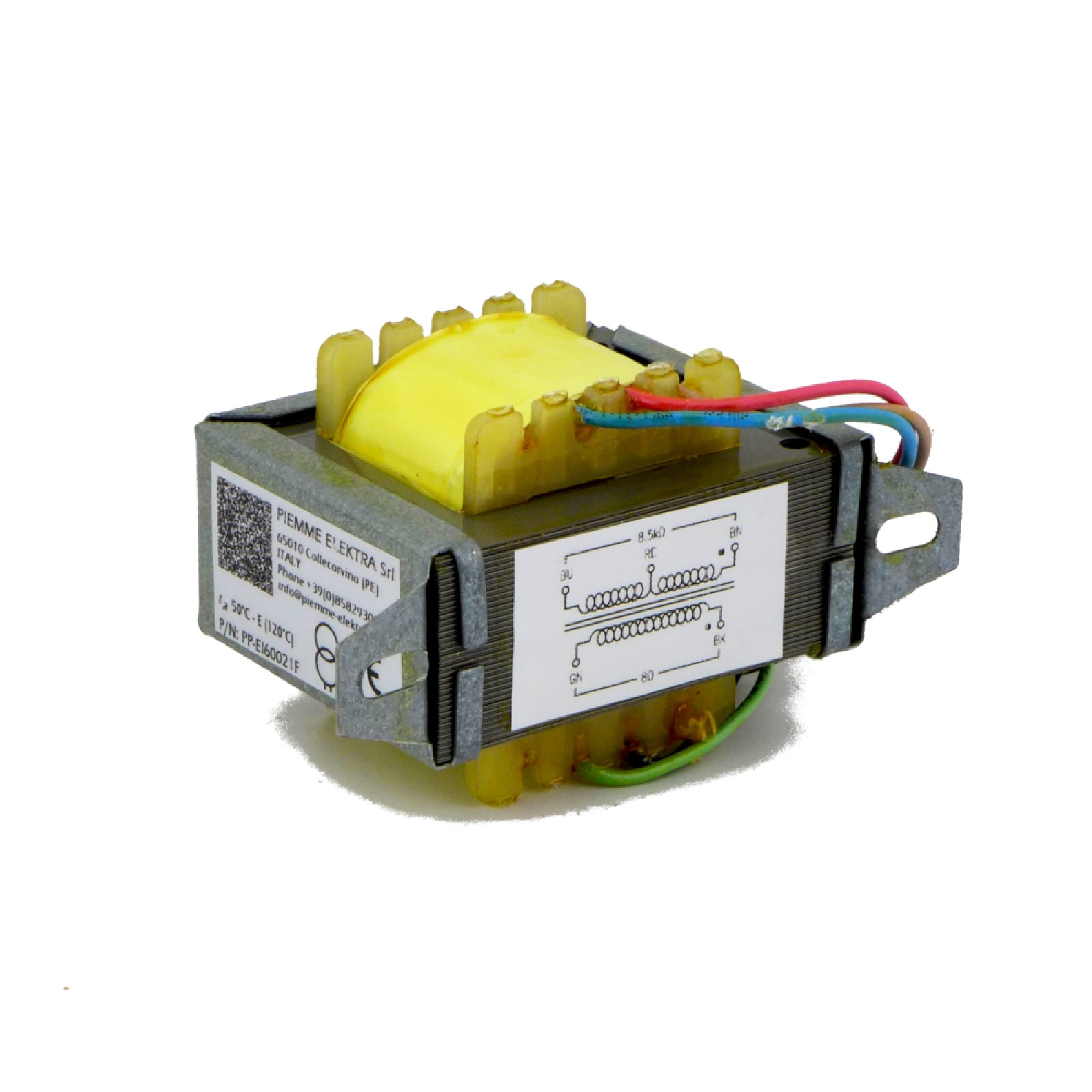

Dimensions and schematic: see picture
Weight: 650 g.
