Push pull 30W 6.6k/8 Ohm
Leak TL12.1 clone 2.0 PM
Push pull 30W 6.6k/8 Ohm
| Codice | PP-EI10507CV-N R01 |
| Prezzo lordo |
180,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
180,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 2 PZ |

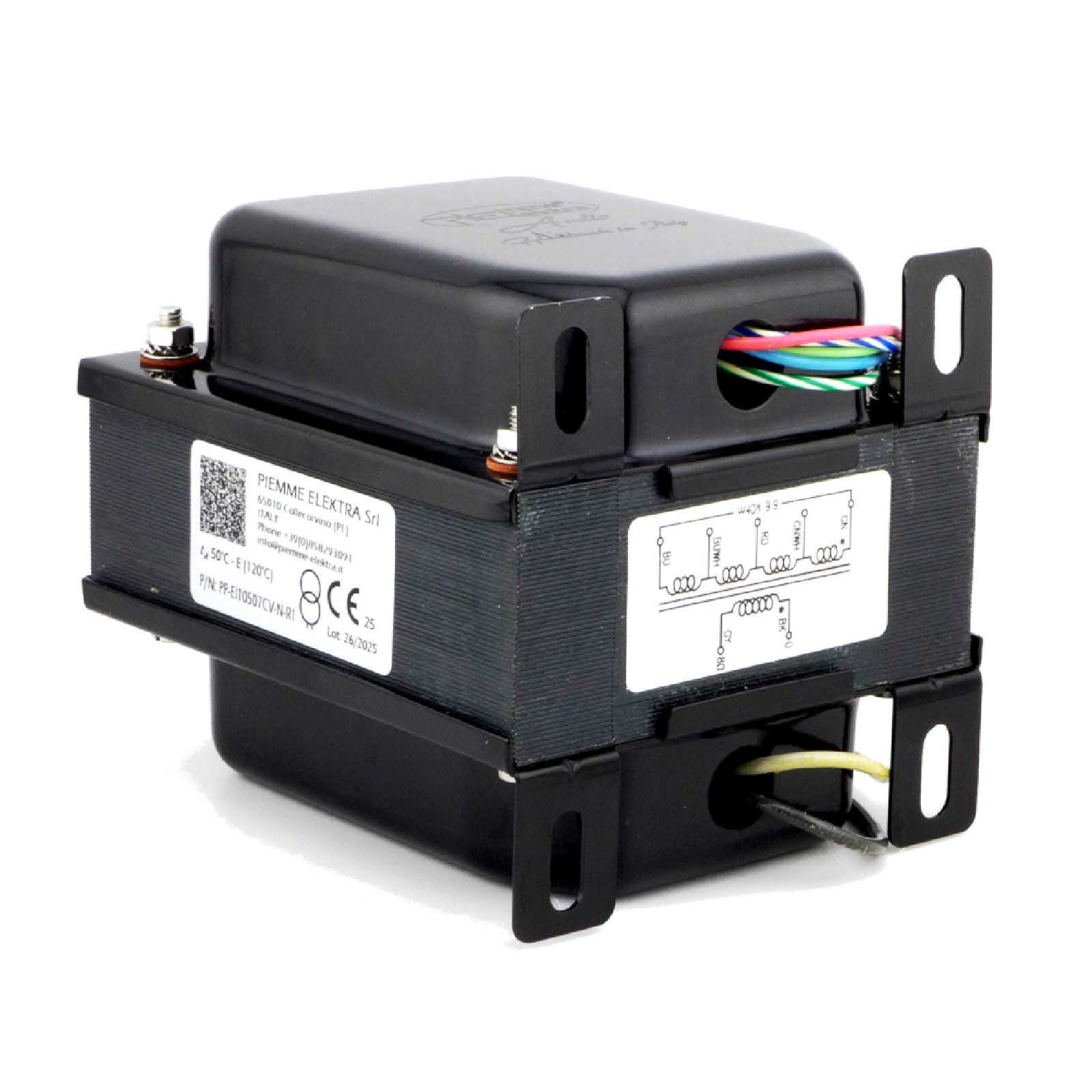

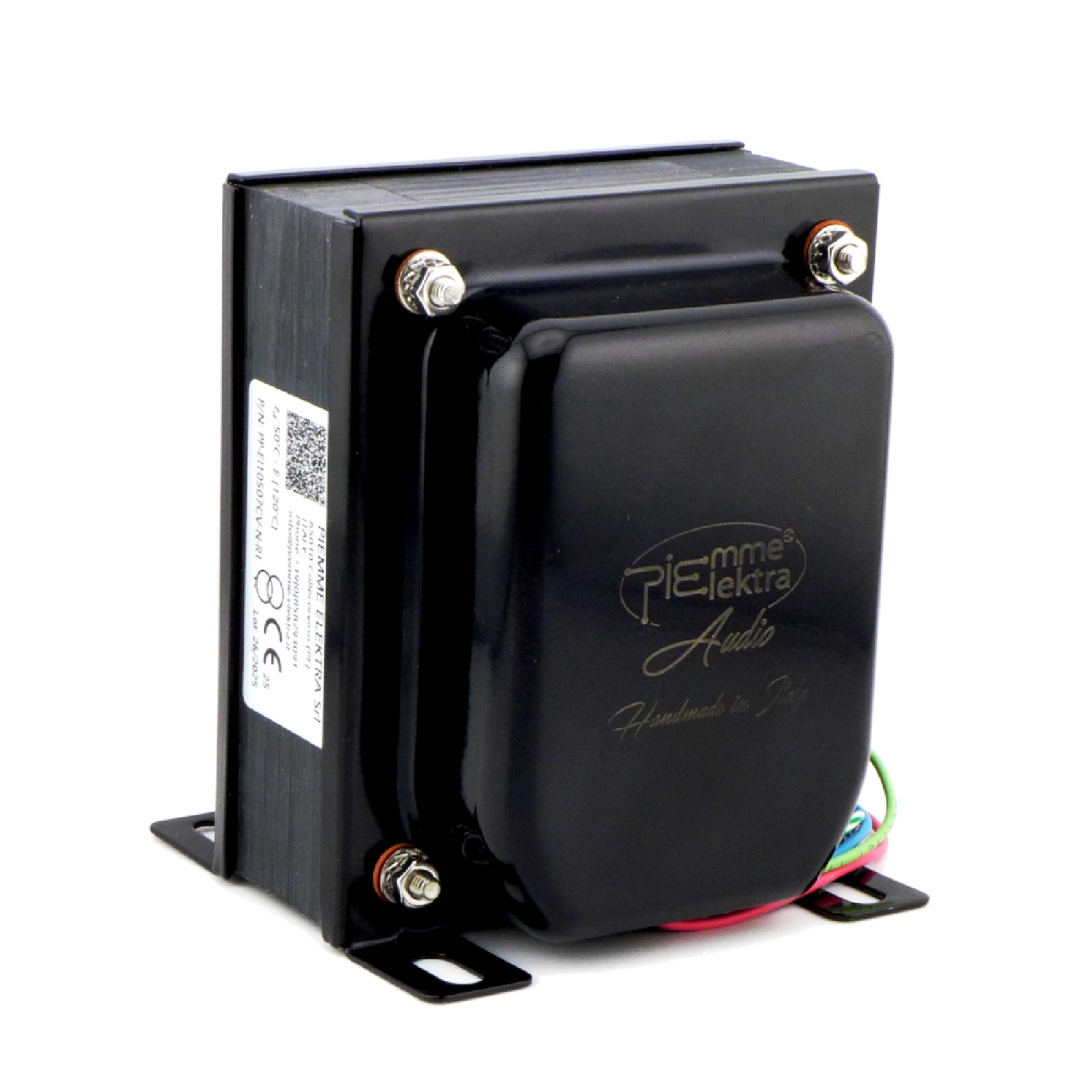

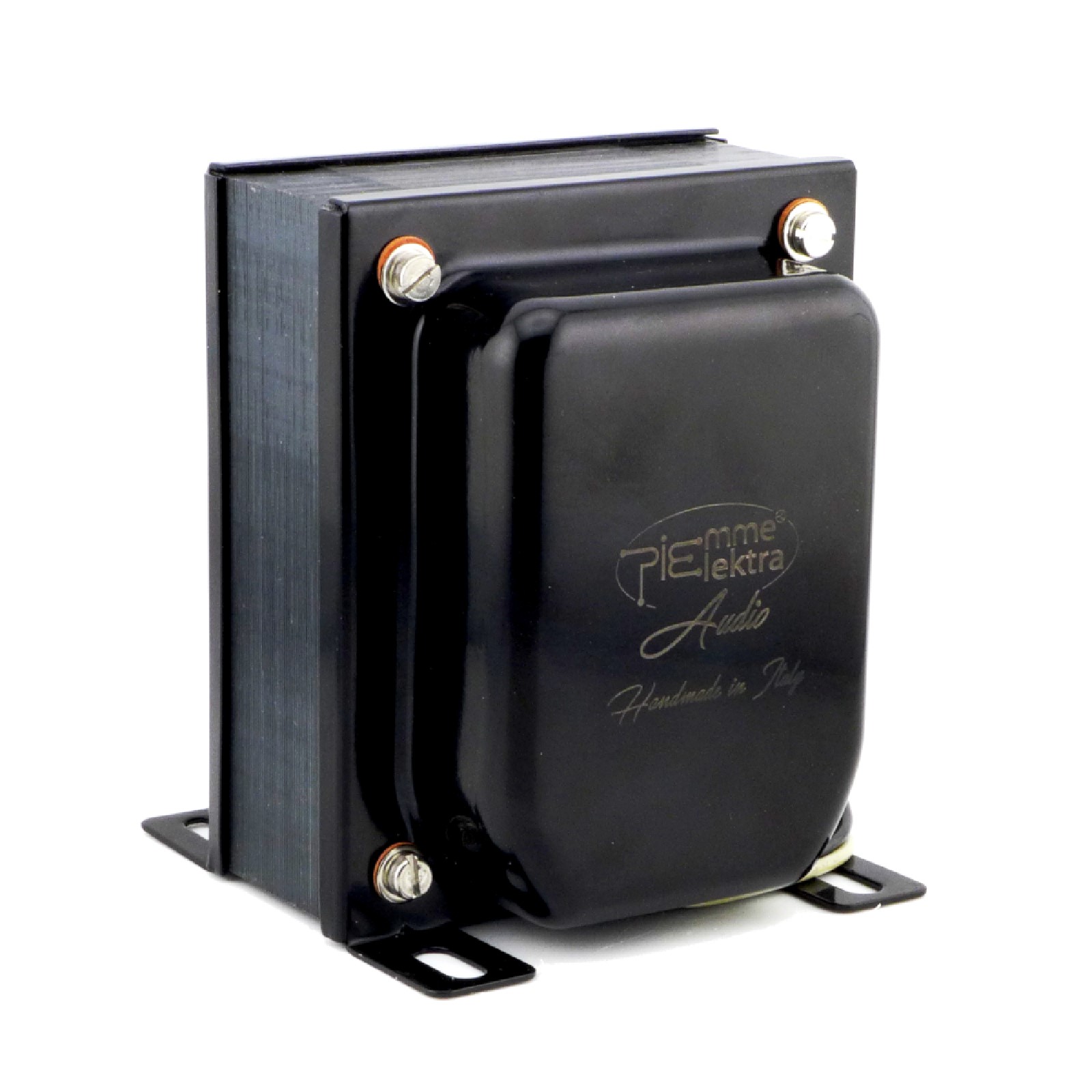

Push Pull Output transformer
Power 50W max
6600 Ohm IL tap 50%
8 Ohm 0.3 Ohm DC
Primary inductance > 600H @20Hz 5V
RDC PRI 175+175 Ohm
Leakage 26mH
THD @20Hz 30W - 1.5%
BW +/-1dB 8-50.000Hz
Lamierini a grani orientati RICOTTI

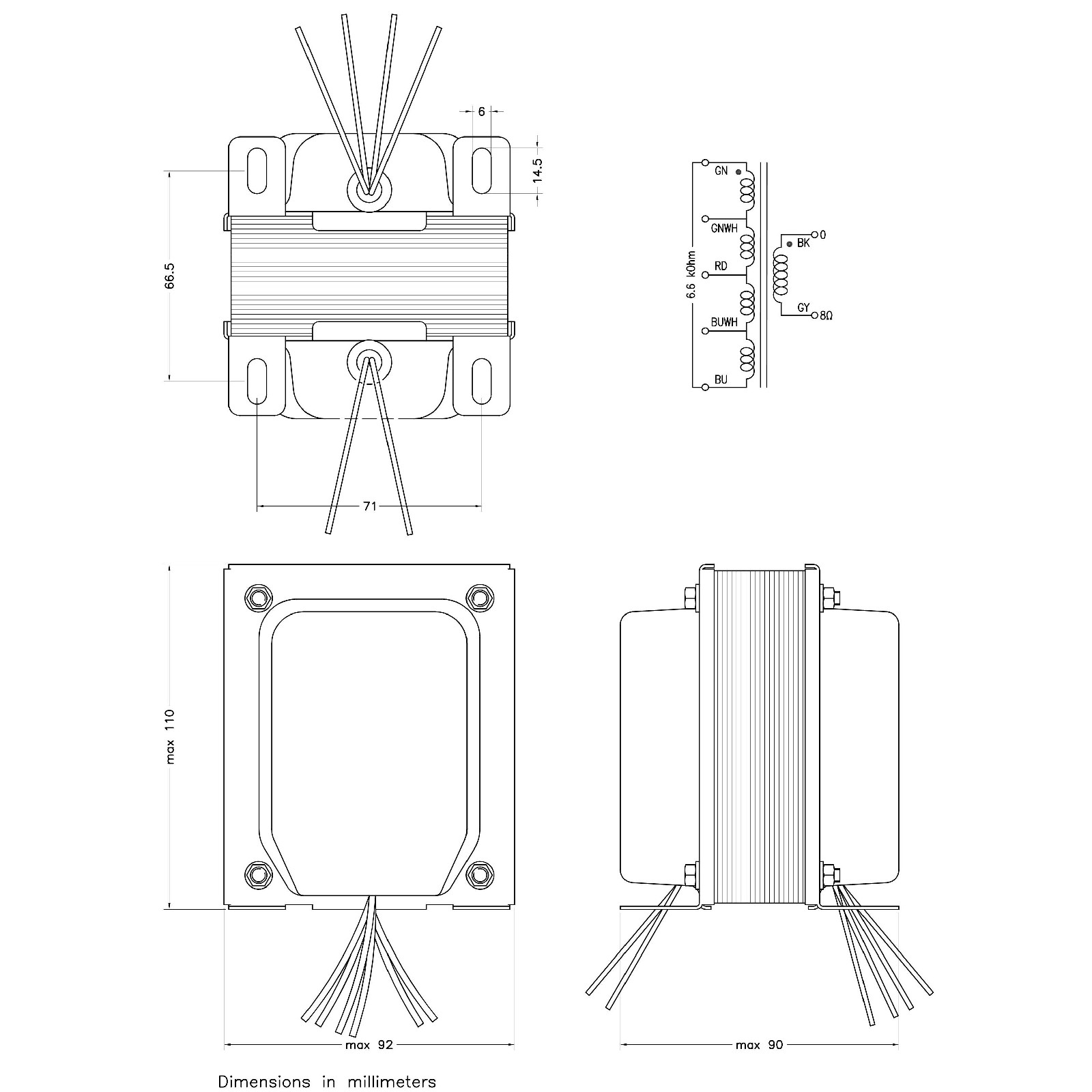

Dimensions and schematic: see picture
Weight: 2900 g.
Power 50W max
6600 Ohm IL tap 50%
8 Ohm 0.3 Ohm DC
Primary inductance > 600H @20Hz 5V
RDC PRI 175+175 Ohm
Leakage 26mH
THD @20Hz 30W - 1.5%
BW +/-1dB 8-50.000Hz
Lamierini a grani orientati RICOTTI
Dimensions and schematic: see picture
Weight: 2900 g.
