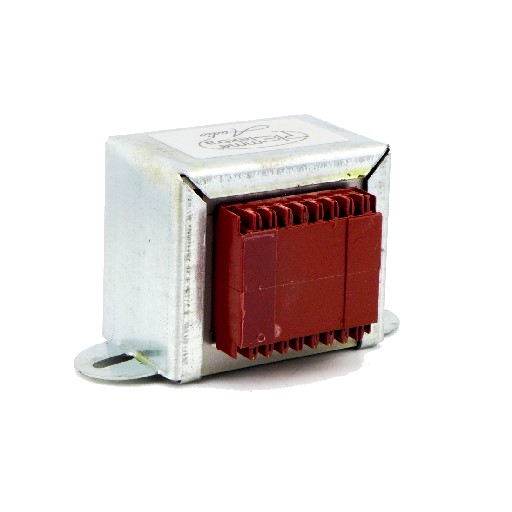

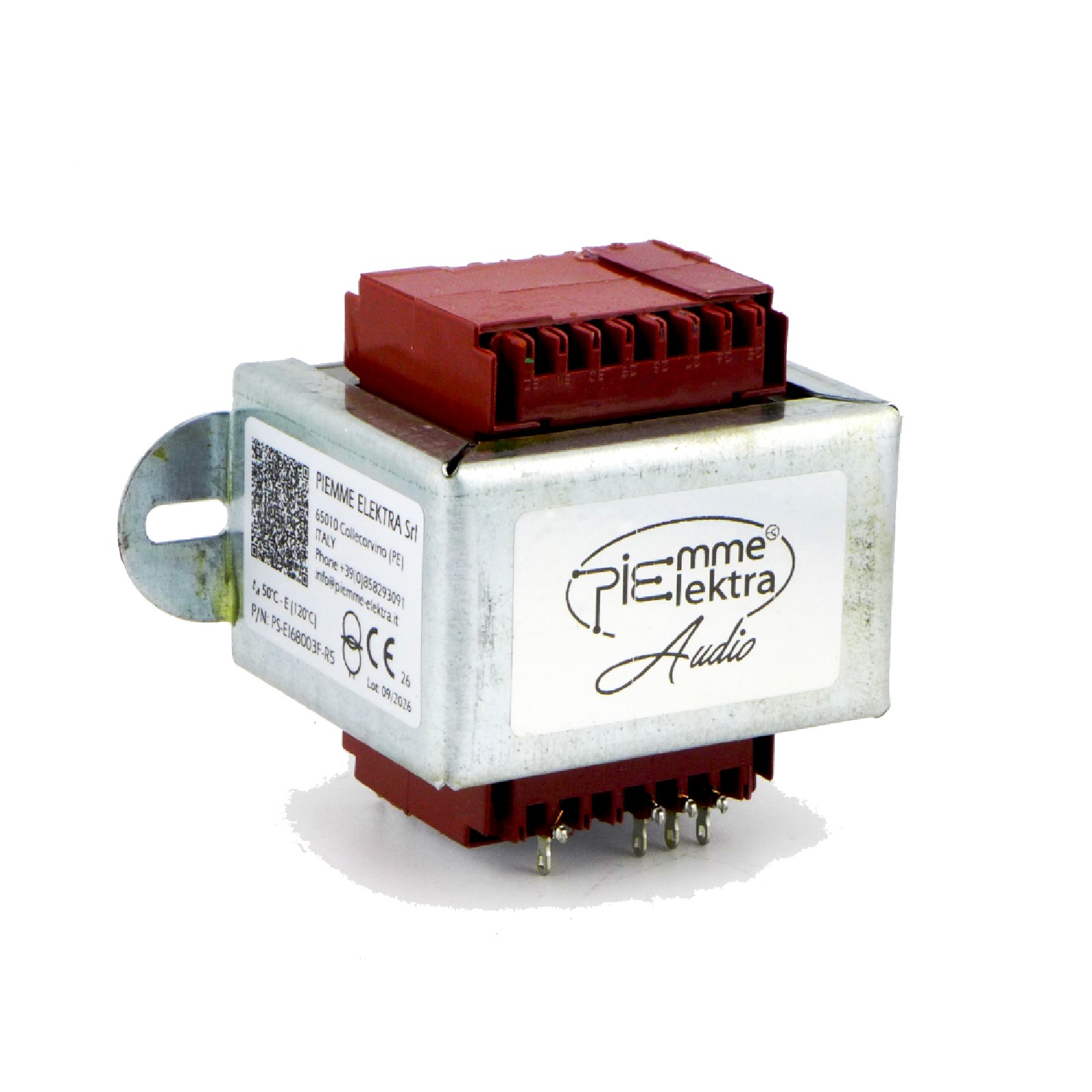

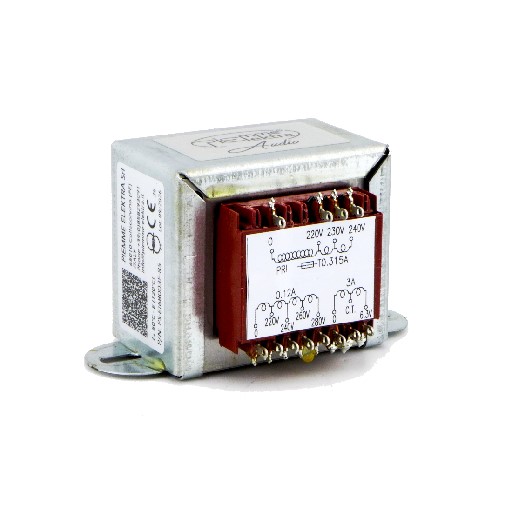

Input Transformer 56VA 230V x EL84
220-240-260-280V 0.12A/6.3V 3A CT
Input Transformer 56VA 230V x EL84
| Codice | PS-EI68003F.05 |
| Prezzo lordo |
55,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
55,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 12 PZ |
Power Transformer
Power: 45VA
Input: 220-230-240V
Output:
- 220/240/260/280V - 0.12A ( 236.4/258.3/280.3/302V a vuoto)
- 6.3V (C.T.) - 3A ( 6.86V a vuoto)

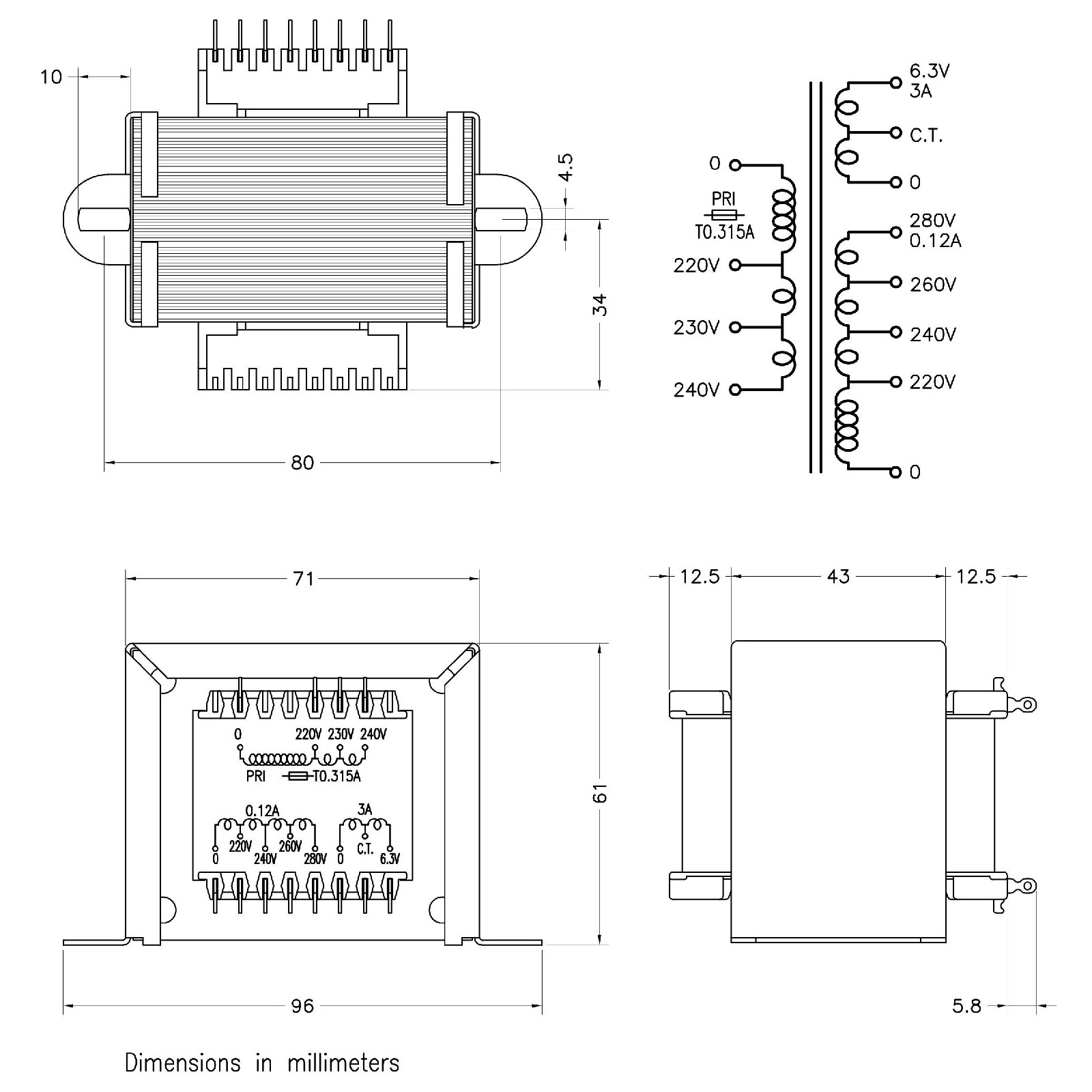

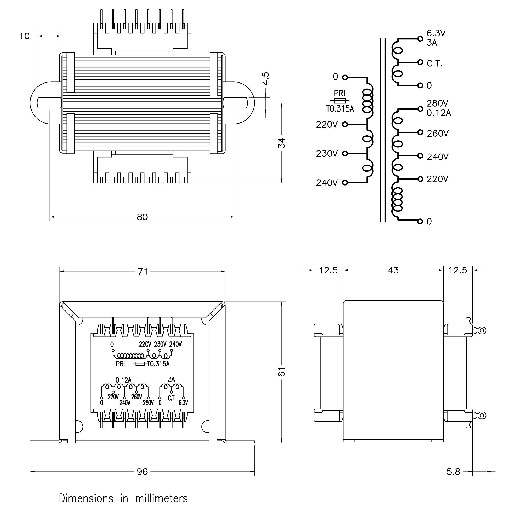

Dimensions and schematic: see drawing
Weight: 1220g
Power: 45VA
Input: 220-230-240V
Output:
- 220/240/260/280V - 0.12A ( 236.4/258.3/280.3/302V a vuoto)
- 6.3V (C.T.) - 3A ( 6.86V a vuoto)
Dimensions and schematic: see drawing
Weight: 1220g
