190VA 230/sch/315-0-55-315V 0.2A
6.3V 4A, 15V 1.5A, 5V 3A
190VA 230/sch/315-0-55-315V 0.2A
| Codice | PS-EI96100CO-N |
| Prezzo lordo |
140,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
140,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

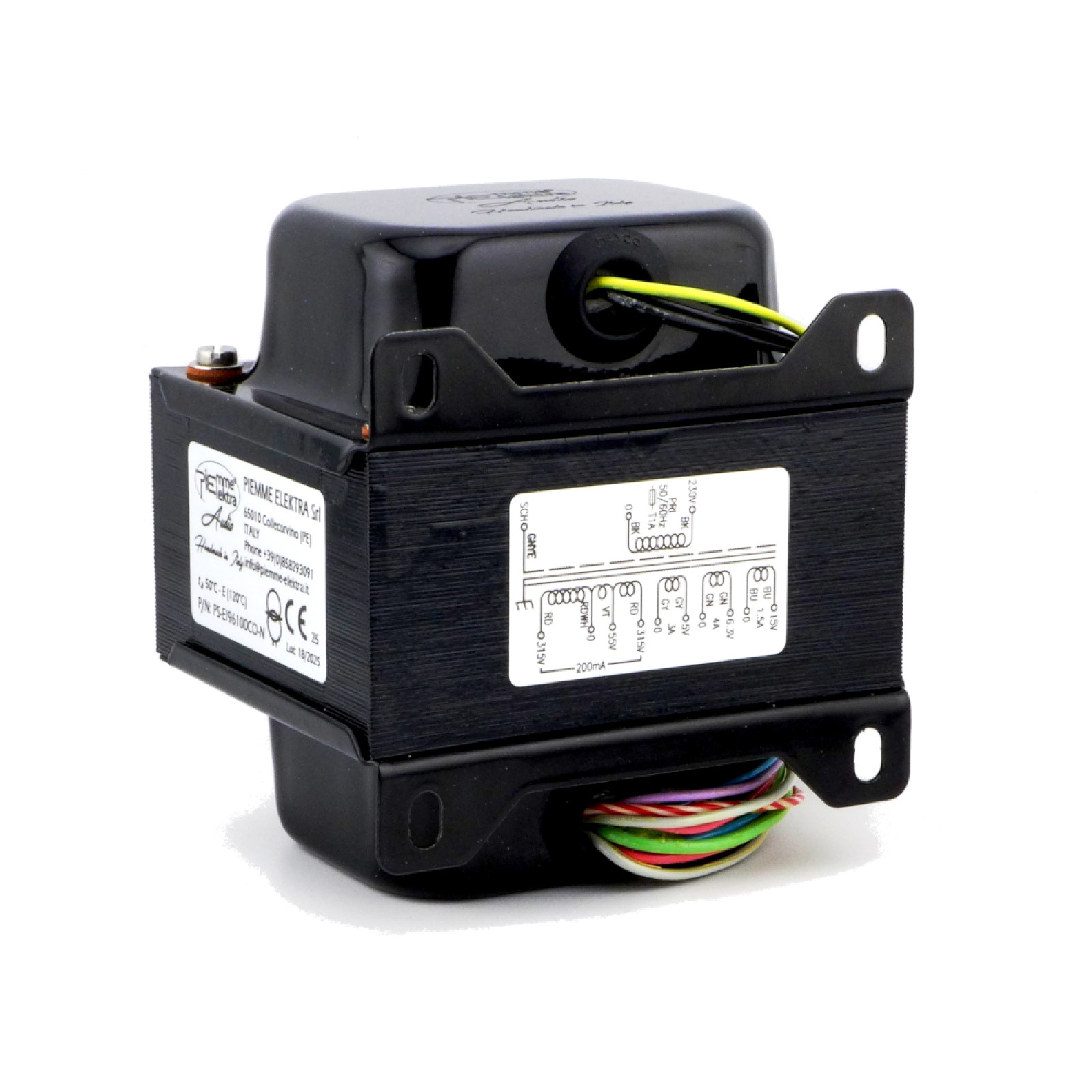

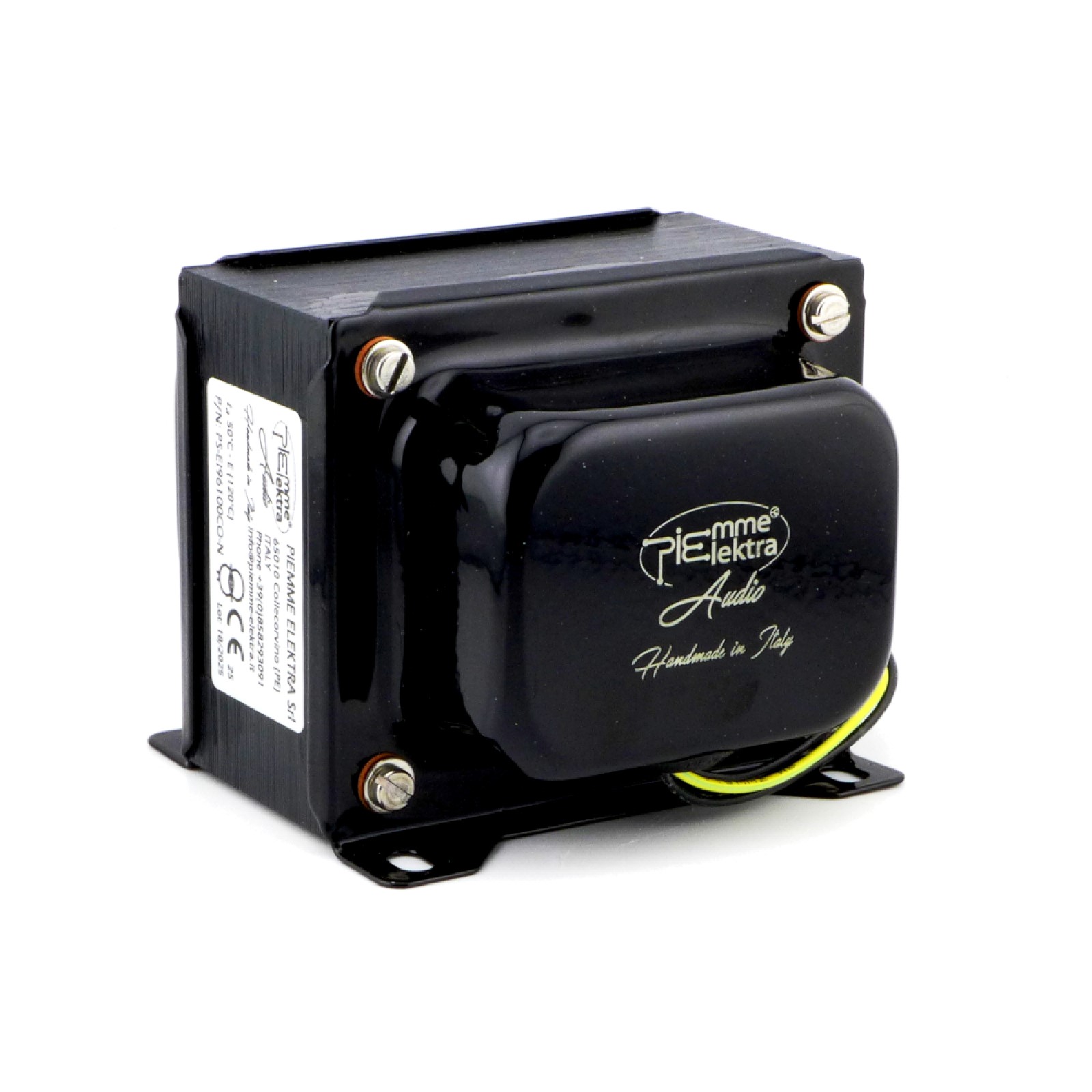

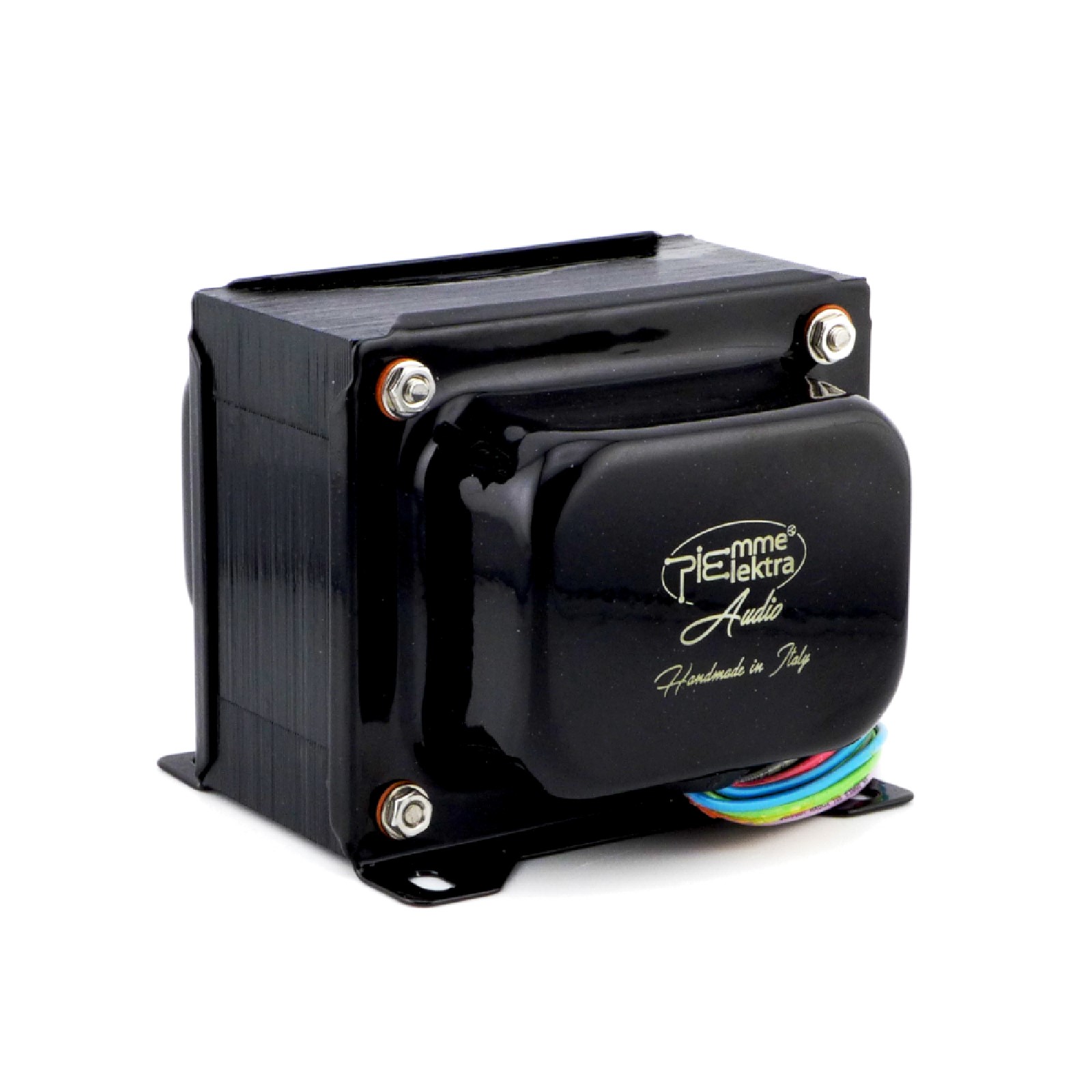

Power Transformer
Power: 190VA
Input: 230V
Output:
- 315-0-55-315V 0.2A
- 6.3V 4A
- 5V 3A
- 15V 1.5A
Primary/Secondary Shield

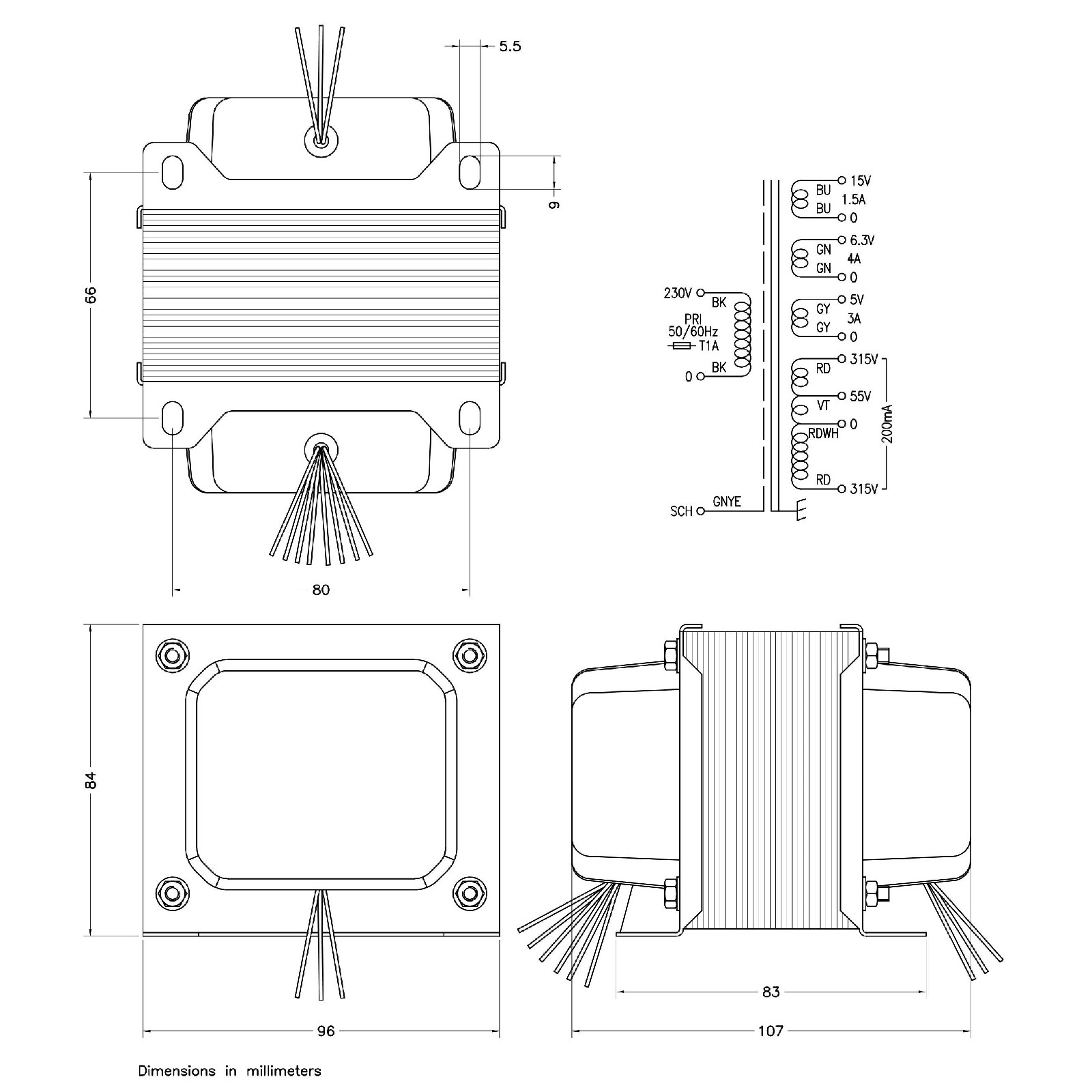

Dimensions and schematic: see drawing
Weight: 3100g
Power: 190VA
Input: 230V
Output:
- 315-0-55-315V 0.2A
- 6.3V 4A
- 5V 3A
- 15V 1.5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3100g
