200W 115/230 SCH 275-0-275V 0.275A
6.3VCT 5A, 12.6V 1A
200W 115/230 SCH 275-0-275V 0.275A
| Codice | PS-EI96099CV-N |
| Prezzo lordo |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
110,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 3 PZ |

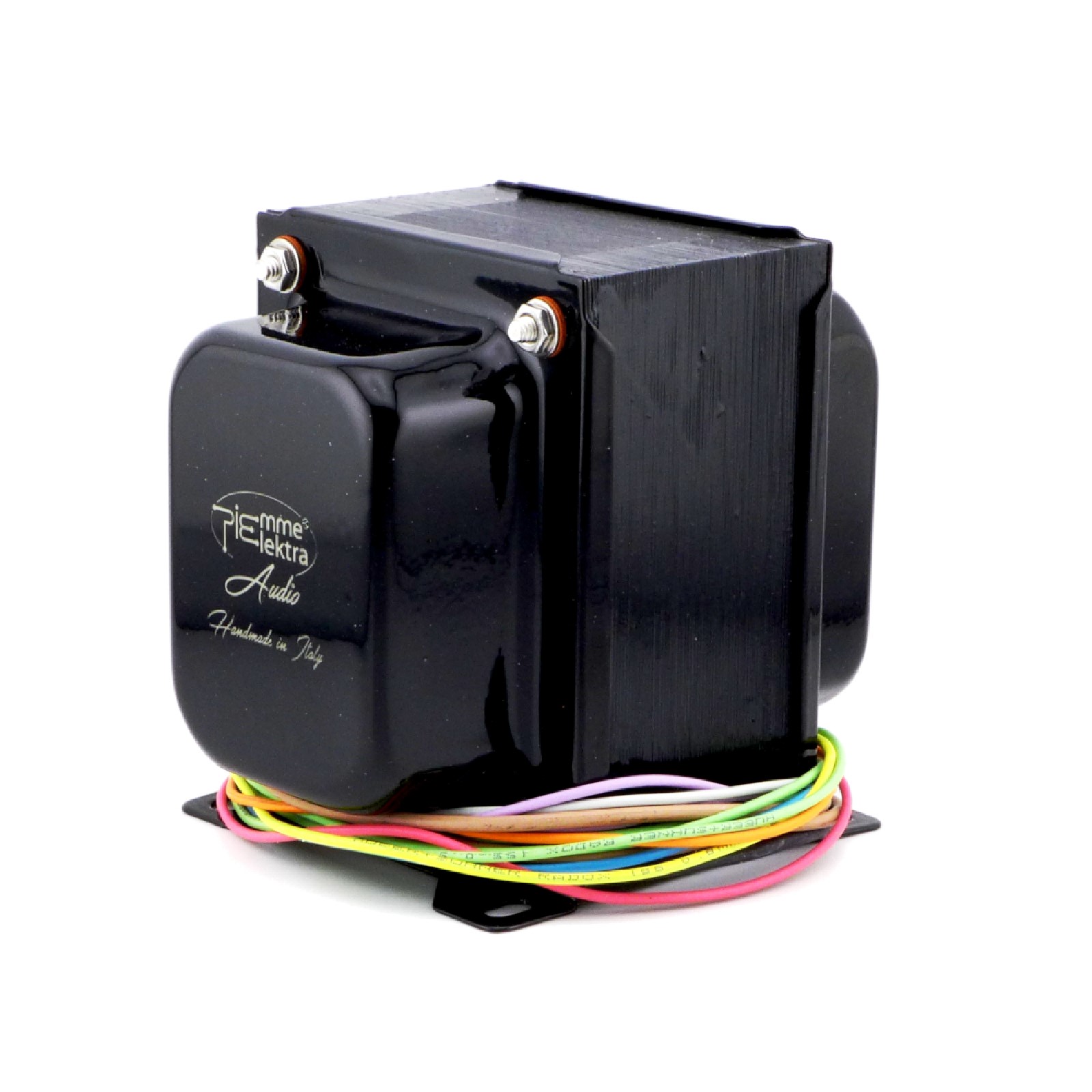

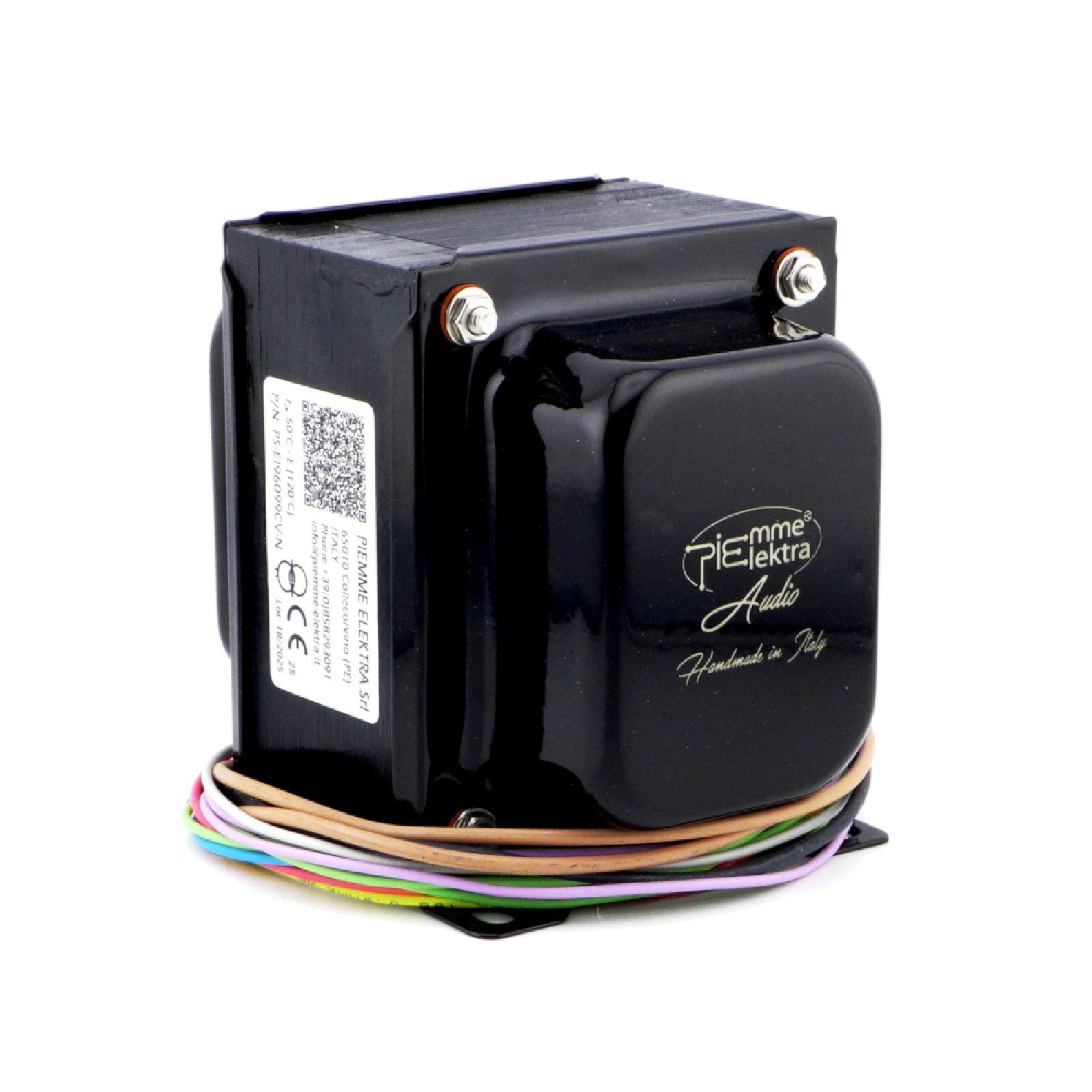

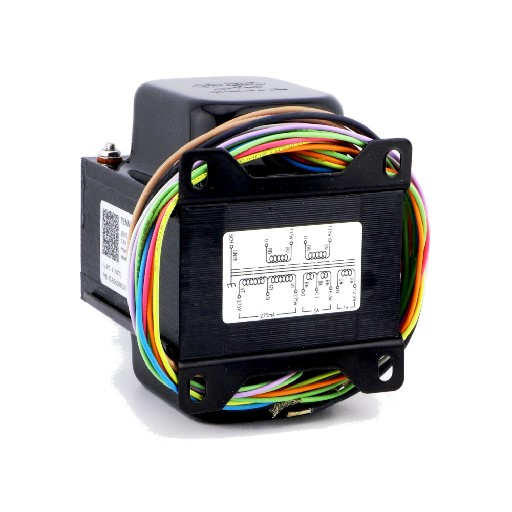

Power Transformer
Power: 200VA
Input: 2x115V
Output:
- 275-0-275V 0.275A
- 6.3V (C.T.) 5A
- 12.6V 1A
no load voltage 6.8V
RDC 45mOhm
Primary/Secondary Shield

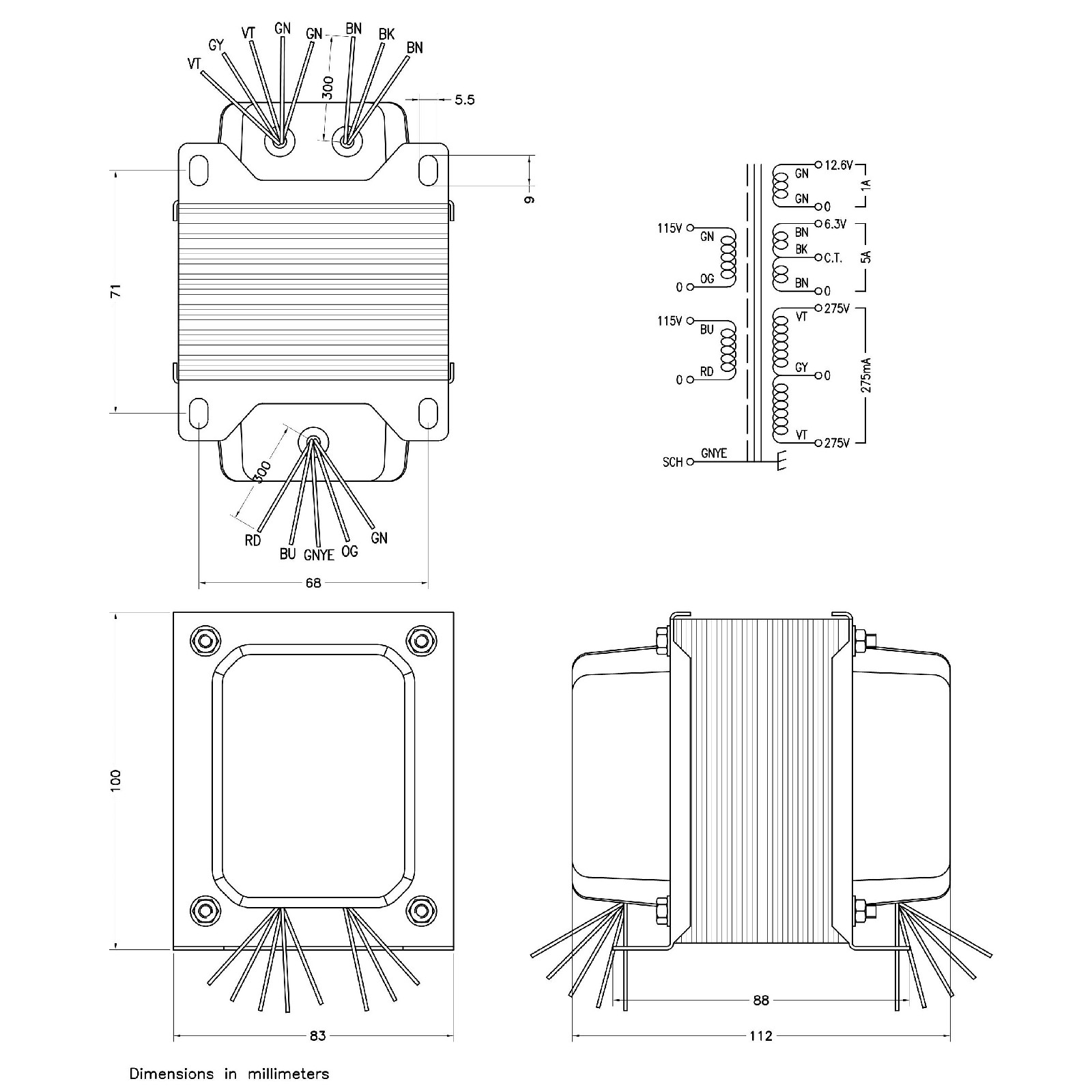

Dimensions and schematic: see drawing
Weight: 3130g
Power: 200VA
Input: 2x115V
Output:
- 275-0-275V 0.275A
- 6.3V (C.T.) 5A
- 12.6V 1A
no load voltage 6.8V
RDC 45mOhm
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3130g
