67VA 230V-SCH/0-230-240-250V 0.15A
6.3V CT 1.5A / 13.5 CT 1.5A
67VA 230V-SCH/0-230-240-250V 0.15A
| Codice | PS-EI84033B_R02 |
| Prezzo lordo |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
95,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 6 PZ |

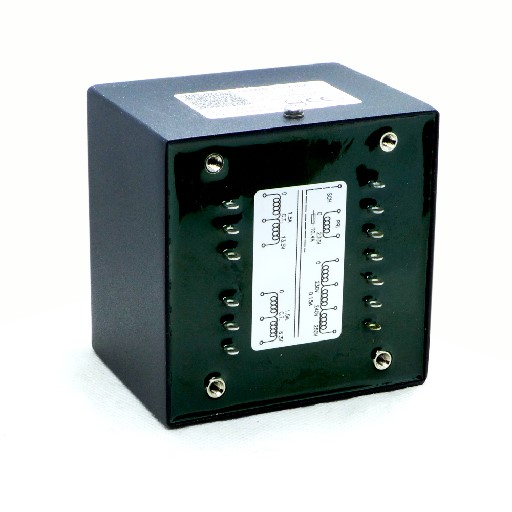

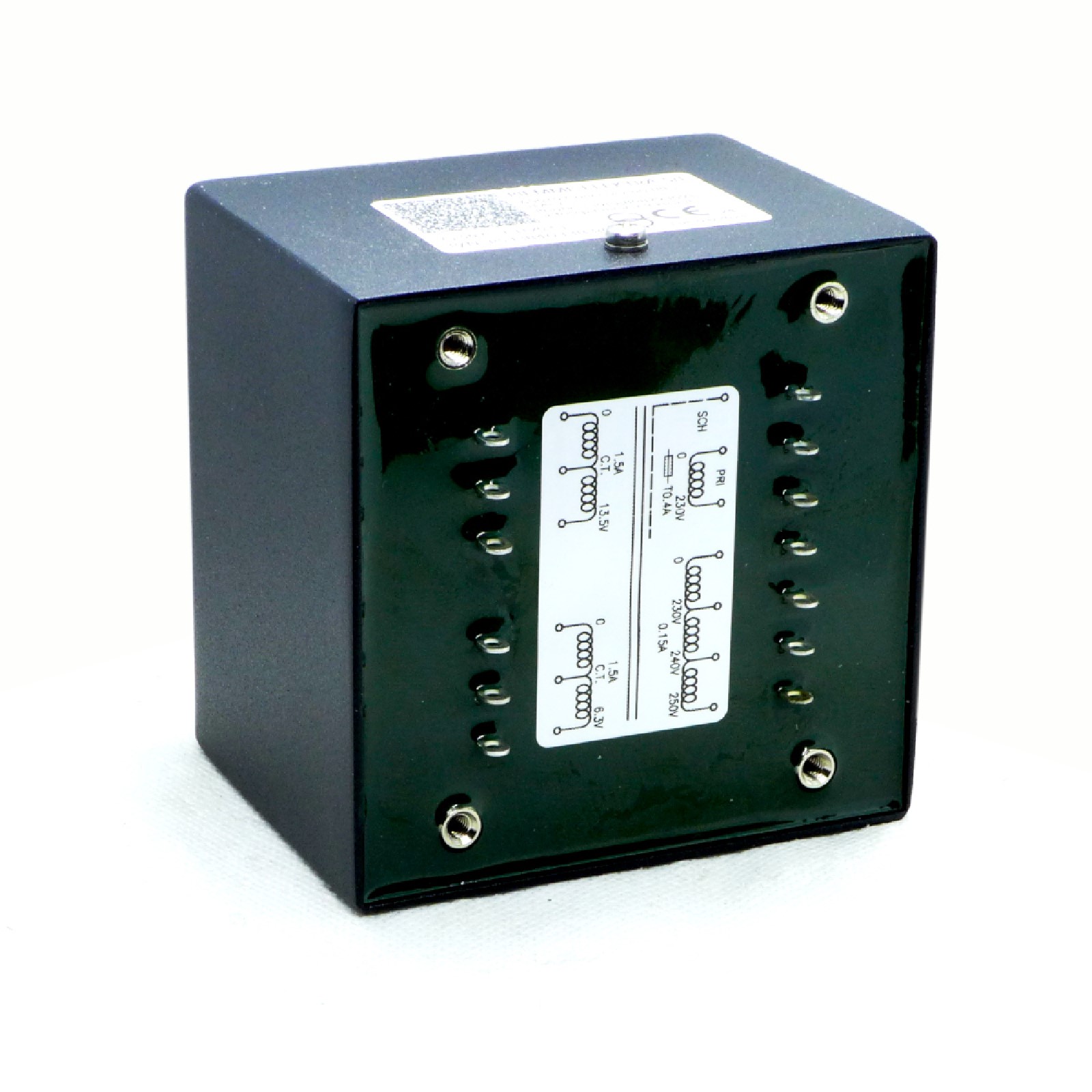

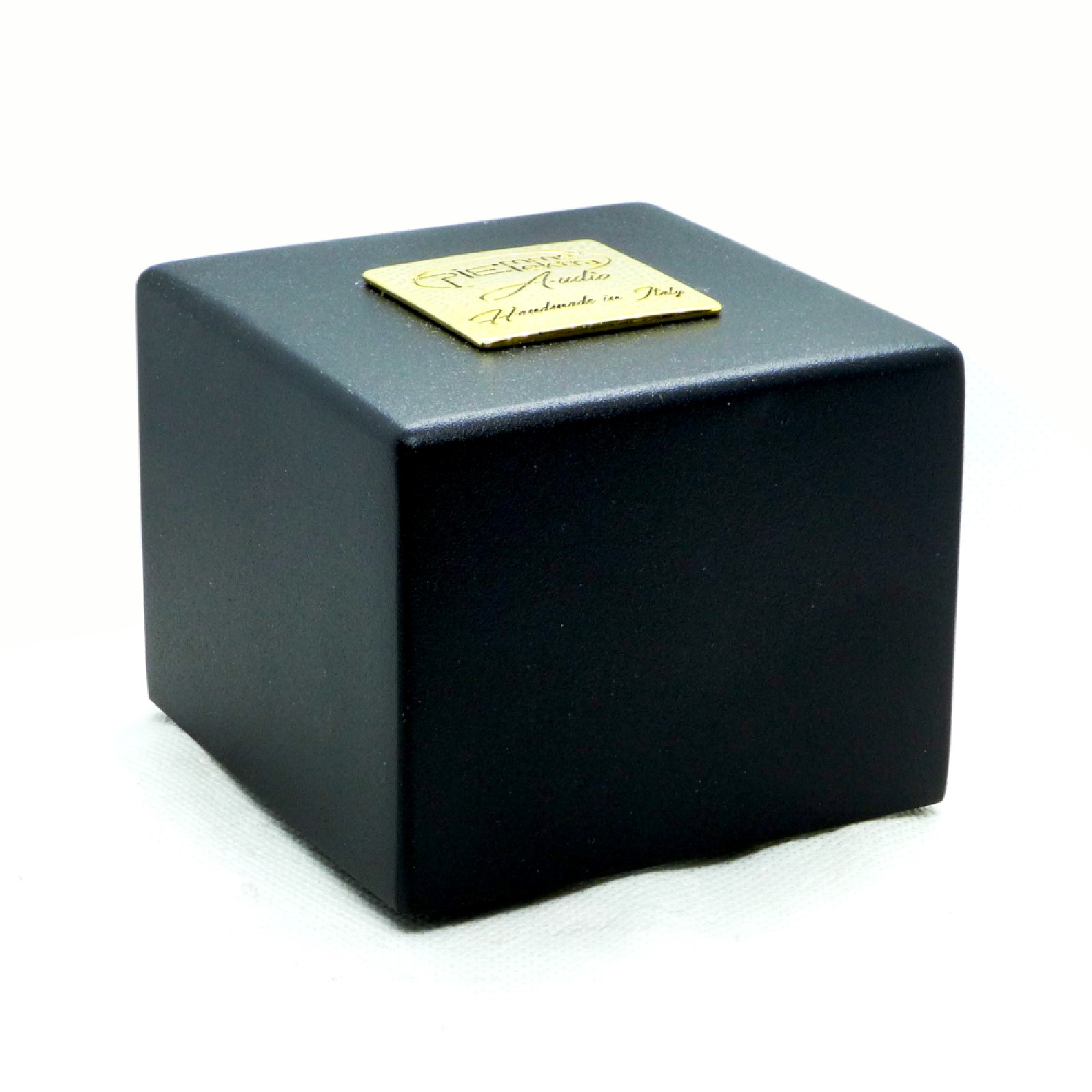

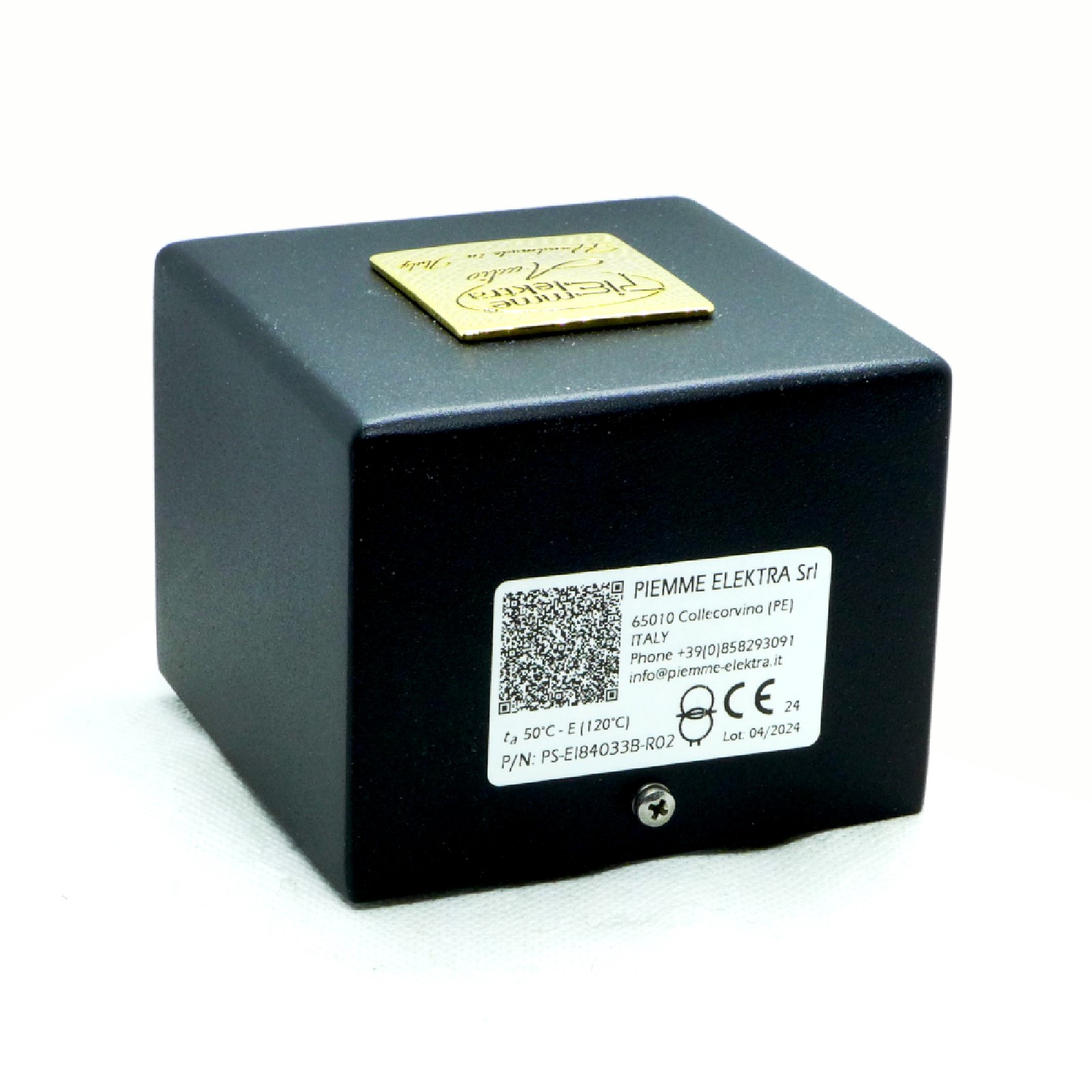

Power Transformer
Power: 67VA
Input: 230V
Output:
- 230/240/250V- 0.15A
- 6.3V C.T. - 1.5A
- 13.5V C.T. - 1.5A
Primary/Secondary Shield

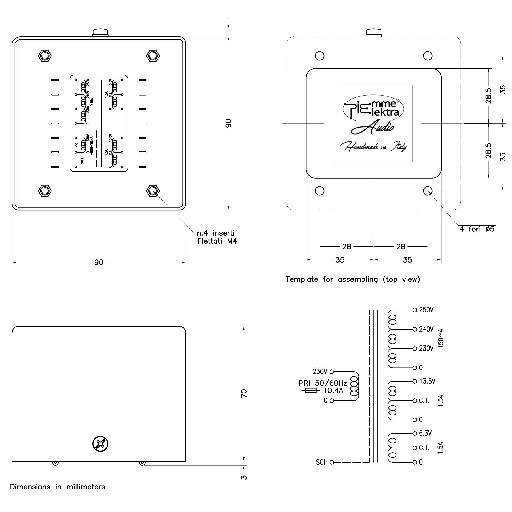

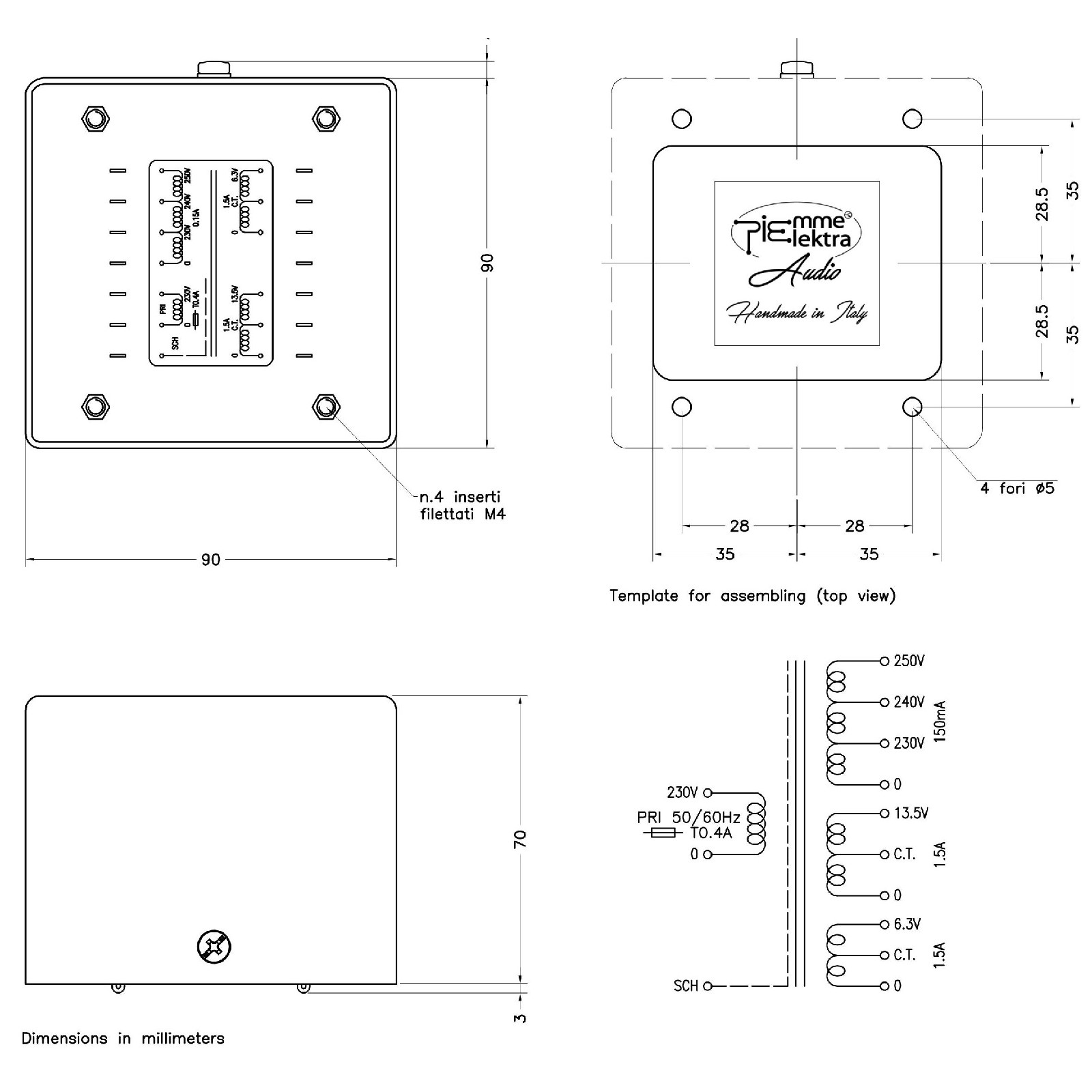

Dimensions and schematic: see drawing
Weight: 1680g
Power: 67VA
Input: 230V
Output:
- 230/240/250V- 0.15A
- 6.3V C.T. - 1.5A
- 13.5V C.T. - 1.5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 1680g
