P.T. 300B 250W 220-230-240-250V/SCH
425-0-425 0.2A,2x5V4A,2x6.3V 2A,2x7.5V2A
P.T. 300B 250W 220-230-240-250V/SCH
| Codice | PS-EI10815B-R2 |
| Prezzo lordo |
160,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
160,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |

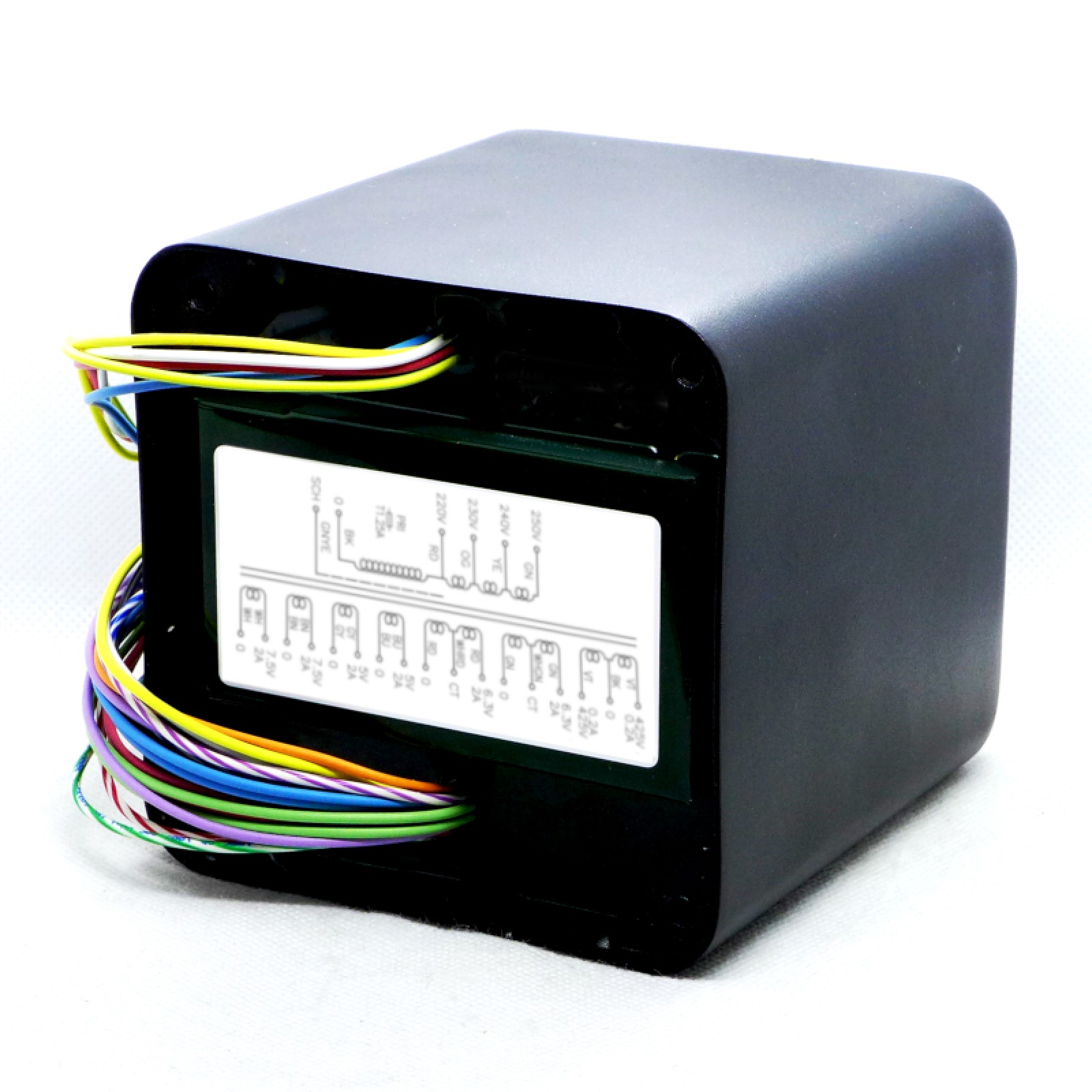

Power Transformer S.E. 300B
Power: 250W
Input: 220-230-240-250V CON SCHERMO
Output:
- 425-0-425V - 0.20A
- 2x 6.3V C.T. - 2A
- 2x 7.5V -2A
- 2x 5V - 2A
Primary/Secondary Shield

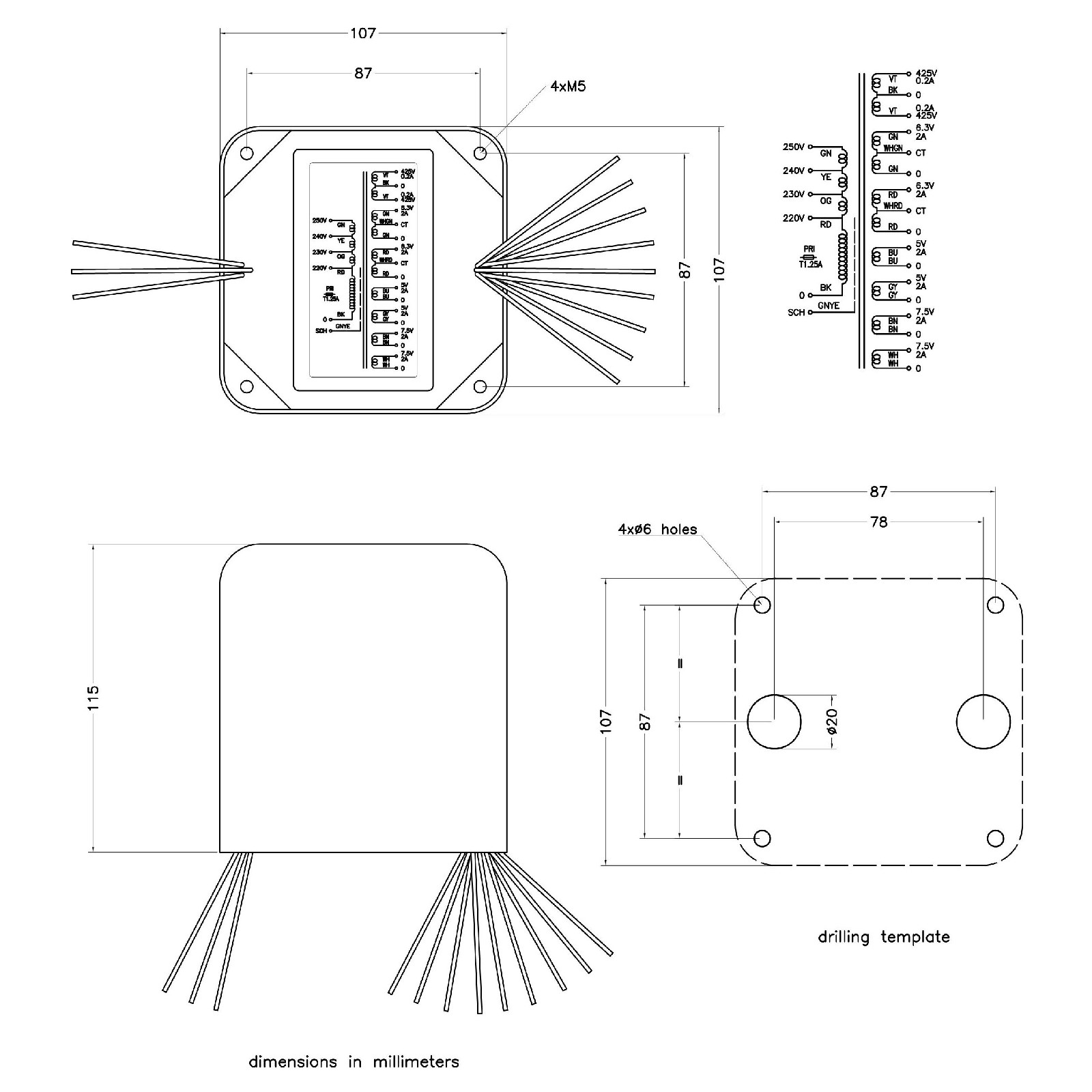

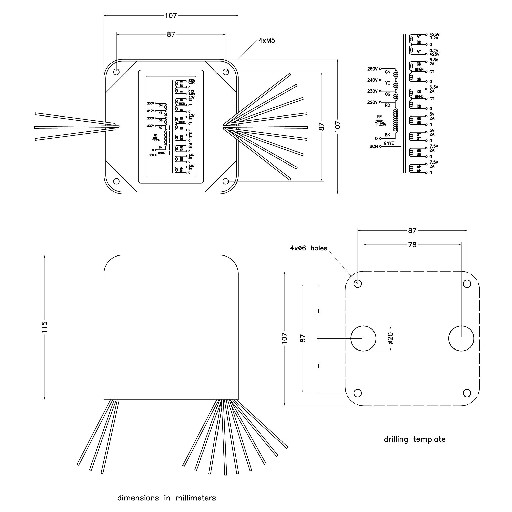

Dimensions and schematic: see drawing
Weight: 3820g
Power: 250W
Input: 220-230-240-250V CON SCHERMO
Output:
- 425-0-425V - 0.20A
- 2x 6.3V C.T. - 2A
- 2x 7.5V -2A
- 2x 5V - 2A
Primary/Secondary Shield
Dimensions and schematic: see drawing
Weight: 3820g
