Transformer 12VA 230 / 2x60V
60V 0.2A / 120V CT 0.10A
Transformer 12VA 230 / 2x60V
| Codice | PS-EI48026F |
| Prezzo lordo |
18,1500 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
18,1500 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |
Power Transformer
Power: 12VA
Input: 230V
nominal Output:
- 2 x 60V - 0.1A
- 60V - 0.2A (parallel)
- 120V C.T. - 0.1A (series)
no-load Output: 2x73.3V / 146.6V

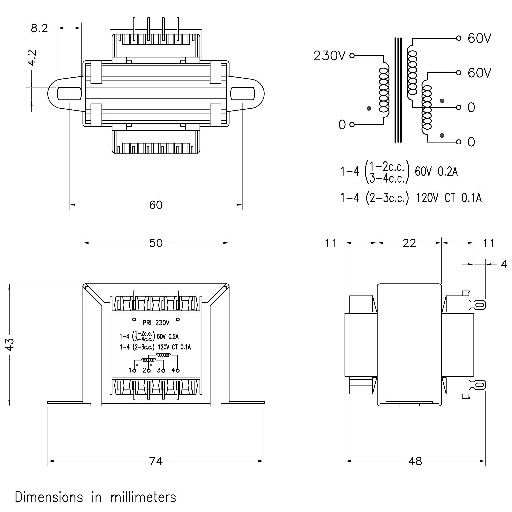

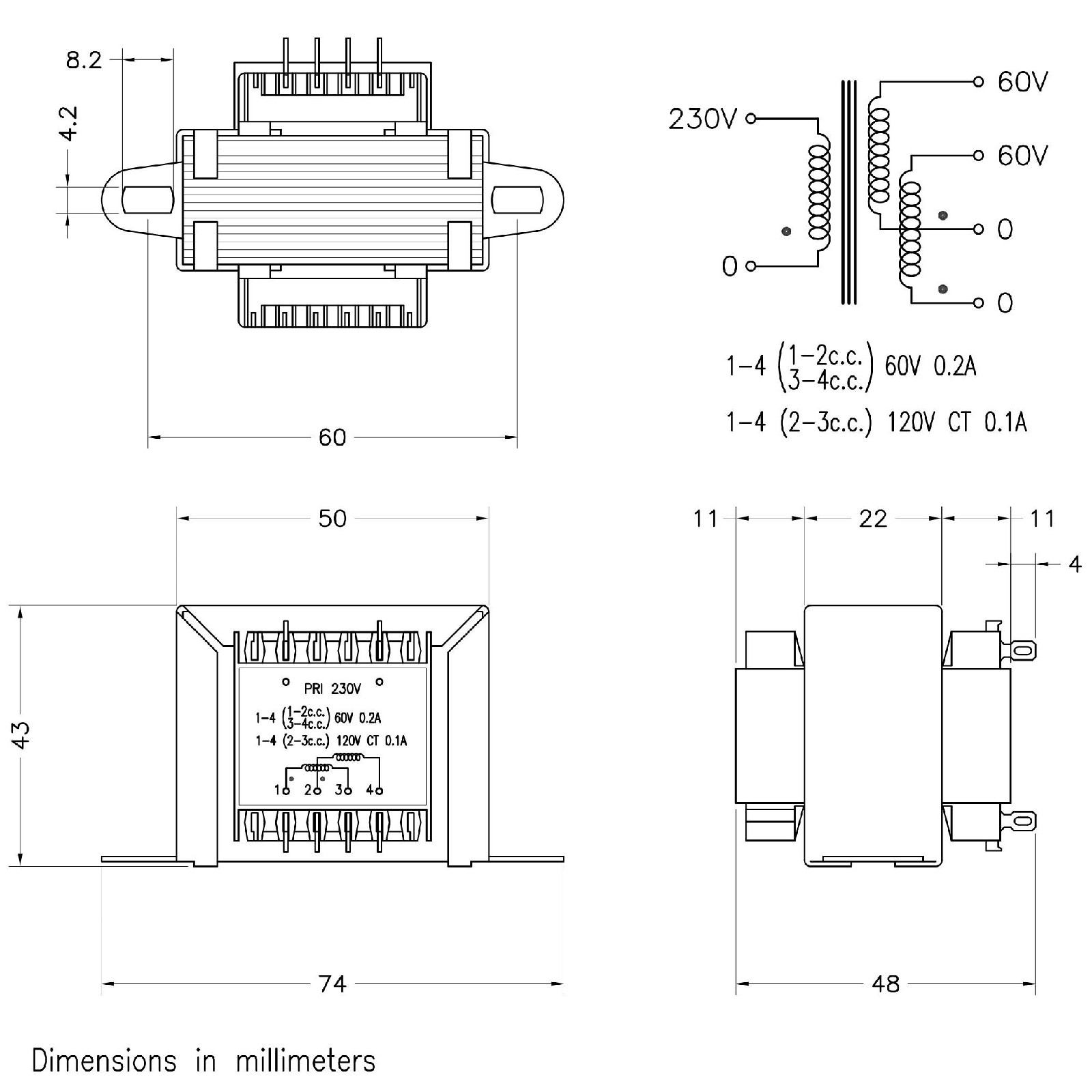

Dimensions and schematic: see drawing
Weight: 320g
Power: 12VA
Input: 230V
nominal Output:
- 2 x 60V - 0.1A
- 60V - 0.2A (parallel)
- 120V C.T. - 0.1A (series)
no-load Output: 2x73.3V / 146.6V
Dimensions and schematic: see drawing
Weight: 320g
