DC Filter Choke 6H 150mA 95 Ohm
DC Filter Choke 6H 150mA 95 Ohm
| Codice | DC-EI68072TC-C1999 |
| Prezzo lordo |
58,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
58,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 2 PZ |
DC Filter Choke
Dagnall C1999 choke from 1969
Used on Marshall 50 and 100 watt amplifiers from 1969-73
Inductance: 6.5 H typ. 0ADC
Resistance: 95 Ohm Typ
DC current: 100 mA - >6.0H
DC current: 150 mA - >5.5H
DC current: 200 mA - >5 H

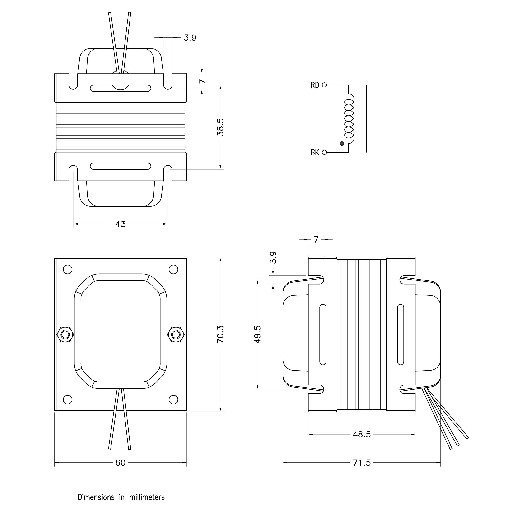

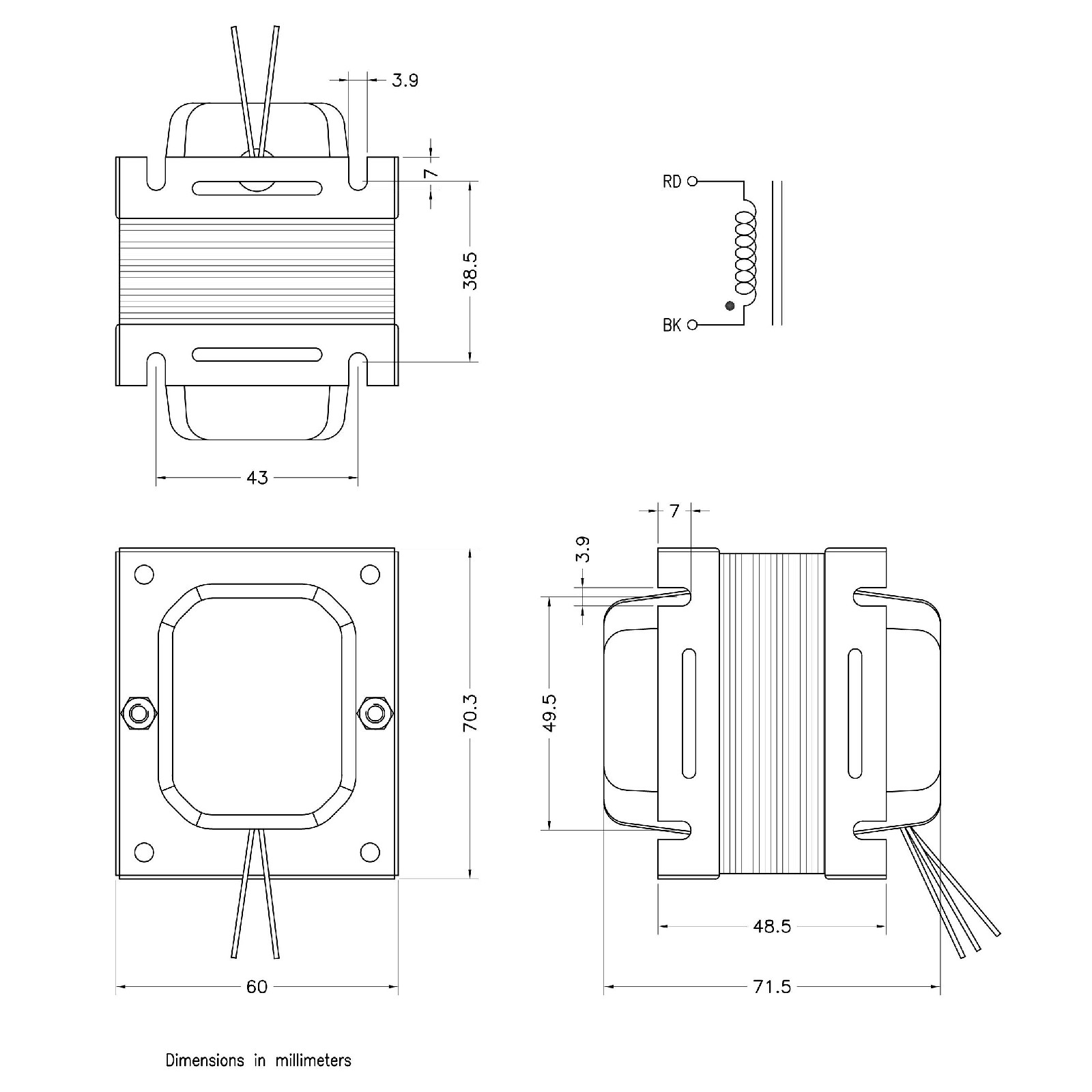

Dimensions and schematic: see picture
Weight: 820 g.
