Acoustat H.V. transformer 240/1860V
Acoustat Original P/N 2008394
Acoustat H.V. transformer 240/1860V
| Codice | PS-EI11428CV-N |
| Prezzo lordo |
260,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
260,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità |
0 PZ
Contattaci per tempi di riassortimento
Contact us for restocking times |

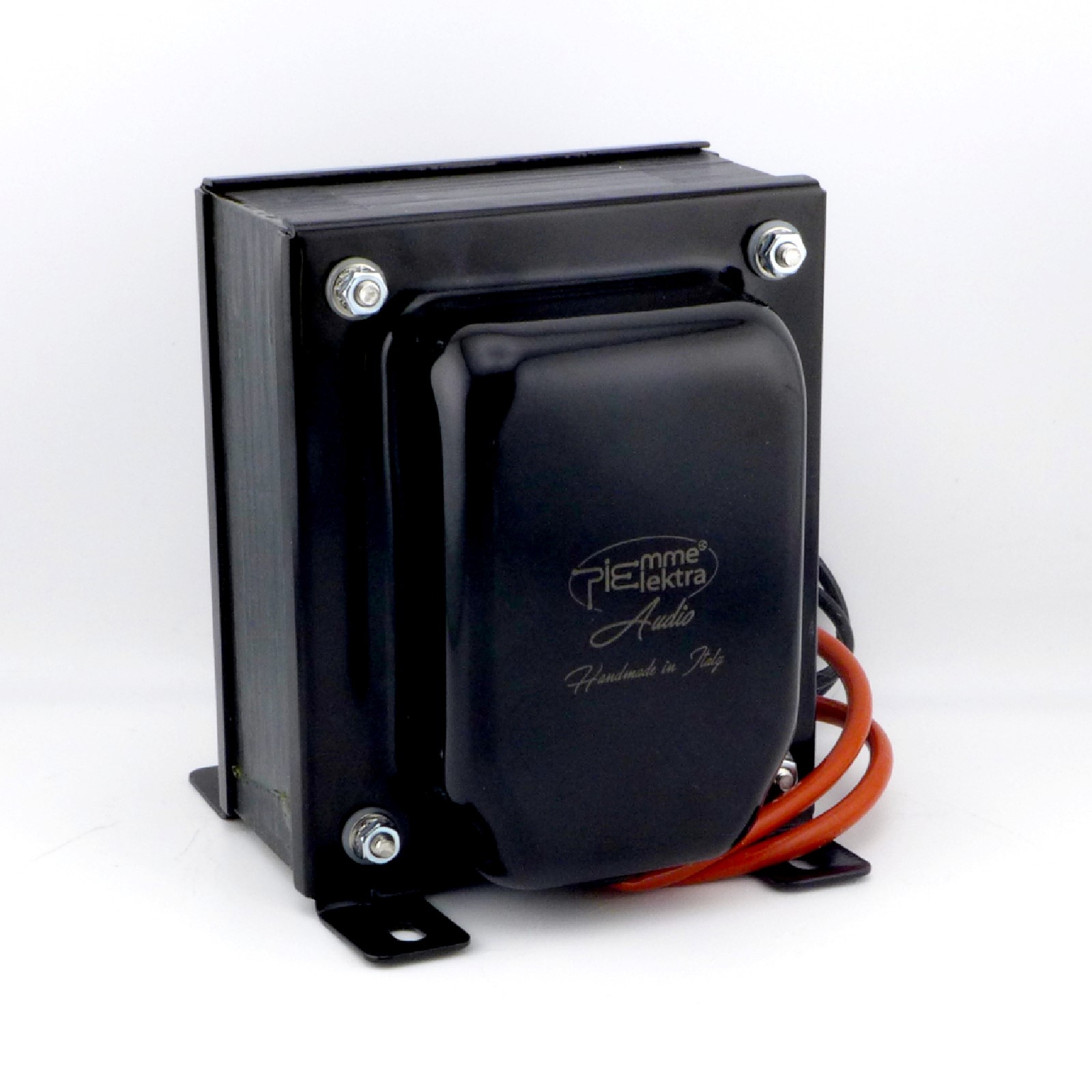

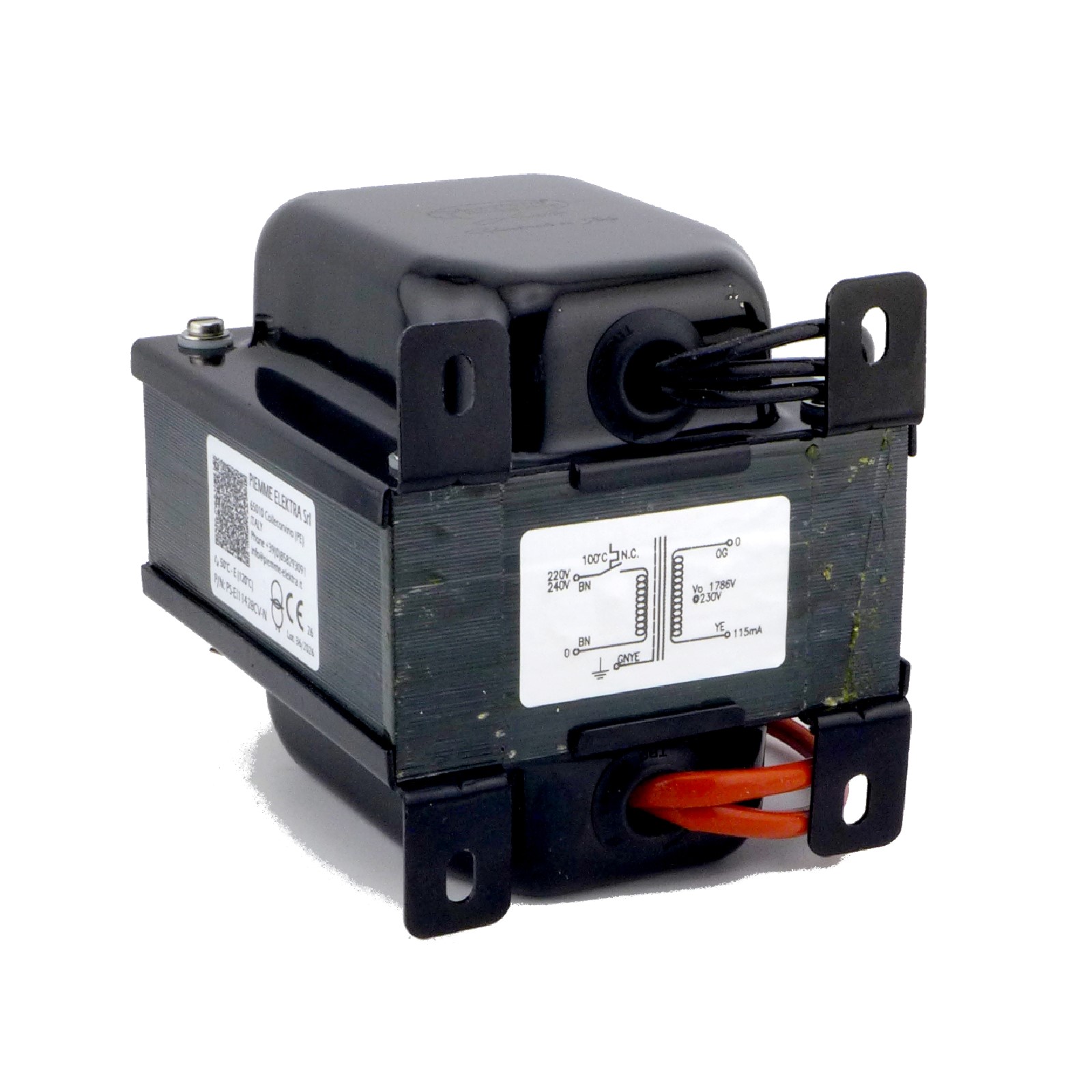

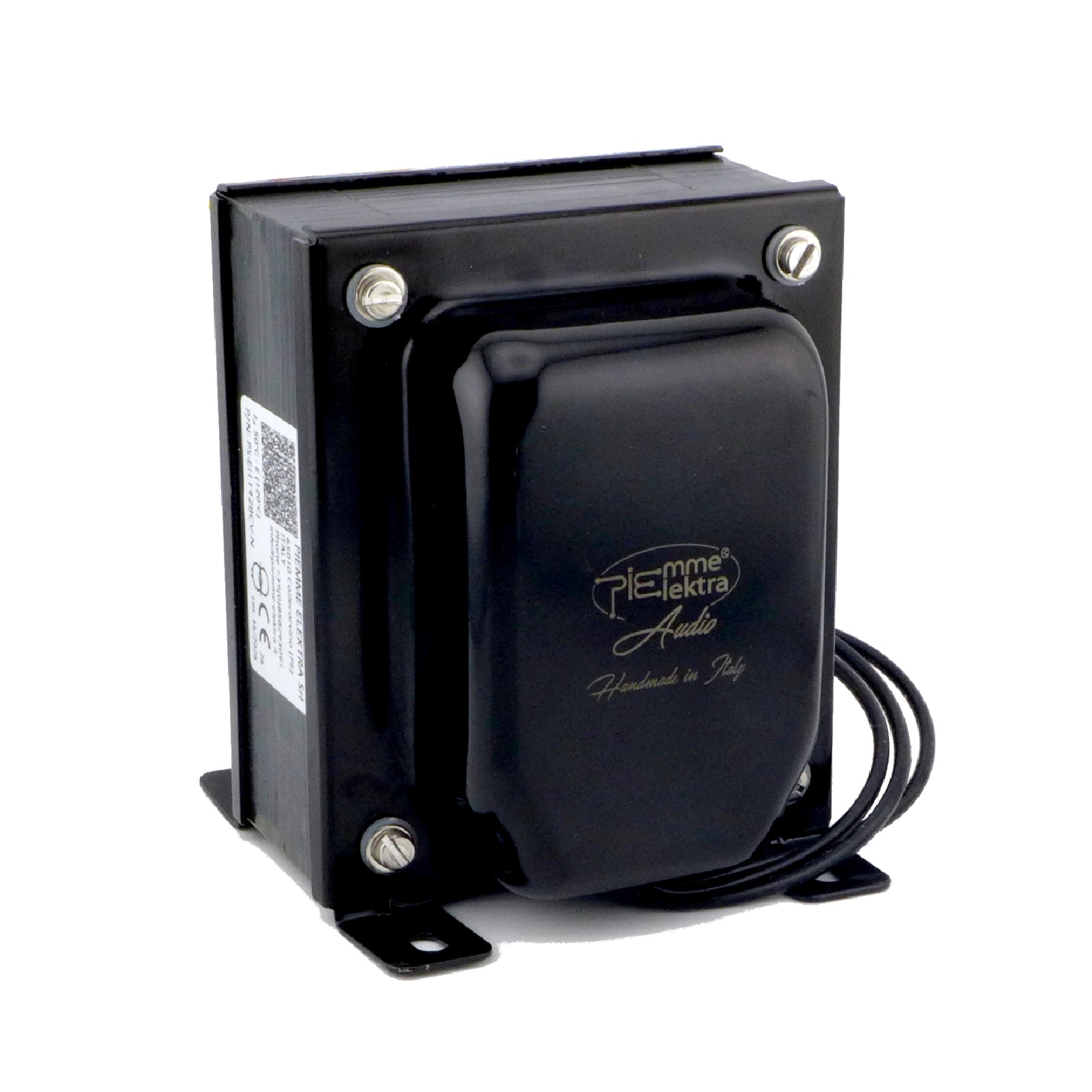

Acoustat HV Transformer - Improved replacement part
Pri 220/240V RDC 5.4 Ohm
No load out 1860V @ 240V
No load out 1786V @ 230V
Output current 115mA - 350 Ohm
Acoustat Original P/N 2008394

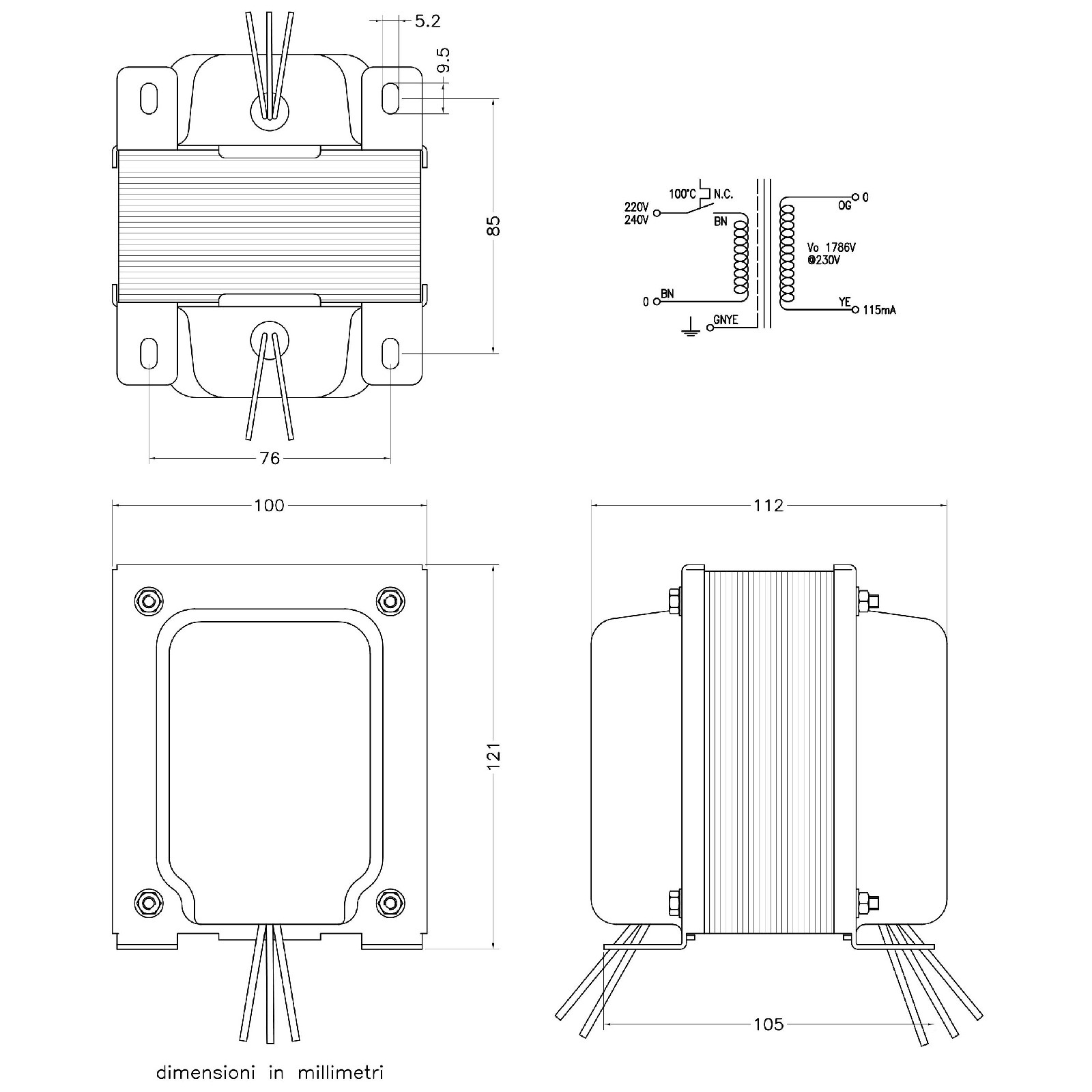

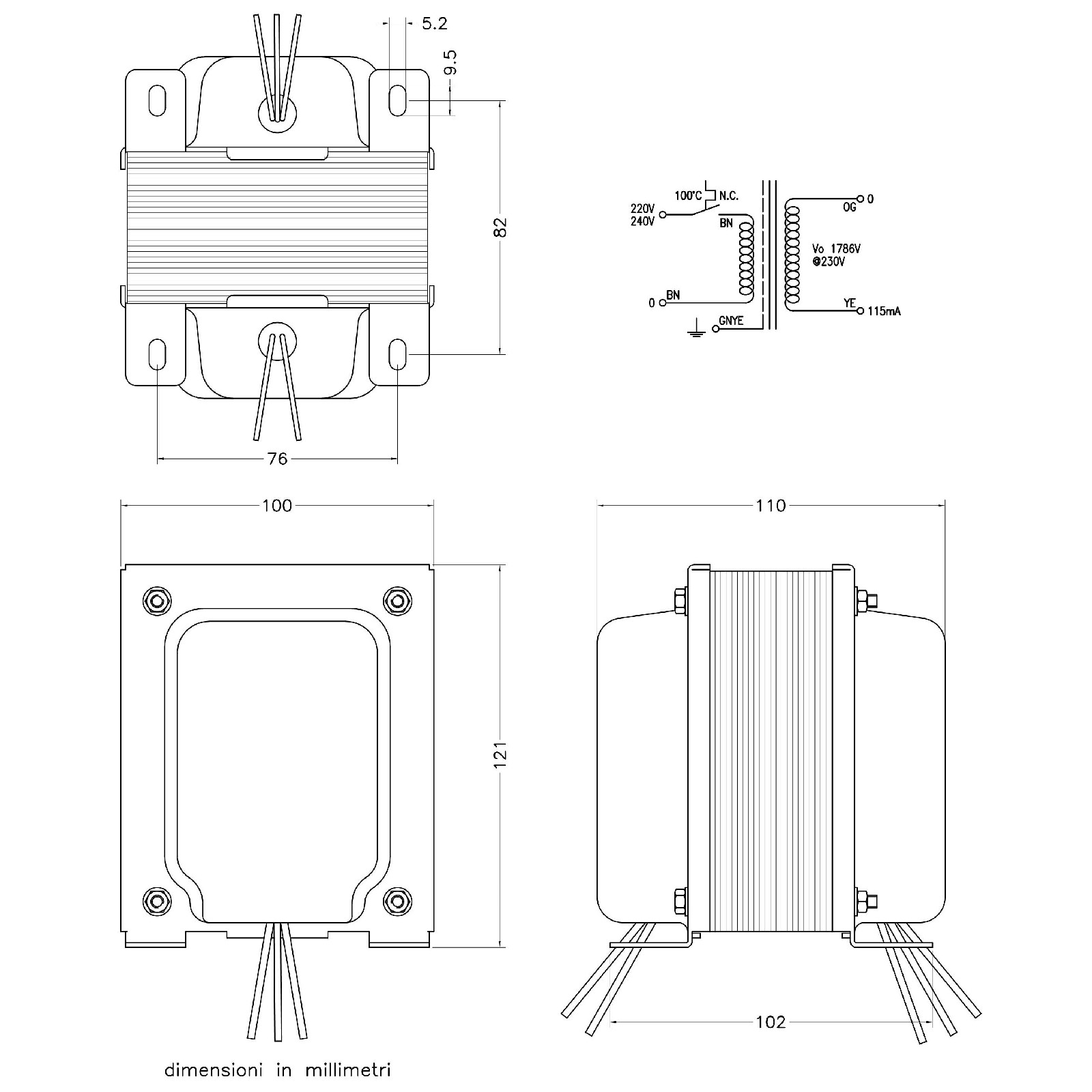

Dimensions and schematic: see drawing
Weight: 4400gr
Pri 220/240V RDC 5.4 Ohm
No load out 1860V @ 240V
No load out 1786V @ 230V
Output current 115mA - 350 Ohm
Acoustat Original P/N 2008394
Dimensions and schematic: see drawing
Weight: 4400gr
