I.T. 200W 220-230-240 350-0-350V 0.2A
100V 0.05A, 5V 3A, 2x9V 2A, 6.3V 1A
I.T. 200W 220-230-240 350-0-350V 0.2A
| Codice | PS-EI10521CV |
| Prezzo lordo |
200,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
200,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

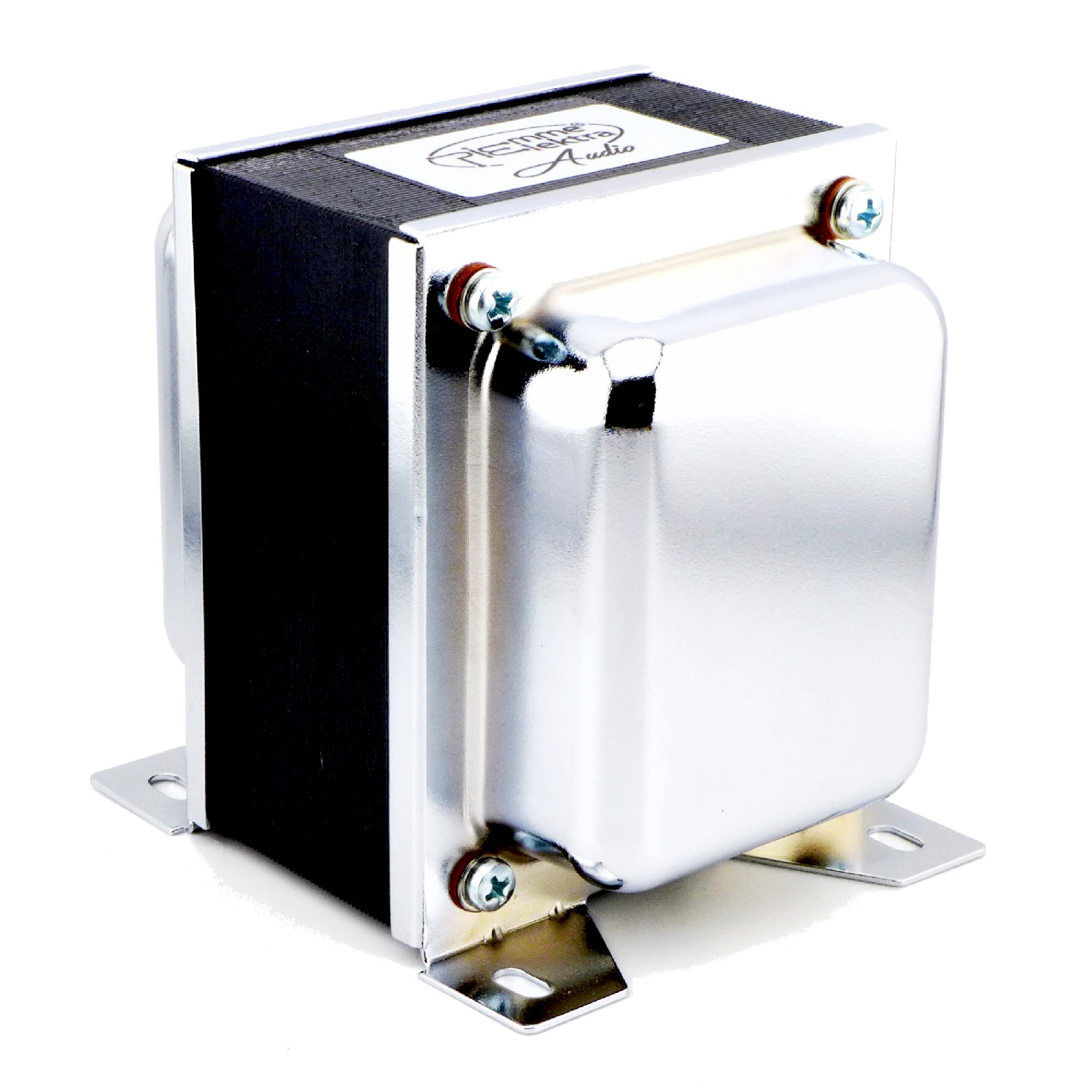

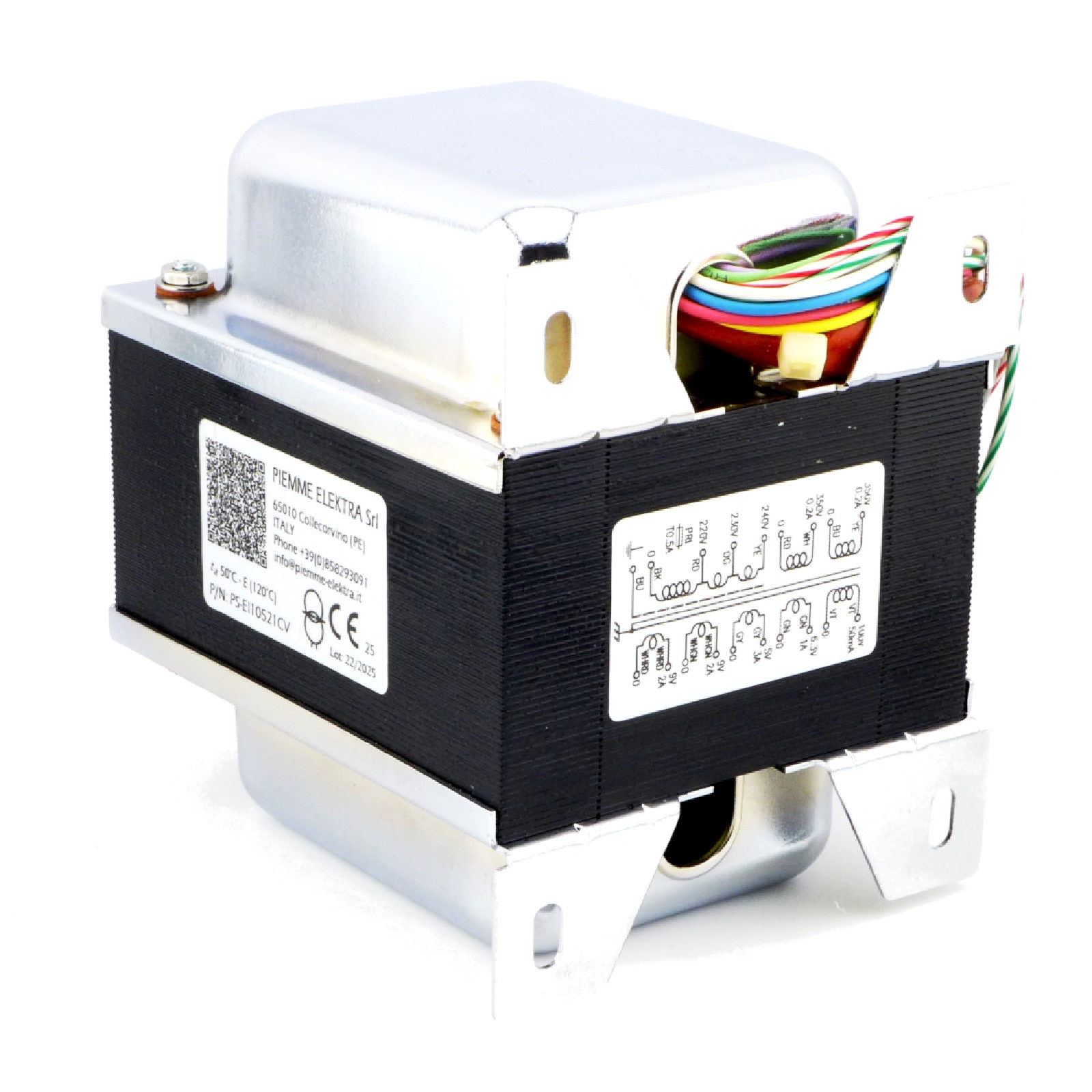

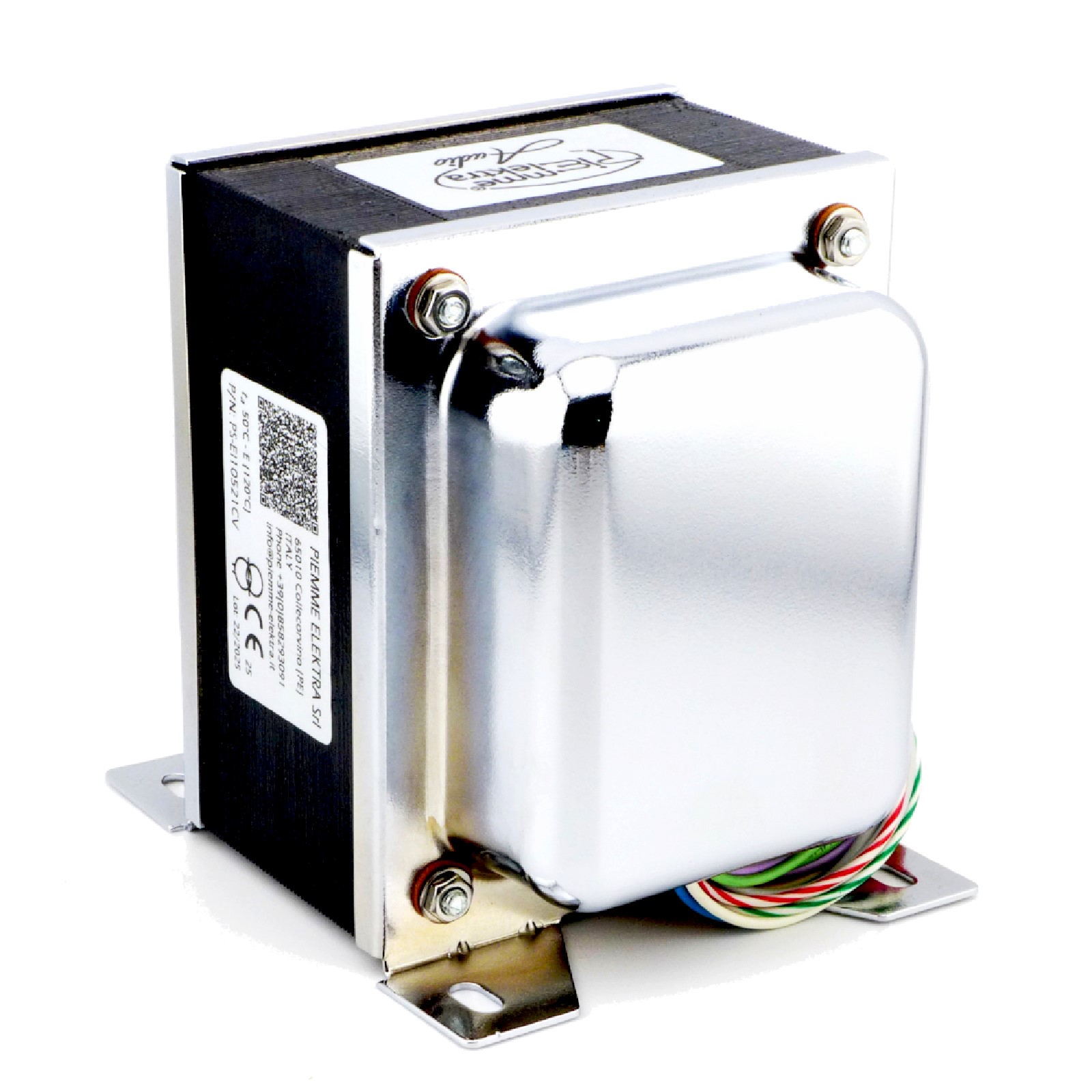

AMI CLASSIC MONO Power Transformer
R145- L532 ( G,H,I,J e a volte anche in K e Continental)
Power: 162VA
Input: 117-125V
Output:
- 350-0-350 - 0.18A ( no load voltage 370.6V)
- 6.3V - 3A ( no load voltage 6.8V)
- 5V -3.5A ( no load voltage 5.36V)
Primary/Secondary Shield

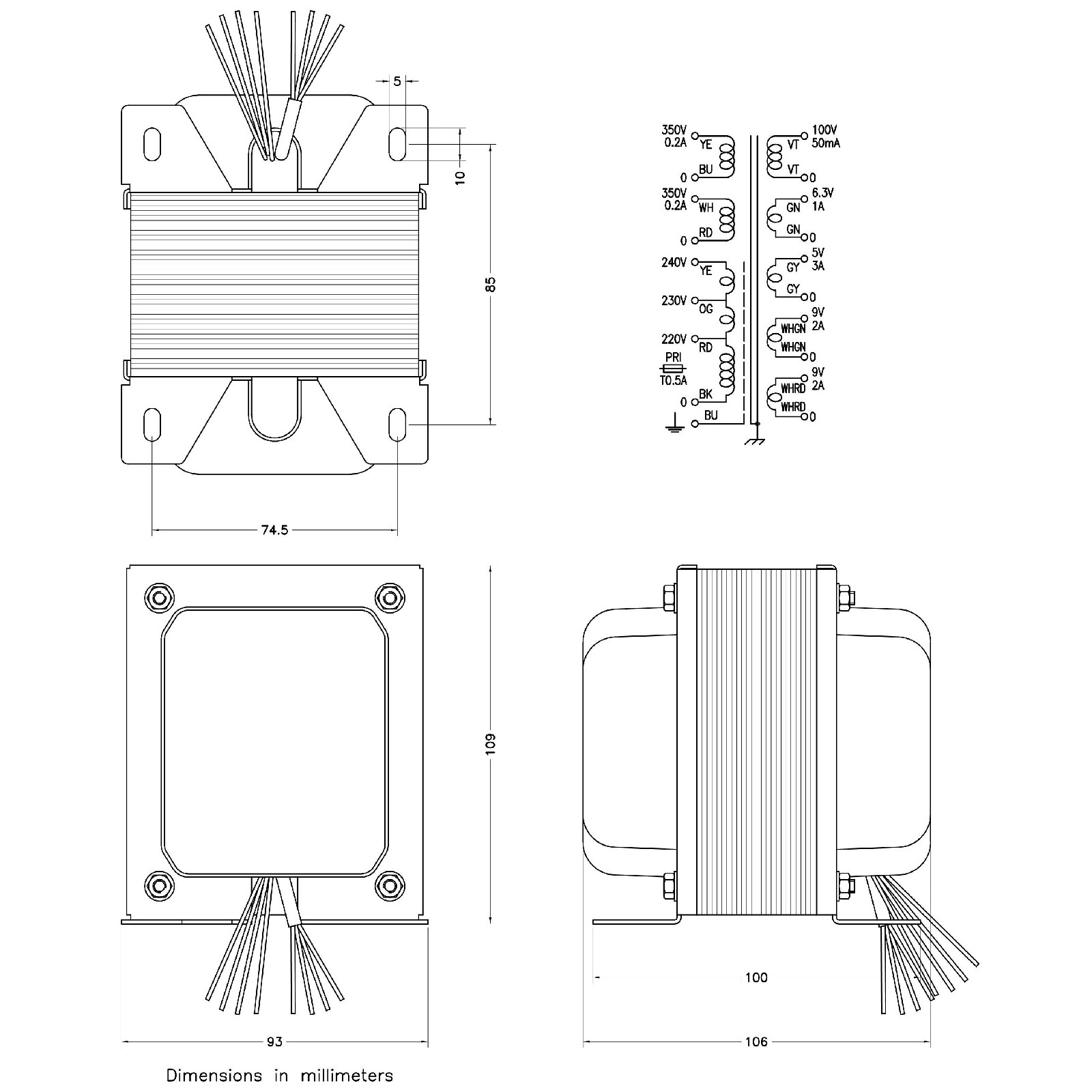

Dimensions and schematic: see drawing
R145- L532 ( G,H,I,J e a volte anche in K e Continental)
Power: 162VA
Input: 117-125V
Output:
- 350-0-350 - 0.18A ( no load voltage 370.6V)
- 6.3V - 3A ( no load voltage 6.8V)
- 5V -3.5A ( no load voltage 5.36V)
Primary/Secondary Shield
Dimensions and schematic: see drawing
