Transformer 88W 220-230-240V 6.3V2A
300-0-300 80mA, 2x 9V 1.5A
Transformer 88W 220-230-240V 6.3V2A
| Codice | PS-EI84050CV |
| Prezzo lordo |
170,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
170,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

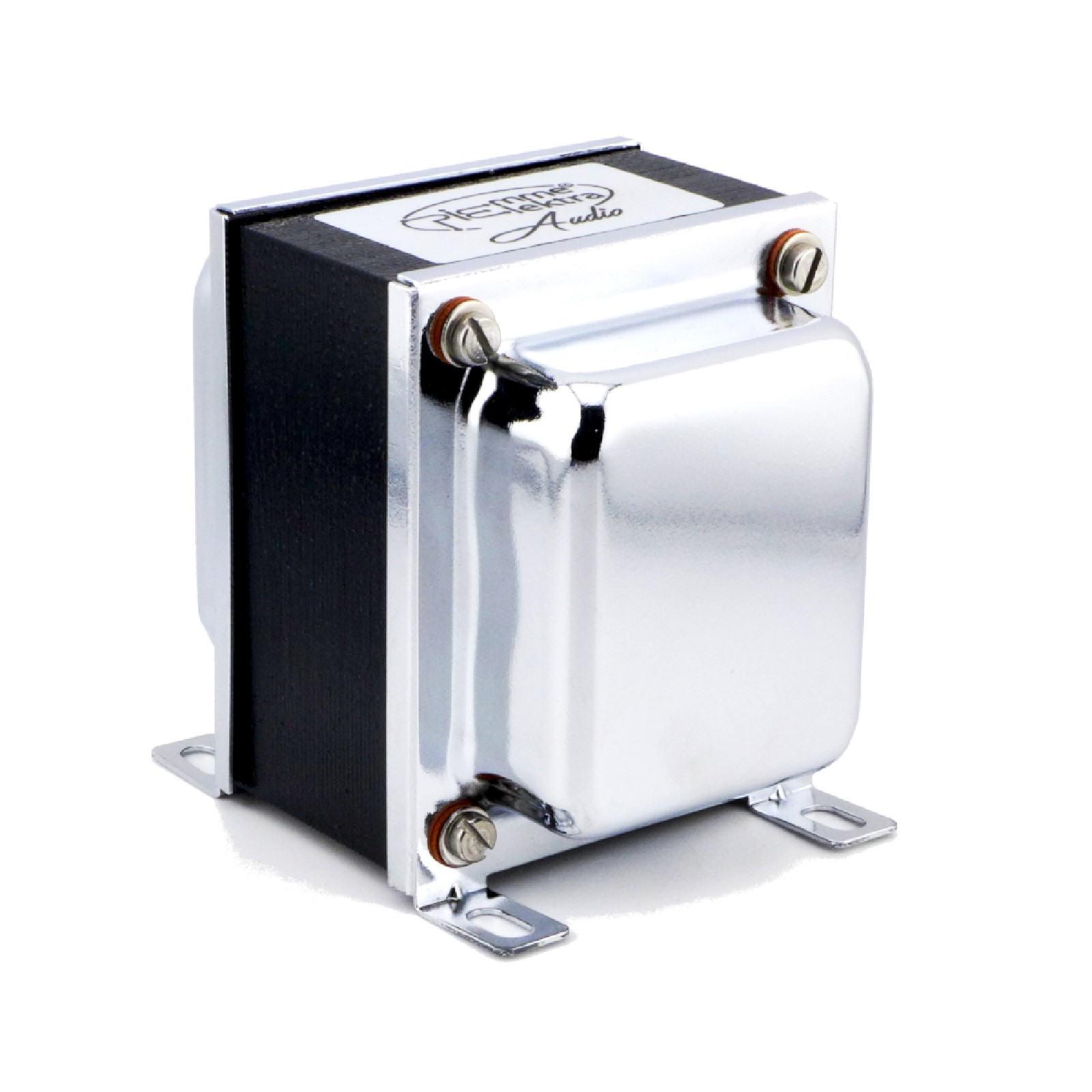

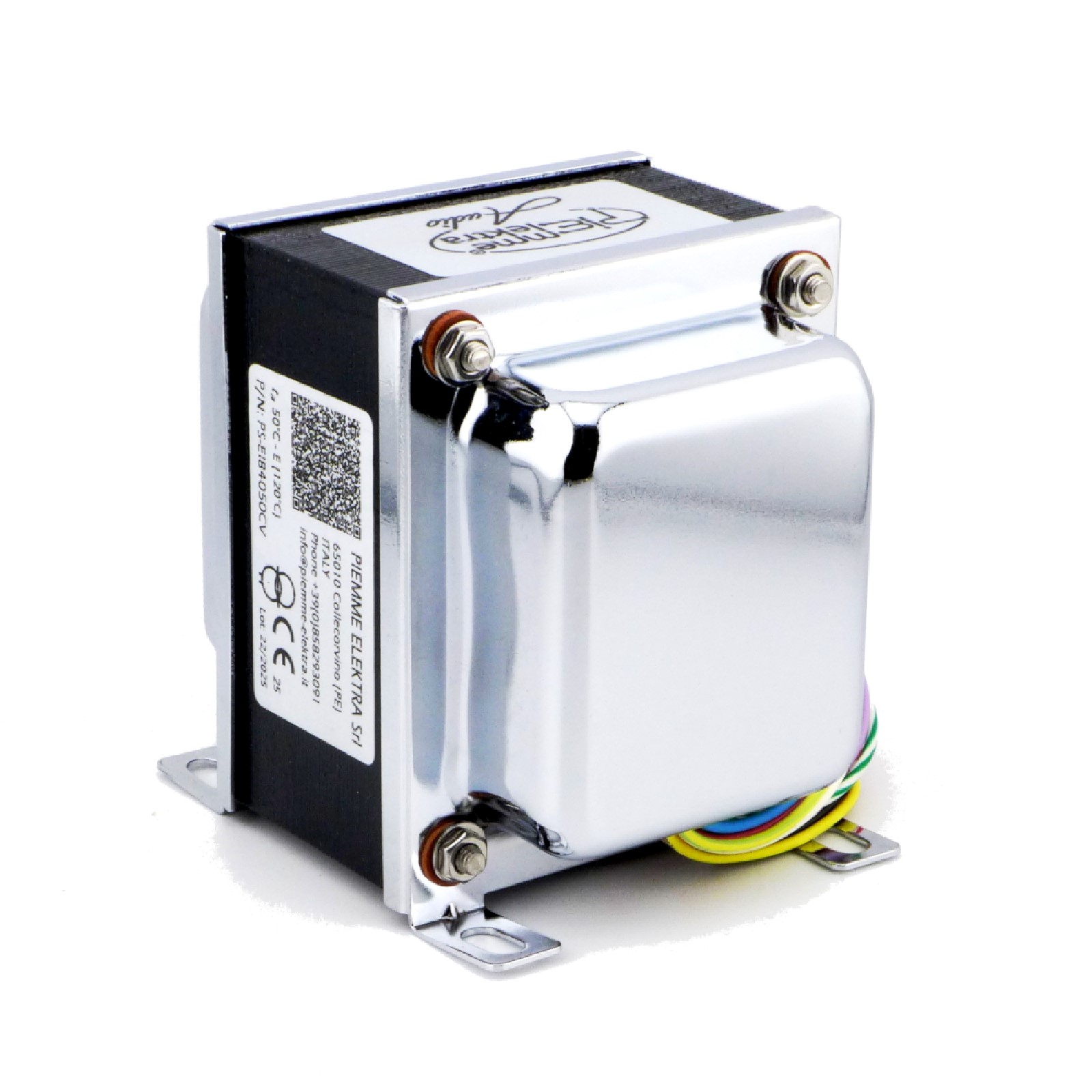

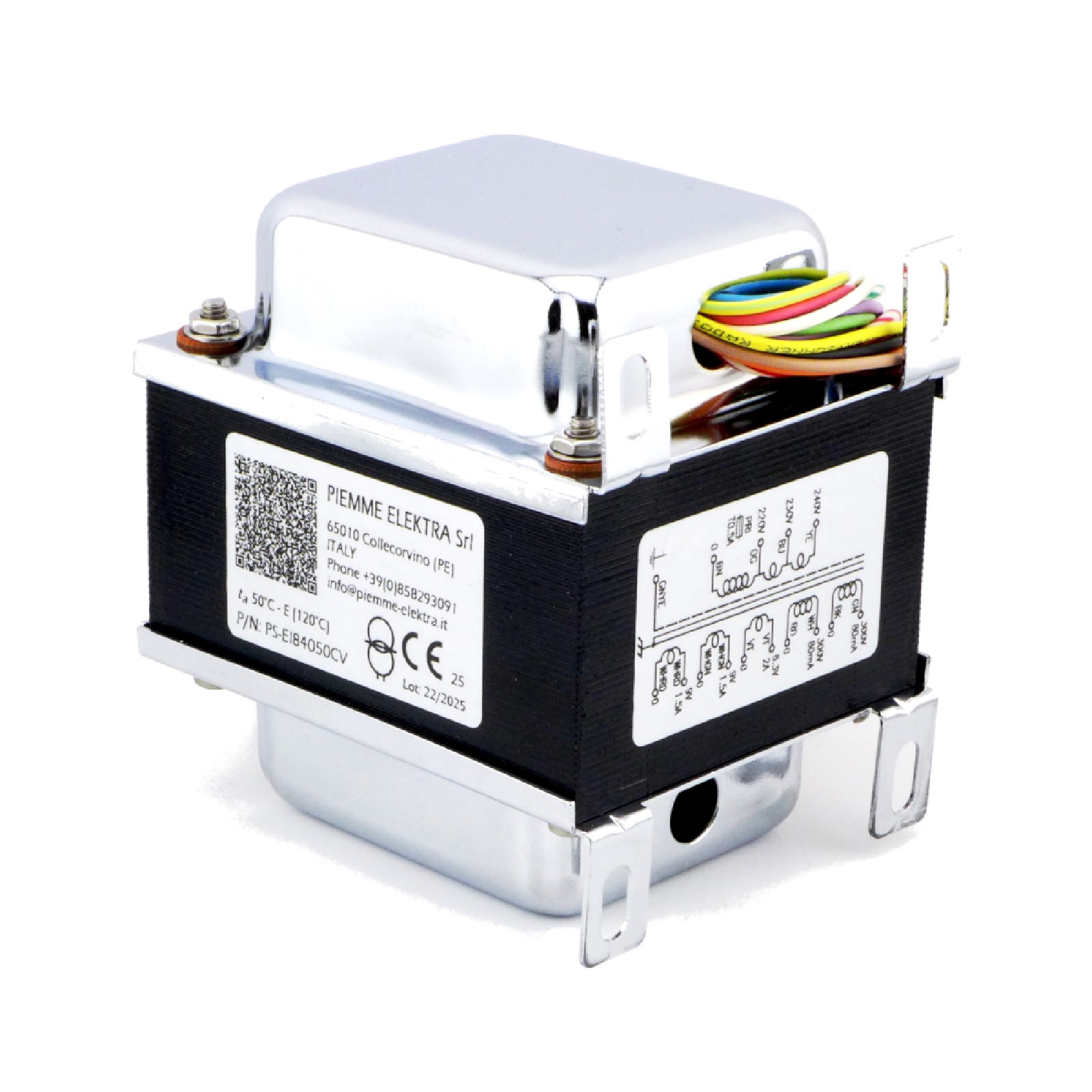

Power Transformer
Power: 88VA
Input: 220-230-240V
Output:
- 270-250-0-250-270 - 125mA
- 6.3V - 2A
- 6.3V - 0.5A
- 5V - 1A
Primary/Secondary Shield
Grain Oriented magnetic core

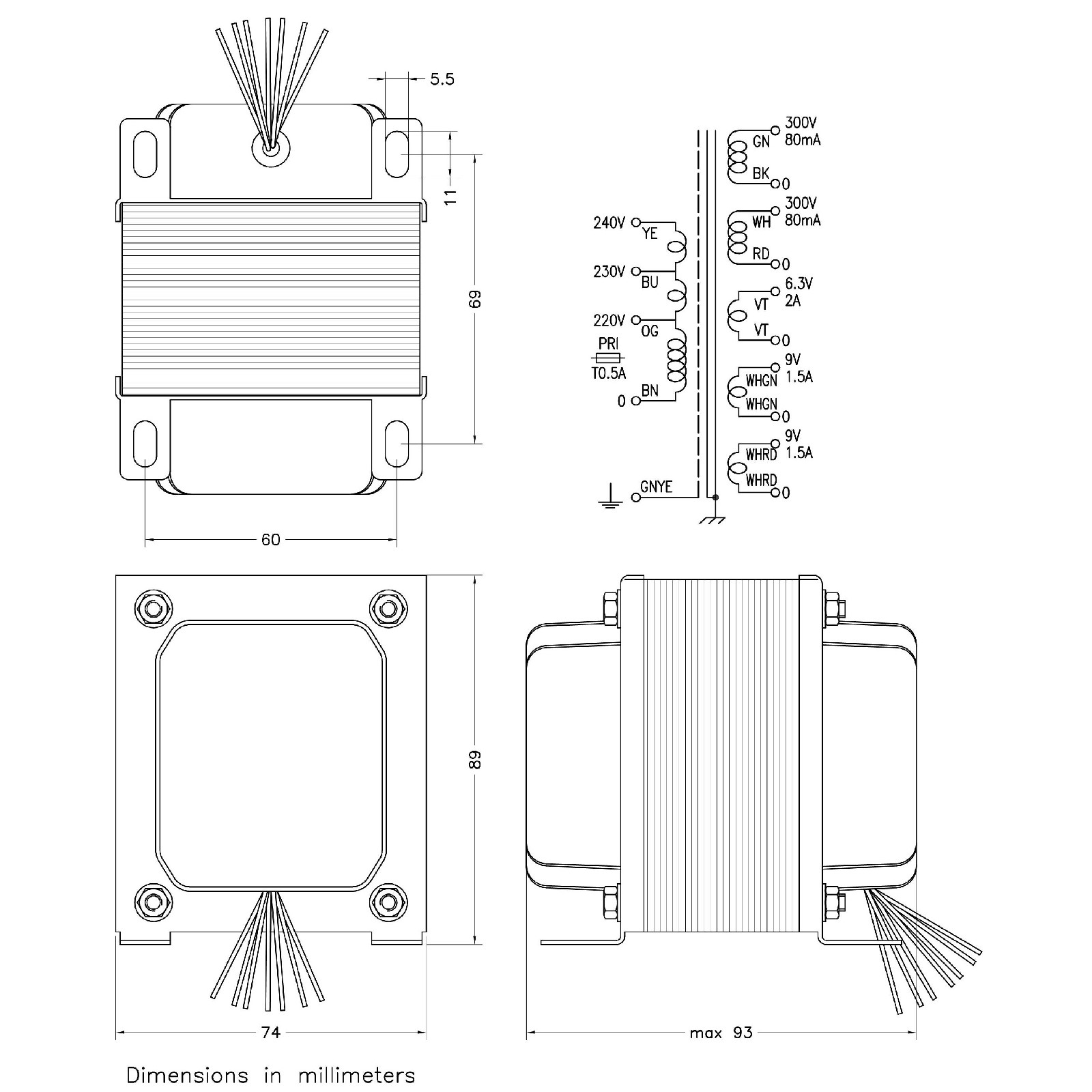

Dimensions and schematic: see drawing
Weight: 2140g
usable in the ampli Baby Huey EL84
Power: 88VA
Input: 220-230-240V
Output:
- 270-250-0-250-270 - 125mA
- 6.3V - 2A
- 6.3V - 0.5A
- 5V - 1A
Primary/Secondary Shield
Grain Oriented magnetic core
Dimensions and schematic: see drawing
Weight: 2140g
usable in the ampli Baby Huey EL84
