Main transformer ROCK OLA 1422 e 1426
Original Part PH-3685-5
Main transformer ROCK OLA 1422 e 1426
| Codice | PS-EI11427B |
| Prezzo lordo |
238,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
238,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 4 PZ |

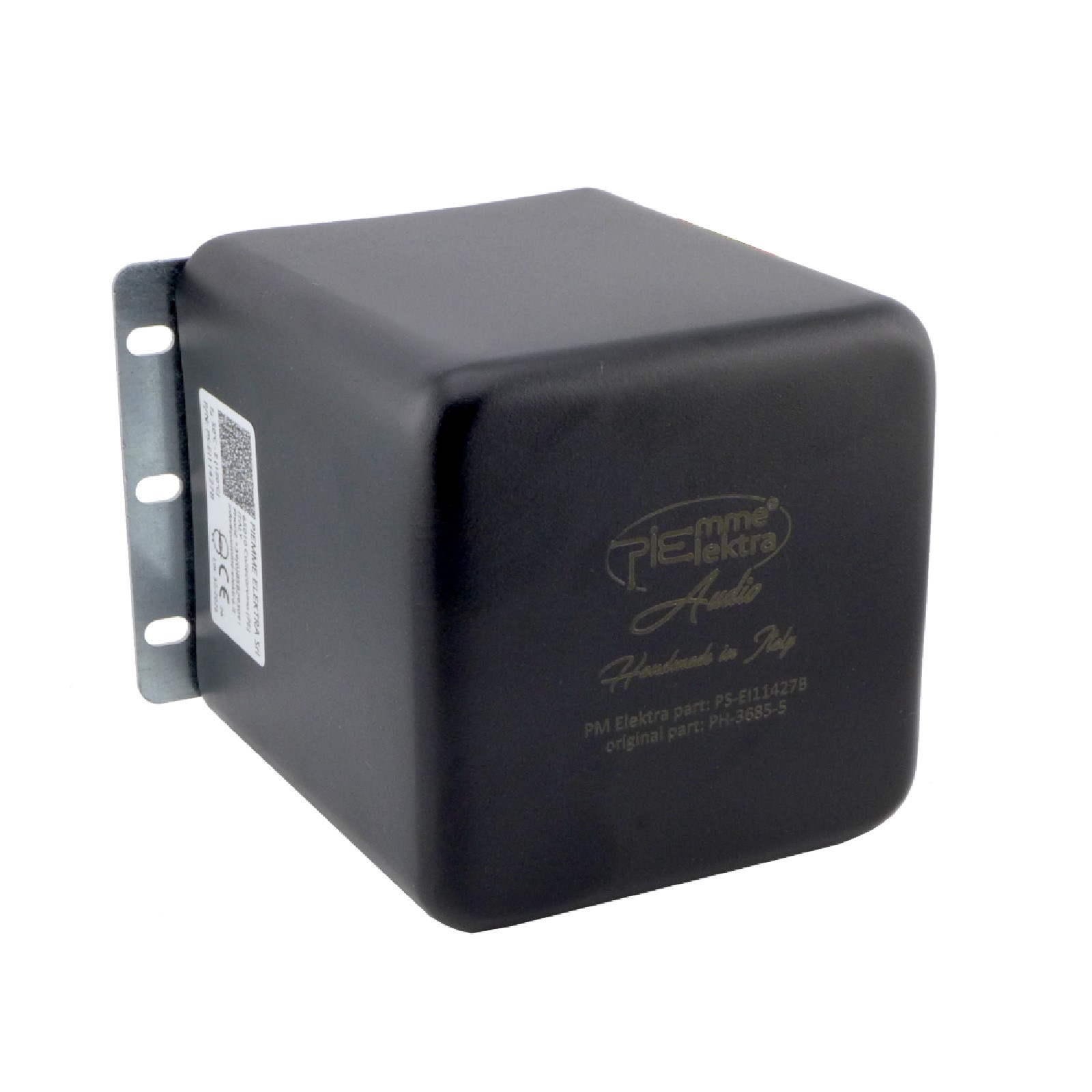

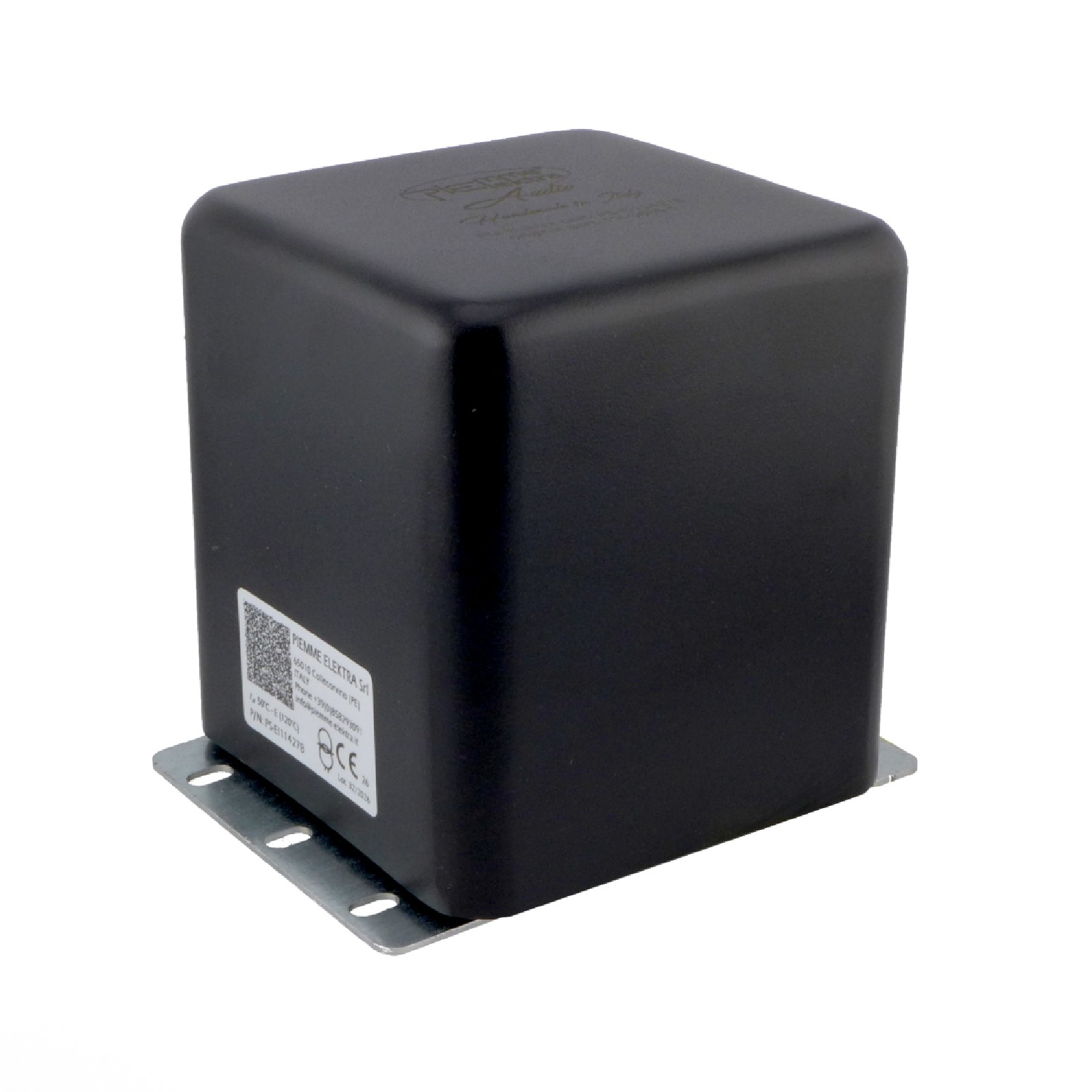

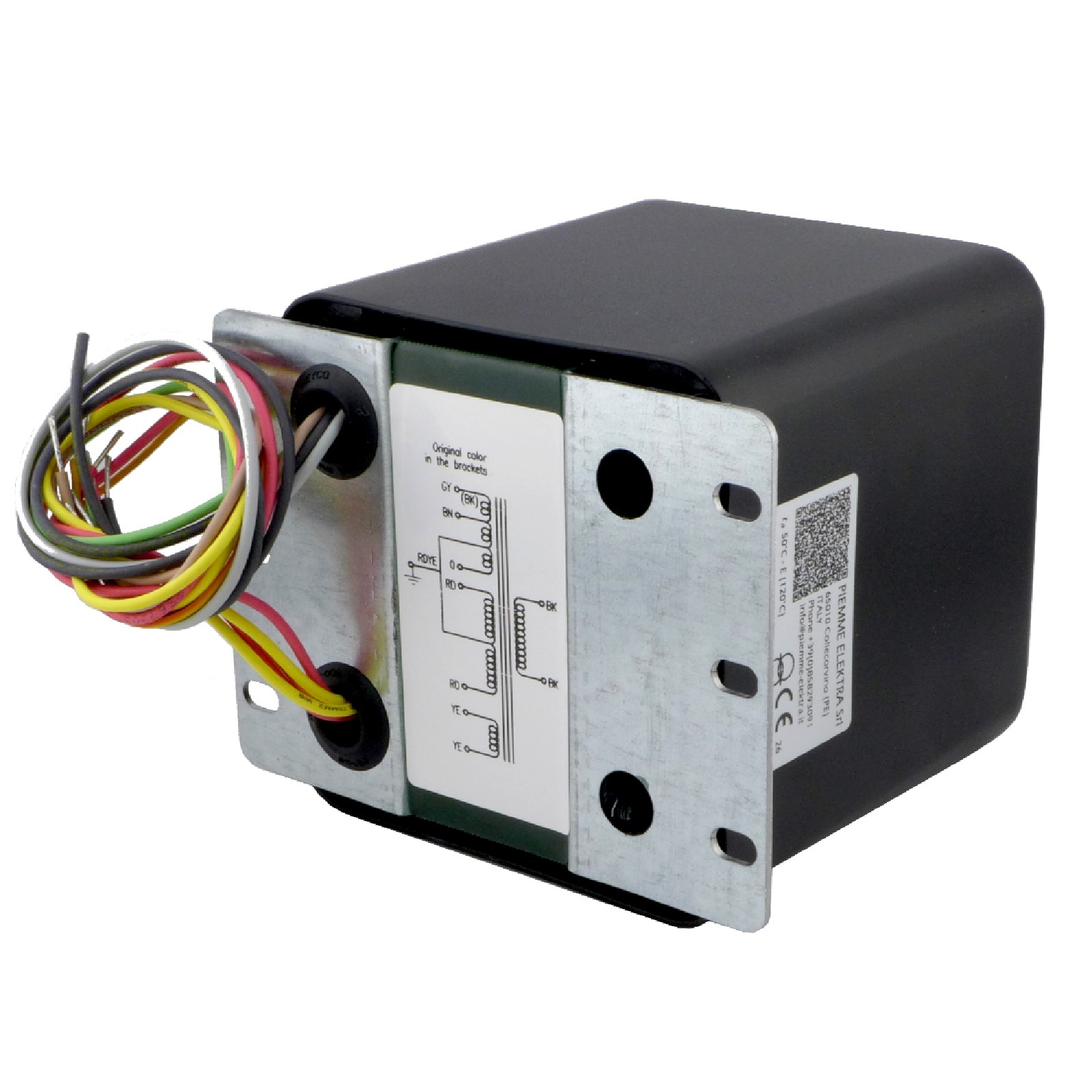

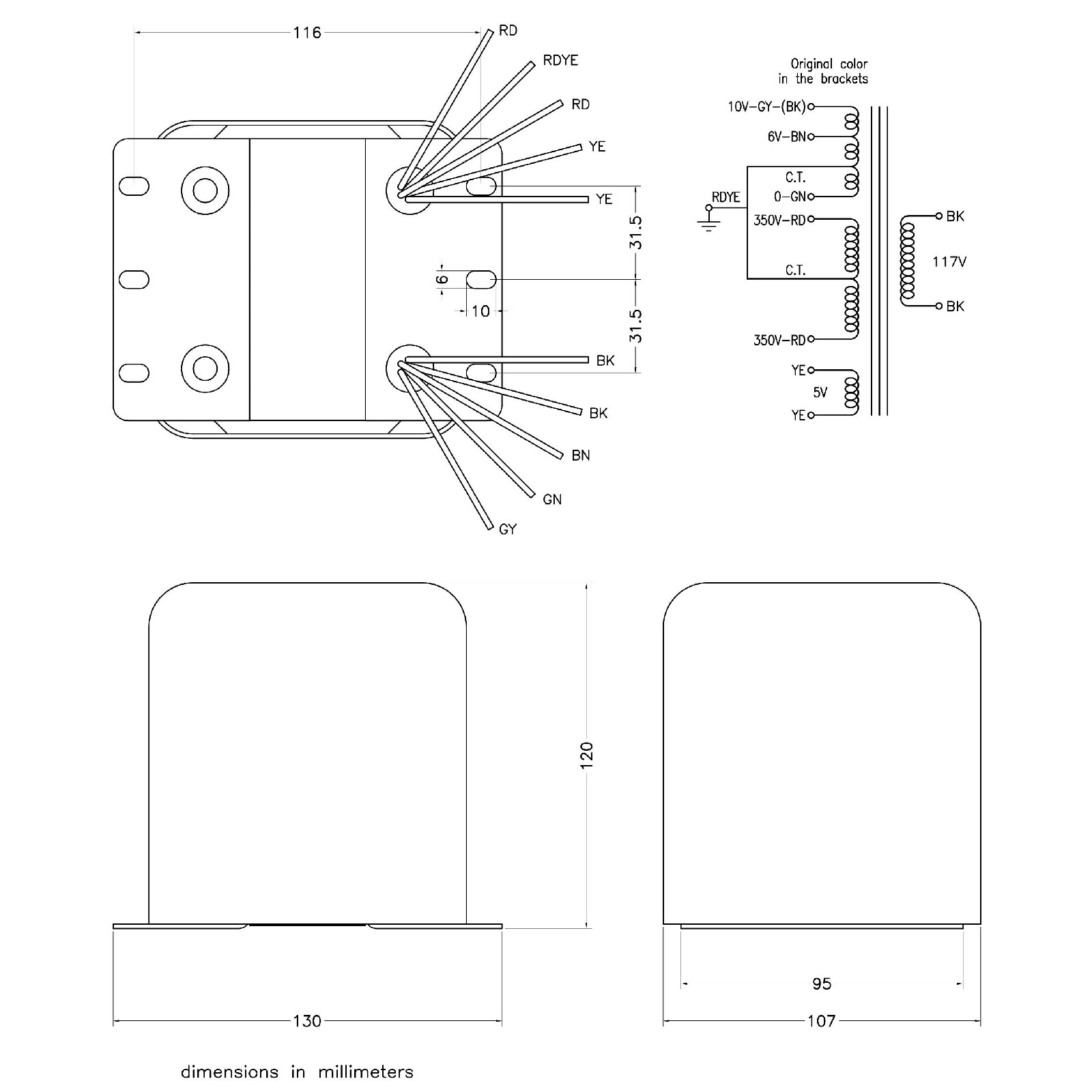

Power transformer Rock-Ola 1422 e 1426
Part# PH-3685-5
Power: 180VA
Input: 117V BK-BK
Output:
SEC1 - 350-0-350V RD-RD/YE-RD
SEC3 - 0-CT-6.3V 5A-10V 3A GN-RD/YE-BN-GY
SEC3 - 5V 3A YE-YE
Part# PH-3685-5
Power: 180VA
Input: 117V BK-BK
Output:
SEC1 - 350-0-350V RD-RD/YE-RD
SEC3 - 0-CT-6.3V 5A-10V 3A GN-RD/YE-BN-GY
SEC3 - 5V 3A YE-YE
