DC Filter Choke 6H 150mA 97 Ohm
DC Filter Choke 6H 150mA 97 Ohm
| Code | DC-EI68072FW |
| Price |
52.0000 EUR/PZ
(including VAT 22%) |
| Discount | |
| Net price |
52.0000 EUR/PZ
(including VAT 22%) |
| Availability | 6 PZ |
DC Filter Choke
Dagnall C1999 choke from 1969
Used on Marshall 50 and 100 watt amplifiers from 1969-73
Inductance: 6.5 H typ. 0ADC
Resistance: 97 Ohm Typ
DC current: 100 mA - >6.0H
DC current: 150 mA - >5.5H
DC current: 200 mA - >5 H

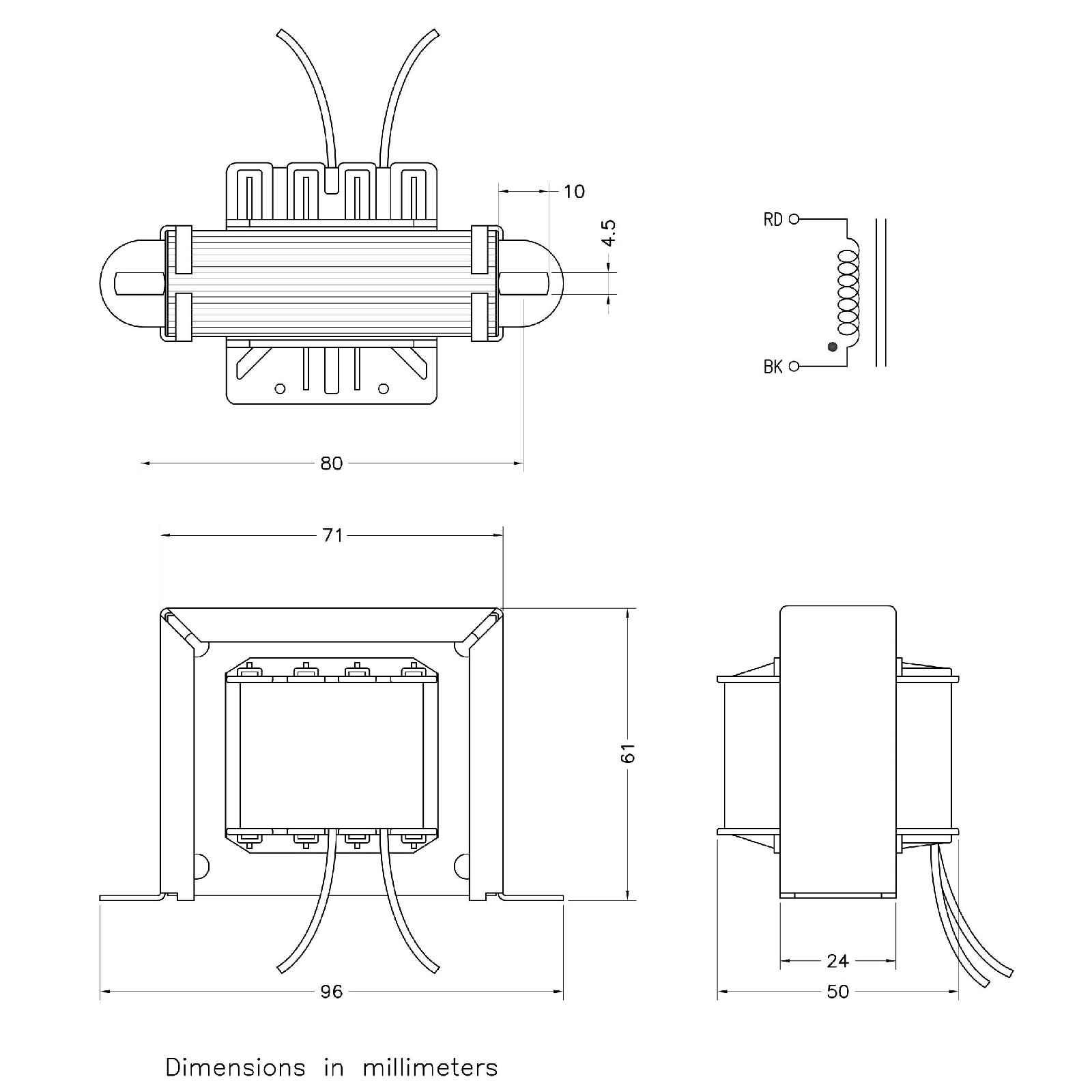

Dimensions and schematic: see picture
Weight: 820 g.
Dagnall C1999 choke from 1969
Used on Marshall 50 and 100 watt amplifiers from 1969-73
Inductance: 6.5 H typ. 0ADC
Resistance: 97 Ohm Typ
DC current: 100 mA - >6.0H
DC current: 150 mA - >5.5H
DC current: 200 mA - >5 H
Dimensions and schematic: see picture
Weight: 820 g.
