150W Power supply transformer
MARSHALL JTM45 ref. DRAKE 1202-55
150W Power supply transformer
| Codice | PS-EI11409CH-N |
| Prezzo lordo |
88,0000 EUR/PZ
(IVA compresa 22%) |
| Sconto | |
| Prezzo netto |
88,0000 EUR/PZ
(IVA compresa 22%) |
| Disponibilità | 1 PZ |

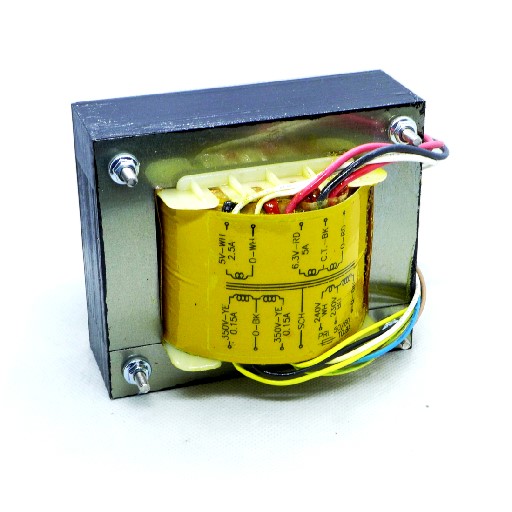

Power Transformer Marshall JTM45 ref. originale part DRAKE 1202-55
Power: 150VA
Input: 230-240V
Output:
- 350-0-350 - 0.15A
- 6.3V C.T. - 4A
- 5V - 2.5A
Primary/Secondary Shield

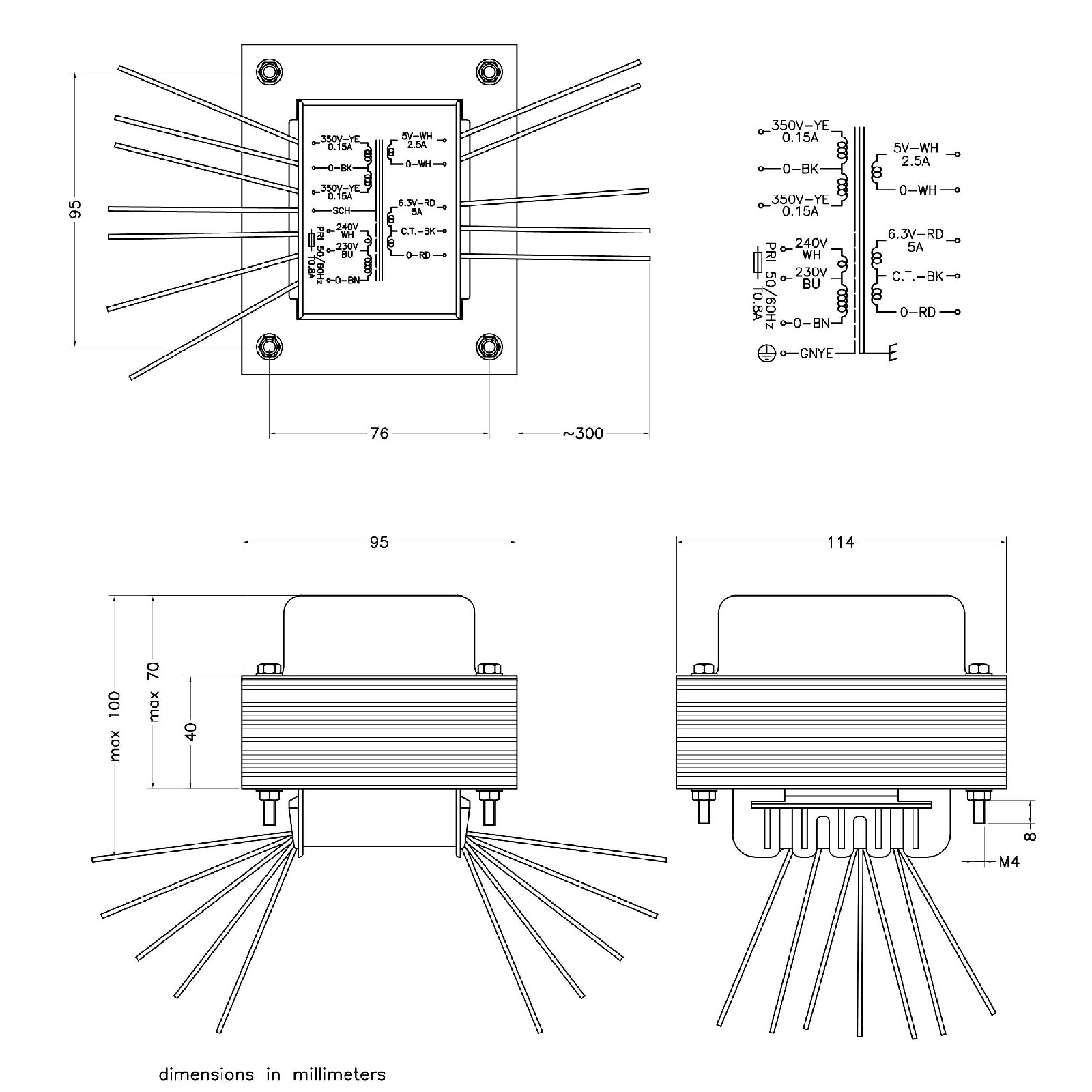

Dimensions and schematic: see drawing
Power: 150VA
Input: 230-240V
Output:
- 350-0-350 - 0.15A
- 6.3V C.T. - 4A
- 5V - 2.5A
Primary/Secondary Shield
Dimensions and schematic: see drawing
