Push Pull 25W 8.000/4-8-16 Ohm
6AQ5, 6V6, 6BQ5, EL84, SV83
Push Pull 25W 8.000/4-8-16 Ohm
| Code | PP-EI68028F |
| Price |
29.000 EUR/PZ
(including VAT 22%) |
| Discount | |
| Net price |
29.000 EUR/PZ
(including VAT 22%) |
| Availability | 7 PZ |
Output Transformer
Power: 25W
Input: 8000 Ohm
Output: 4-8-16 Ohm
Low loss laminations 1.1W / kg - 0.35mm
BW 19-60.000 +/-1dB
BW 13-80.000 +/-3dB

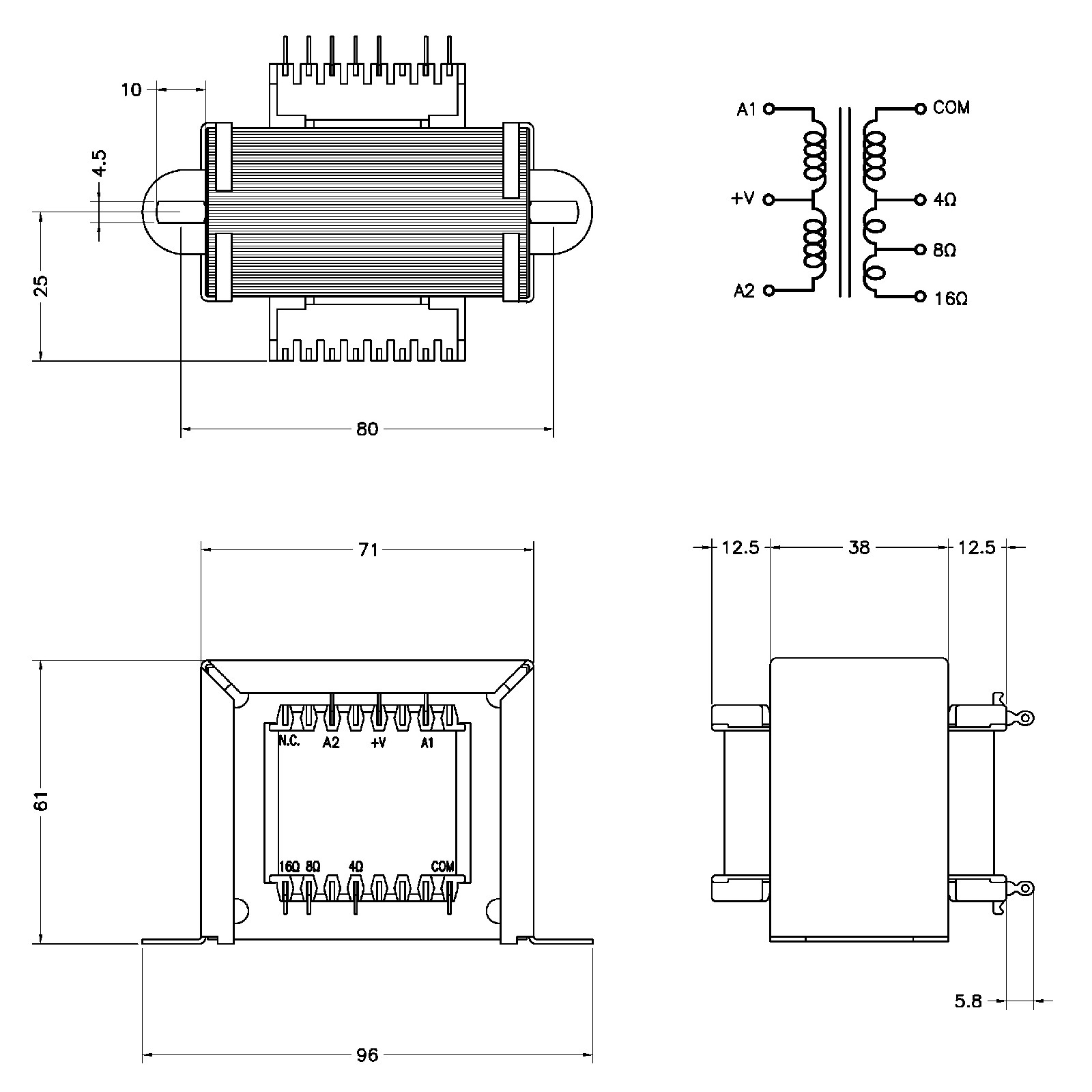

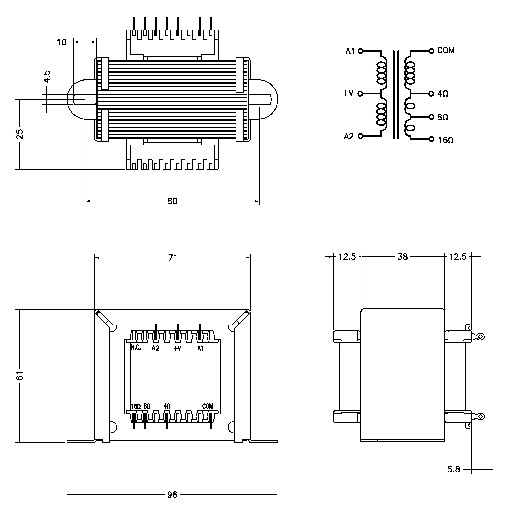

Dimensions and schematic: see picture
Weight: 1040 g.
Power: 25W
Input: 8000 Ohm
Output: 4-8-16 Ohm
Low loss laminations 1.1W / kg - 0.35mm
BW 19-60.000 +/-1dB
BW 13-80.000 +/-3dB
Dimensions and schematic: see picture
Weight: 1040 g.
